Smartxide2 PRODUCT SPECIFICATIONS

Models:  C40, C60 & C80

Laser Type:CO2 RF – PSD

Wavelength: 10.6 μm

Emission Beam: TEM00

Emission Modes: C40 CW – SP – DP – HP; C60 & C80 CW – SP – DP – HP – UP

CW Power: C40 From 0.5 to 40 W; C60 From 0.5 to 60 W; C80 From 0.5 to 70 W

SP Power: C40 From 0.1 to 12 W; C60 From 0.1 to 15 W; C80 From 0.1 to 15 W

DP Power: C40 From 0.2 to 12 W; C60 From 0.2 to 15 W; C80 From 0.2 to 15 W

HP Power: C40 From 0.1 to 4 W; C60 From 0.1 to 8 W; C80 From 0.1 to 15 W

UP Power: C40 N/A; C60 From 0.5 to 60 W; C80 From 0.5 to 80 W

Emission Time: From 0.01 to 0.9 s

Delay Emission Time: From 0.3 to 5 s

Beam Delivery: 7 Mirrors articulated arm with counterweight.

Aiming Beam: Laser diode @ 635 nm – 4 mW – Adjustable intensity from 2%

to 100% – Aiming light OFF or Diode Off While Lasing (DOWL).

Internal Database: About 150 factory stored protocols, upgradable by USB.

Possibility of storing an unlimited number of custom

users protocols.

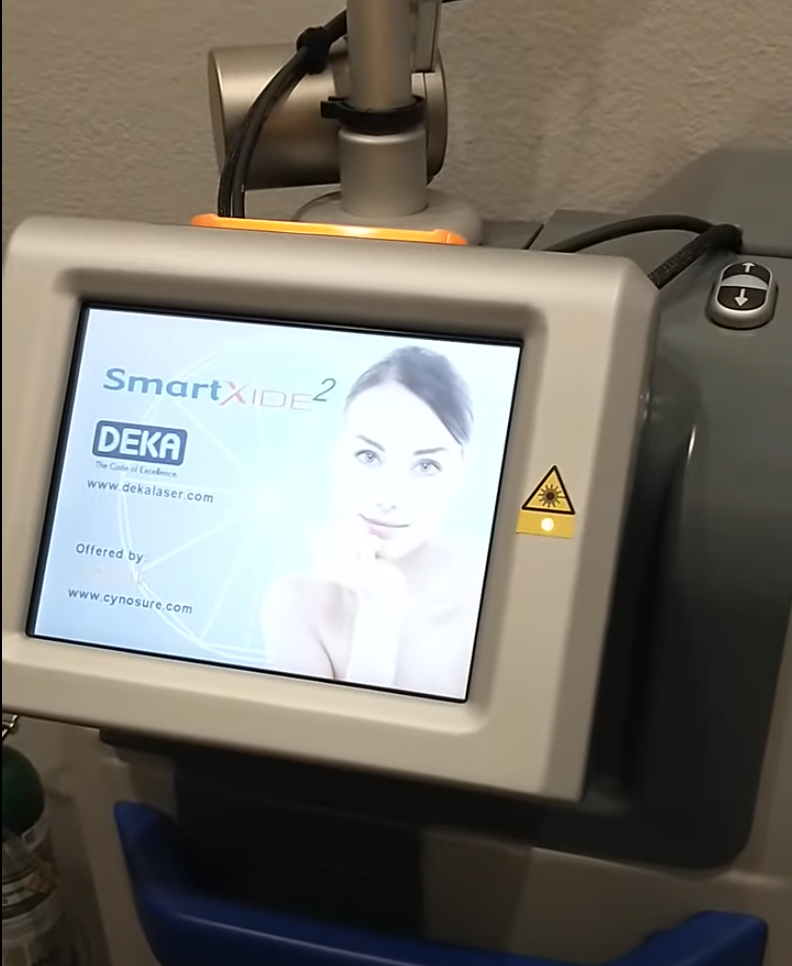

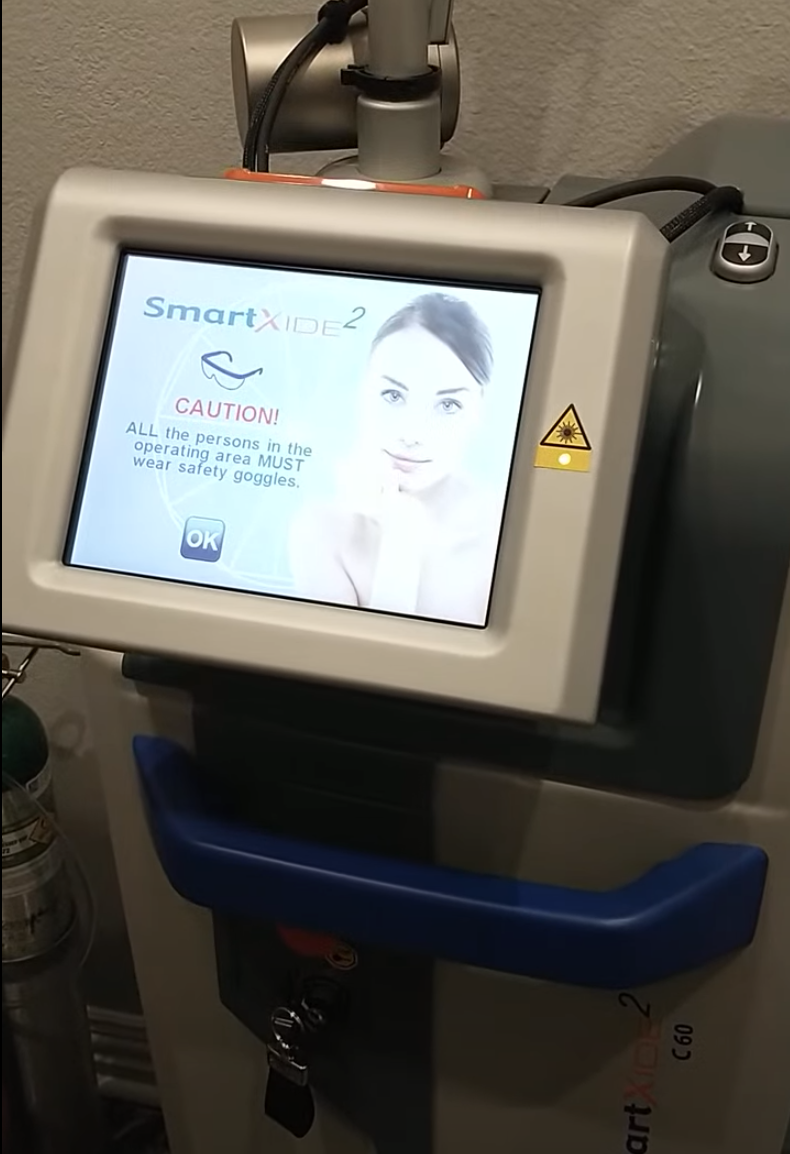

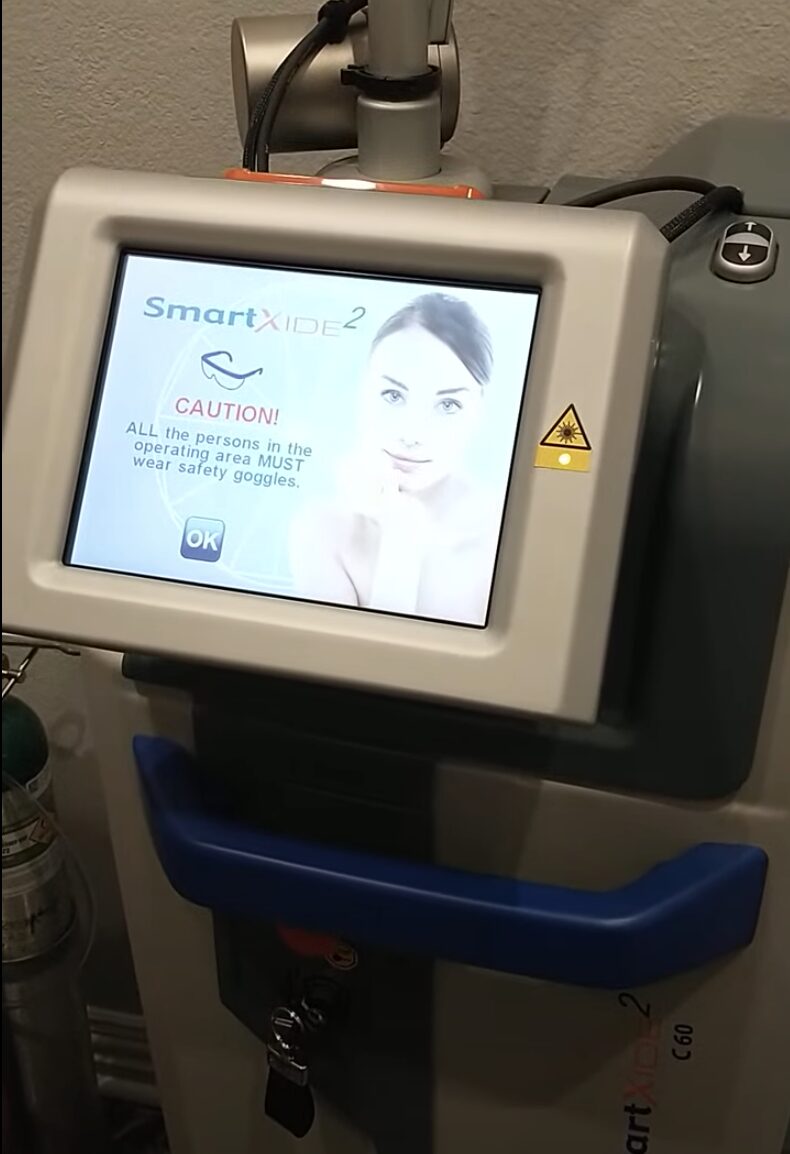

Control Panel: Wide LCD Colour Touch Screen (10.4)

Accessories*: HiScan V2LR Scanner System. Wide range of surgical handpieces.

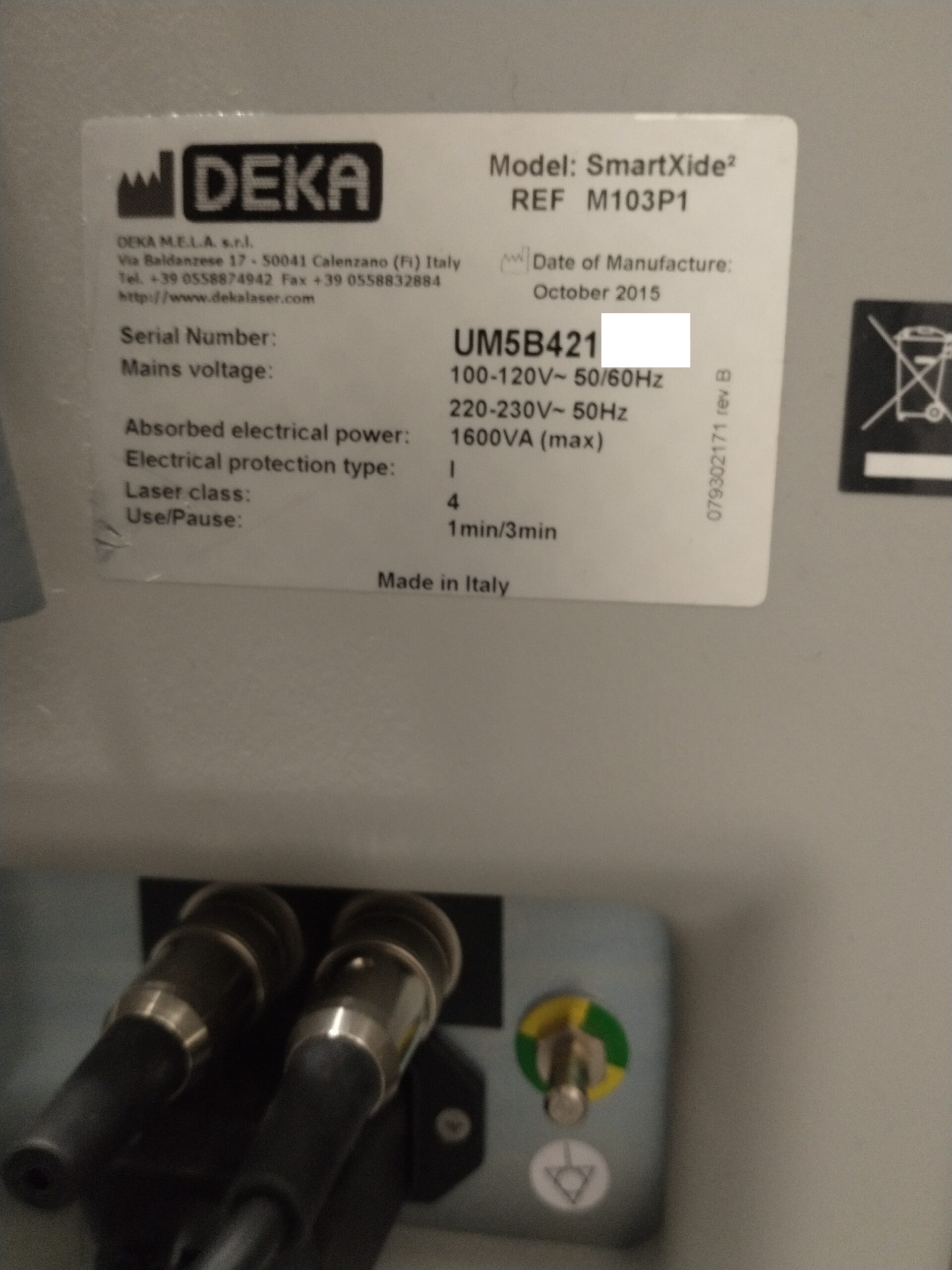

Electrical Requirements:From 100 to 120 Vac – 50/60 Hz

From 220 to 230 Vac – 50 Hz – 1,600 VA

Dimensions** and Weight: 63.8 (H) x 23.2 (W) x 22.0 (D) – 267 lb, **Height with folded articulated arm.

HiScan V2LR Scanner System

Max Scanning Area Square:8 x 8 mm (for single-angle and vulvar probes)

Dwell Time: From 100 to 2,000 μs

DOT Spacing: From 0 to 2,000 μm

SmartStack Level: From 1 to 5

Scanning Methods: Normal, Interlaced, SmartTrack.

Emission Modes:SP – DP – HP (not available for C40 Model)

Accessories: Vaginal Probes: 360° full-angle, 90° single-angle closed (optional), 90° single-angle open (optional). Vulvar Probe.

Smartxide2 MANUFACTURER NOTES

Indicated Uses:

• ATROPHIC VAGINITIS
• VAGINAL LAXITY
• STRESS URINARY
• INCONTINENCE
• POSTPARTUM PERINEAL TRAUMA
• GENITAL FUNCTIONAL & COSMETIC LASER SURGERY

V2LR (Vulvo-Vaginal Laser Reshaping)

V2LR CONFIGURATION OF SMARTXIDE2: A MINIMALLY INVASIVE TECHNOLOGY THAT ENHANCES QUALITY OF LIFE

SmartXide2, with V2LR configuration, offers the latest breakthrough laser treatment for vulvo-vaginal problems (MonaLisa Touch®) and cosmetic/ functional female genital surgery. Thes safe and minimally invasive procedures present a new alternative to: pharmacological therapy for post-menopause or postpartum atrophy of genital mucosa; surgical treatment of vaginal laxity; pharmacological analgesic therapy for dyspareunia due to postpartum perineal trauma; annoying or invasive treatments for urinary incontinence; traditional plastic surgery for correction of vulvo-vaginal morphological alterations due to hereditary factors, pregnancy, or natural aging.

To perform these innovative procedures, DEKA has designed a new radiofrequency CO2 laser, with the exclusive PSD® (Pulse Shape Design) technology that generates pulses specifically developed for V2LR applications (D-Pulse or DEKA-Pulse), together with proprietary HiScan V2LR scanning system.

DEKA – new and exclusive scanning system, specifically designed for V2LR. Different probes (intra-vaginal 360° and single-angle probes; vulvar probe) are available for specific treatments and conditions.

VAGINAL ATROPHY: CHANGES THAT AFFECT QUALITY OF LIFE

Menopause, whether natural or induced, determines a range of changes, involving virtually all organs and systems of a womans body. The end of estrogen production by the ovaries is linked to the onset of disorders resulting from the urogenital atrophy such as dryness, dyspareunia, vaginal irritation with itching and burning, vaginal laxity, and stress urinary incontinence. Studies show that symptoms caused by the atrophic vaginitis are present in 50% of post-menopausal women, determining adverse effects on their overall well-being and, in many cases, their sexual life.

During menopause, the fibroblasts sited in the vaginal mucosa, reduce their own activity and cannot produce the proper amount of collagen and molecules required to maintain an adequate ground matrix structure that is necessary to preserve correct connective tissue hydration. The mucosa becomes dry, less nourished and therefore fragile and prone to infection due to the higher pH, setting up the environment to the colonization of pathogenic microorganisms.

PREVENTION AND CURE WITH MONALISA TOUCH: ANOTHER STEP FORWARD WOMENS WELL-BEING

Since the introduction of fractional CO2 laser technology, DEKA V2LR the procedure has given a new boost to the development of genital mucosa treatments.

The Missing Solution to Postpartum Intimate Problems

Postpartum sexuality is an important aspect of womens health. Many women commonly experience postpartum sexual problems such as Dyspareunia due to lactational atrophic vaginitis or following perineal trauma. Consequently, painful sexual intercourse is the most common sexual problem for puerperae and represents both a physical and psychological problem for many women and their partners. In these situations, an early and sensitive management is crucial in preventing long-term problems.
Today, thanks to the capabilities of MonaLisa Touch® to stimulate tissue
regeneration, it is now possible to resolve these situations delicately
and safely. The treatment acts gently by stimulating collagen production,
improving the functionality of the treated area and restoring the proper
trophic balance of the mucous membranes.

Non Surgical Tightening for Vaginal Laxity
Stretching of the vagina and introitus can occur from vaginal delivery or to be
part of natural ageing process. Vaginal laxity may be a bothersome condition
to patients that may impact on happiness and sexual function. Thanks to
the effective action of the D-Pulse, MonaLisa Touch® improves and replaces
also the most common techniques for treating vaginal relaxation due to a
loss of tone of vaginal mucosa. When inserted in the vagina by using the
special probe of the HiScan V2LR scanning system, the laser acts directly
on the mucosa of the walls, tightening, reshaping, toning and stimulating tissue and regenerating collagen.

Stress Urinary Incontinence
Recent studies show that MonaLisa Touch® is largely effective in treating
one of the most embarrassing symptoms that seriously affect many women
after childbirth or in menopause: mild urinary incontinence. The beneficial
stimulation of vaginal tissues, due to the DEKA-pulse CO2 laser emission,
re-establish the proper functionality of urogenital involved structures. This
allows restoration of correct urinary continence, with a dramatic positive
improvement in the quality of life, both physically and psychologically.

VULVO-VAGINAL V2LR COSMETIC AND FUNCTIONAL SURGERY:
UNMATCHED TECHNIQUE AND PERFORMANCE

Reduction labiaplasty, vaginal reshaping or clitoral unhooding performed
with SmartXide2 offers better results and safer procedures than a scalpel.
In fact, laser coagulates, minimizes scarring and swelling, reduces the
patients post-op discomfort, and increases the firmness and elasticity of
the mucosa while stimulating collagen production.

D-PULSE: THE PERFECT PULSE FOR V2LR, UNIQUE, SAFE, MINIMALLY INVASIVE, PAINLESS AND EFFECTIVE

DEKA developed the SmartXide2 system capable of supplying energy with the dedicated pulse shape called D-Pulse or DEKA-Pulse, derived from dermatological experience, but taking into account the peculiarities of vaginal mucosa.

The D-Pulse consists of an initial part with constant and high peak power for rapid and painless
superficial removal of the epithelial component of atrophic mucosa characterized by low water content;
 a second variable part, with lower peak power and longer emission times, that allows the laser energy to penetrate in the mucosa and stimulate it properly in-depth. The result is the structural improvements needed to restore the trophism and full functionality of the supporting structures of the vaginal walls.

With MonaLisa Touch® the combined use of D-Pulse and DEKA fractional emission mode (DOT Therapy) guarantees effective and durable results and unrivalled advantages:

Safe

The DOT therapy laser energy is distributed in small spots (called DOTs) of 200 microns separated from each other by healthy tissue. This is important to achieve the right mechanisms of regeneration without side effects. Minimally Invasive. The D-Pulse structure allows the right penetration of the CO2 laser in the connective tissue. The penetration is beyond the epithelium for activation of the regeneration, without any risk to all the surrounding tissues and organs.

Painless

The MonaLisa Touch® procedure is absolutely painless inside the vagina (no anaesthesia) and well tolerated on vulva. The treatment takes only a few minutes of application to get an important and deep stimulation. Unique. MonaLisa Touch® is a trademark of DEKA. The first and only laser procedure to be used for reducing vaginal atrophy and laxity.

Effective

MonaLisa Touch® is the sole procedure demonstrated not only with clinical results, but also by histological and ultrastructural detailed studies.

MONALISA TOUCH ®: SPECIAL PROBES FOR A SPECIAL PROCEDURE

MonaLisa Touch® requires a special scanner system to deliver the fractioned laser energy requires a special scanner system to deliver the fractioned laser energy on the vaginal mucosa. A wide range of autoclavable probes is available to perform the procedure depending on the specific patient needs: full-angle probe, useful even for the most atrophic vaginas. The CO2 laser DOTs are distributed in a 360° angle frame thanks to the exclusive pyramidal-mirror assembly; single-angle probes for urinary incontinence. In choosing from among different shapes and sections make it suitable for treatment of various introitus of vaginas; vulvar probe for DOT Therapy of external genitalia.
