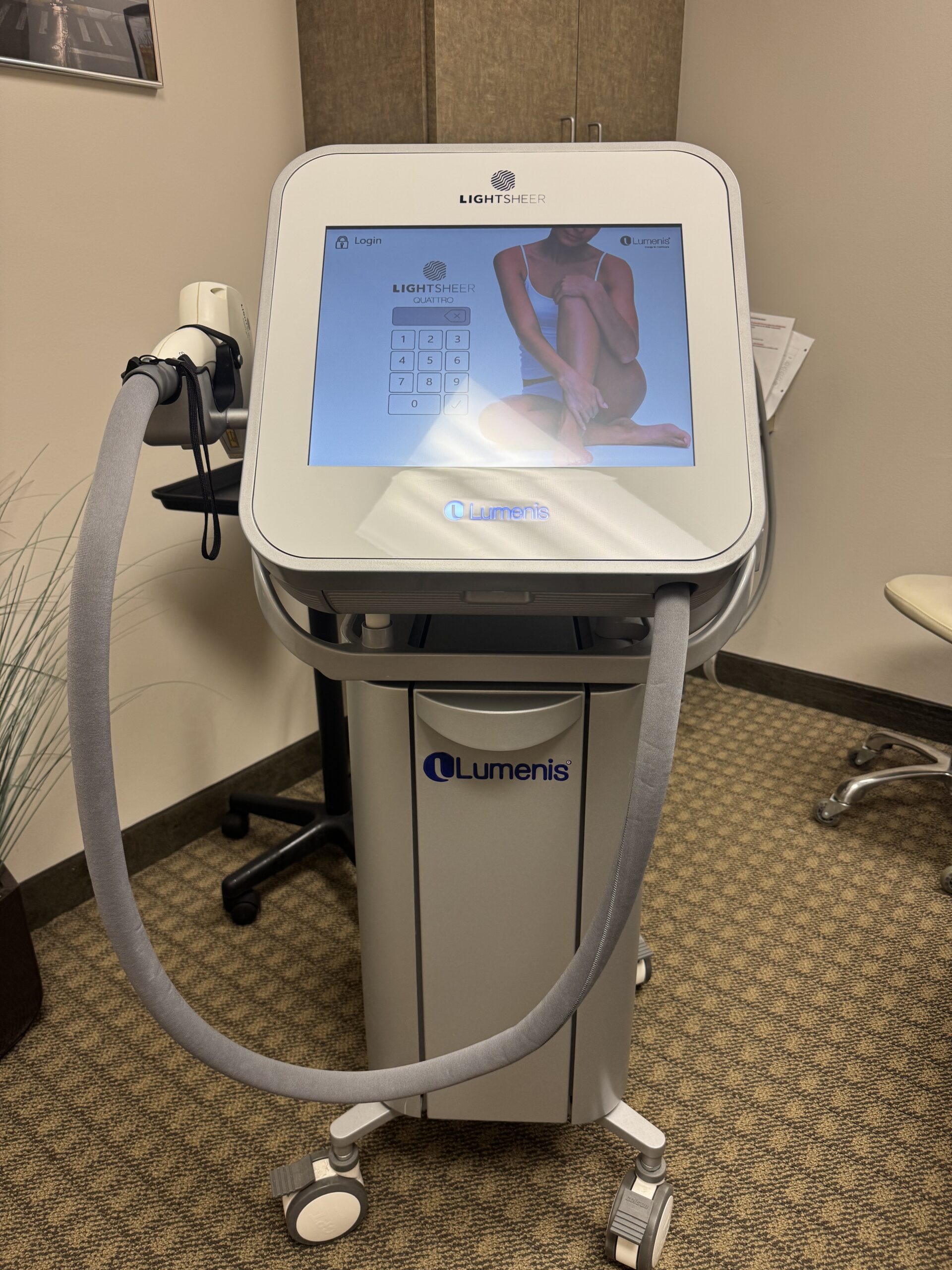

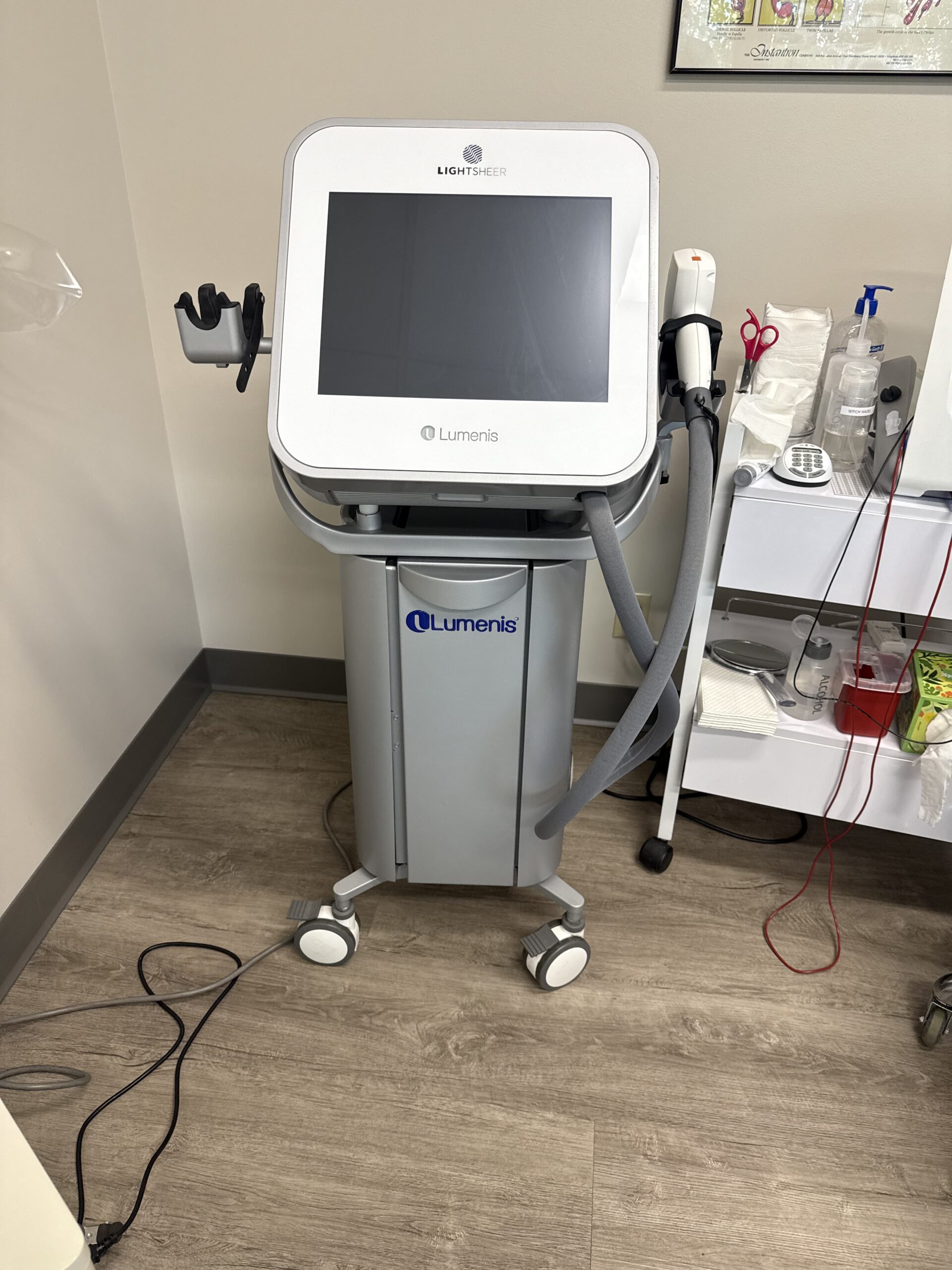

Platform General System Information

The information below reflects general manufacturer specifications for Lumenis Lightsheer Quattro platforms. Included handpieces and configuration may vary with each specific unit.

Browse our Diode Laser Hair Removal Devices.

Lightsheer Quattro PRODUCT SPECIFICATIONS

HS 22 X 35 mm Handpiece

Laser Type: AIGaAs Diode Arrays

Wavelength: 805 nm & 1060 nm

Repetition Rate: Up to 3 Hz

Pulse Repetition: 1-3 pulses

Fluence: 805 nm: 4.5-12 J/cm2; 1060 nm: 4.5-14 J/cm2

Pulse Width: 30-400

Peak Power: 2310 W

Preset Parameters: Yes

Comfort Management: Vacuum-assisted (up to18 inHg)

XC 12 X 12 mm Handpiece

Laser Type: AIGaAs Diode Arrays

Wavelength: 805 nm

Repetition Rate: Up to 3 Hz

Pulse Repetition: 1 pulse

Fluence: 10-40 J/cm2

Pulse Width: 5-400 ms

Peak Power: 2200 W

Preset Parameters: Yes

Comfort Management: Chilltip contact cooling (2˚C)

ET 9 X 9 mm Handpiece

Laser Type: AIGaAs Diode Arrays

Wavelength: 805 nm

Repetition Rate: Up to 3 Hz

Pulse Repetition: 1 pulse

Fluence: 10-100 J/cm2

Pulse Width: 5-400 ms

Peak Power: 1620 W

Preset Parameters: Yes

Comfort Management: Chilltip contact cooling (2˚C)

Platform Specifications

Electrical 100-240 VAC +/-10%, 10 A | 50/60 Hz. | Single-phase grounded outlet

Weight The console weight is: 36 kg (79.4 lbs.)

Dimensions (WxDxH) 51 x 60 x 42 cm; (20.1 x 23.6 x 16.55 in)

Lightsheer Quattro MANUFACTURER NOTES

Laser Hair Removal Device for All Skin Types

LightSheer^® QUATTRO™ is a diode laser workstation that is a perfect fit for any practice. Powered by two advanced technologies and featuring 805nm and 1060nm wavelengths, LightSheer QUATTRO can treat all hair types and skin tones.

Treat Any Skin Type – including dark and tanned skin, with the 805nm and 1060nm wavelengths.

Upgradeable and scalable – enabling you to expand your practice offering.

Portable with a compact footprint – to fit every practice.

Treatment versatility – Hair removal, wrinkle reduction, benign pigmented & vascular lesions

Lightsheer Quattro Indications for use:

Treatment of benign vascular lesions, including angiomas, hemangiomas, telangiectasia, and other benign vascular lesions and leg veins.

Hair removal, permanent hair reduction*, and the treatment for Pseudofolliculitis Barbae (PFB).

Treatment of benign pigmented lesions.

Treatment of wrinkles (for 1060nm handpieces only).

Use on all skin types (Fitzpatrick skin type I-VI), including tanned skin.

HS (High Speed) Handpiece – 22 x 35 mm Spot Size

Offers a unique pain reduction mechanism and works without gel.
Ideal for treating larger body areas, quickly and comfortably.

Efficacy – drawing skin into the handpiece reduces competing chromophores and pulls the target closer to the laser source which delivers energy efficiently.

Safety – Lower fluence is required per pulse.

Decreased pain – Unique vacuum mechanism reduces pain during treatment.Treatment time^1,2 Rapid coverage rate without gel or anesthesia.

Chill Tip Integrated Contact Cooling Technology – XC & ET

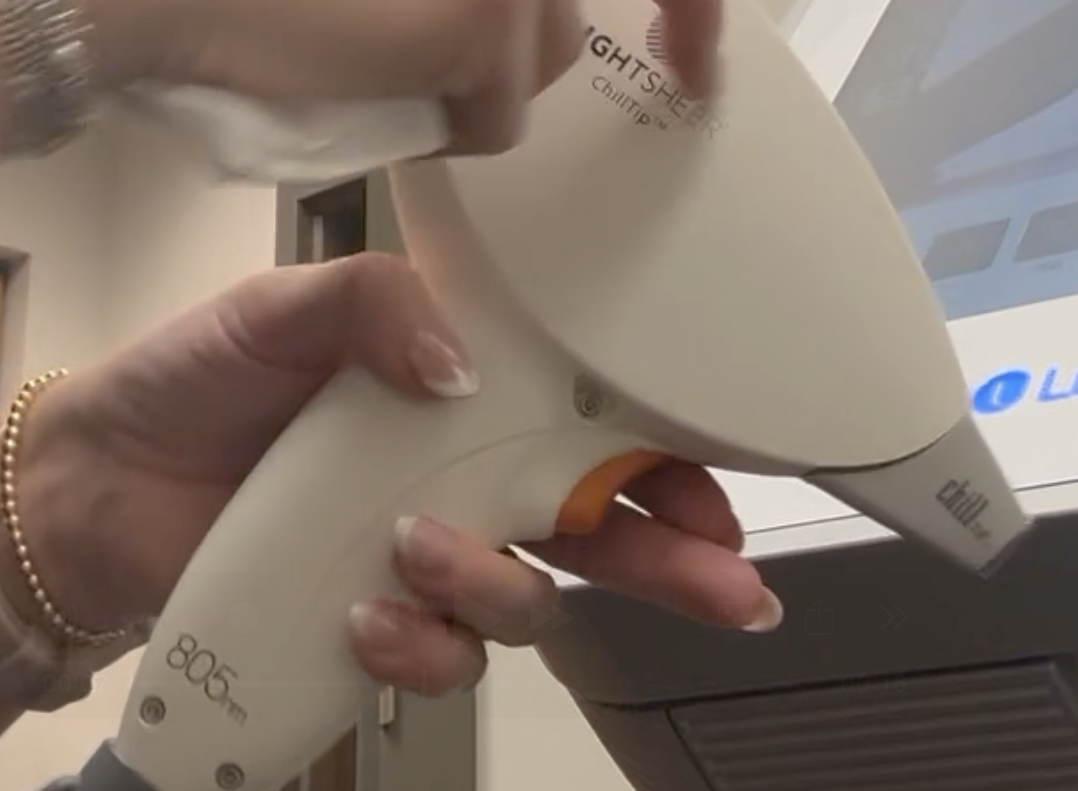

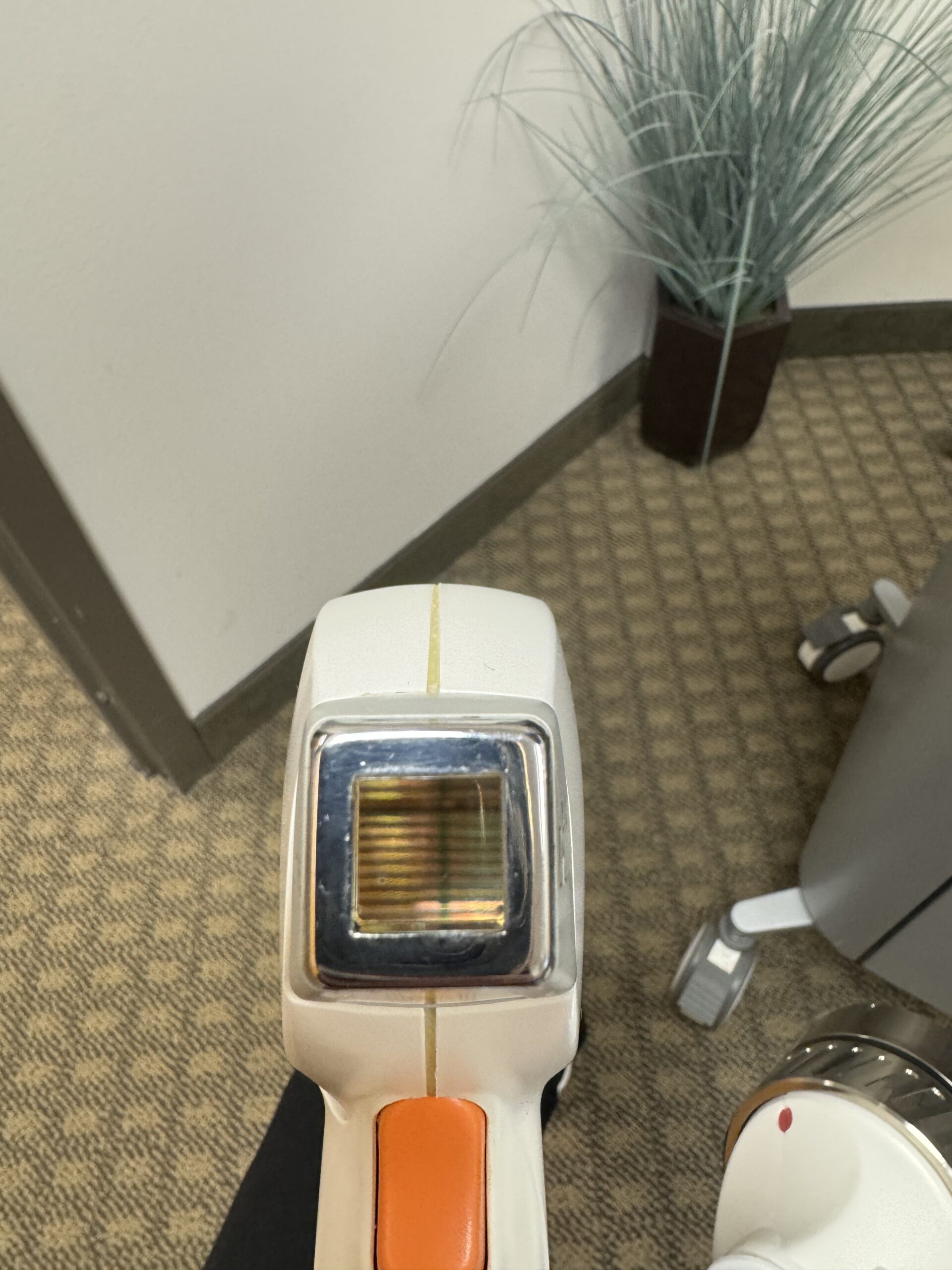

XC Handpiece – 12 x1 2 mm Spot Size

Providing a solution for both large and small areas requiring higher fluence levels.

Efficacy – Compression of the skin reduces competing chromophores

Safety – Epidermal protection through continuous sapphire contact cooling

Patient comfort – Continuously cooling significantly increases comfort.

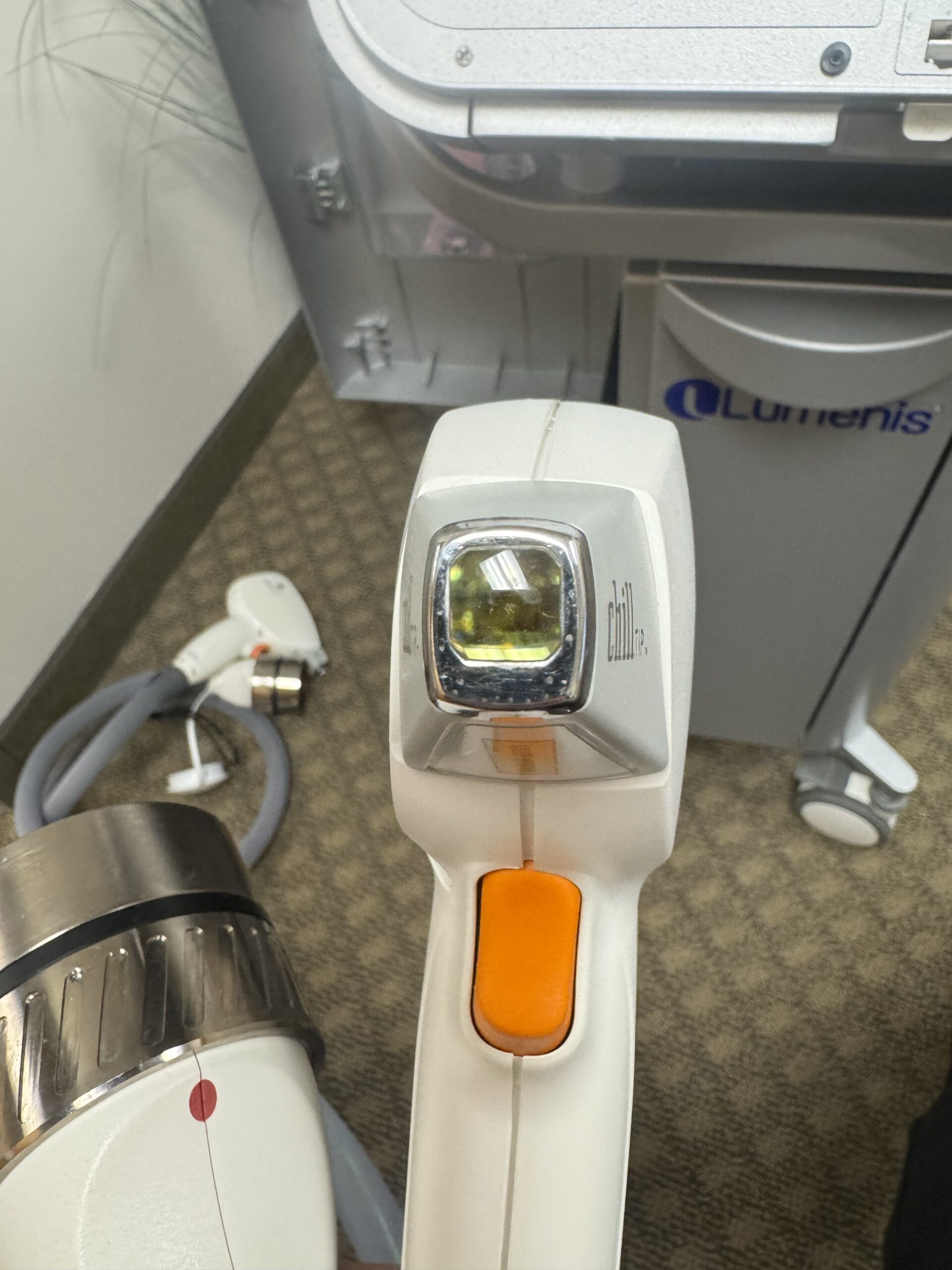

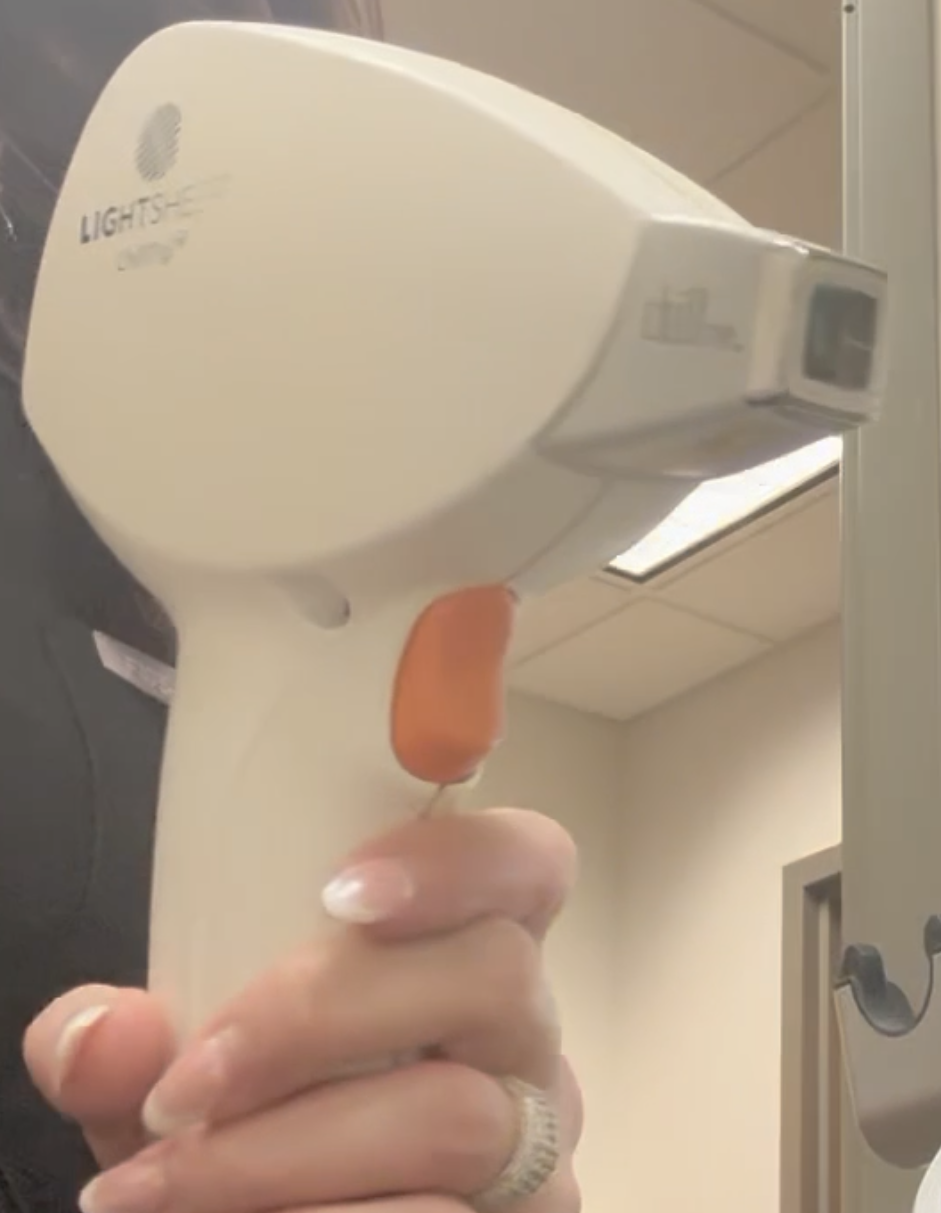

ET HANDPIECE – 9 x 9 mm Spot Size

Designed to treat small areas that require maximum precision.

Efficacy – Compression of the skin reduces competing chromophores

Safety – Epidermal protection through continuous sapphire contact cooling

Patient comfort – Continuously cooling significantly increases comfort.

Permanent hair reduction is defined as the long-term, stable reduction in the number of hairs re-growing when measured at 6, 9 and 12 months after the completion of a treatment regime.

Lumenis LightSheer Quattro Frequently Asked Questions

What is the Lumenis LightSheer Quattro used for?

The Lumenis LightSheer Quattro is primarily used for professional diode laser hair removal. It can treat various body areas and skin types.

How does the LightSheer Quattro remove hair?

The system uses diode laser energy to target melanin in the hair follicle. This helps reduce hair growth over a series of treatments.

Can the LightSheer Quattro treat all skin types?

Yes, the LightSheer Quattro is designed to provide hair removal for a wide range of skin types. Treatment settings should match each patient’s skin and hair characteristics.

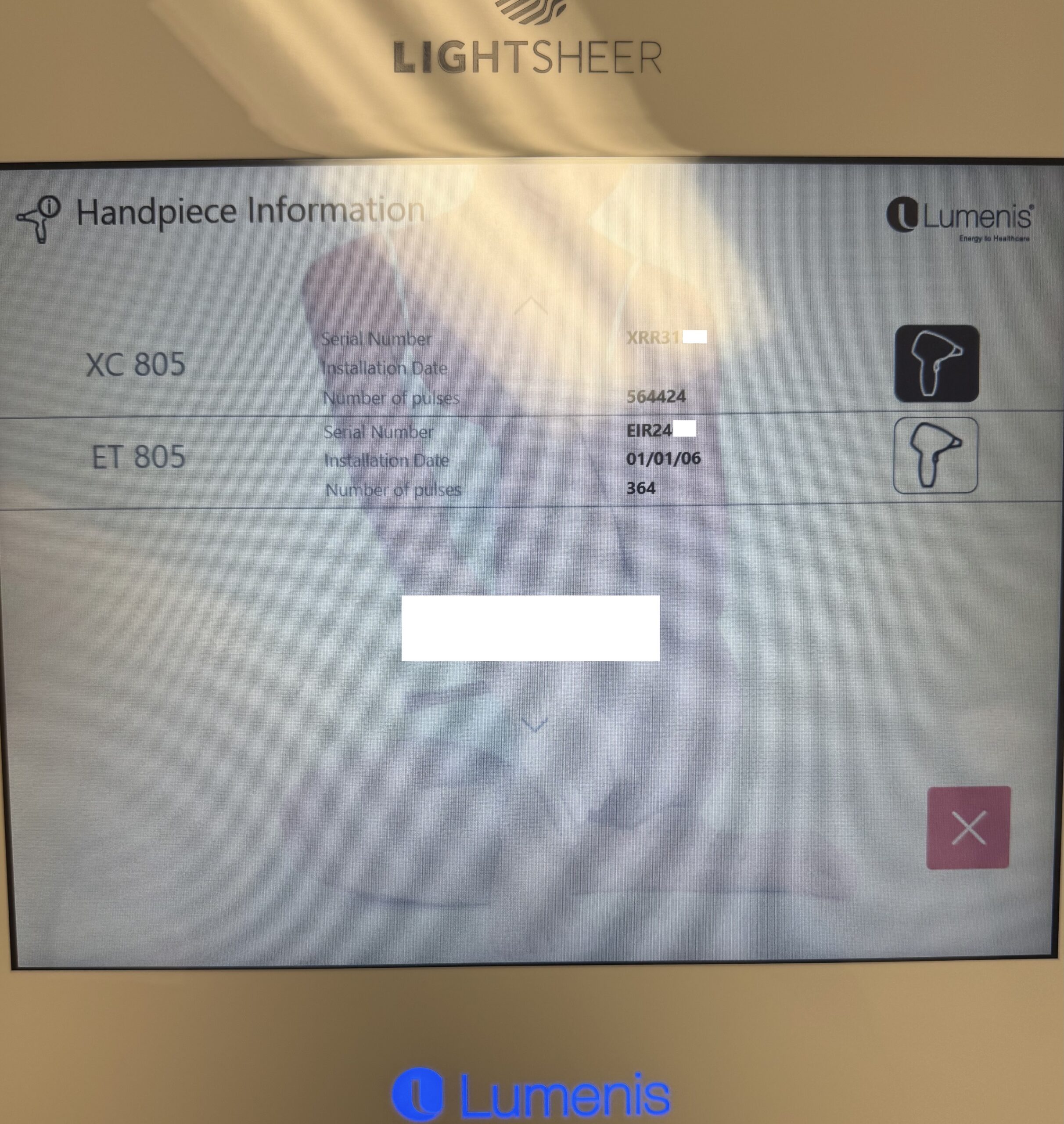

What handpieces are available for the LightSheer Quattro?

The LightSheer Quattro can use different handpieces for various treatment areas. Handpiece options include ChillTip and High Speed configurations.
