PRODUCT SPECIFICATIONS

Laser: Q-Switched Nd Yag and Q-Switched Ruby

Wavelength: 1064nm, 532nm, and 694nm

Pulse Width: 1064nm = 6ns, 532nm = 6ns, 694nm = 30ns

Repetition Rate: 1064nm = up to 10 Hz, 532nm = up to 10 Hz, 694nm = up to 3 Hz

Spot Size: 1064nm = up to 5x5mm, 532nm = up to 5x5mm, 694nm = up to 5x5mm

Max Fluence: 1064nm = up to 22 J/cm2, 532nm = up to 11 J/cm2, 694nm = up to 25 J/cm2

Electrical Requirements: 230 VAC; 16 A; 50/60 Hz

Dimensions: 400 (W) x 900 (D) x 930 (H) mm3

Weight: 90 Kg

MANUFACTURER NOTES

Q-Plus C: the highest powered 3-wavelength Q-Switched system.

The Q plus C laser delivers a high peak power laser beam in pulses that last a billionth of a second which target tattoo pigments and break the ink particles into smaller fragments. The small particles are then removed by your lymphatic system.

Tattoo Removal with True R0 Technique

The R0 technique is the procedure involving two laser passes on the same tattooed area without a lag time between them. This pause is about 20 minutes because it is the time necessary to the frosting to naturally disappear. The only existing way to perform the R0 technique has been so far through the direct application on the skin of Perfluorodecalin (PFD) to automatically dissolve frosting gas bubbles.

The simultaneous emission of Q-Switched laser sources is the key of success especially on recalcitrant color shades like dark blue and black.

Dermal Pigmentation

The treatment of dermal pigmentations has always taken great advantages of Nd:YAG 1064 nm in terms of safety because of its low melanin absorption and deep penetration into the skin. These characteristics make it necessary unfortunately to perform a great number of sessions, especially on Asian skins.

The addition of Ruby 694 nm, which penetrates less into the skin with a higher melanin absorption, makes it possible to remove deep melanosomes causing minimal post treatment inflammation. Q-Plus C – MT Option is thus the ideal ally in these treatments (like Melasma) permitting to reduce the number of sessions with maximum patient safety and efficacy.

Epidermal Pigmentation

The treatment of epidermal pigmentations takes great advantage of FD Nd:YAG 532 nm and Ruby 694 nm. The wavelength of 532 nm is extremely well absorbed by melanin but because of its great absorption by blood it is also considered too much aggressive when treating Asian and dark skins. For this reason it is important to keep its fluence during treatment at a sub-purpuric level with often incomplete results.

The wavelength of 694 nm has instead good absorption by melanin and minimal by blood. These treatments are perfect to maintain the purpura generation risk under control but its lower melanin absorption compared to 532 nm requires a higher fluence with a possible increase of inflammation and Post Inflammatory Hyperpigmentation (PIH).

ALL COLORS

The unique Nd:Yag 1064/532 nm and Ruby 694 nm Q-Switched combo system. Three wavelengths target efficiently all tattoo colours and pigmented lesions.

Green, red, blue and black pigments can be removed effectively and fastly, due to the high power, the big spot size and the high repetition rate.

The revolution in tattoo and benign pigmented lesion removal.

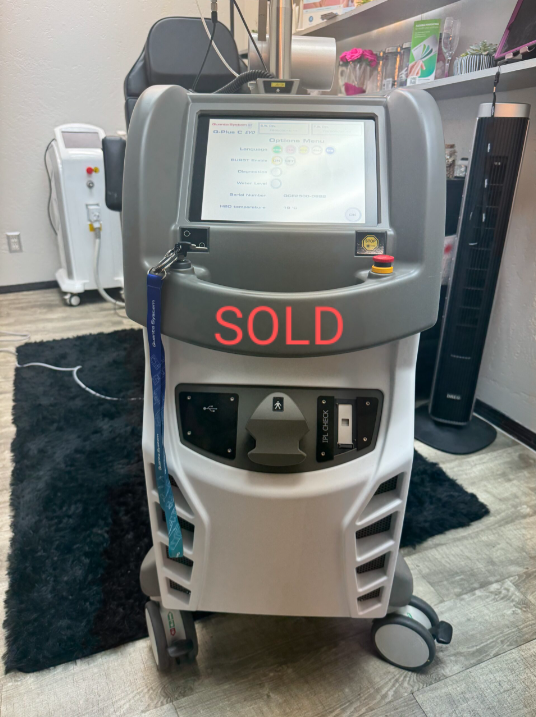

Q-PLUS C

The 1064/532 nm Nd:Yag is combined with a Ruby laser source all in one unit. Three Q-Switched wavelengths to enable removal of all types of tattoo colours and most of the benign pigmented lesions.

APPLICATIONS:

• Benign Pigmented Lesions

• Benign Cutaneous Lesions

• Removal of black, dark blu, brown, red, orange, violet, sky blu and green tattoo inks

• Scar Treatment

• Skin Rejuvenation

• Lightening of unwanted hairs

• Inflammatory Acne

• Dermatological foot conditions (skin and nail) treatment
