InMode Envision CONSUMABLES & RECERTIFICATION

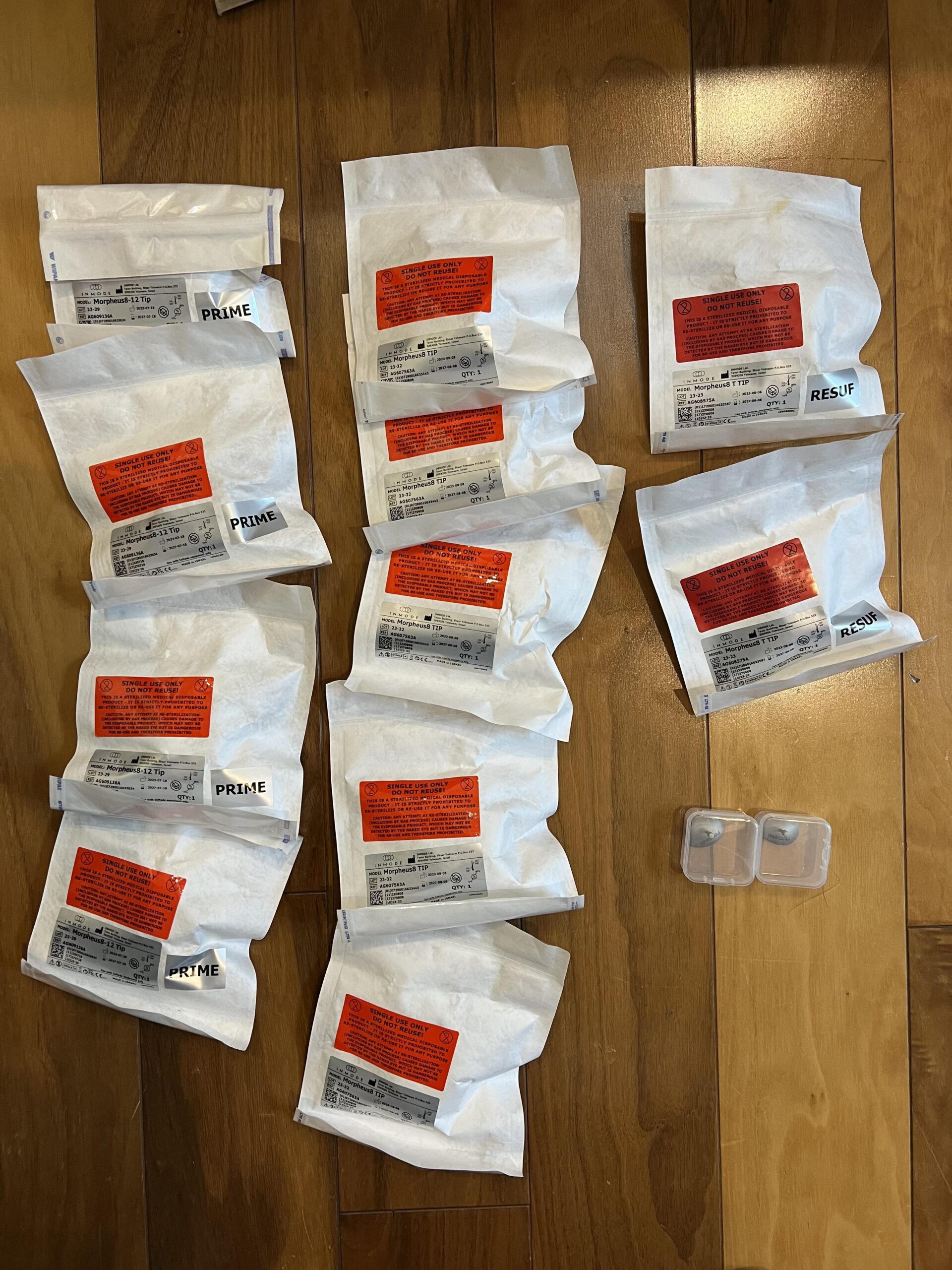

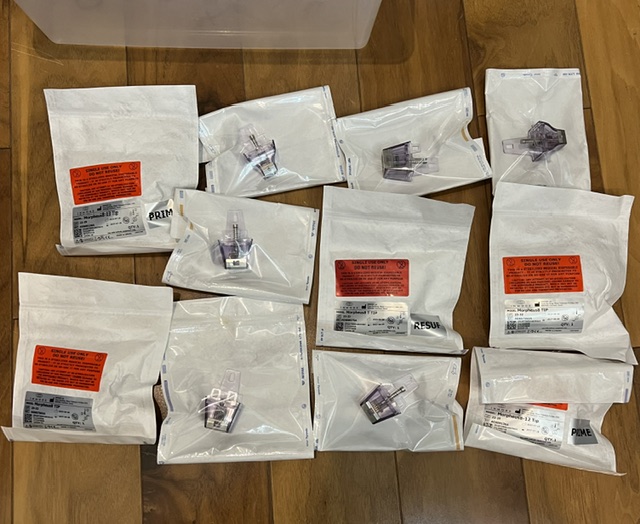

Does the InMode Envision require consumables?  Yes, Only for the Morpheus8 Handpiece.  However, we do not recommend that you pay the recertification fee.  Rock Bottom Lasers offers Morpheus8 Tips for Sale on our Website.

Recertification Fee: $45,000

InMode Envision PRODUCT SPECIFICATIONS

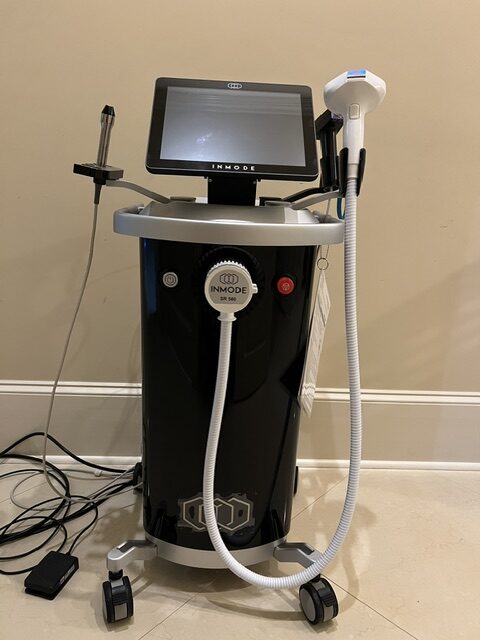

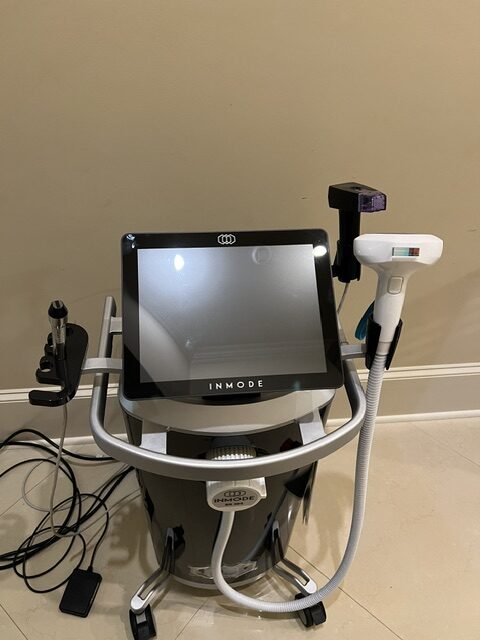

Console & Hardware Specifications

Dimensions: 22″ W x 18″ D x 45″ H

Weight: Approximately 120 lbs

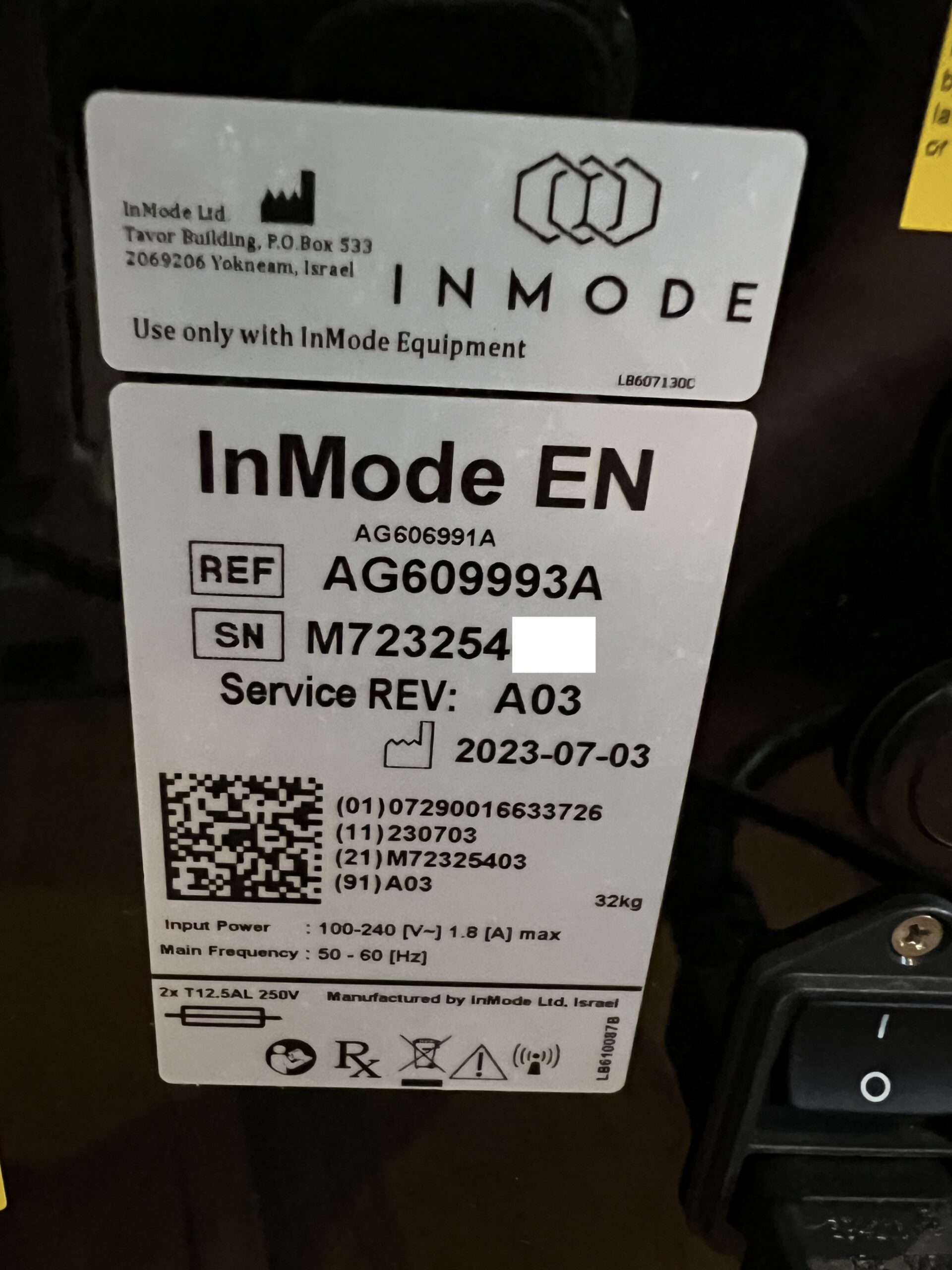

Power Requirements: 100–240 V AC, 50/60 Hz (Max 2A input current)

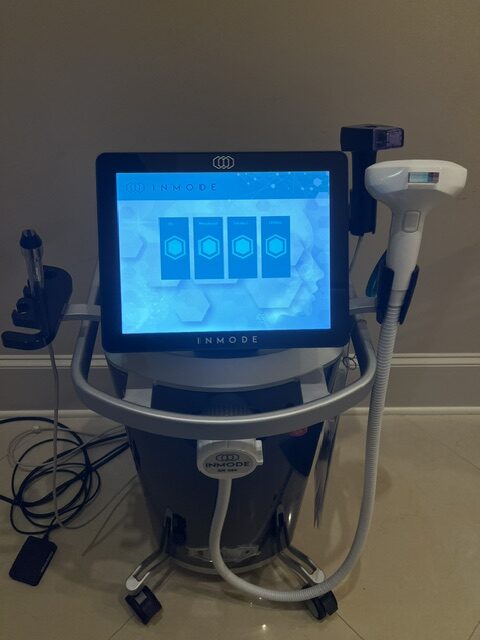

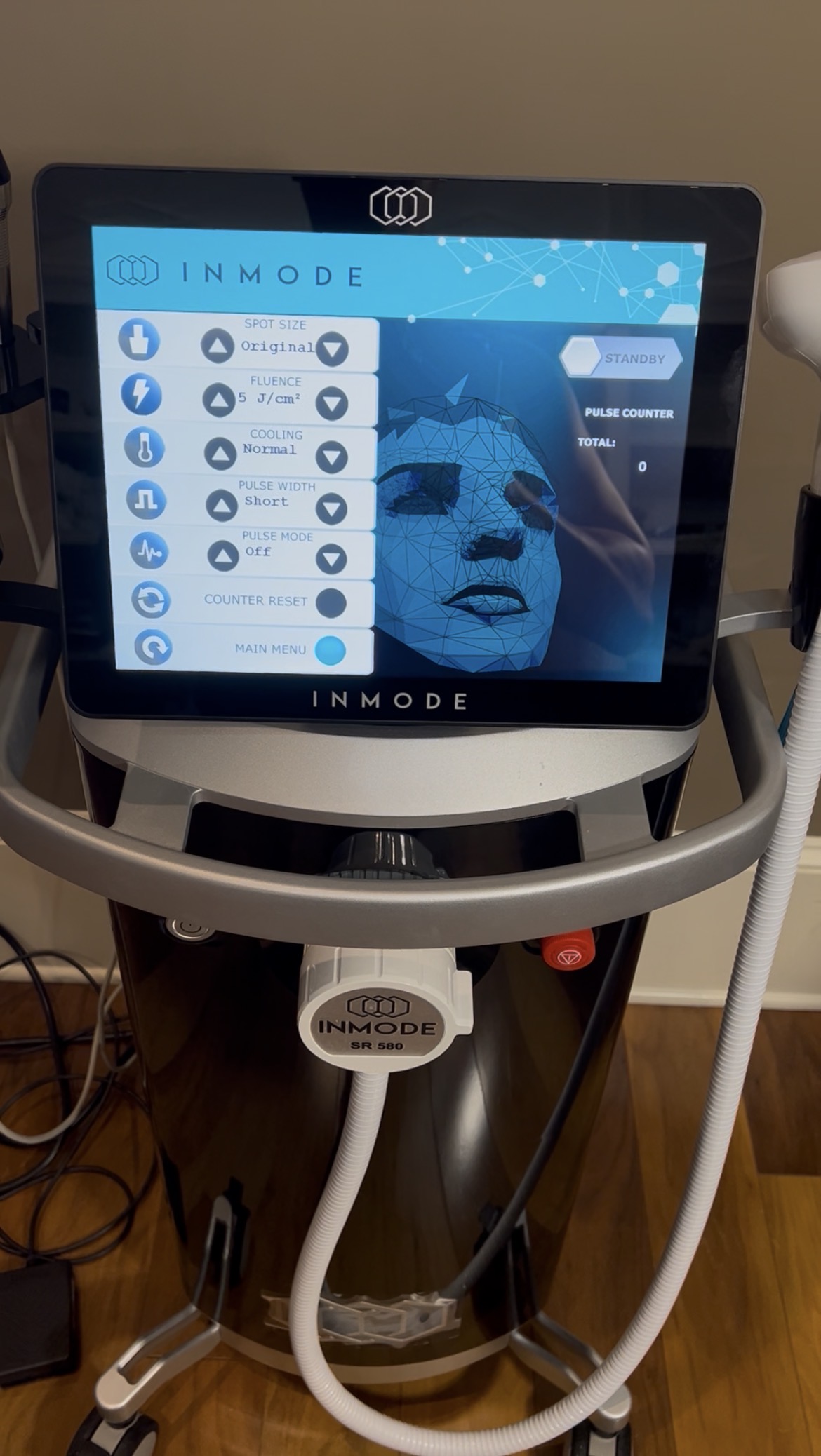

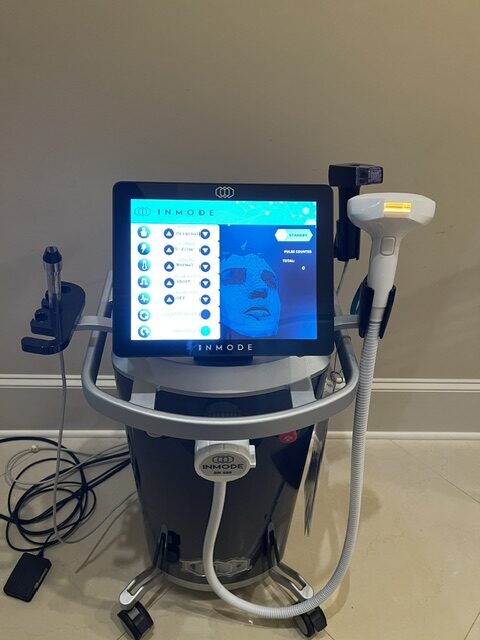

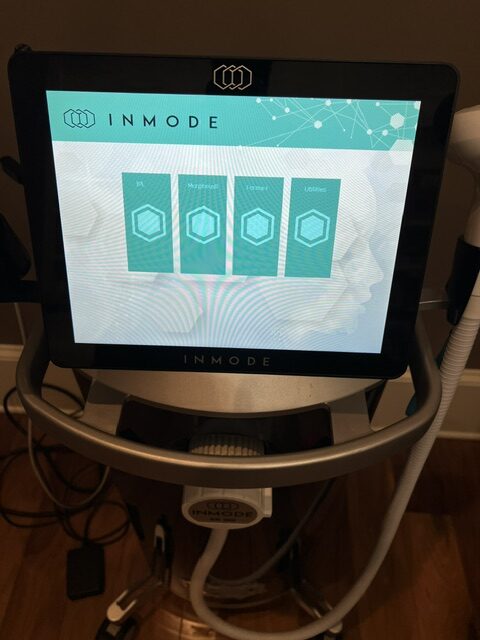

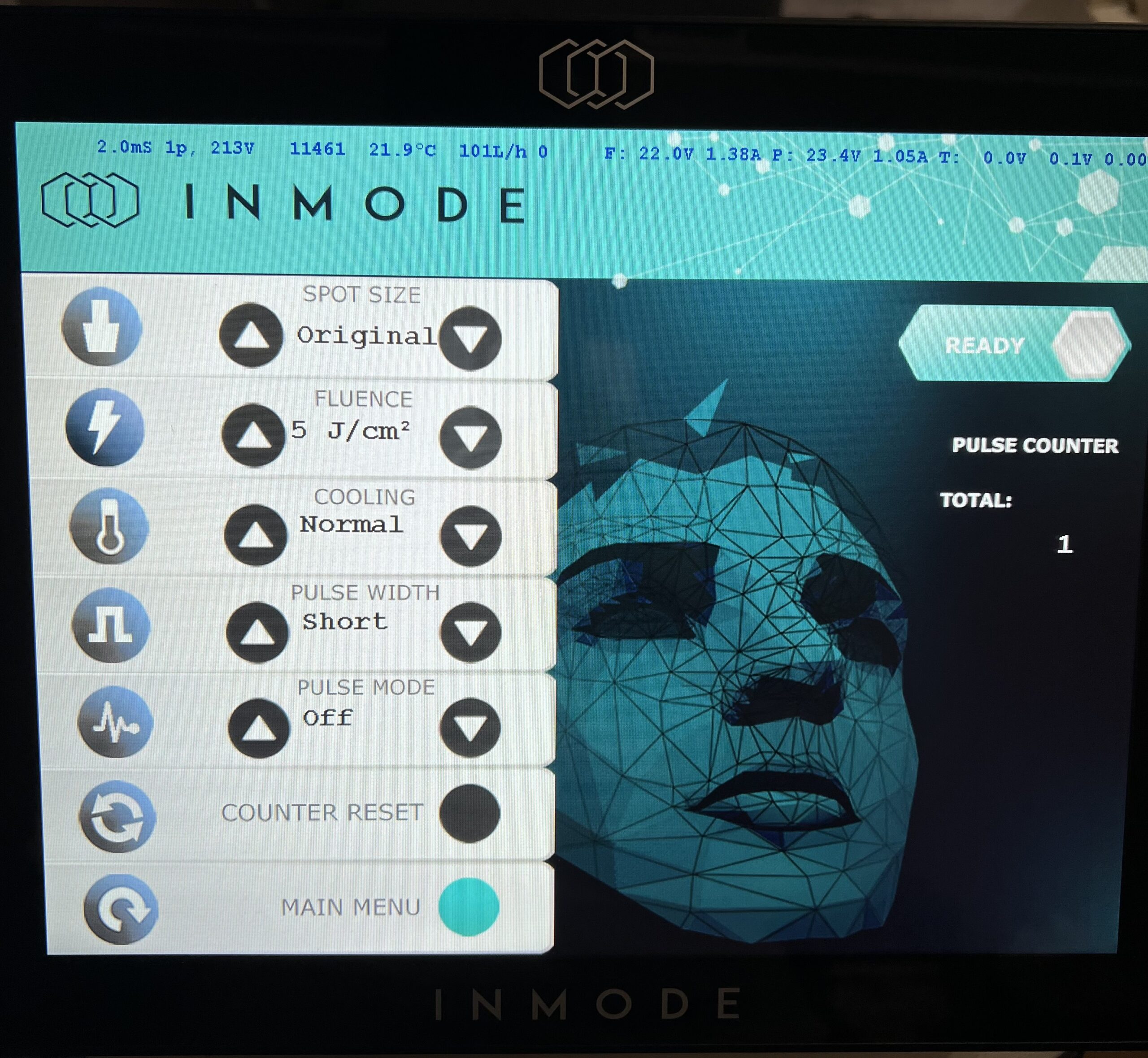

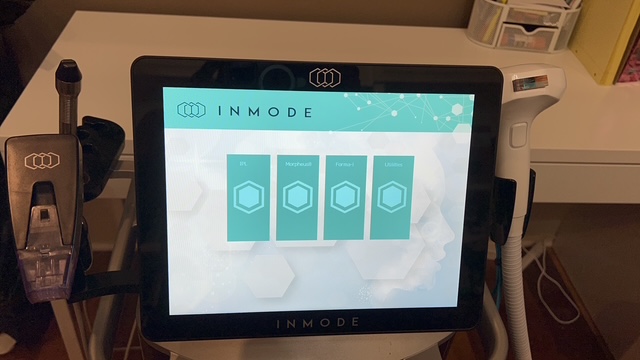

Interface: Color touchscreen display with customizable patient profiles

Handpieces Available ONLY for the InMode Envision

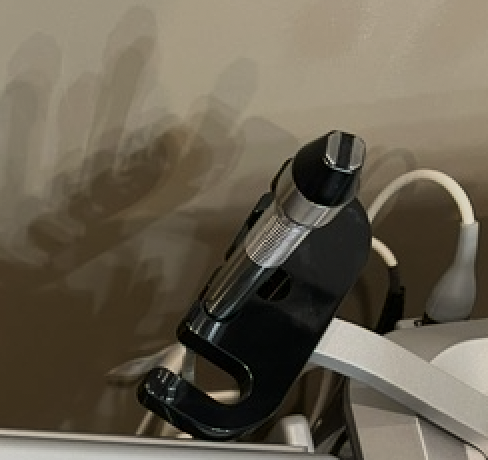

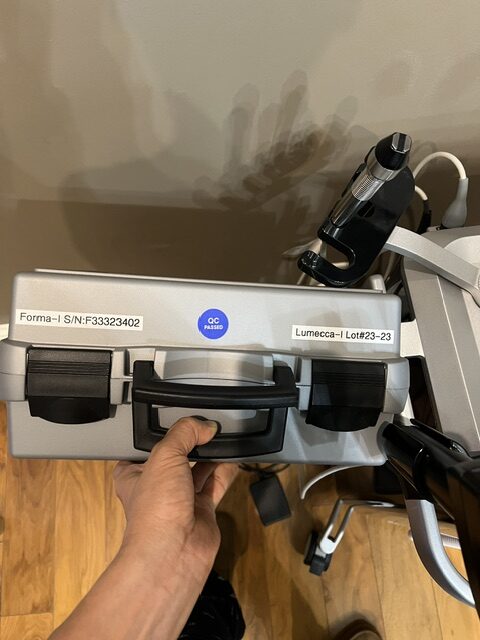

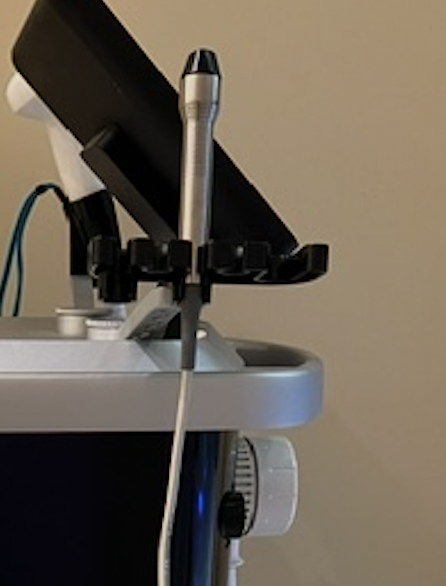

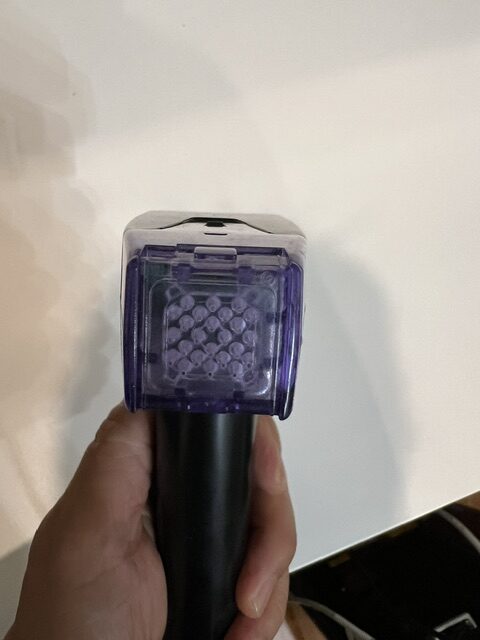

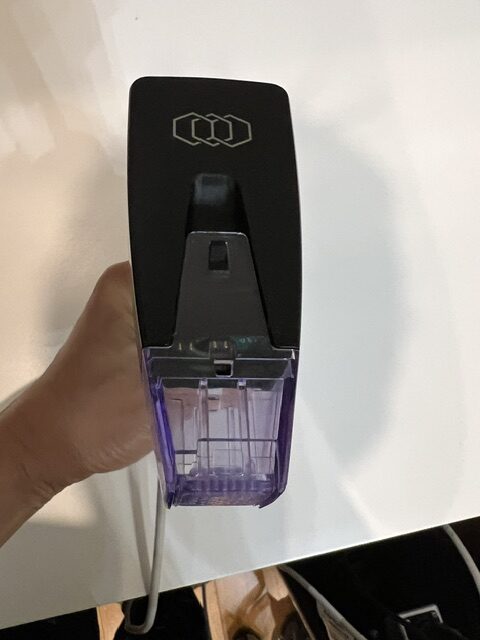

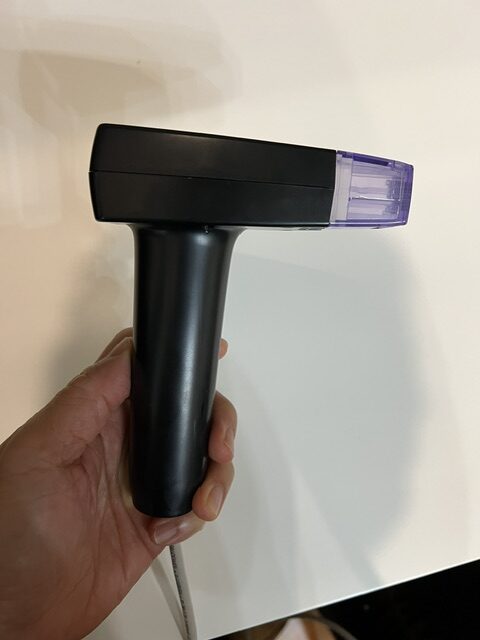

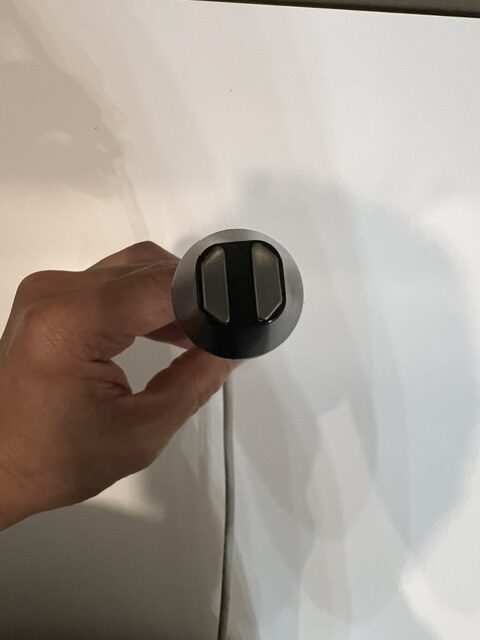

Forma-I (Bipolar Radiofrequency) Specs

Forma-I delivers thermal energy to the thin subdermal layers of the upper and lower eyelids to treat meibomian gland dysfunction (MGD).

Output Frequency: 1 MHz

Electrodes Configuration: 2 electrodes, each measuring 4mm x 12mm

Total Treatment Area: 144 mm²

Temperature Monitoring: Built-in sensor reads skin temperature 1,000 times per second.

Thermal Cut-Off: Operator-adjustable up to a maximum safety threshold of 43°C.

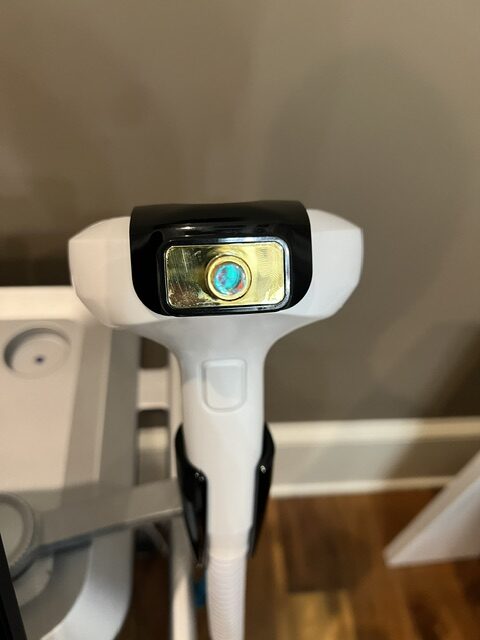

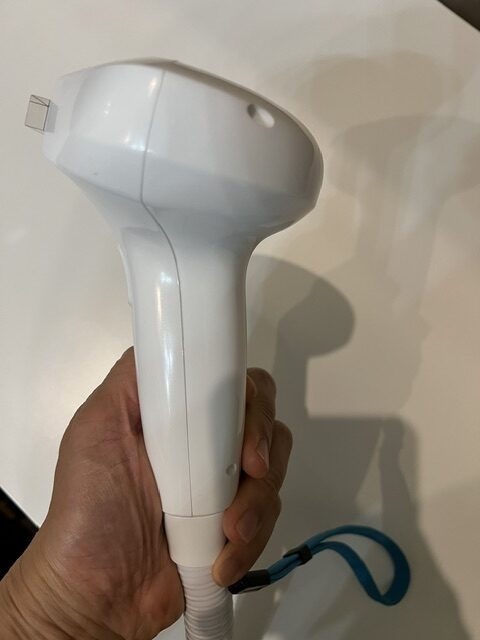

Lumecca-I Precision Adaptor Tip (Intense Pulsed Light) Specs

Lumecca-I is a precision adaptor tip that fits either on the Lumecca 515, or the Lumecca 580 handpieces.  It utilizes highly precise wavelengths to target facial redness, ocular rosacea, and bacterial buildup along the lid margins.

Wavelength Spectrum: 515 nm to 1200 nm (Standard SR 515) and 580 nm to 1200 nm (SR 580)

Pulse Duration: 1.5 to 15 milliseconds

Energy Fluence: 5 to 30 J/cm²

Spot Sizes: 30 mm x 10 mm main crystal guide (with an optional 8 mm precision reduction adapter for tight contours).

Repetition Rate: 1 pulse per second (pps)

Contact Cooling: Integrated light guide cooling adjustable between 15°C and 22°C.

Additional Handpieces Available for the InMode Envision

Forma (Face/Neck) Handpiece Specs

Unlike the tiny Forma-I (which features only 2 small electrodes for the eyelids), the standard Forma handpiece features a larger configuration built for bulk heating of the entire face, neck, and forehead.

Electrode Configuration: Sub-dermal heating via a multi-electrode, bi-polar matrix array.

Surface Area: Roughly 4 times larger treatment surface than the Forma-I.

Output Frequency: 1 MHz.

A.C.E. Technology: (Acquire, Control, Extend) software samples epidermal temperature 1,000 times per second.

Automatic Cut-Off: Automatically reduces or halts RF energy the millisecond the skin surface hits the pre-programmed operator target (typically 41°C to 43°C).

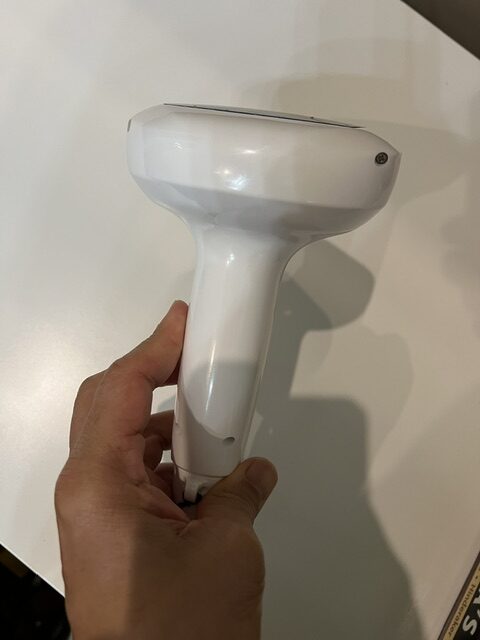

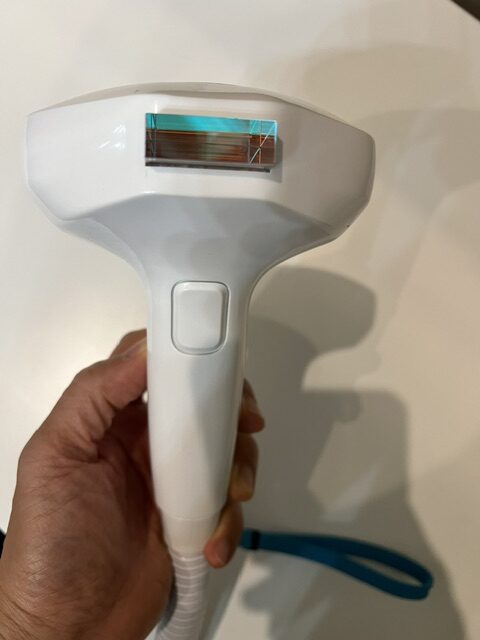

Lumecca 515 Handpiece Specs

Wavelength Spectrum: 515 nm to 1200 nm (delivering a high concentration of energy in the 500–600 nm range, which matches the absorption peaks of hemoglobin and melanin).

Spot Size: Large 30 mm x 10 mm sapphire crystal light guide (3 cm² total treatment area).

Energy Fluence: 5 to 30 J/cm² (delivered in high-peak power bursts up to three times stronger than traditional IPLs).

Pulse Duration: 1.5 to 15 milliseconds.

Pulse Repetition Rate: Up to 1 pulse per second (pps).

Integrated Cooling: Strong sapphire contact cooling adjustable between 15°C and 22°C to protect the epidermis.

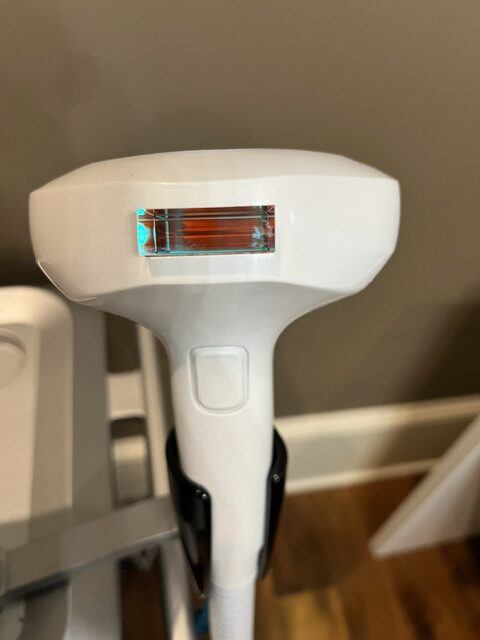

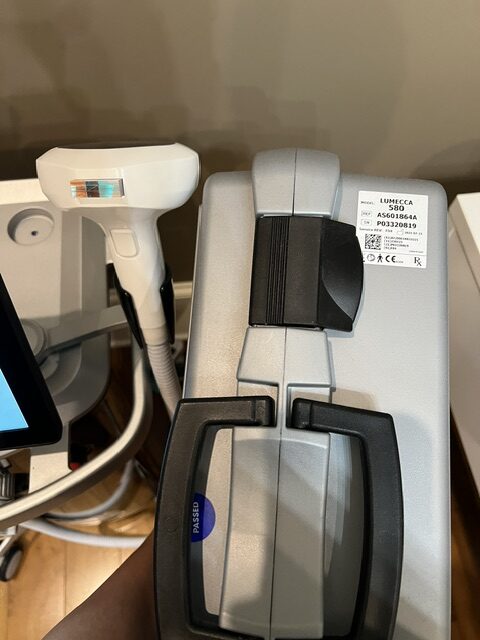

Lumecca 580 Handpiece Specs

Lumecca 580 is optimized to safely treat darker skin phototypes (up to Fitzpatrick type IV) or target deeper vascular lesions.

Wavelength Spectrum: 580 nm to 1200 nm (filtering out the more aggressive, shallow light below 580 nm).

Spot Size: Large 30 mm x 10 mm crystal light guide (3 cm² total treatment area).

Energy Fluence: 5 to 30 J/cm².

Pulse Duration: 1.5 to 15 milliseconds.

Pulse Repetition Rate: Up to 1 pulse per second (pps).

Integrated Cooling: Sapphire contact cooling adjustable between 15°C and 22°C.

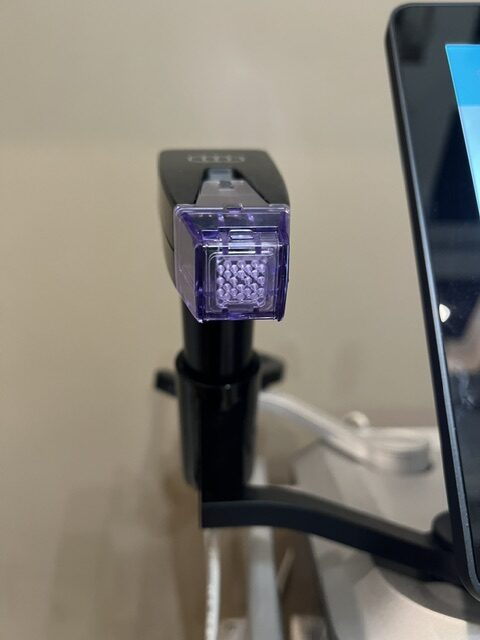

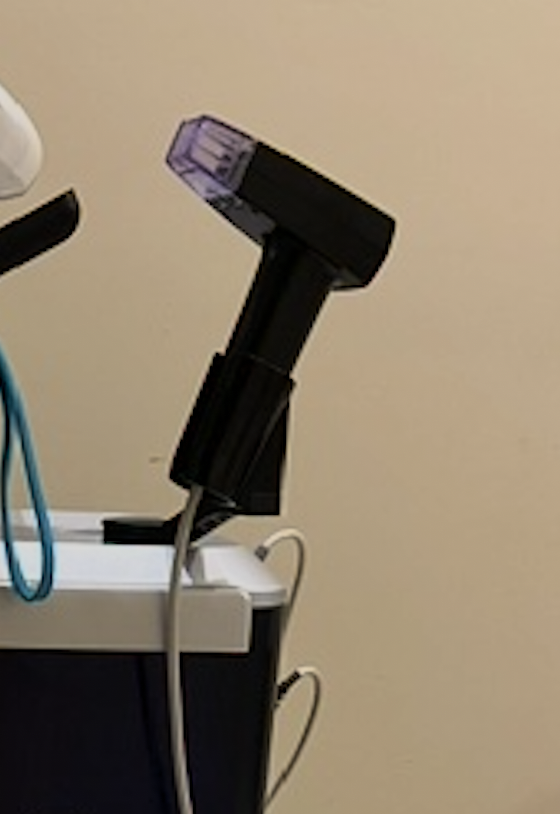

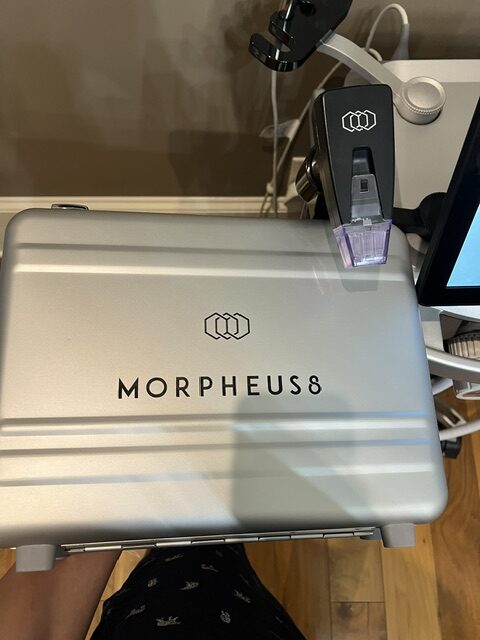

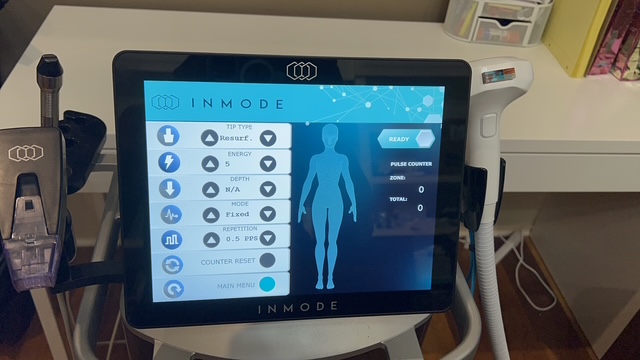

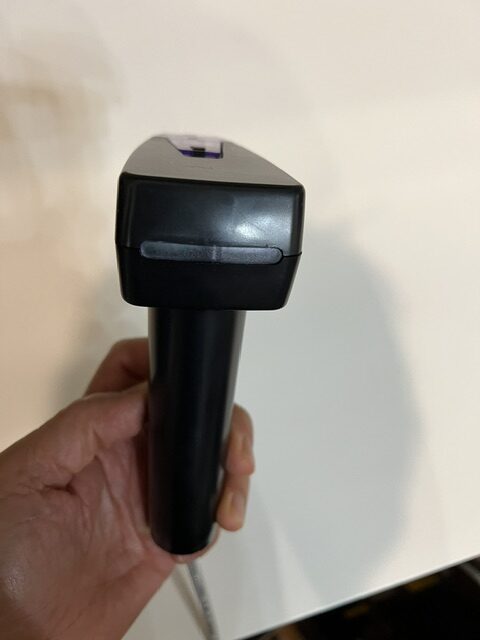

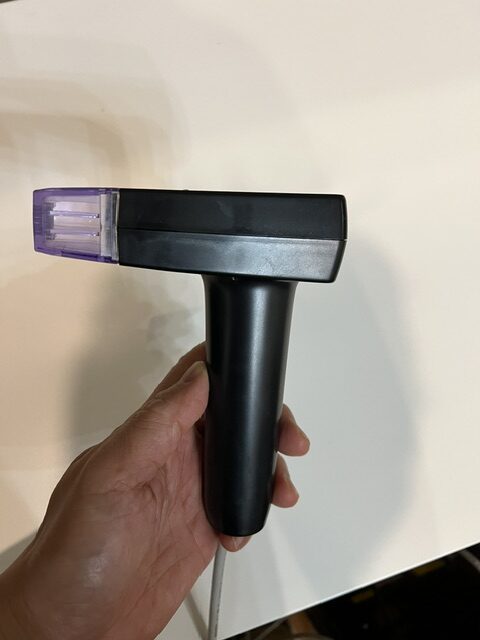

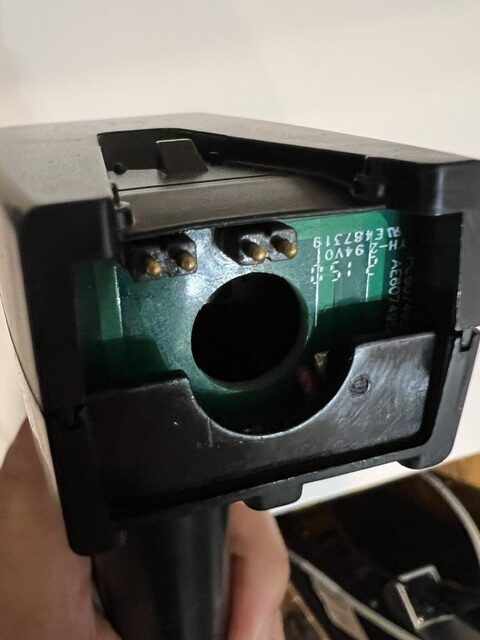

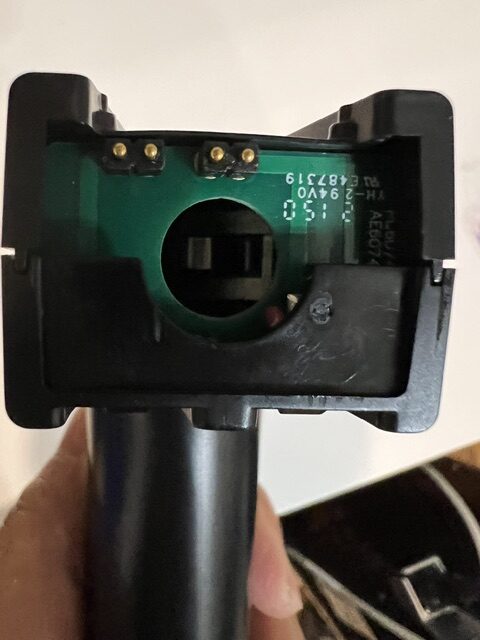

Morpheus8 Face Handpiece Specs

Unlike the small “Prime” tip (12 pins), the standard Morpheus8 Face handpiece is designed for broader coverage across the entire face, neck, and jawline.

Tip Configuration: 24-pin array of silicone-coated, gold-plated microneedles.

Penetration Depth: Programmable from 1 mm up to 4 mm, with an additional 1 mm thermal profile (totaling up to 5 mm of subdermal tissue effect).

Energy Delivery Mode: Fractional RF, choosing between single-pulse or multi-profile burst modes (delivering energy sequentially at multiple depths in a single cycle).

RF Frequency: 1 MHz.

InMode Envision MANUFACTURER NOTES

Envision is the new in-office standard revolutionizing procedures in small and delicate areas. This groundbreaking, nonsurgical device, allows for safe and highly efficacious dermatological procedures in the skin and subdermal layers of the face and periorbital region. With Envision, practitioners deliver energy-based therapies to improve patient’s skin appearance and quality of life.

KEY BENEFITS

Envision deploys multiple complementary modalities which work synergistically:

• Forma-I: bipolar radiofrequency (RF)
• Lumecca-I
• Lumecca 580: intense pulsed light (IPL)
• Morpheus8: minimally invasive fractional RF technology
• Forma: bipolar radiofrequency (RF)

Applicators provide precise thermal and depth control, ensuring accurate temperatute control and enhaced efficacy and safety.

Optimal patient outcomes are achieved through personalized care with multiple, advanced treatments.

Envision’s patented technology drives a competitive edge in the market and offers providers reproducible, safe and predictable treatment options.

TECHNOLOGIES ON THE WORKSTATION

Forma-I is FDA cleared for the relief of minor muscle aches and pain, relief of muscle spasms, and temporary improvement of local blood circulation. Forma-I is an innovative thermal technology designed to deliver targeted bipolar radiofrequency energy to small delicate zones.

Lumecca, with the detachable Lumecca-I spot size adaptor, delivers precise, targeted IPL procedures. Lumecca is FDA cleared for the treatment of benign pigmented epidermal lesions, including dyschromia, hyperpigmentation, melasma, ephelides (freckles); The treatment of benign cutaneous vascular lesions, including port wine stains, facial, truncal and leg telangiectasias, rosacea, erythema of rosacea, angiomas and spider angiomas, poikilodenna of Civatte, superficial leg veins and venlous malformations.

Morpheus8 is a minimally invasive device for dermatological fractional coagulation of subcutaneous tissue. Morpheus8 has a portfolio of interchangable microneedling tips that can be adjusted for depth and intensity to target specific skin concerns and areas. This customization allows for personalized treatment plans tailored to individual needs.

Forma is an innovative thermal technology that deploys targeted bipolar radiofrequency energy to dermal and subdermal layers, delivering non-invasive, pain-free procedures.

Treatment Details

Cost: Averages about $400 to $700 per session.

Course: Most doctors recommend a series of 3 to 4 sessions spaced two to four weeks apart for best results.

Recovery: Non-invasive with little to no downtime, though mild short-term redness can happen.
