Tixel-C CONSUMABLES
Are Consumables Required for the Novoxel Tixel? No
Tips are Reusable and Self Sterilizing
Tixel-C PRODUCT SPECIFICATIONS
System Weight: 5 kg
Weight: 330 grams
System Dimensions: L 48 x W 41 x H 48 (cm)
Operating Voltage: 100-240 VAC 10% ± 2.5A 50/60Hz
Operating Power: up to 300 W
Working Temperature: 400° C (-15°C/+5°C)

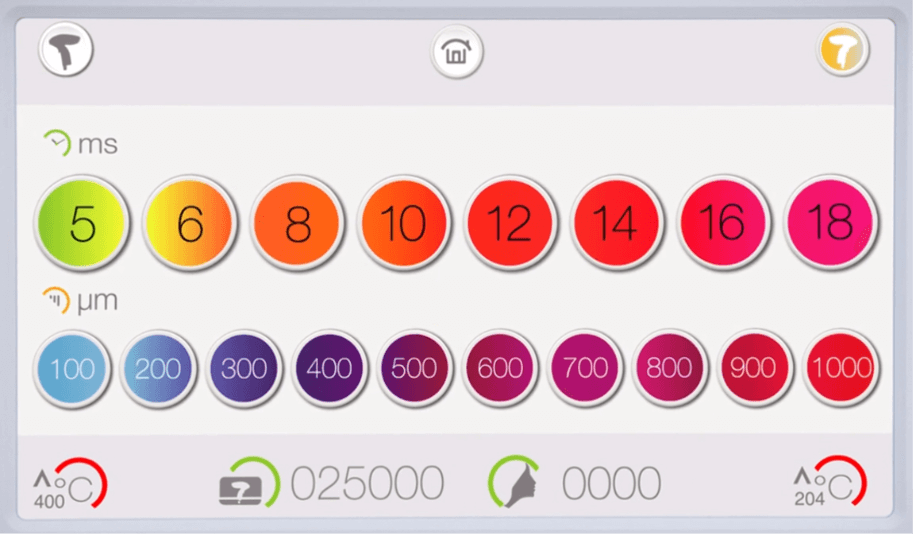

Pulse Duration: 5-18 milliseconds (±1 millisecond)
(possible durations: 5,6,8,10,12,14,16,18)
*Double pulse is enabled between 8 to 12 ms
Pulse Protrusion: 100-1000 µm, intervals of 100 µm
Micropore Dimensions: from 100 x 100 µm to 300 x 300 µm (W x D)
Pulse Protrusion: 100-1000 µm, intervals of 100 µm
Micropore Dimensions: from 100 x 100 µm to 300 x 300 µm (W x D)
Tixel-C MANUFACTURER NOTES
TIXEL®
A FORCE OF NATURE
Tixel® is a unique medical device that harnesses the force of nature to re-shape skin technology.
Powered by our proprietary Thermo-Mechanical Action technology (TMA®), Tixel® combines heat and motion. Its medical grade in situ sterile titanium tip gently applies pure natural heat to the skin, safely moving forward for visible results.
Tixel® is suitable for all skin types and for a wide variety of aesthetic and medical treatments, with its patented non-invasive technology and clinical results backed by numerous peer reviewed publications.
Versatile, easy to use and ergonomic in design, Tixel® is ideal for clinics of any size and for multi-site practices.
TIXEL® SYSTEM DESIGN

HOW DOES IT WORK?
The tip consists of 81 tiny pyramids (9 x 9) which are heated to a temperature of 400°C . As the tip moves, it makes brief contact with the skin at the apex of the pyramids without protruding the skin.
This creates a matrix of discrete ablative (superficial ablation) hemispherical coagulation zones (depth of up to 250μ, width of up to 500μ).
HOW IS TIXEL®DIFFERENT FROM OTHER MODALITIES?
MULTI-FUNCTIONALTixel® can be used for multiple indications and treatment areas, providing excellent value for money and fast ROI.
SAFE, SELF-DISINFECTINGDuring operation, the tip is maintained at a temperature of 400°C and is selfsterilized. There are no fumes, smoke or bleeding in treatment.
GREEN DESIGNSave on logistics and save on waste – no disposables required.
COMFORTABLE TREATMENT WITH SHORT DOWNTIMEPain (3/10 without analgessic cream) and downtime (1 day) are relatively low. Make-up can be applied the day after treatment.
WHAT IS THE TIXEL® TREATMENT?
As time moves forward for patients, they seek ways to reverse the clock and retain their youthfulness and beauty. Yet, they want to do so through a solution that’s not only effective but also non-invasive and safe.
Tixel® meets the growing demand for improving skin complexion and reversing photoaging damage, so that patients can look forward to more youthful, revitalized skin.
WHY TIXEL?
HIGH PATIENT SATISFACTION
The skin heals quickly and looks vibrant and glowing within a few days after treatment, resulting in high patient satisfaction which is further strengthened by the long term results.
NON INVASIVE safe, effective and non-invasive treatment with minimal side effects. There is no smoke, bleeding, fumes or carbonization.
MINIMAL DOWNTIME comfortable treatment with minimal downtime. Patients can apply make-up the day after treatment and resume social activities.
SHORT LUNCH-TIME TREATMENT Noticeable results within a few short lunch-time treatment sessions.
TIXEL® TREATMENT RESULTS
Tixel® treatment leads to high patient satisfaction. Typical results include noticeable improvements to skin texture and complexion, a younger look, and a reduction in wrinkles and superficial pigmentation. A treatment program usually includes 3 to 4 treatment sessions with a one month interval between each session.
