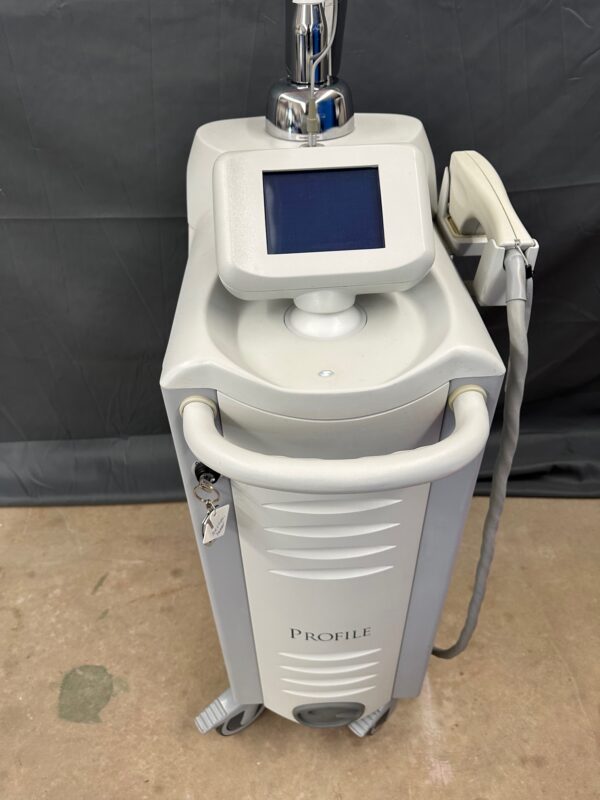

Sciton Profile PRODUCT SPECIFICATIONS

Dimensions: 15W x 32L x 43H”

Weight: Approx. 200 lbs.

Rated Voltage: 200-240 V

Rated Frequency: 50/60 Hz

Rated Current: 25A

Classification: Class I, Type BF

Laser Output: Class IV, 1-3 um, 100W, 75J, 200ms

Light Output: 300-1400nm, 0-300J

Mains Connection: IEC 306 connection or permanently installed

Power Cord Length: 15 feet

Footswitch Cable Length: 15 feet

Certification: IEC 60601-1, IEC 60601-1-2, IEC 6061-1-1, IEC 601-2-22

Sciton BBL BroadBand Light

The innovative BBL module extends the versatility of the PROFILE platform with one-of-a-kind flash lamp technology, interchangeable Smart Filters, Finesse Adapters, and precision thermoelectric cooling.

BBL uses advanced dual-lamp technology with each lamp supplying half of the energy needed during treatment. This results in unsurpassed lamp lifetimes.

Its broad range of wavelengths allows targeted treatment for many skin conditions without the need for additional handpieces. Its flexible Finesse Adapters enable treatment of hard-to-reach areas, producing evenly treated skin.

With its user-friendly features, superior results, and exceptional ROI, BBL is the most complete and versatile broadband light system in its class.

Clinical Applications

BBL enables the treatment of multiple skin conditions with various wavelengths seamlessly using change-on-the-fly Smart Filters.

ST – Skin Tyte Photofacial Therapy

420  – Acne

515  – Pigmented Lesions, such as freckles, age spots.

560  – Vascular Lesions, such as cherry angiomas, telangiectasias, and rosacea.

590  – Deeper Lesions / Darker Skin Types

590, 640 & 695  – Hair Removal

Skin Tyte Photofacial Therapy, BBL Filter

Skin Tyte Photofacial uses the power of light for fast, effective treatments aimed at restoring your skin’s natural beauty, tightening the skin, eliminating blemishes, and giving you a healthier, fresher look.

In addition to tightening the skin, the Skin Tyte Photofacial treats a wide range of skin issues, including:

• Dyschromia
• Hyperpigmentation
• Melasma
• Ephelides
• Warts
• Scars
• Striae
• Port wine stains
• Hemangiomas
• Telangiectasias
• Rosacea
• Angiomas
• and more

Sciton ProFractional  2940nm

• Fractional Skin Resurfacing
• Acne & Acne Scars Treatment
• Pigmented Lesions
• Skin Tightening – Fine Lines and Wrinkles

ProFractional quickly and effectively treats wrinkles, acne scars, skin tone and texture, and pigment in a single pass treatment.

Fast, Comfortable, Variable depth and density

Profractional Specifications: Laser Type – Erbium Yag; Wavelength – 2940 nm; Density – 1.5 – 30%, Spot Sizes – 250 µm, LAPG; Scan Area: 6 – 20 mm²

MicroLaser Peel

MicroLaser Peel treats skin conditions associated with aging and active life styles. MicroLaser Peel is the ideal treatment for those patients that want improved skin with immediate lasting results, little time off, discomfort, or post-treatment care.

The Sciton MicroLaser Peel is a minimal to full epidermal laser peel that precisely removes the outermost layers of the skin. The healing process varies from patient to patient but will generally take from two to four days.

One or two treatments, Single pass

MicroLaser Peel Specifications: Laser Type – Erbium Yag; Wavelength – 2940 nm
Sciton MLP – MicroLaser Peel 2940nm, “The Weekend Peel”

ClearScan YAG

ClearScan YAGs 1064 nm Nd:YAG wavelength and pulse duration are unmatched for permanent hair reduction and vascular lesions from telangiectasias to reticular leg and facial veins.

ClearScan YAG Specifications: Laser Type – Nd Yag; Wavelength – 1640 nm

The selective 1064 nm wavelength has strong absorption in oxyhemoglobin and melanin, resulting in selective heating of veins and hair follicles, which produces excellent clinical results. The powerful contact cooling enables treatments to be safe for all skin types and tanned skin.

ClearScan YAGs large area pattern generator (LAPG), fast speed, non-sequential scanning, powerful cooling, and flat-top beam profile provide optimal results and patient comfort during the procedure.

Clinical Applications

ClearScan YAG is FDA cleared for:

• permanent hair reduction
• treating vein and vascular conditions:

Permanent Hair Reduction – Removal of unwanted hair or permanent hair reduction through selective targeting of melanin in hair follicles, and for the treatment of pseudofolliculitis barbae (PFB). ClearScan is an infrared laser that can selectively target microstructures such as hair follicles. It is very effective for lighter skin types, and because of the relatively low absorption of this light by melanin, it is the best choice when treating darker skin types. Additionally, the ability to safely treat sun-tanned skin makes this the treatment of choice for active individuals.

• All skin types I through VI can be treated. Skin Type I is very fair, always burns, never tans (usually blonde hair and blue eyes). Skin Type VI never burns (black skin, black hair).
• Vein and Vascular – Benign vascular lesions, port wine stains, hemangiomas, warts, telangiectasia, rosacea, venous lake, leg veins and spider veins.

Sciton Contour – 2940 nm

The Contour TRL (Tunable Resurfacing Laser) is a full-field skin resurfacing solution, capable of a wide variety of treatment options. From a shallow MicroLaserPeel® (up to 50µm of ablation) to deep resurfacing (up to 200µm of ablation per pass, with or without variable depth coagulation), the Contour TRL gives the physician exquisite control over surgical outcomes.

Contour Specifications: Laser Type – Erbium Yag, Wavelength – 2940 nm

Sciton ProV – 1319 nm

The Pro-V 1319 nm Nd:YAG laser is ideal for endovenous ablation of the saphenous vein for GSV insufficiency.

1319 nm laser provides effective endovenous laser ablation of abnormal refluxing truncal veins. Absorption at 1319 nm occurs in the hydrated endothelial cells of the vein wall. 1319 nm is highly absorbed in water which enables a comfortable treatment for the patient, and causes minimal post-op swelling and bruising.

Profile Family

1064 nm = CLEAR SCAN – Hair Removal & Vascular
2940 nm = CONTOUR – Resurfacing, MicroLaser Peel, & Profractional
410-1200nm = BroadBand Light

ProV Family

1319 nm = ProV Endovenous Vascular Ablation
410-1200nm = BroadBand Light
