PRODUCT SPECIFICATIONS

System Type: Co2

Wavelength: 10,600 nm

Power: 30 W (max)

Output Mode: Multimode

Method of optical output: Articulated Arm

Aiming Beam: Laser Diode, 3 mW @ 635-670 nm

Electrical Requirements: 100-115 V / 10 A (max) /50-60 Hz

Size: 46.1″ H x 18.1″ W x 24.00″ D (117 cm x 46 cm x 61 cm)

Weight: 108 lbs (49 kg)

Evacuation System: Buffalo Filter Smoke Evacuator – Available Separately

Scanner:

Scan Area Size: 15 mm x 15 mm (max)

Spot Size: 350 um

Scan Mode: Normal, Interlaced and Autofill*, *Not available in ablative mode

Mode: Super Pulsed

Pulse Duration: 0.2 ms – 2.0 ms (Fractional Ablative); 0.2 ms – 20.0 ms (Ablative)

Density: 1 – 78% (Fractional Ablative; 78% (Ablative)

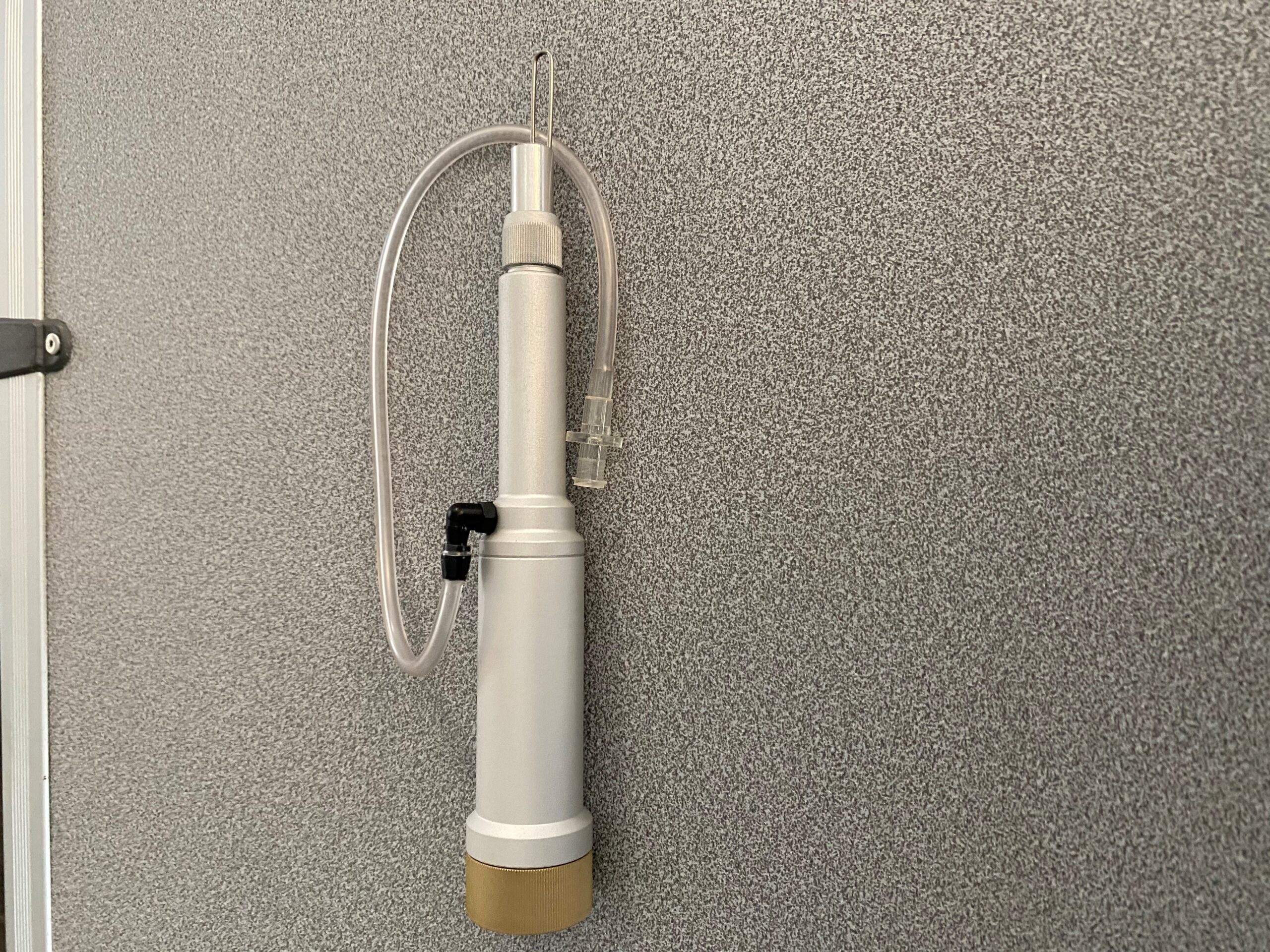

4″ Surgical Handpiece (Optional):

Spot Size: 0.214 mm

Mode: Continuous, Pulsed and Super Pulsed

MANUFACTURER NOTES

Smartskin+ is the most advanced, customizable micro-ablative Laser Skin Resurfacing workstation available.  Unlike other systems that have one-size-fits-all settings, Smartskin+ provides completely customizable treatment parameters to match your patients clinical needs and downtime requirements.

Because no two patients are exactly alike.

Overview

Deliver Results as Individual as Your Patients

A full-featured CO2 laser, Smartskin+ provides highly customizable, cost-effective skin resurfacing treatments for more even tone, smoother texture, and markedly reduced wrinkles.

Smartskin+ delivers with:

Highly Customizable Control Settings

Expertly control the four key parameters to provide the most customizable settings for the most customized results:

Power

Customizable up to 30W.

Achieve the penetration, depth, and collateral thermal injury necessary for the clinical results you and your patient desire.

Pulse

High peak power first phase rapidly ablates the tissue to minimize erythema.

Adjustable low power second phase optimizes the energy delivered for tissue coagulation and neocollagenesis.

Density

Adjust density to expertly control the amount of ablation delivered for the clinical results and downtime expectations you and your patient want.

Stack

Select the number of pulses delivered to fine tune the depth of treatment without increasing power.

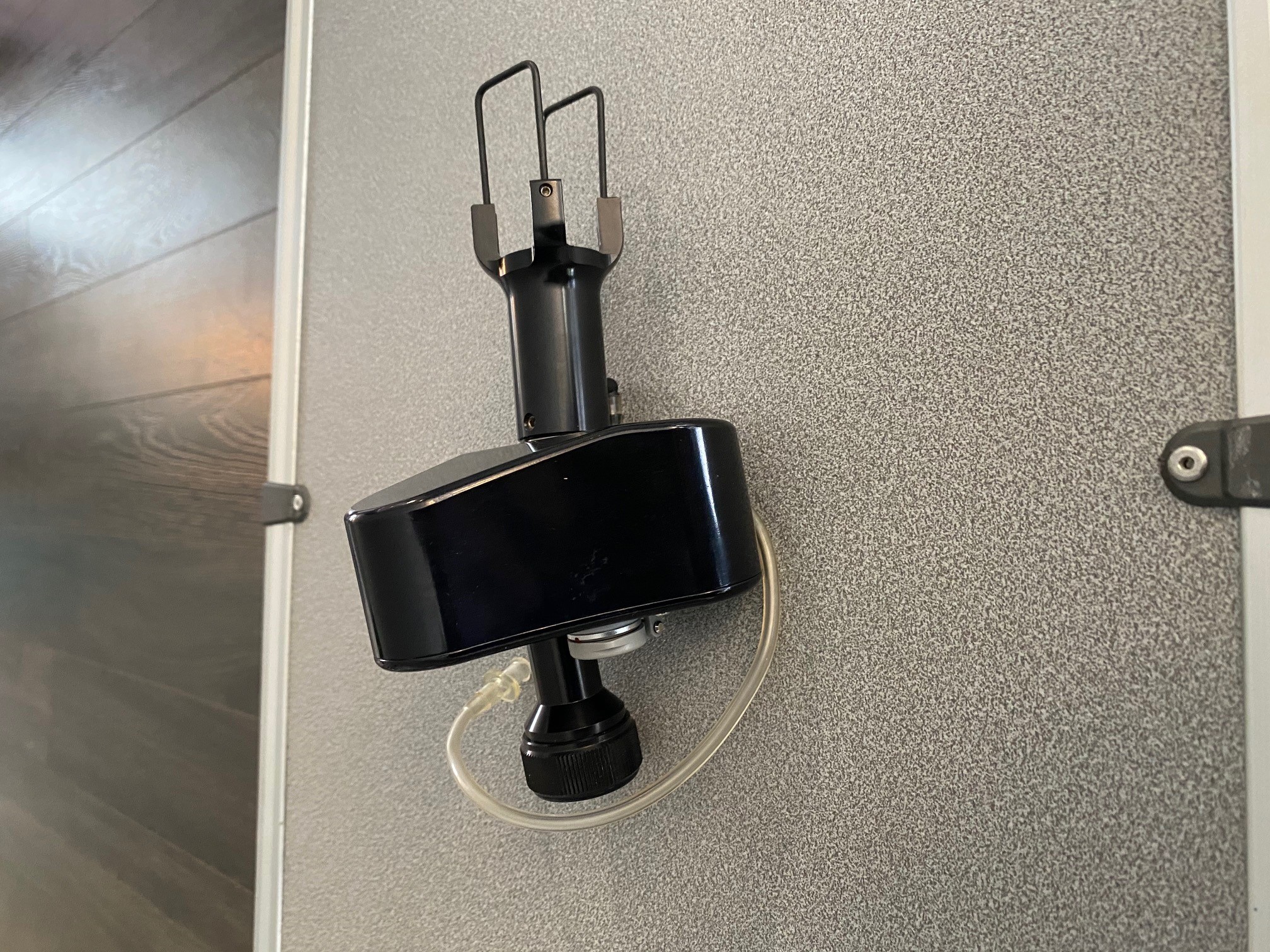

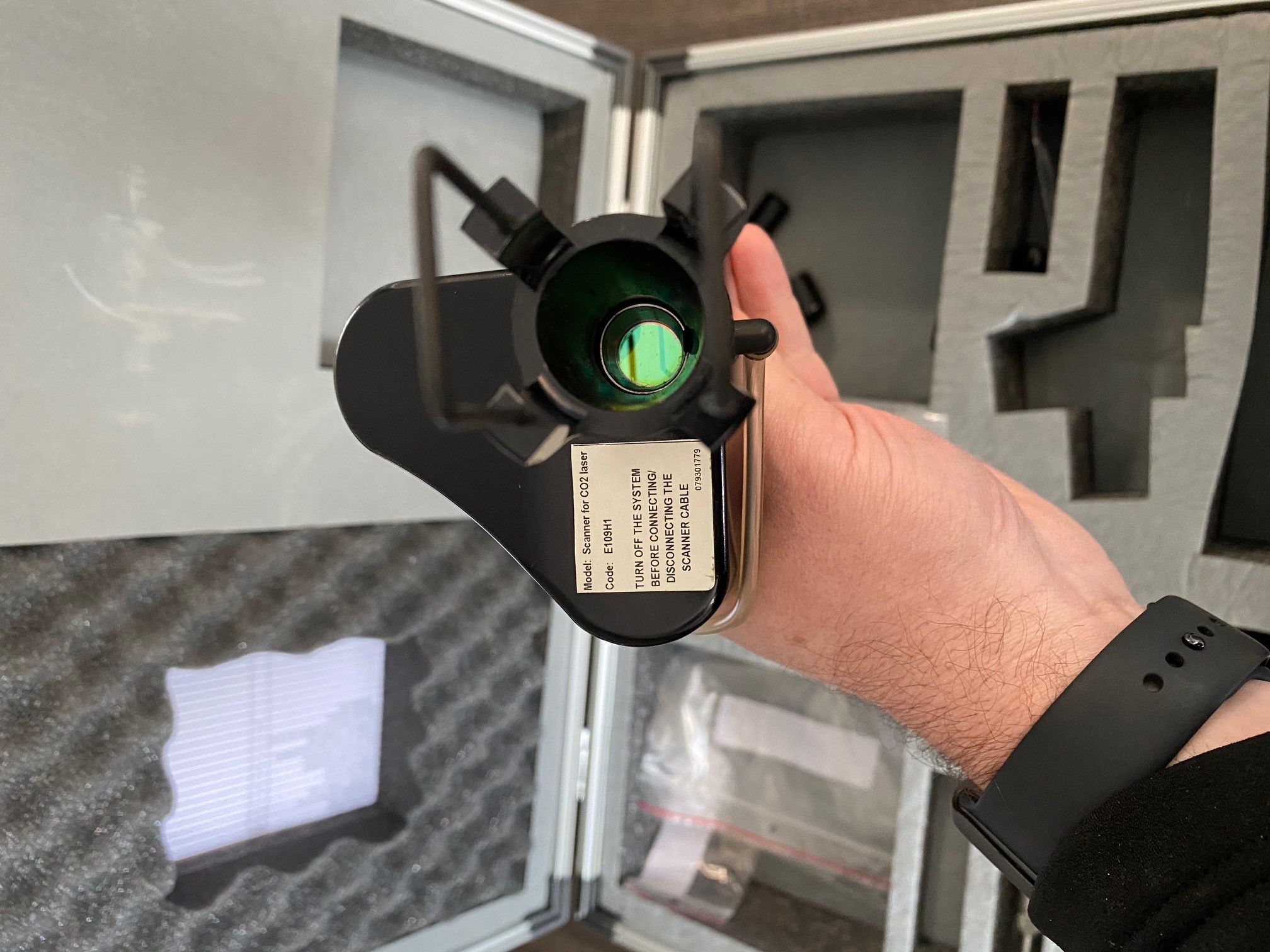

Advanced Scanner Handpiece

Scanner-based control buttons lets the user easily adjust scan settings.

A single handpiece provides simple, fast treatments without the need to change out multiple handpieces.

A sterilizable tip means no costly disposable.

Indicated Uses:

• Stretch Mark Removal
• Skin Resurfacing
• Scar and Acne Scars Correction
• Fine Lines & Wrinkle Correction
• Skin Whitening
• Melasma Removal
