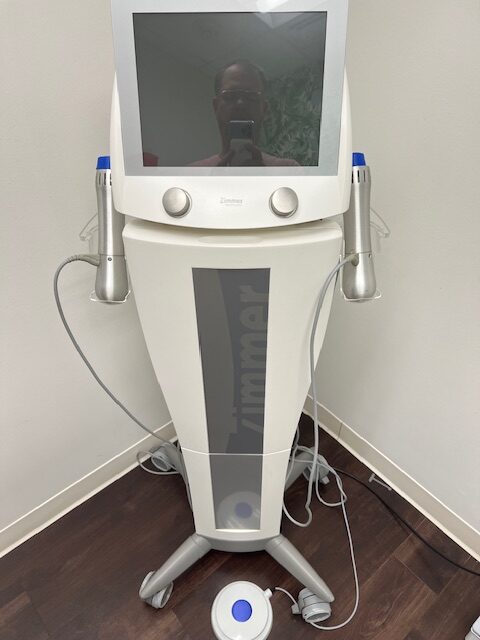

ZWave Pro PRODUCT SPECIFICATIONS

Technology: Electro-magnetically generated Radial Pulse Technology, 1-22 Hz, 60-185mJ

Programs: 3 Recommended Application Presets

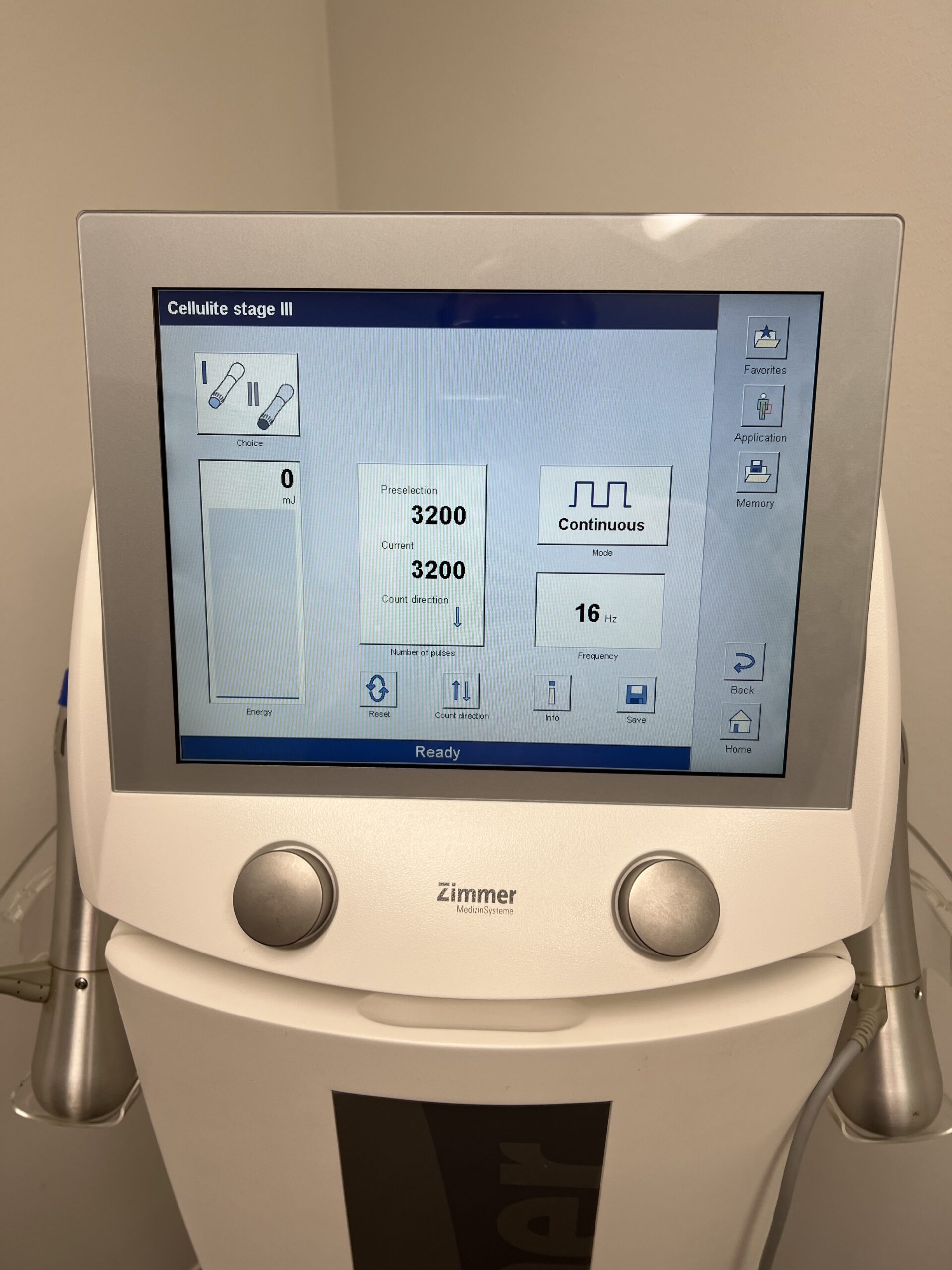

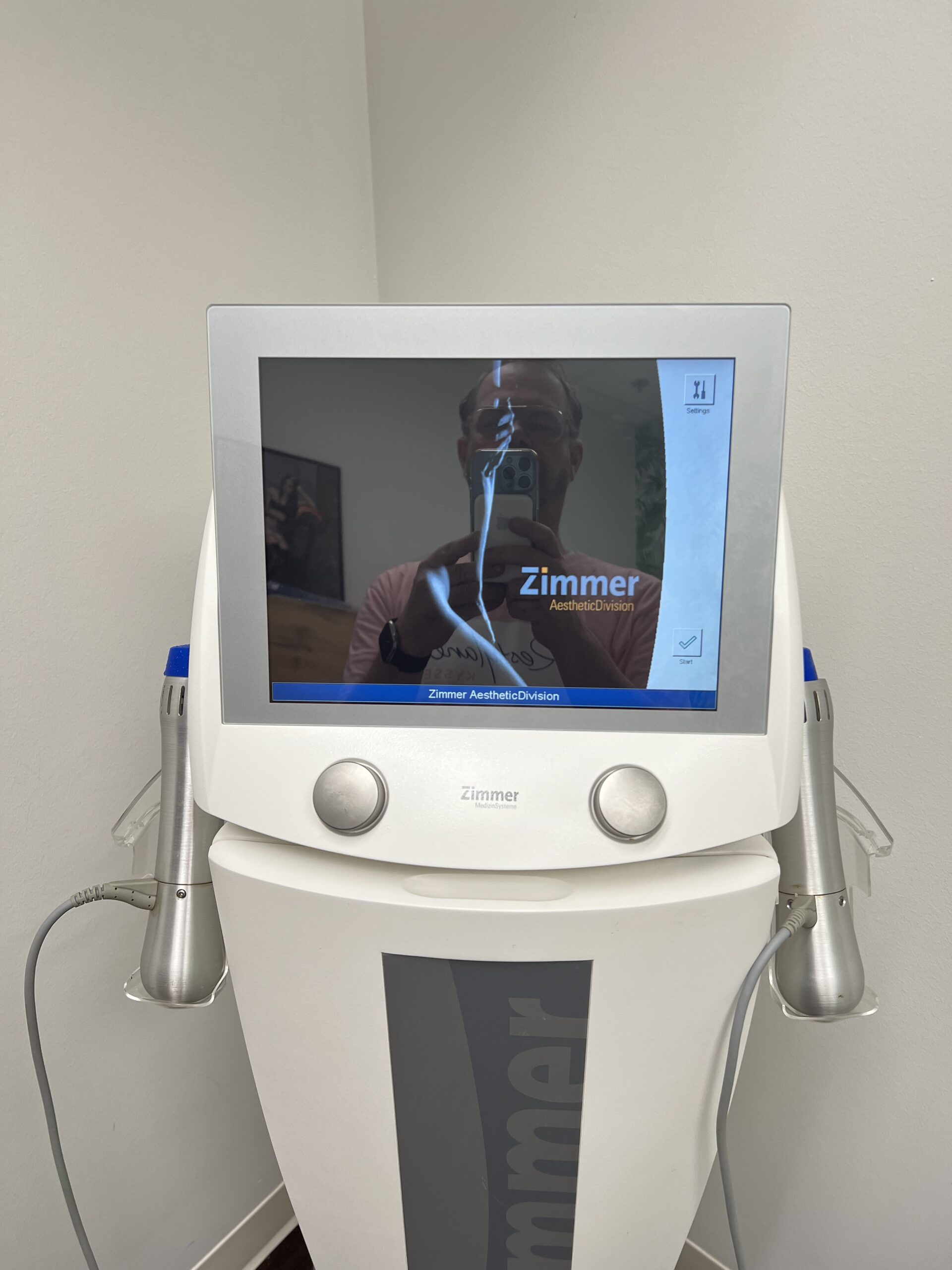

Controller: 12 Color Touch Screen for all software operations. Full range control for energy and frequency.

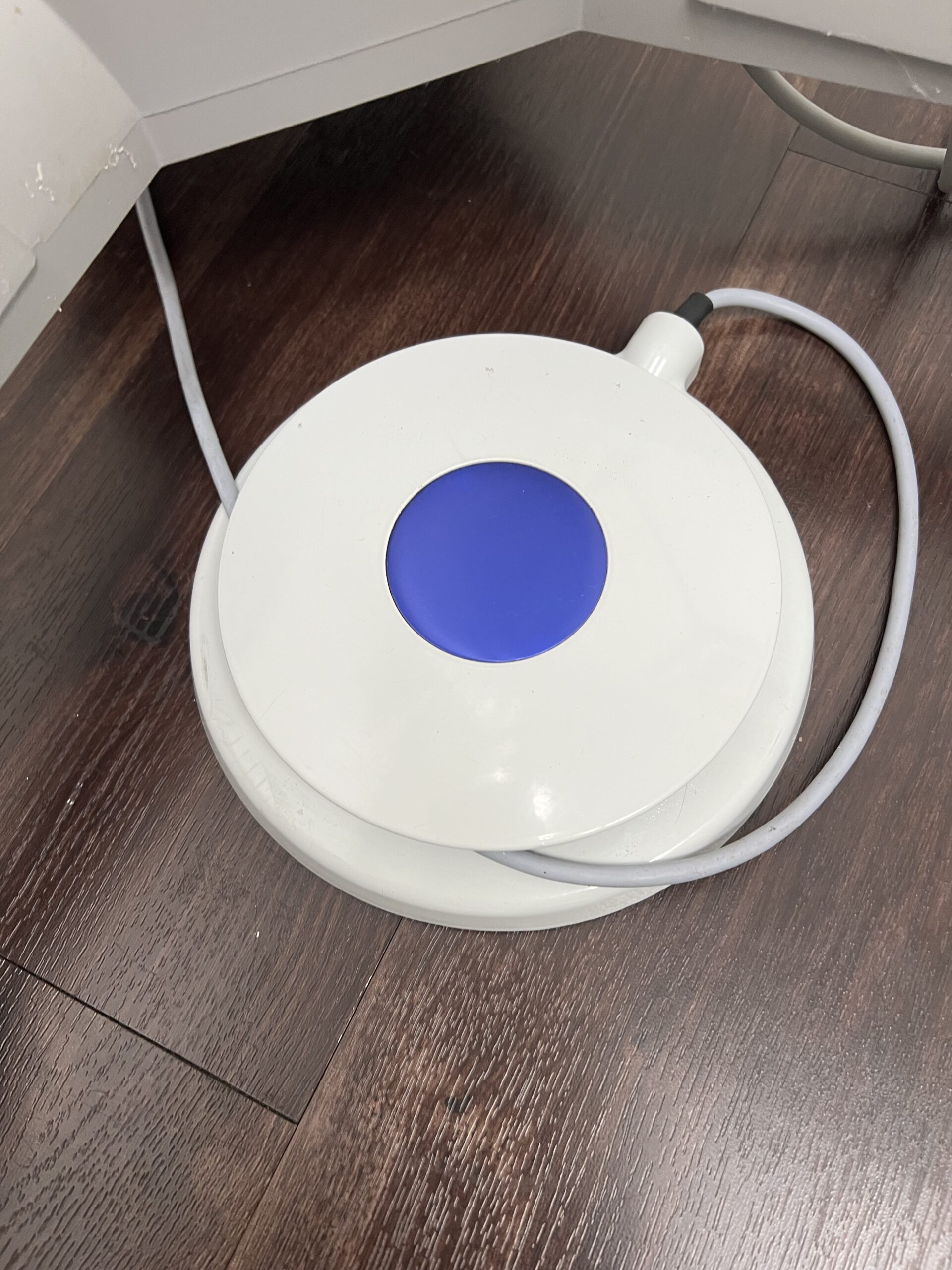

Footswitch: Control for handpiece

Memory and Update: SD card for custom programs by user/error log/firmware updates

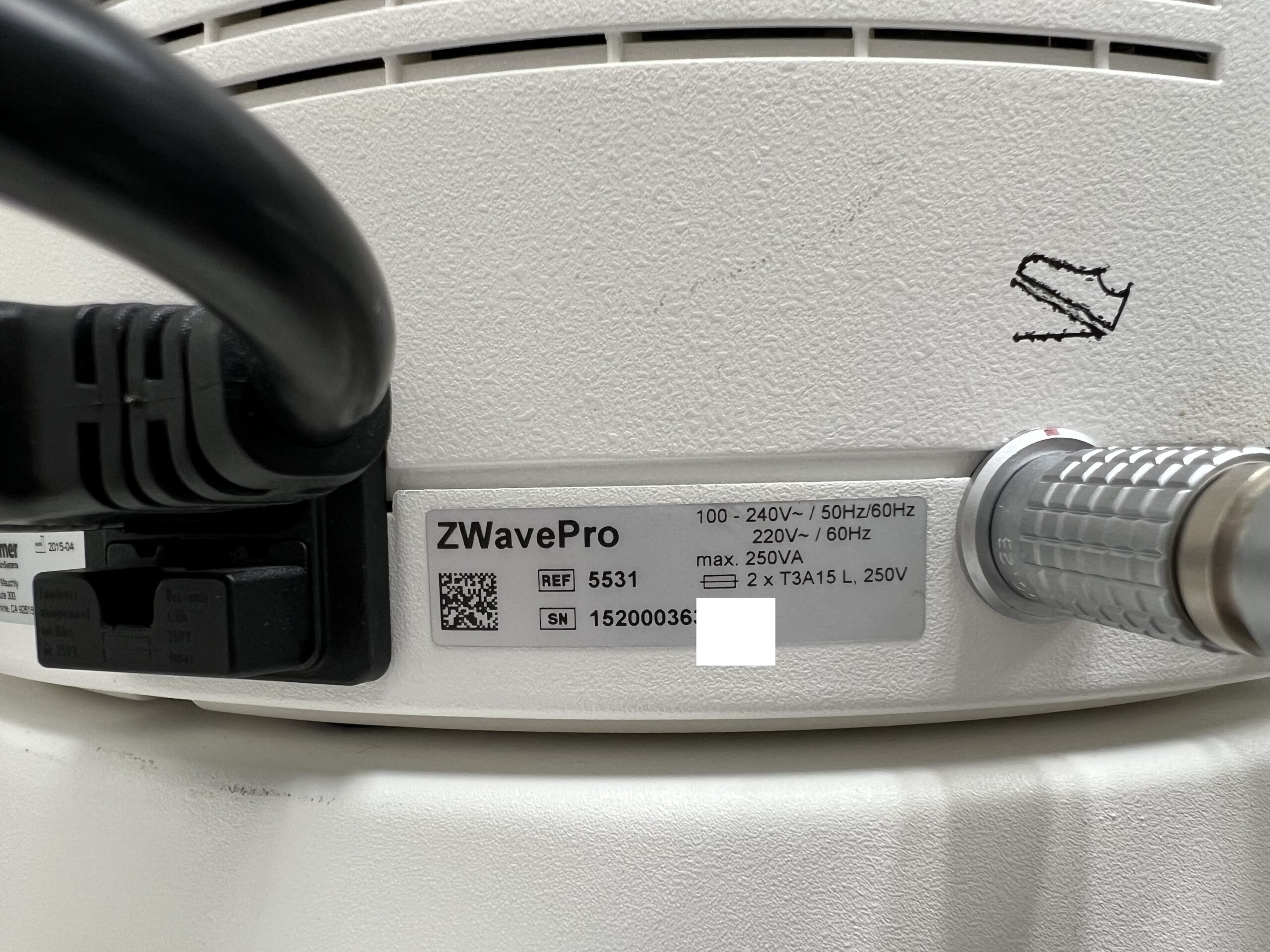

Voltage: 110 volts, 60 Hz

Dimensions & Weight: L 20.5 / W 21 / H 54.5 Weight: 70 lbs.

ZWave Pro MANUFACTURER NOTES

Cellulite Treatment and Enhanced Body Shaping

The Zimmer Z Wave Pro transmits powerful sound waves into the tissue. The energy then spreads out radially to enhance the treatment effect.

The body responds to the Z Wave Pro sound waves with increased metabolic activity in the form of lymphatic drainage and increased blood circulation.

The end result is an improvement in the appearance of cellulite and other body contouring procedures.

The Zimmer Z Wave Pro uses focused radial sound waves to treat cellulite, skin laxity, and support body contouring by stimulating metabolic activity, increased blood circulation, and lymphatic drainage. The energy from the handpiece creates cavitation in the tissue, which destabilizes and helps reduce fat cells while the pressure waves break down the connective tissue structures that cause cellulite’s dimpled appearance. This process leads to increased collagen production, enhanced skin tone, and a reduction in the appearance of cellulite.

How the Sound Waves Work

1. Radial Shockwaves: The Z Wave Pro emits high-energy radial shockwaves directly into the treated tissue via a handpiece.
2. Positive Pressure and Tensile Waves: These waves consist of both positive pressure pulses and a smaller tensile wave component.
3. Tissue Squeezing: The pressure waves squeeze the surrounding tissue, disrupting the grid structure of the fat cells.
4. Cavitation: The tensile wave component causes gas bubbles within the fat structures to collapse and re-expand, a process called cavitation.
5. Fat Cell Destabilization: This cavitation destabilizes the fat cells, aiding in their reduction.

Effects on the Body

• Increased Metabolic Activity: The sound waves trigger an increase in metabolic activity within the tissues.
• Enhanced Circulation: This leads to increased blood circulation and lymphatic drainage, which helps flush out toxins and improve overall tissue health.
• Collagen Regeneration: The process stimulates the body’s natural collagen production, strengthening connective tissue and improving skin firmness and elasticity.
• Cellulite Reduction:
  By breaking up the tissue structures responsible for dimpling and promoting improved circulation, the Z Wave Pro reduces the appearance of cellulite.

Applications

The Z Wave Pro is used to:

• Treat cellulite on the abdomen, upper arms, legs, and buttocks.
• Enhance the results of other body contouring and fat reduction treatments. Improve skin firmness and overall body contours.
• Erectile Dysfunction

Patient-friendly Application

Radial Pulse Technology has the following advantages:

• gentle, painless and quick treatments
• no disposables
• no down time
• non-invasive treatment
• visible results
• versatile
• easy to operate
• superior alternative to hand massage post body sculpting
• consistently reproducible results

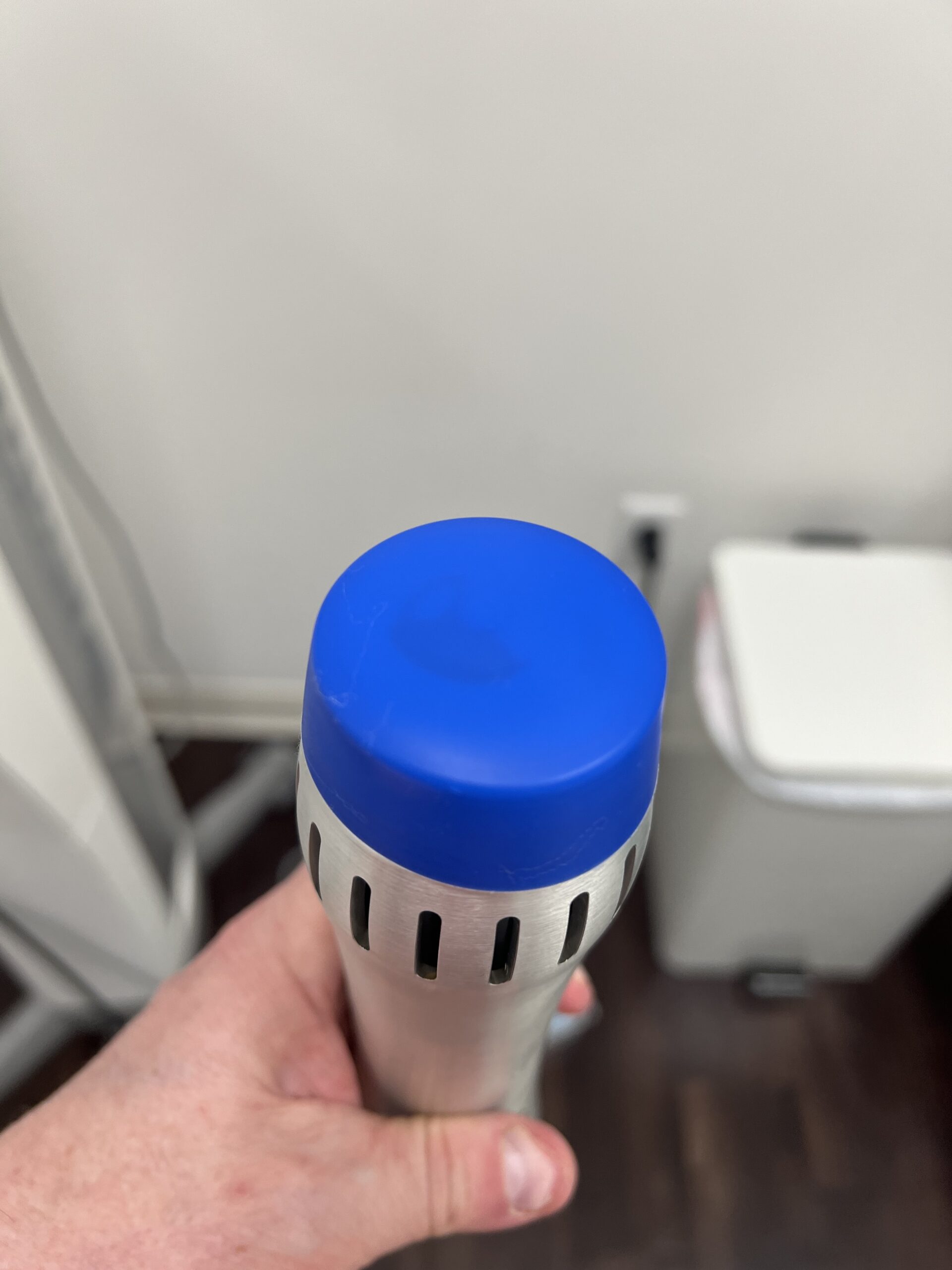

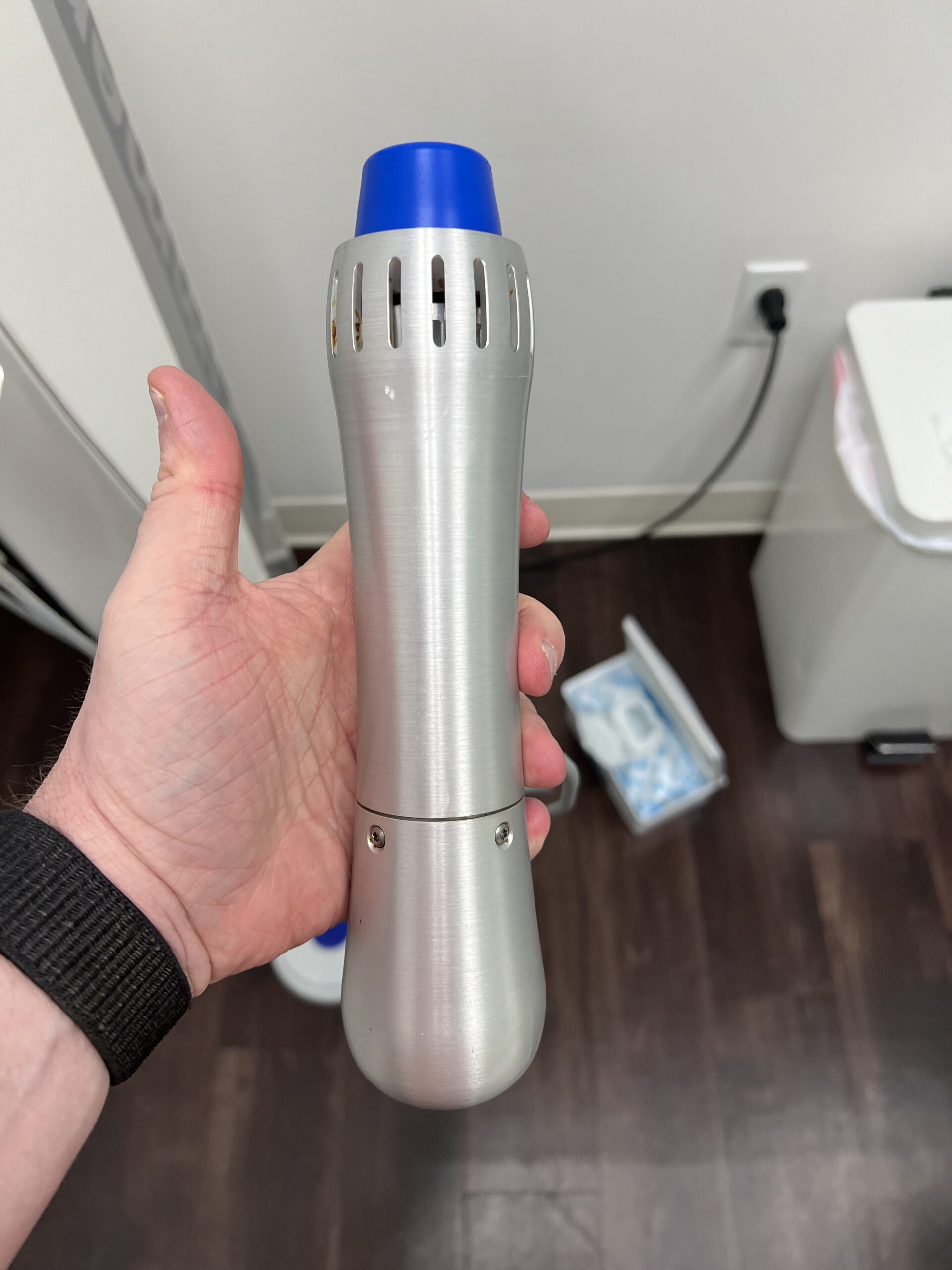

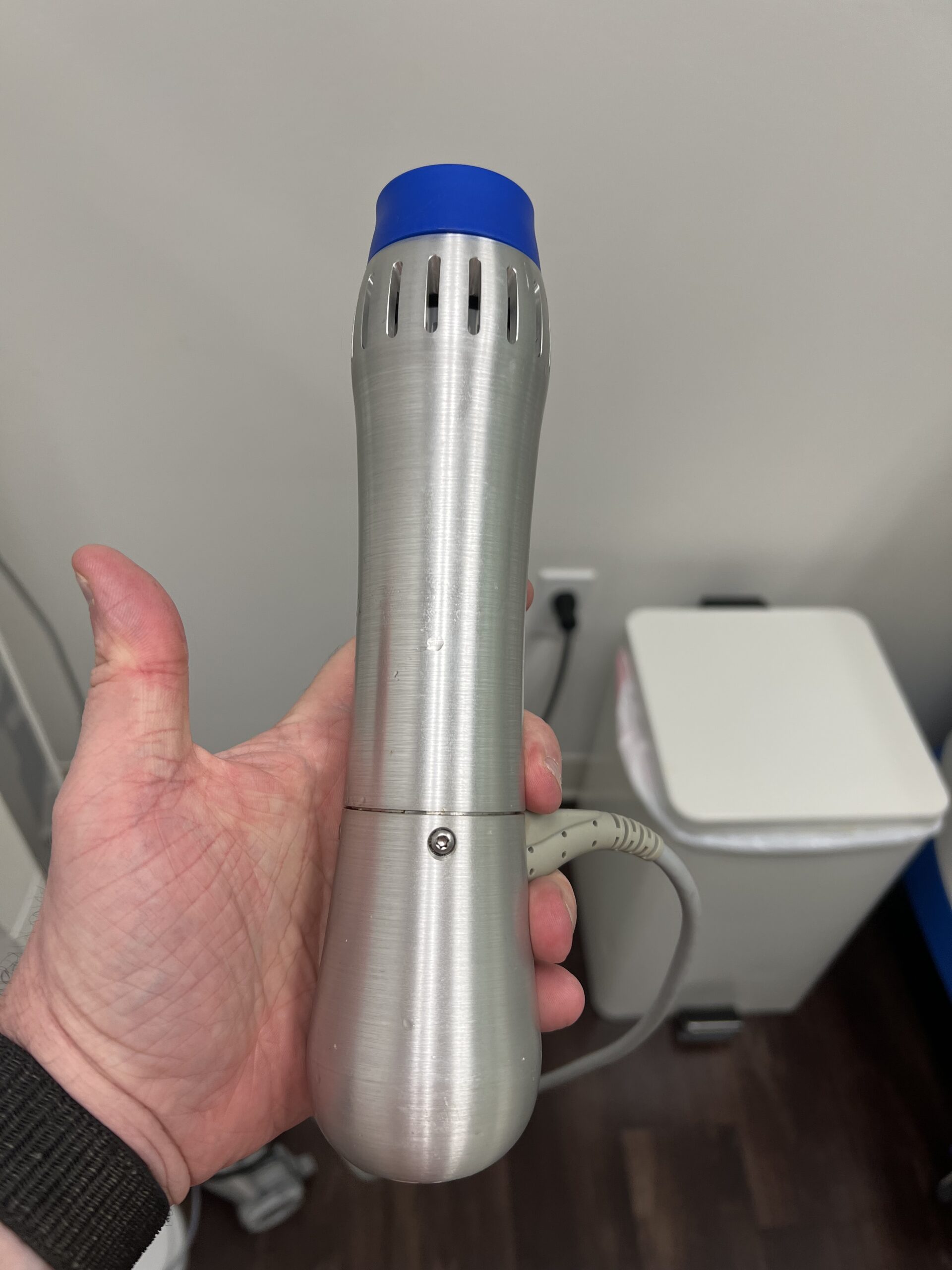

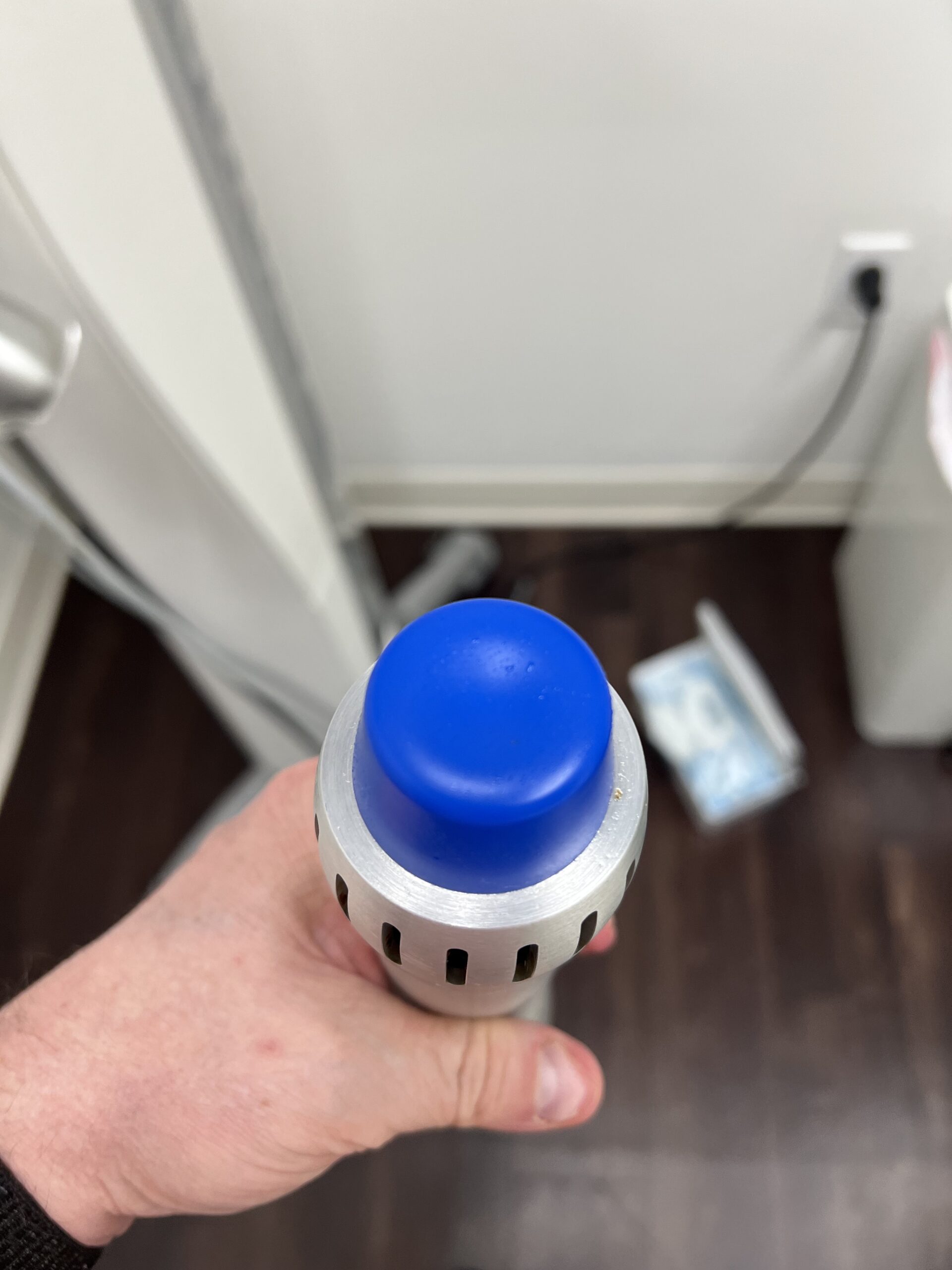

Hand Piece Characteristics

• efficient energy transfer from hand piece to deep tissue structures up to 35 mm
  treatment is comfortable for both patient and technician
• hand piece is controlled via foot switch
• each Z Wave Pro comes with 2 hand pieces and is ready for use any time

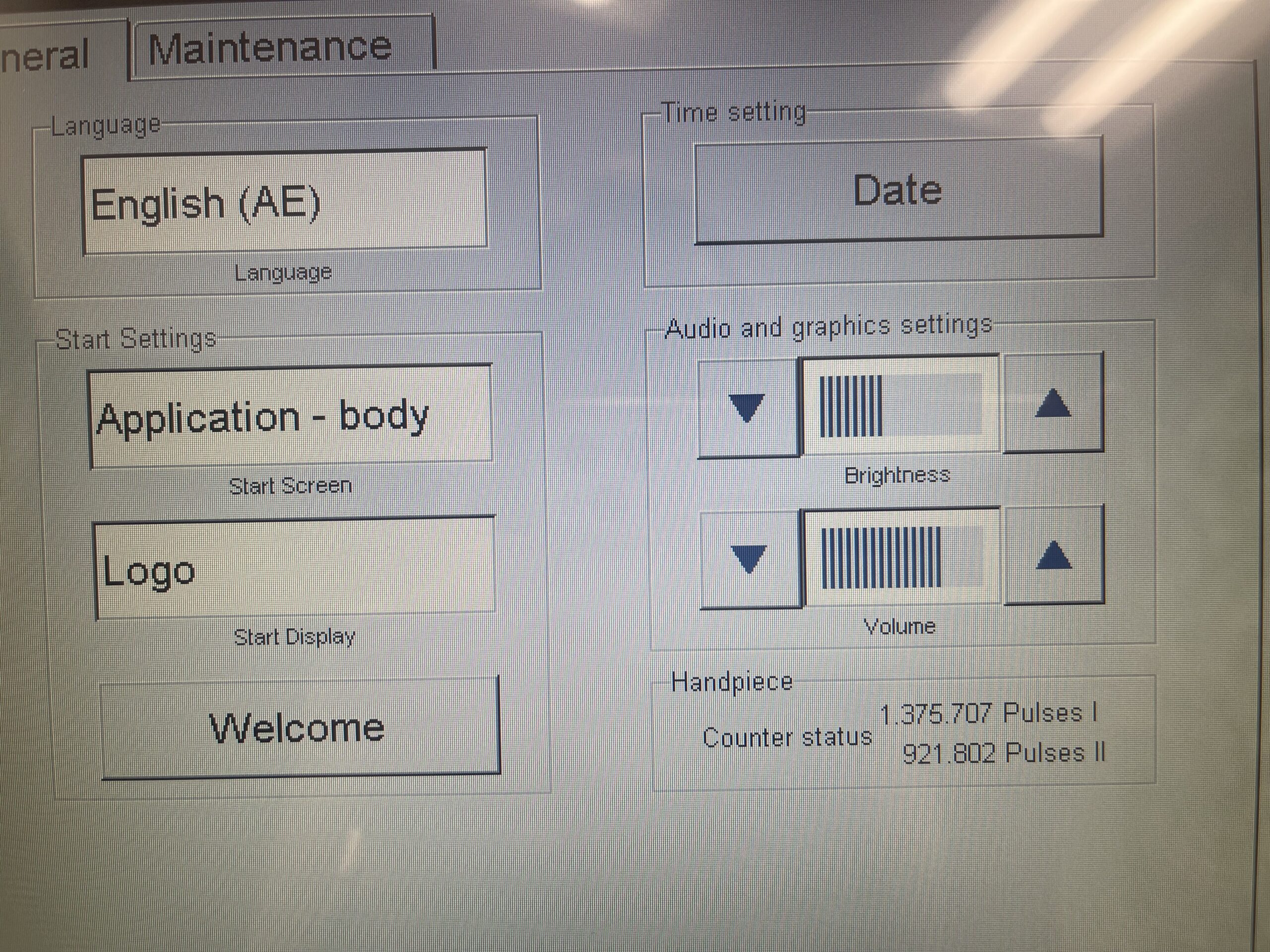

• each hand piece is warranted for 2,000,000 pulses. The two hand pieces should yield approximately 1,600 application zones
• enhanced patient comfort due to longer rise time (pulse width) without the need for unpleasant high peak energy

Erectile Dysfunction

The Zimmer Z-Wave for erectile dysfunction works by delivering low-intensity, extracorporeal shockwaves to the penis, which stimulate a repair response in the soft tissue. This process promotes angogenesis, the formation of new blood vessels and the repair of existing ones, increasing blood flow to the penis. Improved circulation can result in harder, longer-lasting erections and can be a non-invasive, drug-free alternative for men with mild to severe erectile dysfunction.

How it works

1. Acoustic Wave: The device uses a handpiece to transmit acoustic waves into the penile tissue.
2. Micro-Trauma: These waves create micro-wounds and micro-trauma, which triggers the body’s natural healing and repair mechanisms.
3. Blood Vessel Growth: This stimulation leads to neovacularization, the generation of new blood vessels, and the repair of existing ones, improving blood flow.
4. Improved Erections: Increased blood flow enhances the ability to achieve and maintain erections, leading to improved erectile function.

Benefits

• Non-invasive: It’s a pain-free and non-surgical treatment option.
• Drug-free: It can offer an alternative to oral medications like Viagra for some patients.
• Long-lasting results: Benefits can last for several months to over a year in some cases.
• Painless: The treatment is often described as a gentle massage.

Treatment Process

• A typical course of treatment involves several sessions, often 5 to 8, with sessions occurring twice a week for a few weeks.
• The treatment is quick, with sessions typically lasting around 25-30 minutes.
• There is no downtime, allowing patients to return to their normal daily activities immediately after treatment.

Each Handpiece is good for up to 8,000,000 Pulses
