Pico Clear PRODUCT SPECIFICATIONS

Wavelengths: 1064nm, 532nm, 650nm, 585nm

Delivery System: Articulated arm with 2 wavelengths zoom handpiece + pixel, Homogenizer 1064, Homogenizer 532, 650(R), 585(Y) handpieces 7 joints articulated arm

Warm Up Time: Less than 1 minute

User Interface: Touchscreen 15.6″ with GUI

Size: with articulated arm: 89 cm (35″) x 46 cm (18″) x 190 (74″), Without articulated arm: 89 cm (35″) x 46 cm (18″) x 110 cm (43″)

Weight: 275 lbs./125 Kg.

Electrical: 120 VAC, 60 Hz, 10 A

1064nm Applicators/Handpieces

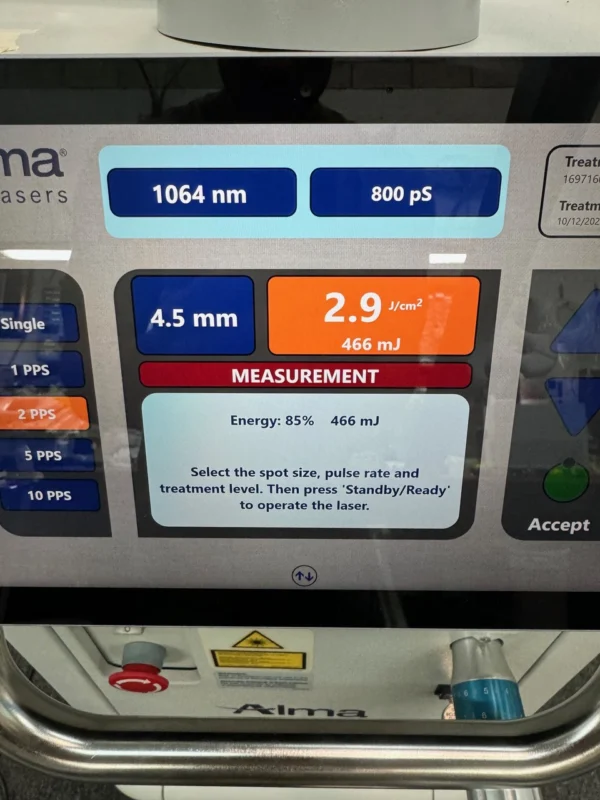

Picolor (1064nm)

• Max Energy: 450 mJ
• Pulse Duration: 350 ps
• Peak Power: 1.3 GW
• Spot Sizes: 2-10 mm
• Repetition Rate: Single 1-10 Hz

PicoLift (1064nm)

• Max Energy: 350 mJ
• Pulse Duration: 350 ps
• Peak Power: 1.0 GW
• Spot Sizes: 11 x 11 mm
• Repetition Rate: Single 1-10 Hz

Homogenizer 1064

• Max Energy: 400 mJ
• Pulse Duration: 350 ps
• Peak Power: 1.1 GW
• Spot Sizes: 5×5 square/3×3 square
• Repetition Rate: Single 1-10 Hz

532nm Applicators/Handpieces

Picolor (532nm)

• Max Energy: 250 mJ
• Pulse Duration: 300 ps
• Peak Power: .8 GW
• Spot Sizes: 2-10 mm
• Repetition Rate: Single 1-10 Hz

Homogenizer 532

• Max Energy: 220 mJ
• Pulse Duration: 300 ps
• Peak Power: .7 GW
• Spot Sizes: 5×5 square/3×3 square
• Repetition Rate: Single 1-10 Hz

650nm Applicator/Handpiece

CLEAR-R (650nm)

• Max Energy: 60 mJ
• Pulse Duration: 300 ps
• Peak Power: .2 GW
• Spot Sizes: 2mm
• Repetition Rate: Single 1 Hz

585nm Applicator/Handpiece

CLEAR-Y (585nm)

• Max Energy: 90 mJ
• Pulse Duration: 300 ps
• Peak Power: .3 GW
• Spot Sizes: 2mm
• Repetition Rate: Single 1,2 Hz

Pico Clear MANUFACTURER NOTES

PICO CLEAR presents a new era in skin rejuvenation and tattoo removal, offering optimal results for wrinkle reduction, removal of colorful tattoos and benign pigmented lesions with just few treatments.

Shortest Pulse Duration

Alma’s PICO CLEAR offers top-of-the-line technology featuring the shortest pulse duration in the market of 300-350 picoseconds. This state-of-the-art flexible platform allows the practitioner to control multiple function parameters to create tailored treatments: wavelength, energy level, spot size, energy delivery mode and repetition rate.

Double Pulse

PICO CLEAR features a novel technology which modifies the pulse profile – delivering two sequential pulses within a single lasing cycle, instead of one. This new energy delivery mode extends common Picosecond laser technology benefits by enhancing the photoacoustic impact as well as adding a thermal effect.

HANDPIECES

Picolor Handpiece

Offers 9 spot sizes options, ranging between 2 and 10mm, addressing various types, severities and depths of pigmented lesions and tattoos. The Picolor applicator can be used both in Nd:YAG (1064nm) mode and Double Nd:YAG (532nm) mode, using simple on-screen setup

PicoLift Handpiece

Employs a fractional delivery method which creates pixel-sized perforations in a 7×7 non-ablative pattern, leaving the surrounding tissue intact. These microinjury sites trigger a wound healing process that strengthens collagen and stimulates neo collagenesis, completely rejuvenating the target tissue. Five distinct treatment depths are available for maximum flexibility and precision.

Homogenizer 1064 & Homogenizer 532 Handpieces

Square homogenized laser beam profile featuring flat-top energy signature for uniform and consistent surface coverage, preventing hot spots. This applicator offers two footprint options – a 3 X 3 mm square and a 5 X 5 mm square.

CLEAR-Y & CLEAR-R Handpieces

These applicators extend the Picolor applicator’s capabilities, offering two additional wavelengths, targeting challenging tattoo colors. The CLEAR-Y applicator is emitting 585nm wavelength specifically targeting sky blue color. The CLEAR-R applicator is emitting 650nm wavelength specifically targeting green and teal colors.

Benefits

• Shortest Pulse Duration, Enabling High Peak Power
• Unique Double Pulse Mode
• Supreme Feature-Set
• Improved ROI with Excellent Results in Fewer Treatments
• Versatile Platform Enabling Multiple Patient-Tailored Treatment Options
• Suitable for All Skin Types

MAIN INDICATIONS

Skin Rejuvenation

Skin rejuvenation treatment protocols are based on fractional energy delivery at various skin tissue depths. PICO CLEAR excels the standard treatment protocol using the following unique features: 7X7 pixel array fractional applicator offering an optimal energy spread and coverage 5 treatment depths options Double pulse mode, effectively combining photoacoustic and thermal tissue interactions, resulting in improved ECM (Extra Cellular Matrix) regeneration.

Tattoo Removal

PICO CLEAR’s mode of operation is based on delivering ultra-short picosecond pulses of energy into the skin tissue. A shorter pulse duration means a higher convergence rate of laser energy into the mechanical force needed in order to shatter the colored pigments into small fractions. The shorter the pulse duration is, the smaller the shattered particles are, from pebbles, to granule and up to thin dust.

In colored tattoos, the double pulse sequence can shatter colored tattoo ink more effectively, due to higher peak power and a more substantial photoacoustic effect than a single mode. The double pulse mode in Clear-Y (585nm) & Clear-R (650nm) applicators will yield more effective treatment and less treatment sessions.

Pigmented Lesion

PICO CLEAR is able to treat both superficial & deep pigmented lesions. The dual wavelength option allows to treat epidermal-dermal lesions with its 532nm wavelength and deep pigmented lesions with the 1064nm to target melanin.

PICO CLEAR has one of the shortest pulse duration in the market, making it ideal to treat pigmented lesions using a very high peak energy that instantly increases the temperature of the chromophore, leading to a photoacoustic effect which effectively destroys the chromophore. The high energy pulses shatter the pigment into tiny fragments which may need fewer sessions to treat as compared to other pico lasers or nanosecond lasers.

Full Range of Indications

• Skin Rejuvenation
• Dark Ink Tattoos
• Colored Ink Tattoos
• Lentigines
• Cafe’-au-lait Birthmarks
• Benign Pigmented Lesions
• Acne Scars
• Wrinkle Reduction
