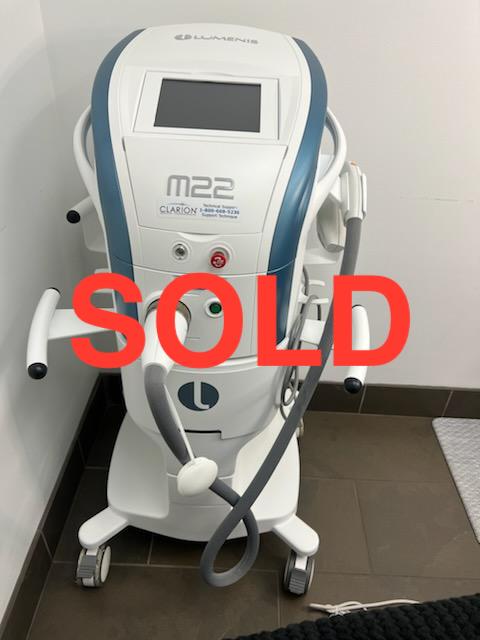

Lumenis M22 PRODUCT SPECIFICATIONS

Universal IPL Handpiece

Spectrum:515-1200 nm

ExpertFilters:515, 560, 590, 615, 640, 695, 755 nm

Fluence:10-35 J/cm2

Pulse Duration:4-20 ms

Pulse Delay:5-150 ms

Repetition Rate:Up to 1 Hz

Spot Size:35 x 15 mm2; 15 x 8 mm2

Cooling:Continuous contact cooling

ResurFX Handpiece

Wavelength:1565 nm

Pulse Energy:10-70 mJ per micro-beam

Pulse Characteristic:CoolScanTM Scanner

Pattern Shapes:Line, square, rectangle, circle, donut, hexagon

Beam Density:Up to 500 micro-beams/cm2

Repetition Rate:0.5-2 Hz

Spot Size:Up to 18 mm

Cooling:Continuous contact cooling

MultiSpot Nd YAG Handpiece

Wavelength:1064 nm

Fluence:20-225 J/cm2

Pulse Duration:2-20 ms

Pulse Delay:5-150 ms

Repetition Rate:Up to 1 Hz

Spot Size:6 mm, 2×4 mm2

Q-Switched Nd YAG Handpiece

Wavelength:1064 nm

Fluence:1.6-14 J/cm2

Pulse Duration:6-8 nsec

Pulse Characteristic:Top-Hat

Repetition Rate:0.5-5.0 Hz

Spot Size:2, 2.5, 3.5, 5 and 6 mm

System specifications

Dimensions:[without ResurFX] 44 x 50.5 x 47 cm (17 x 20 x 18.5 inches)

Dimensions:[with ResurFX] 44 x 50.5 x 61.5 cm (17 X 20 X 24 inches)

Weight:[without ResurFX] 40 kg / 88 lbs

Weight:[with ResurFX] 55 kg / 121 lbs

Electrical requirements:100  240 VAC ±10%, 15A max., 50/60 Hz, single phase, dedicated line

Lumenis M22 MANUFACTURER NOTES

M22 is a modular multi-application platform for the treatment of over 30 skin conditions and hair removal.

Available Treatments with M22:

Acne Scar Treatment

Hair Removal

Non-Ablative Skin Resurfacing

Photorejuvenation

Pigmentation Treatment

Scar Revision

Vascular / Leg Vein Treatment

Dark Tattoo Removal

Used by physicians around the world, M22 enables you to treat more types of patients and conditions with better outcomes.

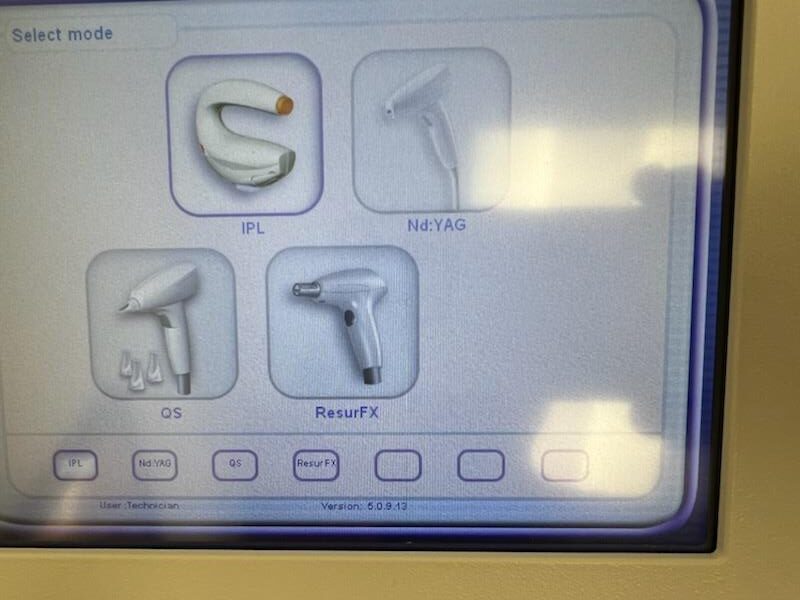

4 Multiple Technologies In One Modular System

M22 grows with your practice and can expand to your treatment needs and adapts to future applications as they emerge.

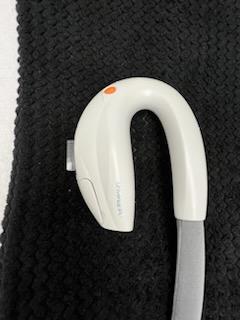

Universal IPL

Optimal Pulse Technology (OPT)

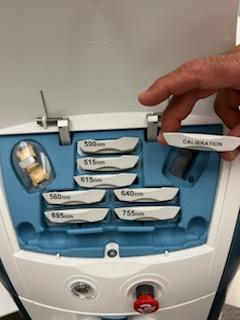

Single handpiece with changeable filters and lightguides

For IPL skin treatments using photorejuvenation

515nm – Pigmented Lesions, such as freckles, age spots, Rosacea and flushing

560nm – Vascular Lesions, such as cherry angiomas, telangiectasias, and rosacea

590nm – Deeper Lesions / Darker Skin Types

615nm – Vascular Lesions

640nm – Leg Veins

695nm – Leg Veins, Thicker Vascular Lesions, and Hair Removal for Lighter Skin Types

755nm – Laser Hair Removal for Darker Skin Types

Acne – Acne Clearance

ResurFX

The only True fractional non-ablative, with CoolScan scanner

No disposables

For skin resurfacing

Multi-Spot Nd:YAG

The only one with Multiple Sequential Pulsing (MSP)

2 sized lightguides, changeable in seconds

For treatment of leg veins and vascular lesions

Q-Switched Nd:YAG

Homogenous beam profile for enhanced treatment safety and efficacy

For skin toning*, dark tattoos removal, and combination treatments

*Skin toning by treatment of pigmented lesions
