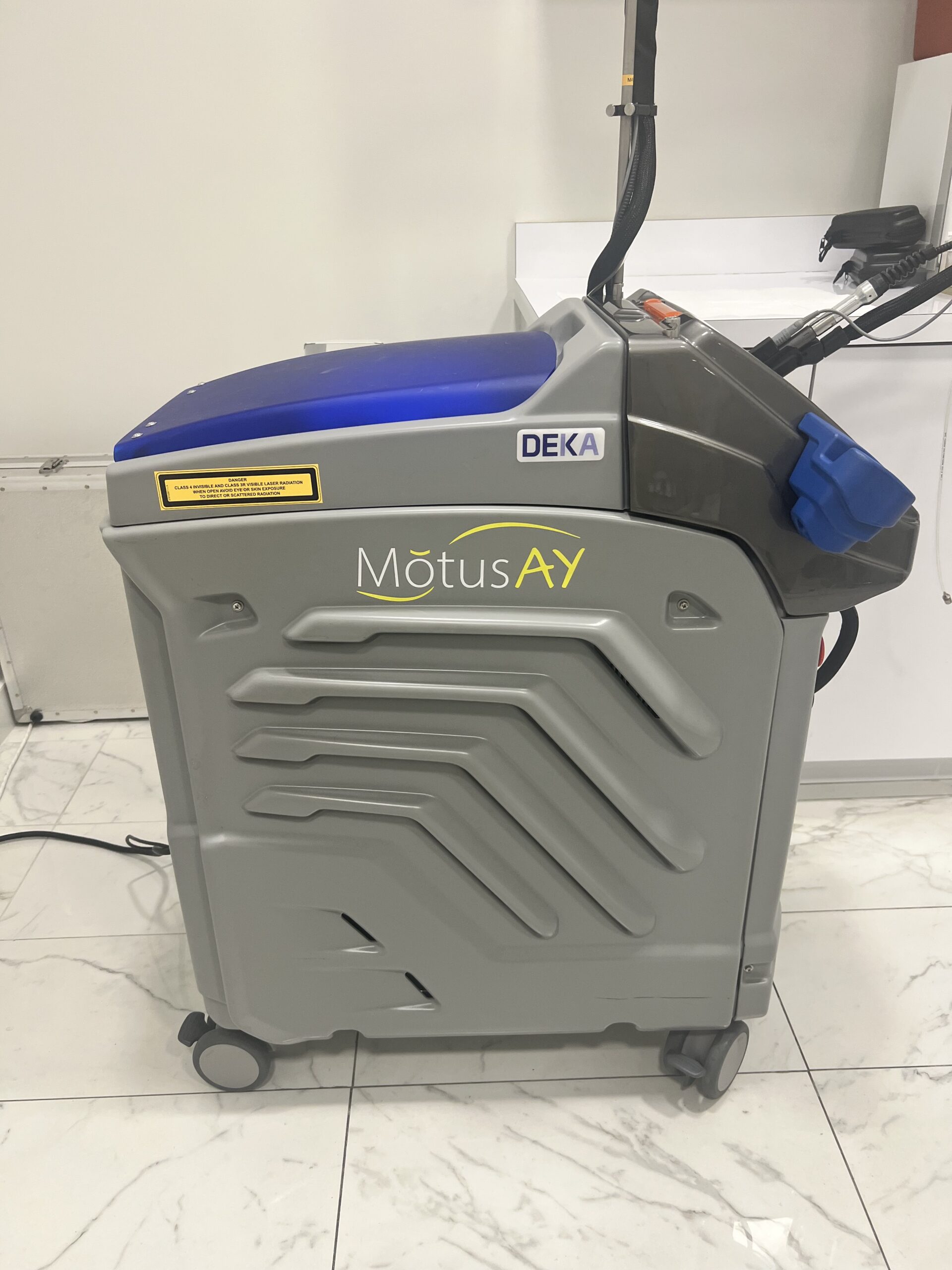

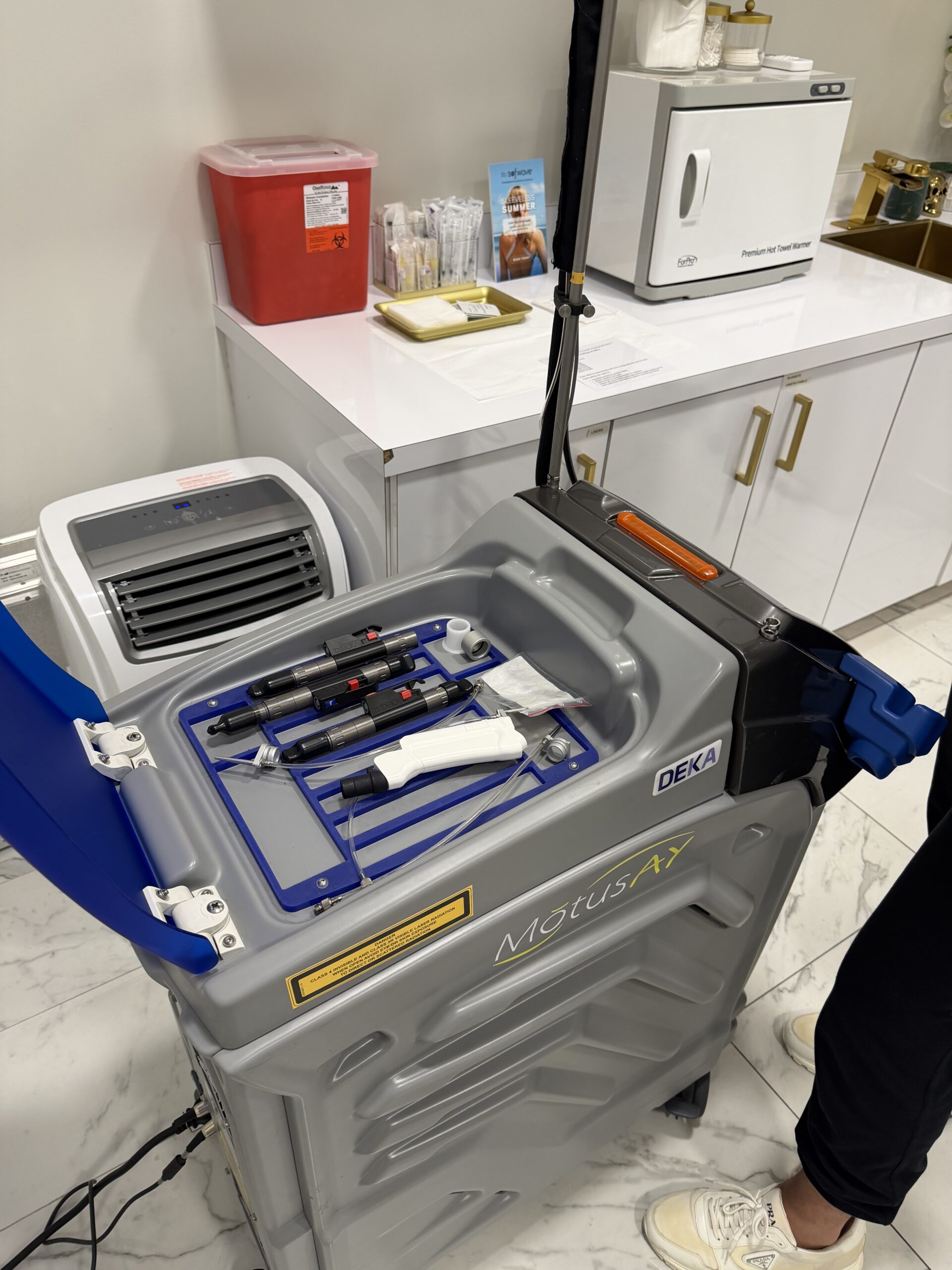

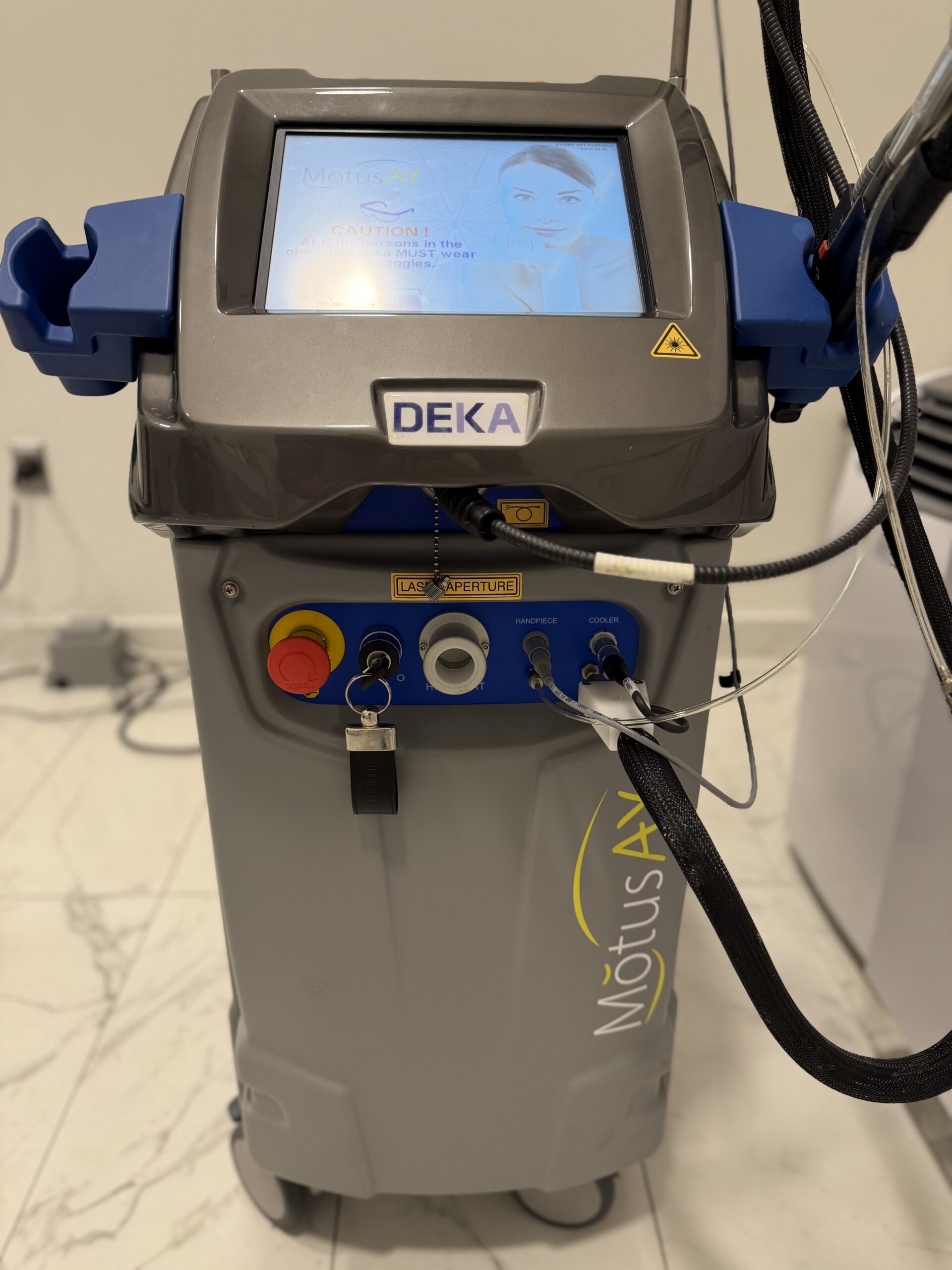

MOTUS AY PRODUCT SPECIFICATIONS

Laser Sources: Alexandrite 755 nm and Nd:YAG 1064 nm

Energy per Pulse: Up to  31 J (Alexandrite) and  63 J (Nd:YAG)

Laser Power: Up to  65 W (Alexandrite) and  94 W (Nd:YAG)

Pulse Duration:  0.2− 50 0.2 minus 50 ms (single pulse)

Repetition Rate: Up to  10 Hz Spot Sizes:  2.5 mm to  20 mm (optional sizes available)

Fluence: Up to 200 J/cm² (Alexandrite) and  600 J/cm² (Nd:YAG)

Dimensions: 90 cm (H) x 51 cm (W) x 83 cm (D)

Weight: 90 Kg

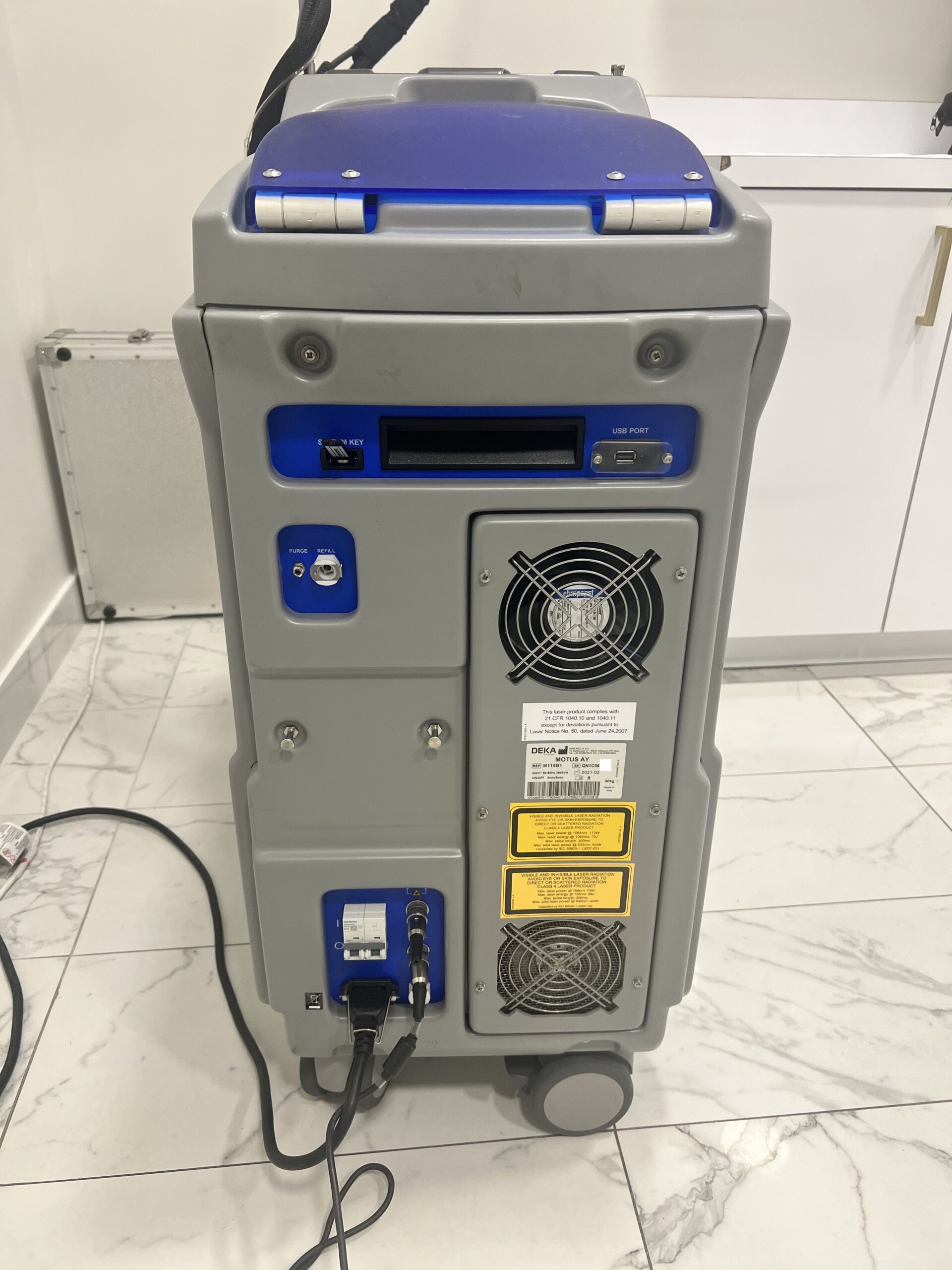

Electrical Requirements: 230 Vac, single phase, 50 / 60 16 A

Motus AY MANUFACTURER NOTES

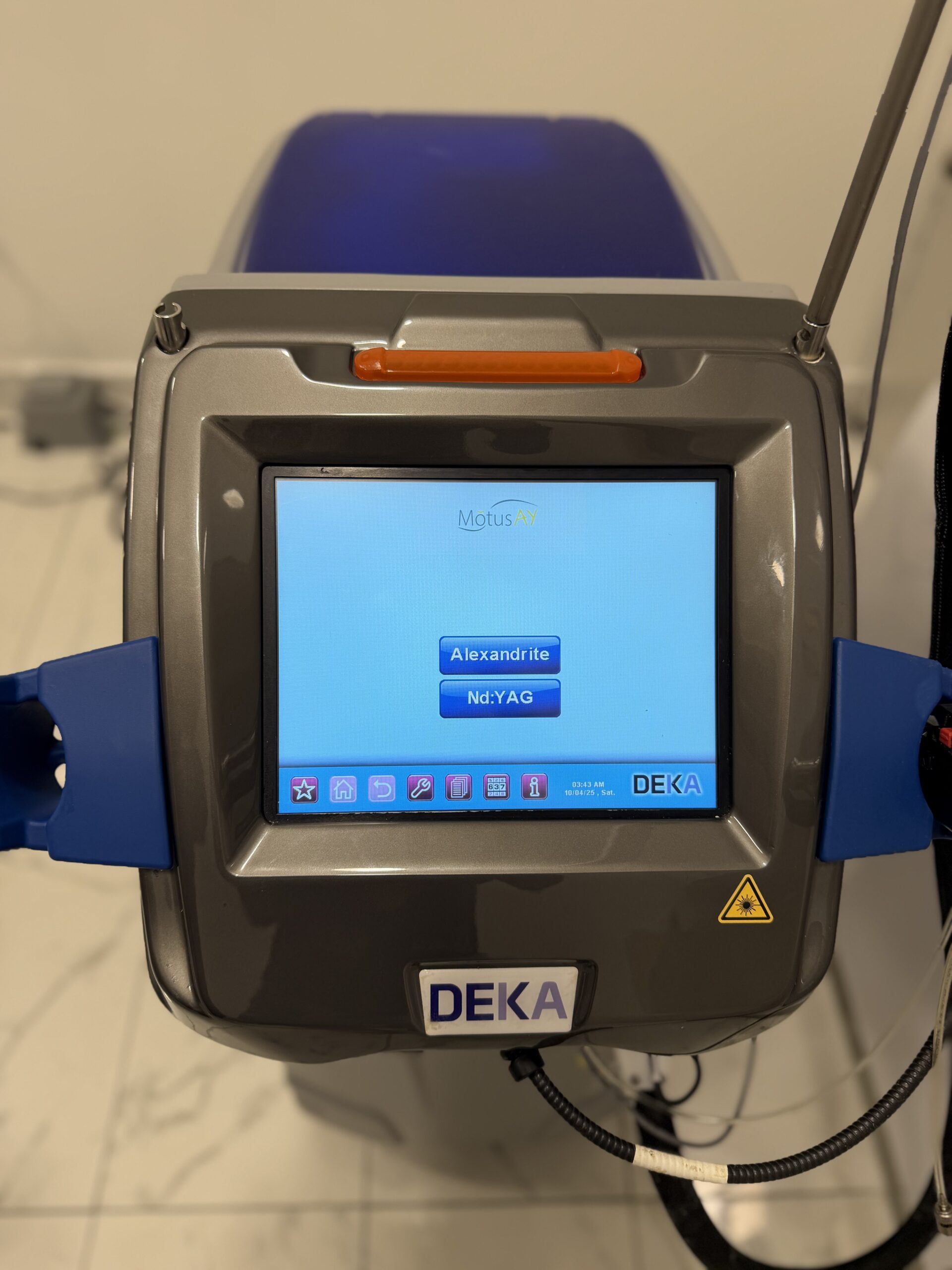

Dual-Wavelength System (755 nm Alexandrite + 1064 nm Nd:YAG):

Combines two wavelengths for effective treatment on both light and dark skin tones. Alexandrite works well for fine or lighter hairs, while Nd:YAG is safer for deeper skin tones.

Suitable for All Skin Types (I–VI):

Effective and safe across the full spectrum of skin types due to the combined wavelengths.

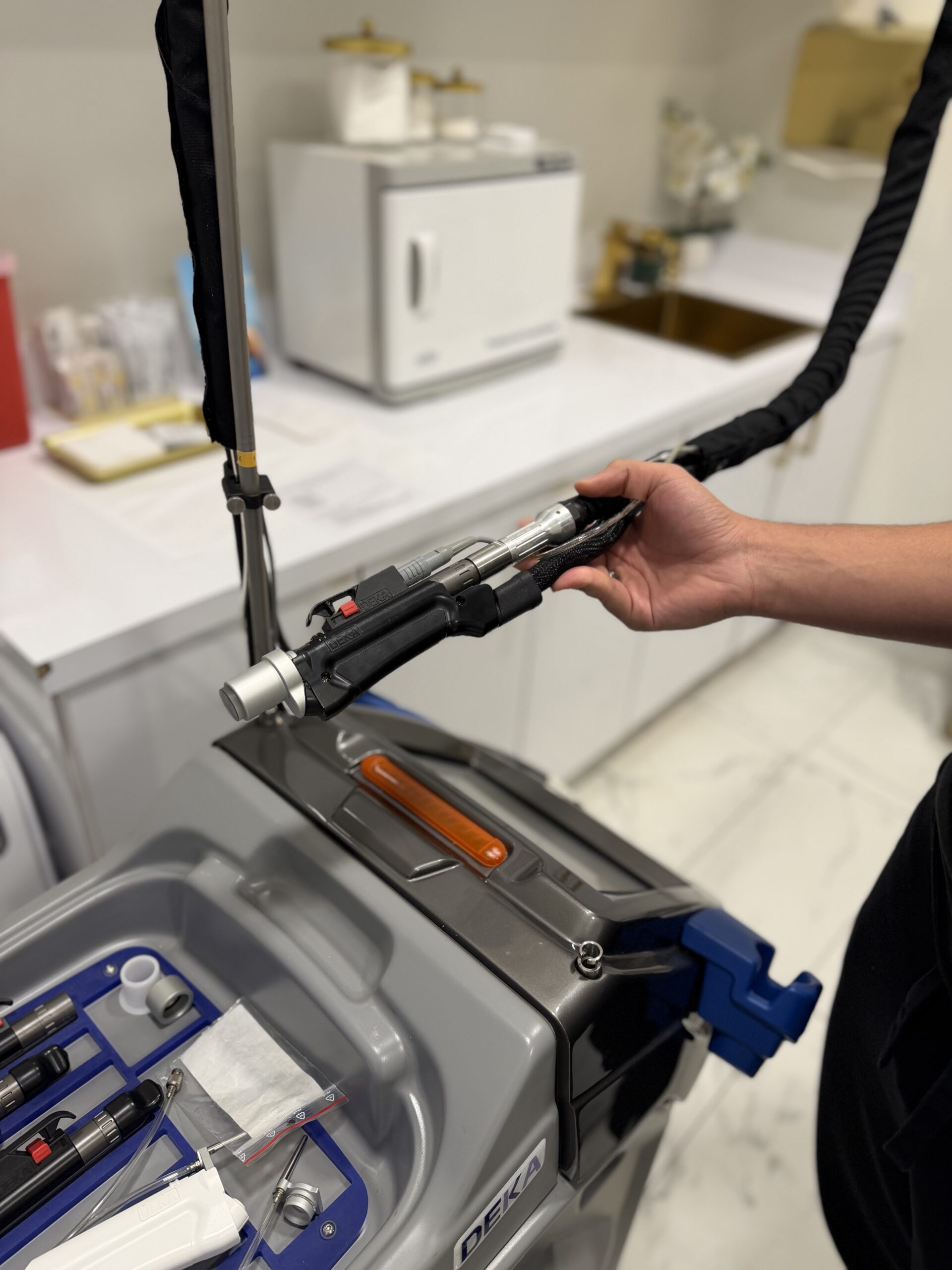

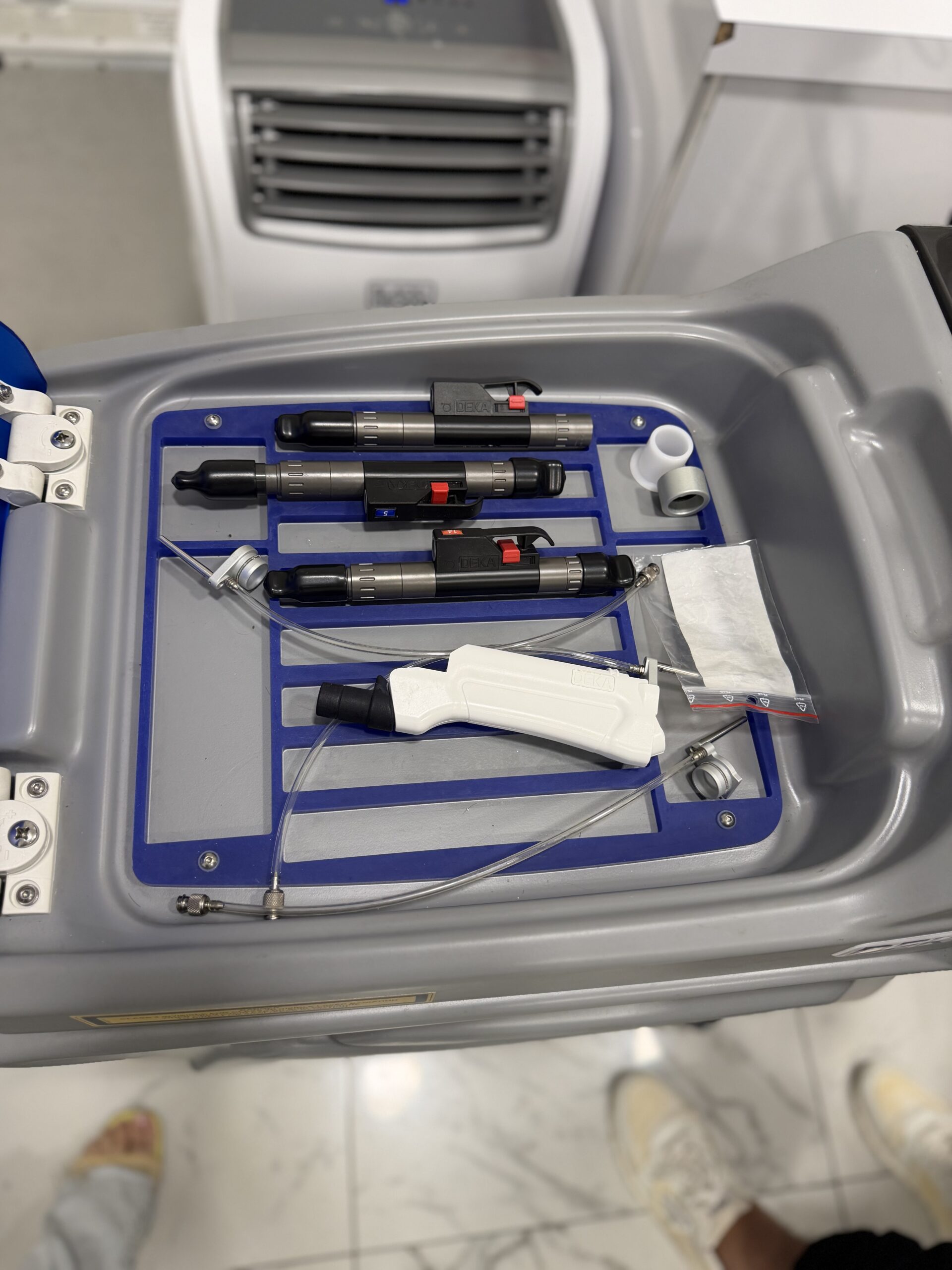

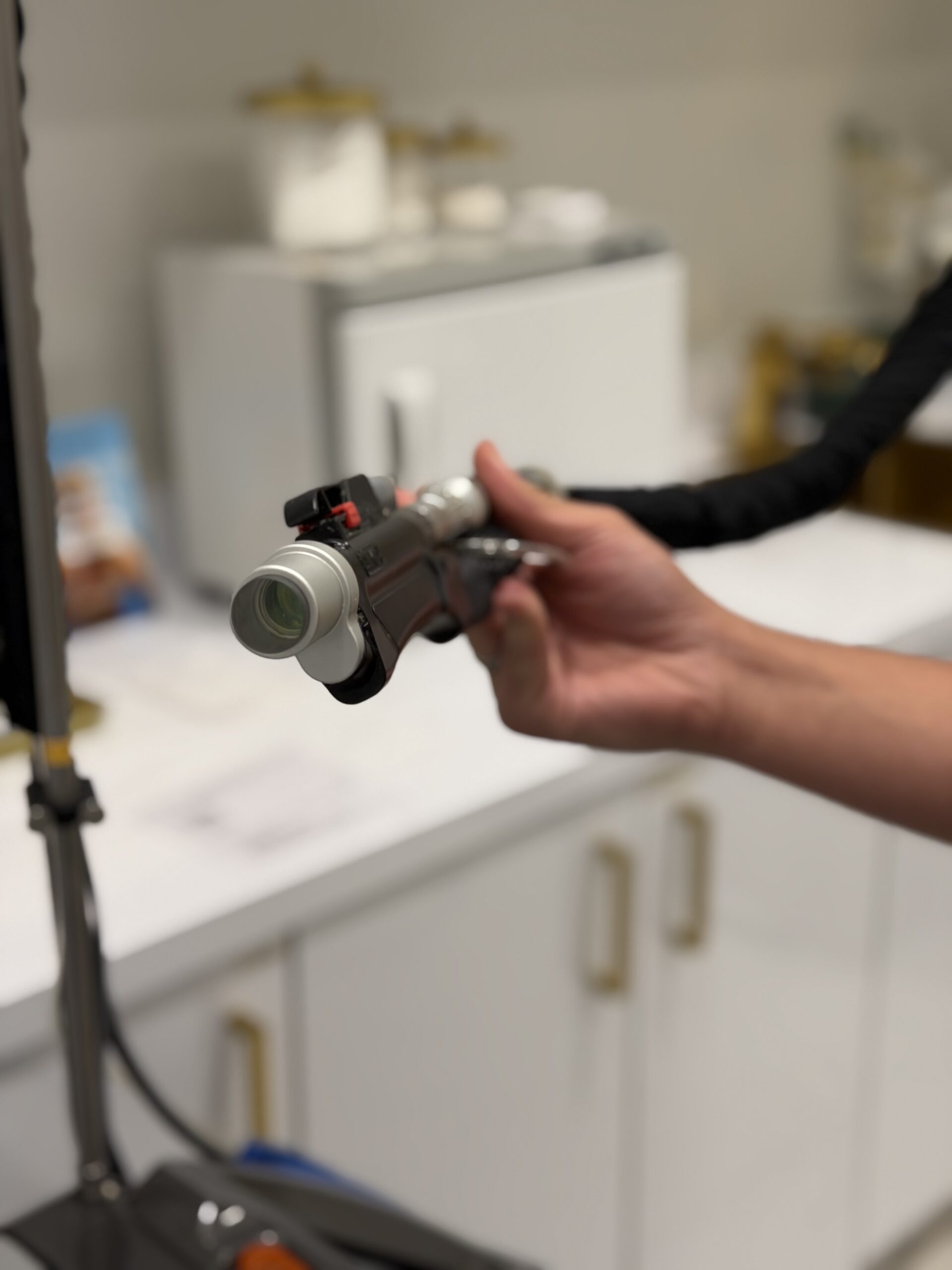

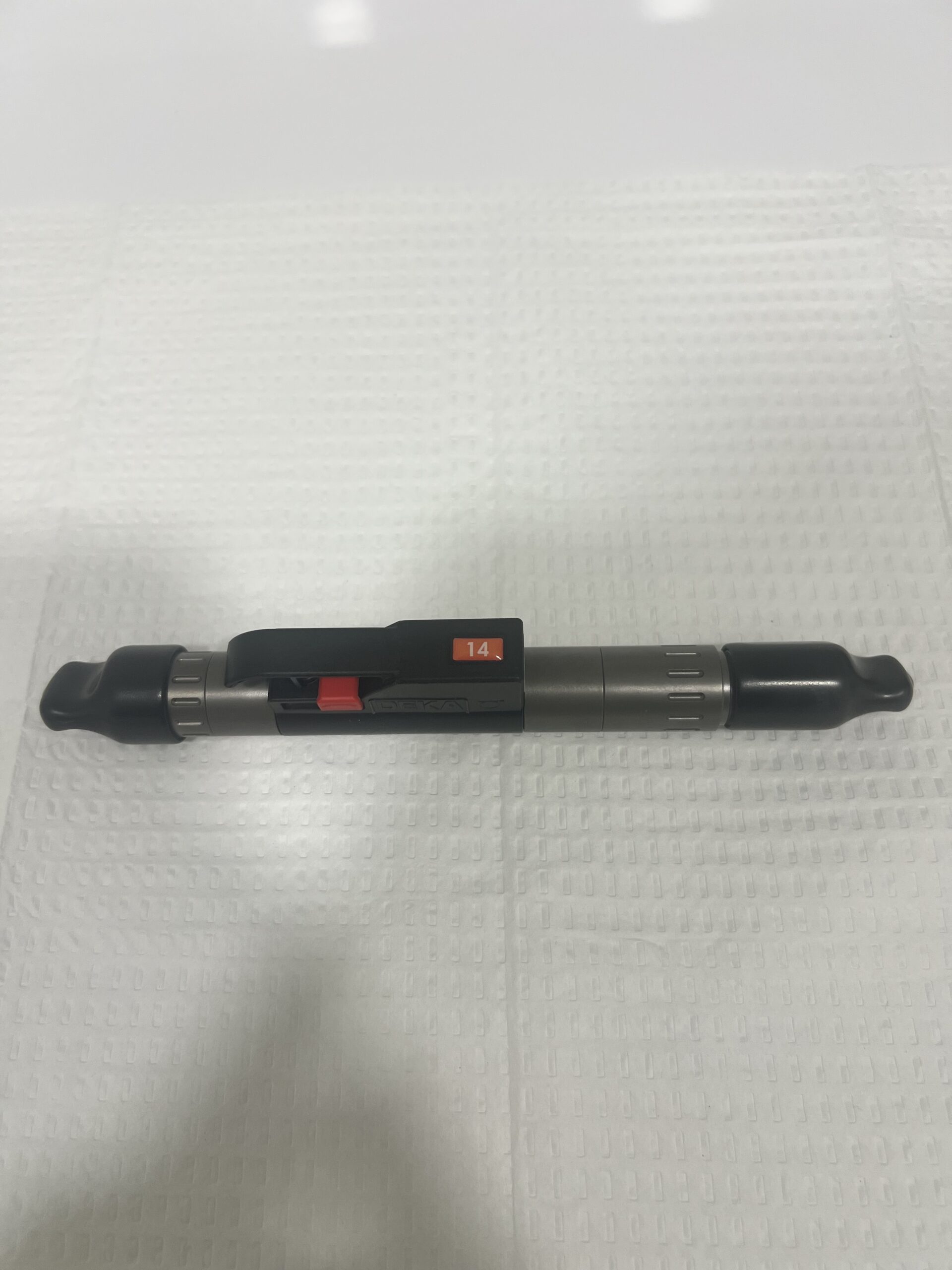

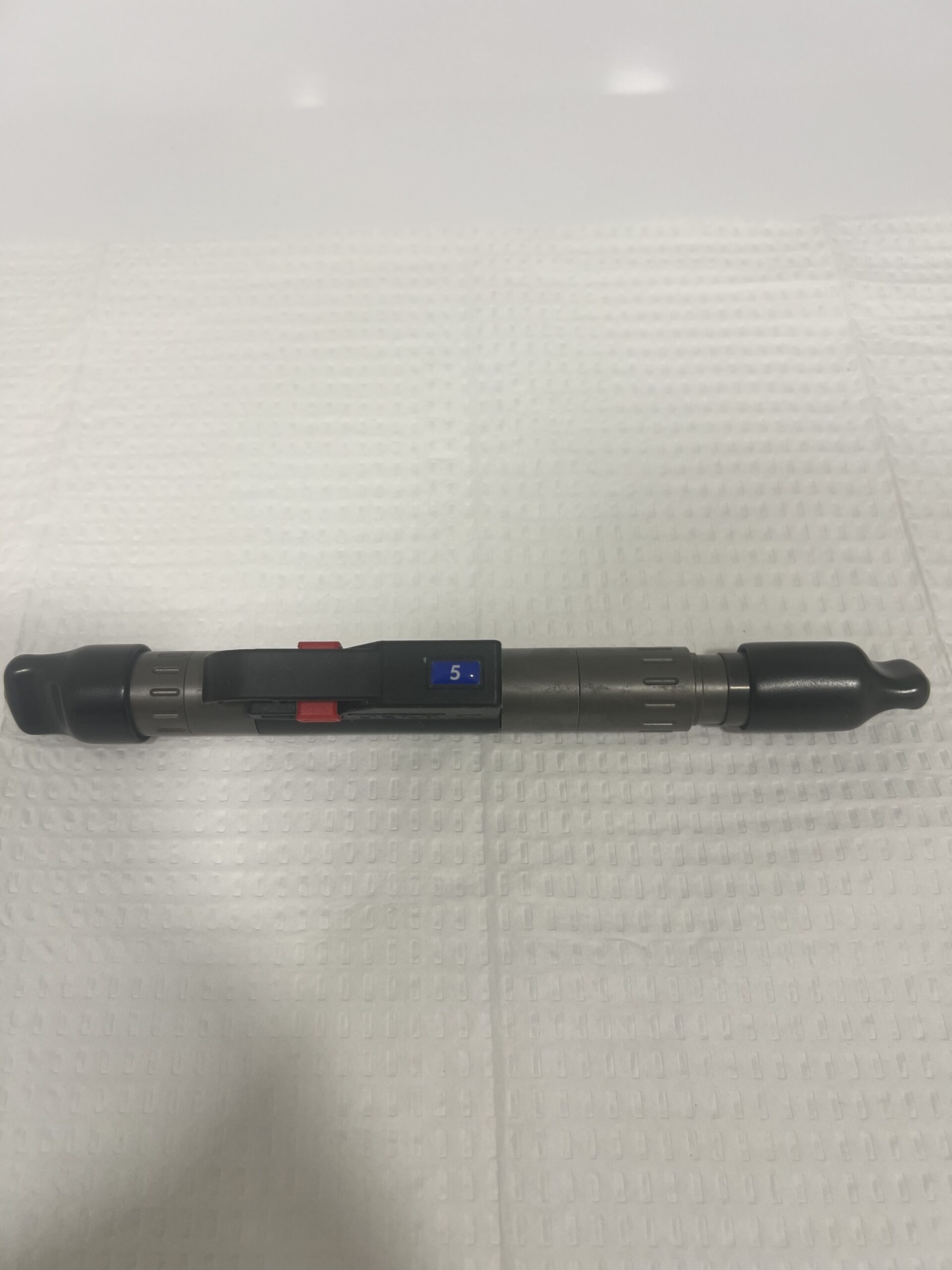

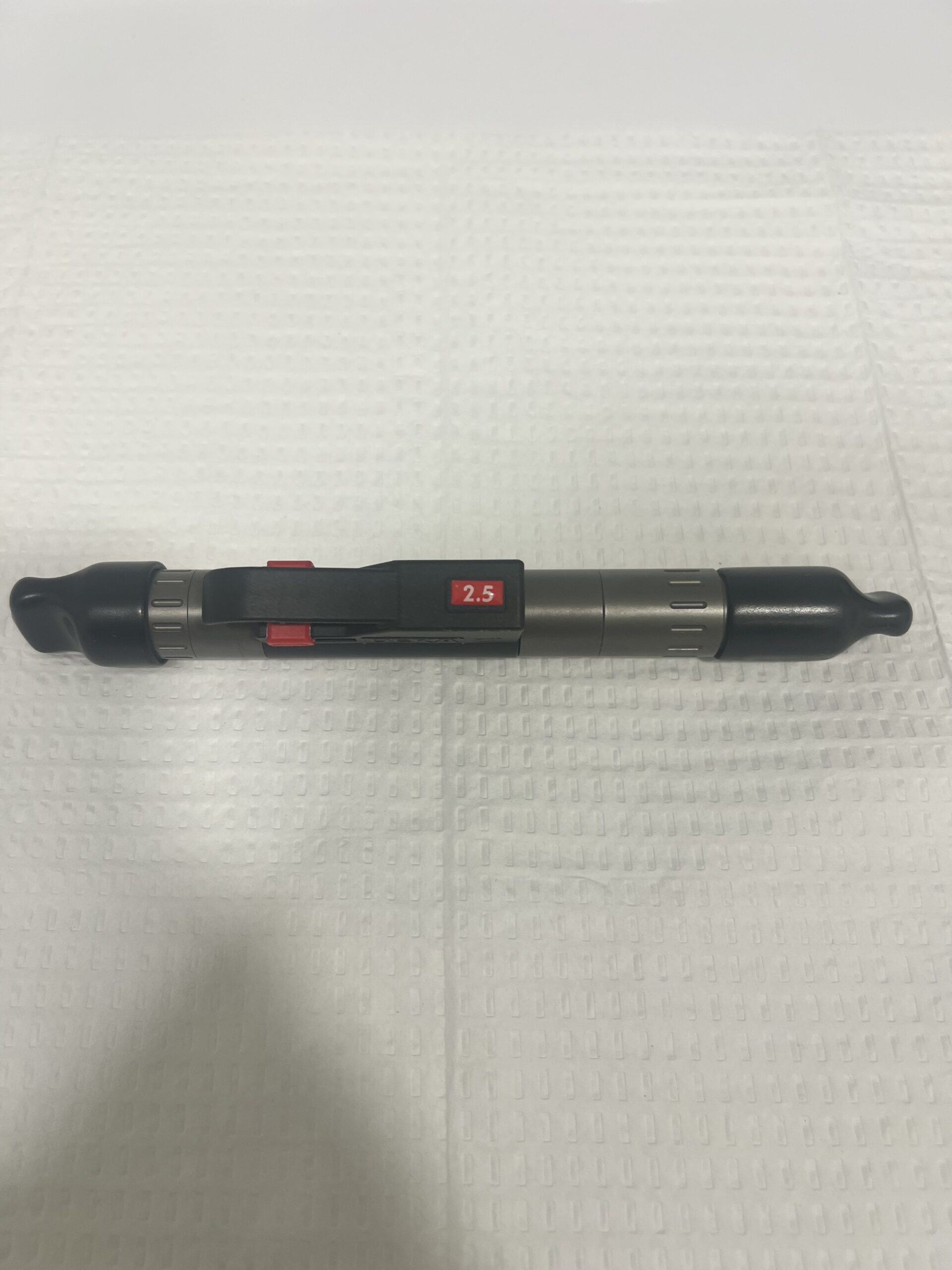

Motus AY Handpieces

The Motus AY handpieces use an air-cooling system and are available in numerous spot sizes ranging from 2.5 mm to 20 mm:

• 2.5 mm
• 5 mm
• 7 mm
• 10 mm
• 12 mm
• 14 mm
• 15 mm
• 16 mm
• 18 mm
• 20 mm

Indicated uses for the Motus AY handpieces include:

• Hair Removal: Effective for various hair types, including fine and light hair with the Alexandrite laser.
• Vascular Lesions: Treatment of a range of vascular conditions, including facial and leg veins, spider veins, and generalized redness (rosacea).
• Benign Pigmented Lesions: Reduction of age spots, brown spots, freckles, birthmarks, and other benign skin discolorations.
• Non-Ablative Skin Rejuvenation: Revitalization of the skin by stimulating collagen and elastin production, which can reduce fine lines and wrinkles and improve skin tone and texture.
• Onychomycosis: The treatment of nail fungus.
• Pseudofolliculitis Barbae (PFB): Treatment of razor bumps or ingrown hairs.
• Acne: Reduction of acne and prevention of future outbreaks by killing bacteria in the skin.

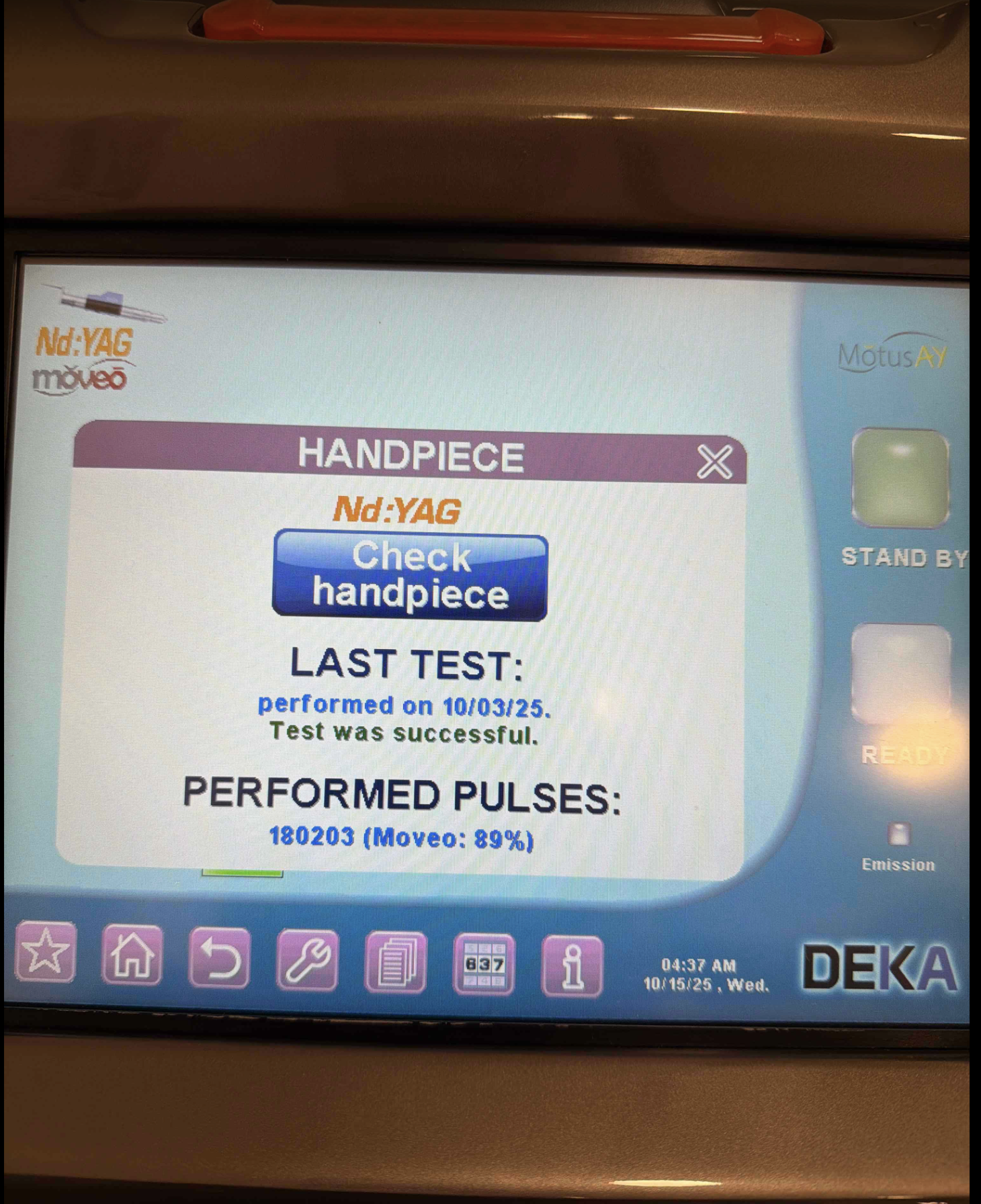

Moveo Handpieces

Moveo Technology: Uses a sapphire-tipped handpiece with high-speed, low-fluence, in-motion delivery for fast, comfortable, and virtually pain-free treatments by gradually heating the hair follicle and minimizing side effects.

Available with multiple spot sizes with automatic handpiece recognition and integrated cooling

• Moveo HR: Specifically for hair removal, this handpiece is designed to make treatments faster and more comfortable.
• Moveo PL: Used for treating pigmented lesions, such as sun spots and age spots.
• Moveo VL: For vascular treatments, including conditions like rosacea and spider veins.
• Moveo SR: Designed for skin rejuvenation treatments.
