Elos Plus CONSUMABLES & RECERTIFICATION

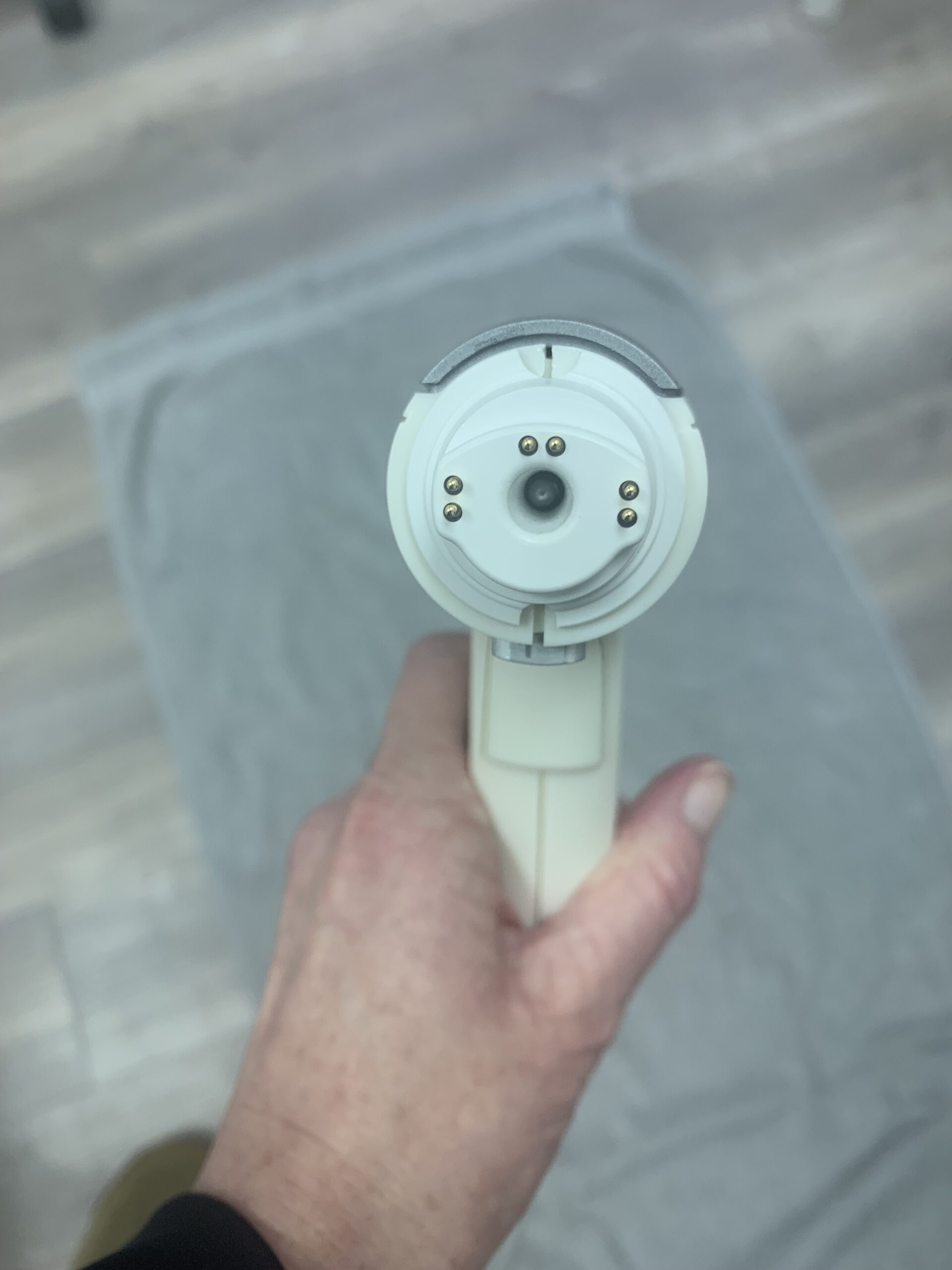

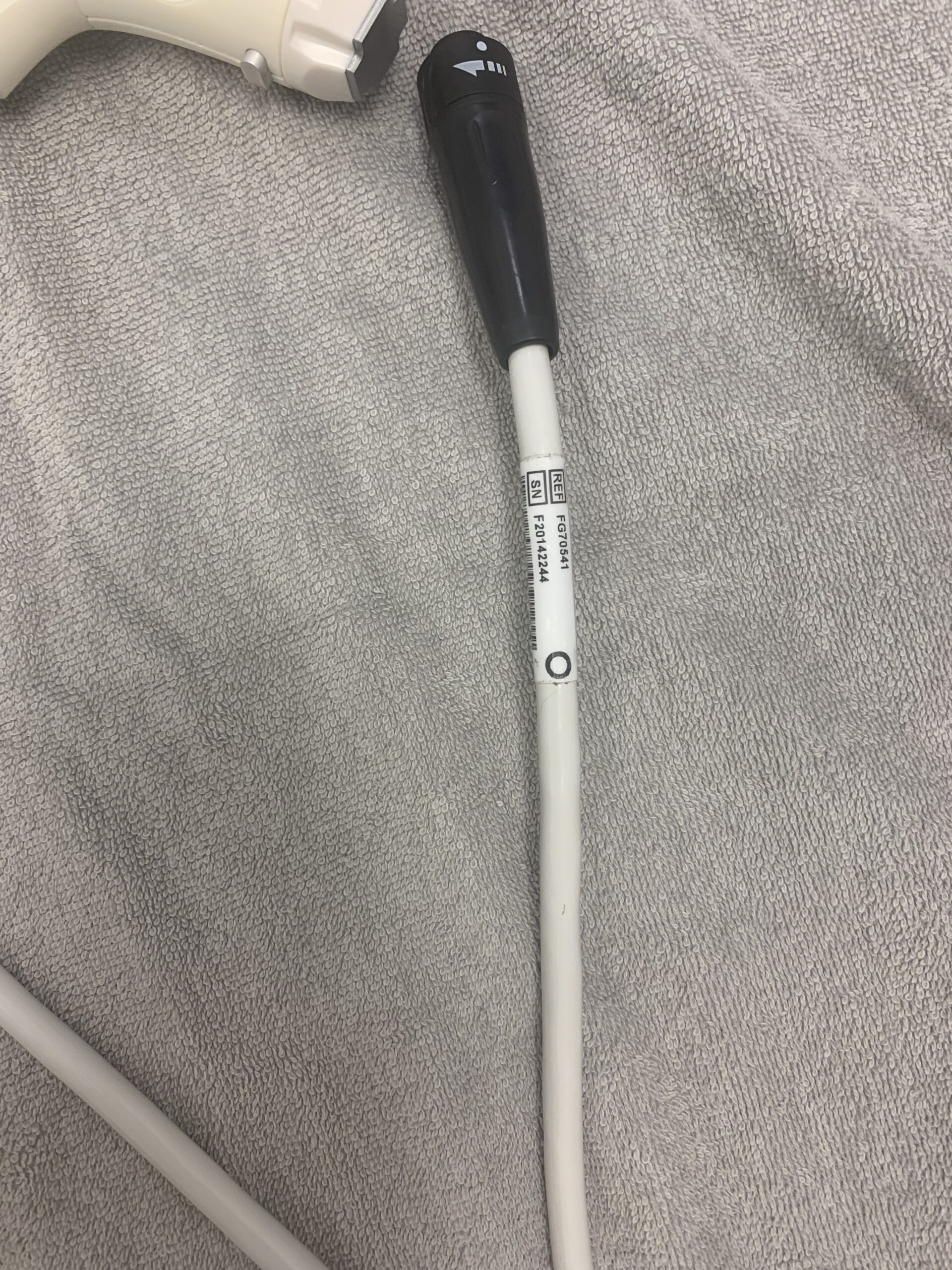

Sublative RF Applicator/Handpiece Consumable Required: Standard 64 Suplative iD Tip;

Cost of Tips: 100 Pulse Tip = $50, 200 Pulse Tip = $75, 400 Pulse Tip = $150

Where can the Tips be Purchased? Syneron Candela

Does Syneron Candela Charge a Recertification fee Service and the Purchase of Consumables? Yes

Recertification Fee: $30,000 – The recertification fee is not necessary if you have a source to purchase tips. We do not recommend recertification.  Service can be obtained through one of our trusted 3rd party technicians.  A certificate of use can be obtained through one of our trusted 3rd party trainers.

Elos Plus PRODUCT SPECIFICATIONS

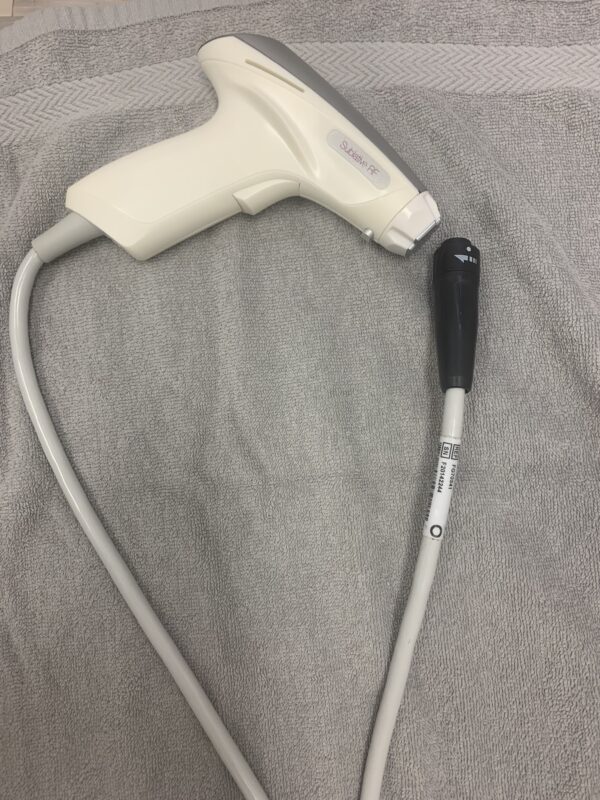

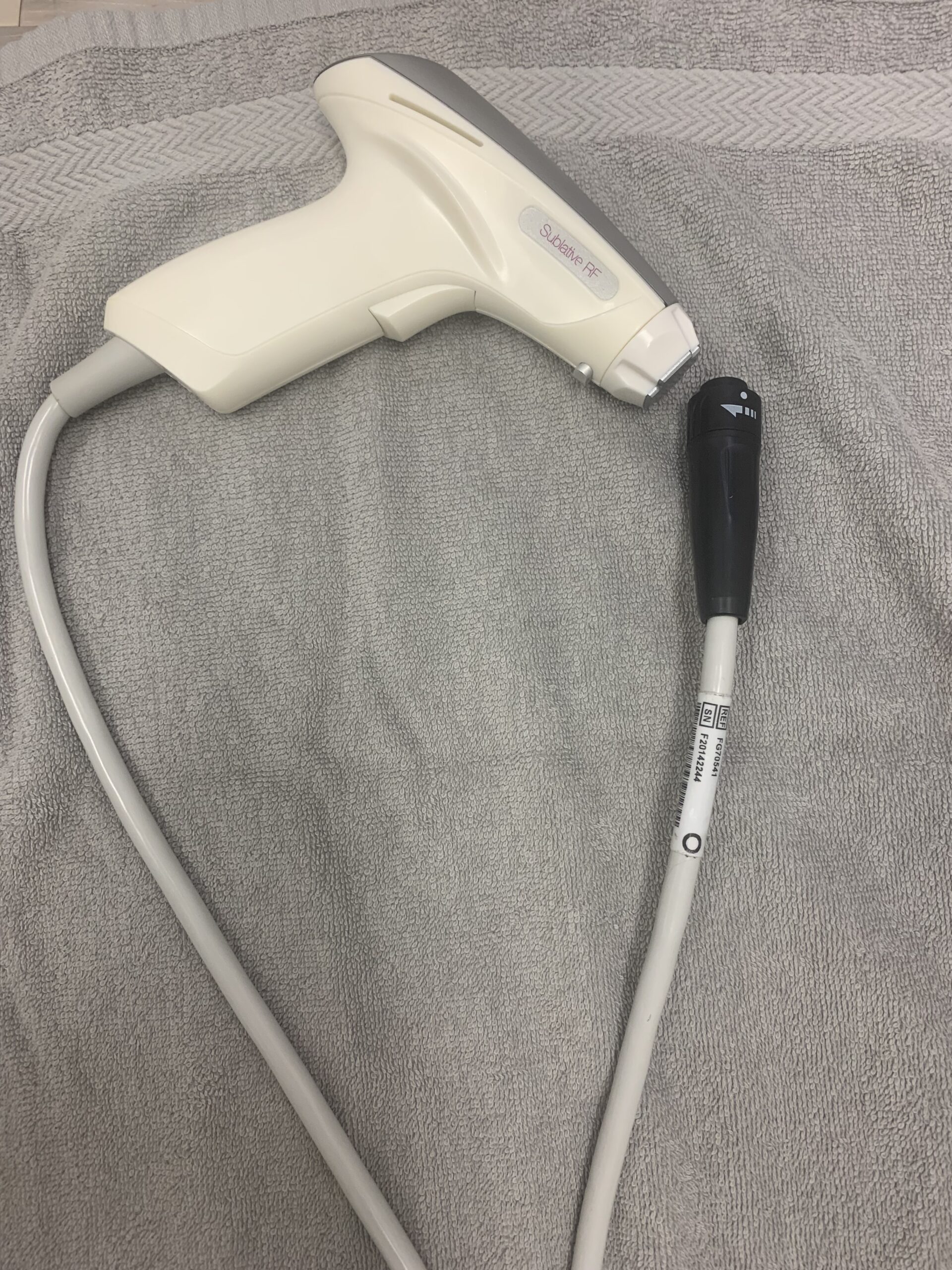

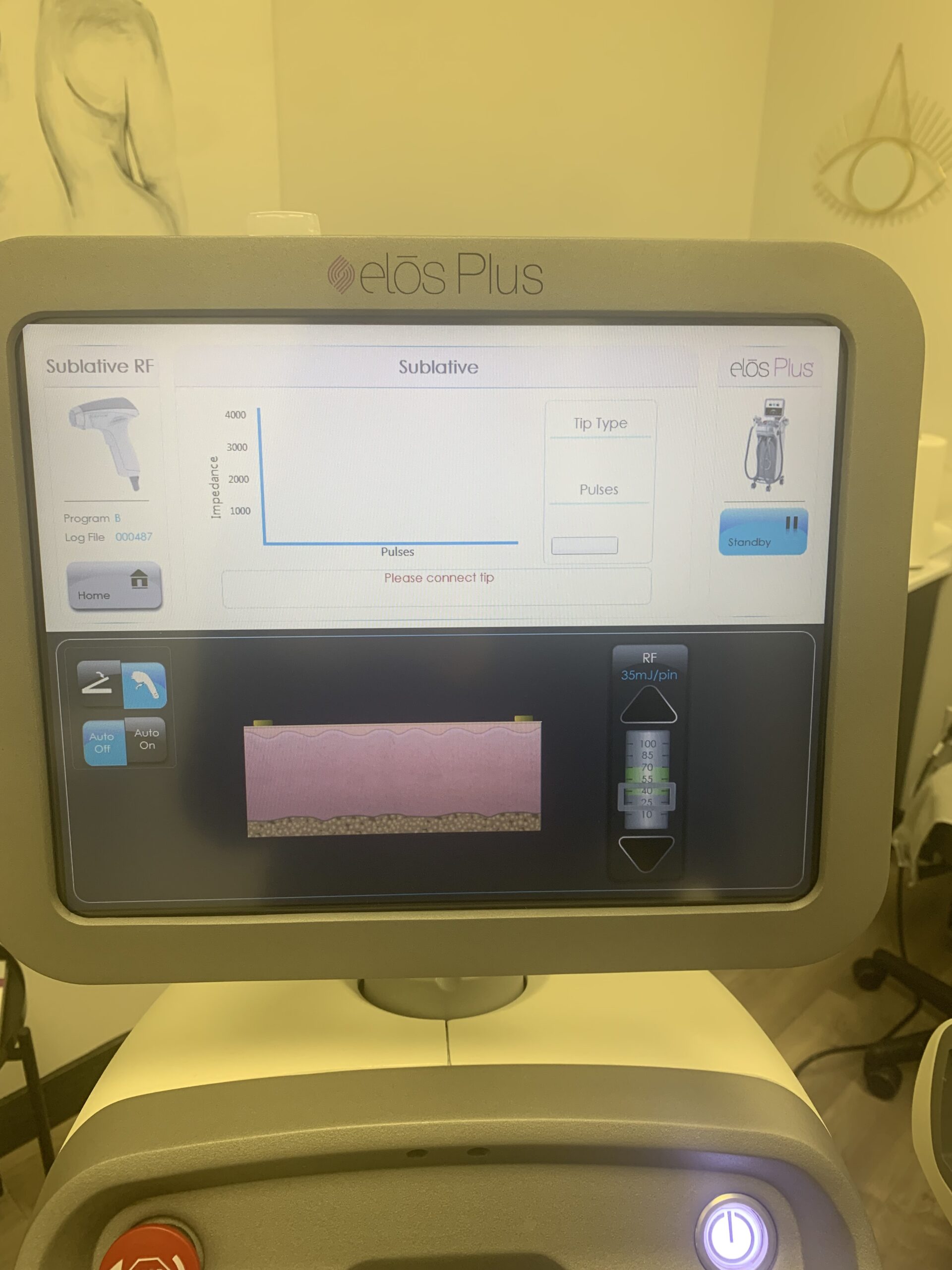

Sublative RF Applicator: Spectrum N/A; Light Fluence N/A; Radio Frequency RF Energy Up to 62 mJ/pin; Treated Area – Standard 64 = 12×12 mm, Focal 44 = 11×3 mm; Pulse Rep Rate 1 Hz; Cooling N/A; Ablation & Skin Resurfacing, Skin Rejuvenation for an Increase in Collagen

Sublime Applicator: Spectrum 700-2000 nm IPL; Light Fluence Up to 6 W/cm²; Radio Frequency RF Energy Up to 120 J/cm³; Treated Area 12×8 mm; Pulse Rep Rate 1 Hz; Cooling 10 degrees C; Facial Contouring and Wrinkle Treatment

SR Applicator: Spectrum 580-980 nm IPL; Light Fluence Up to 45 J/cm²; Radio Frequency RF Energy Up to 25 J/cm³; Treated Area 25 x 12 mm; Pulse Rep Rate 1 Hz; Cooling 5 degrees C; Vascular & Pigmented Lesion Treatment

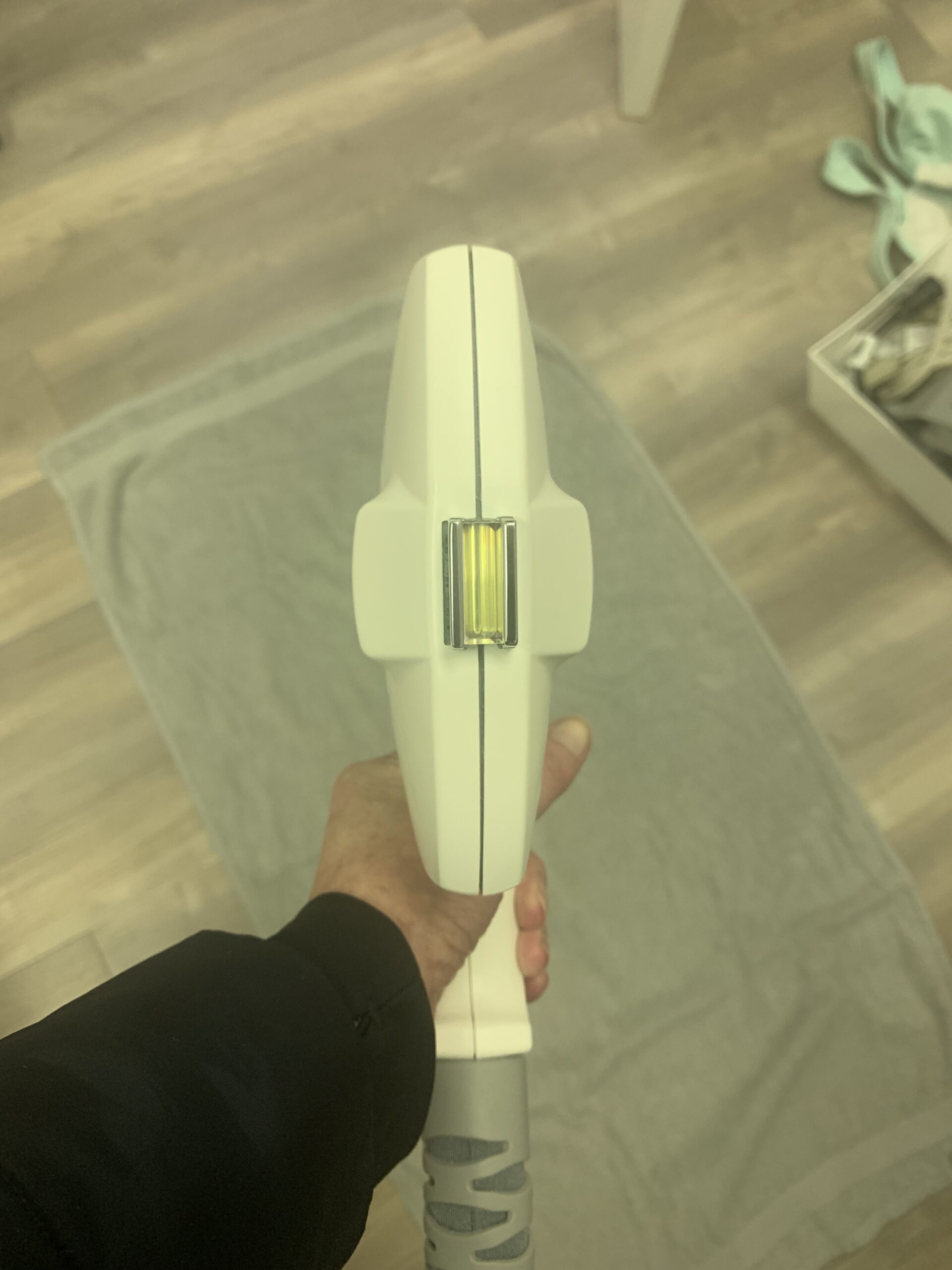

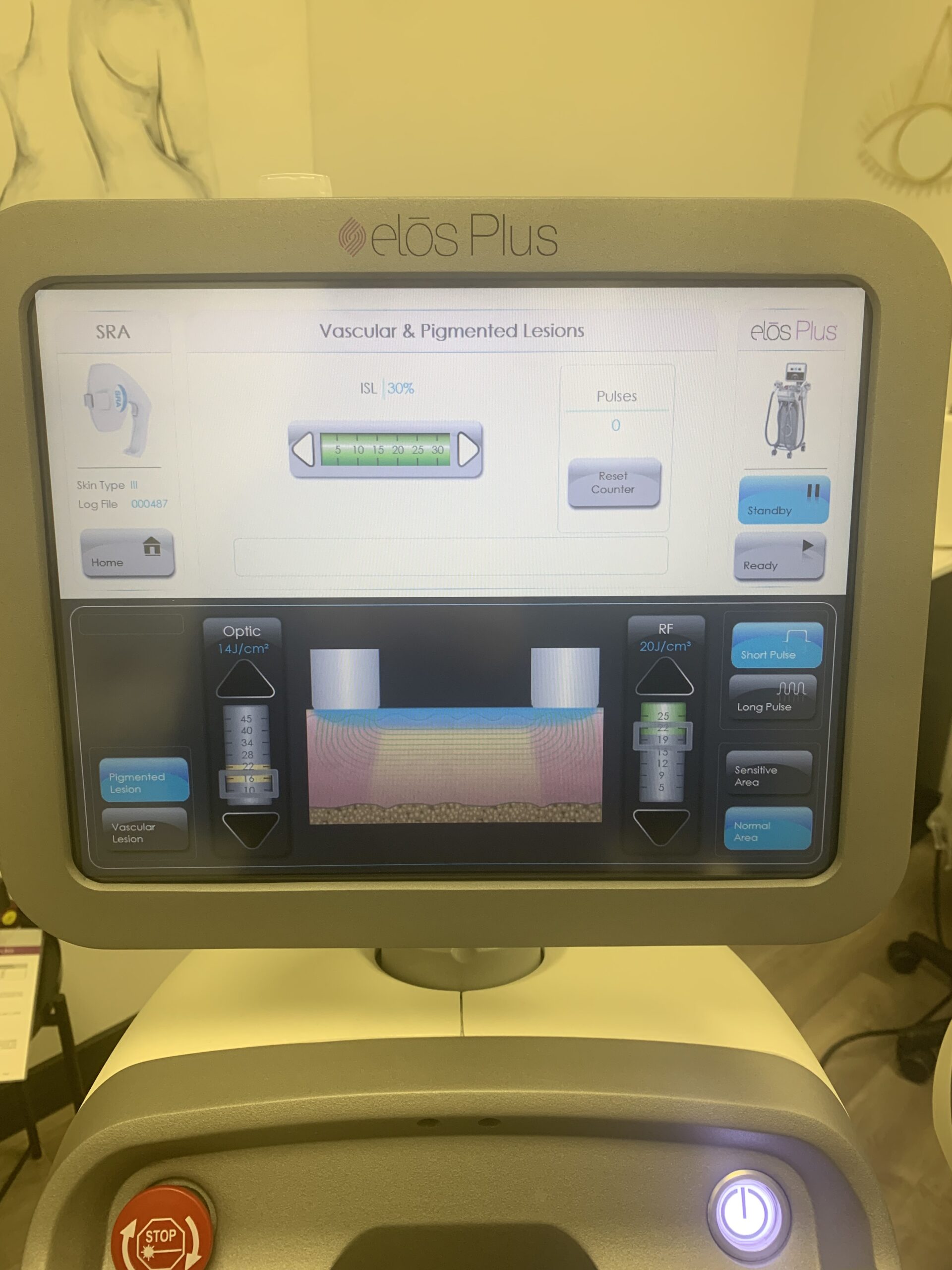

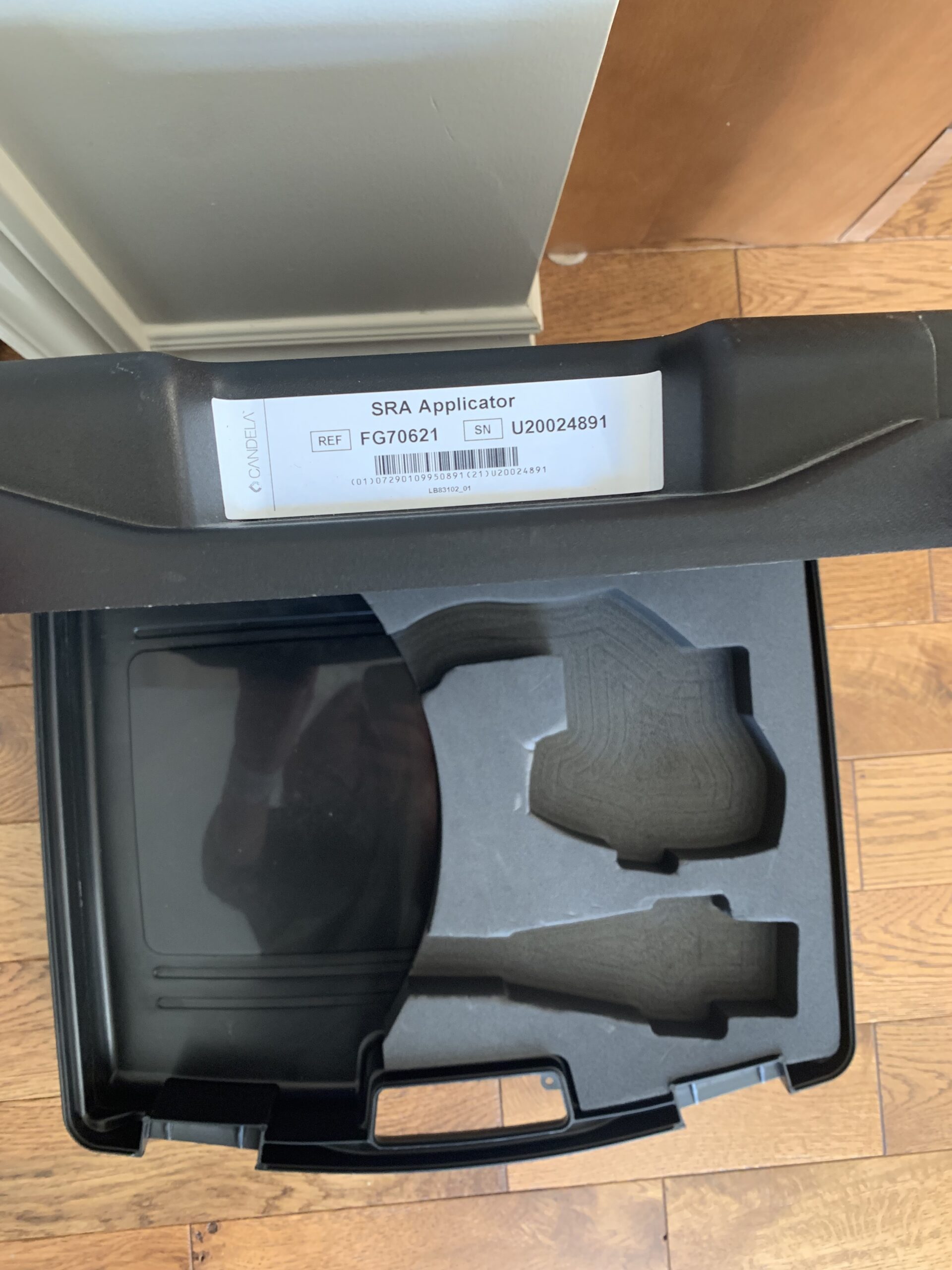

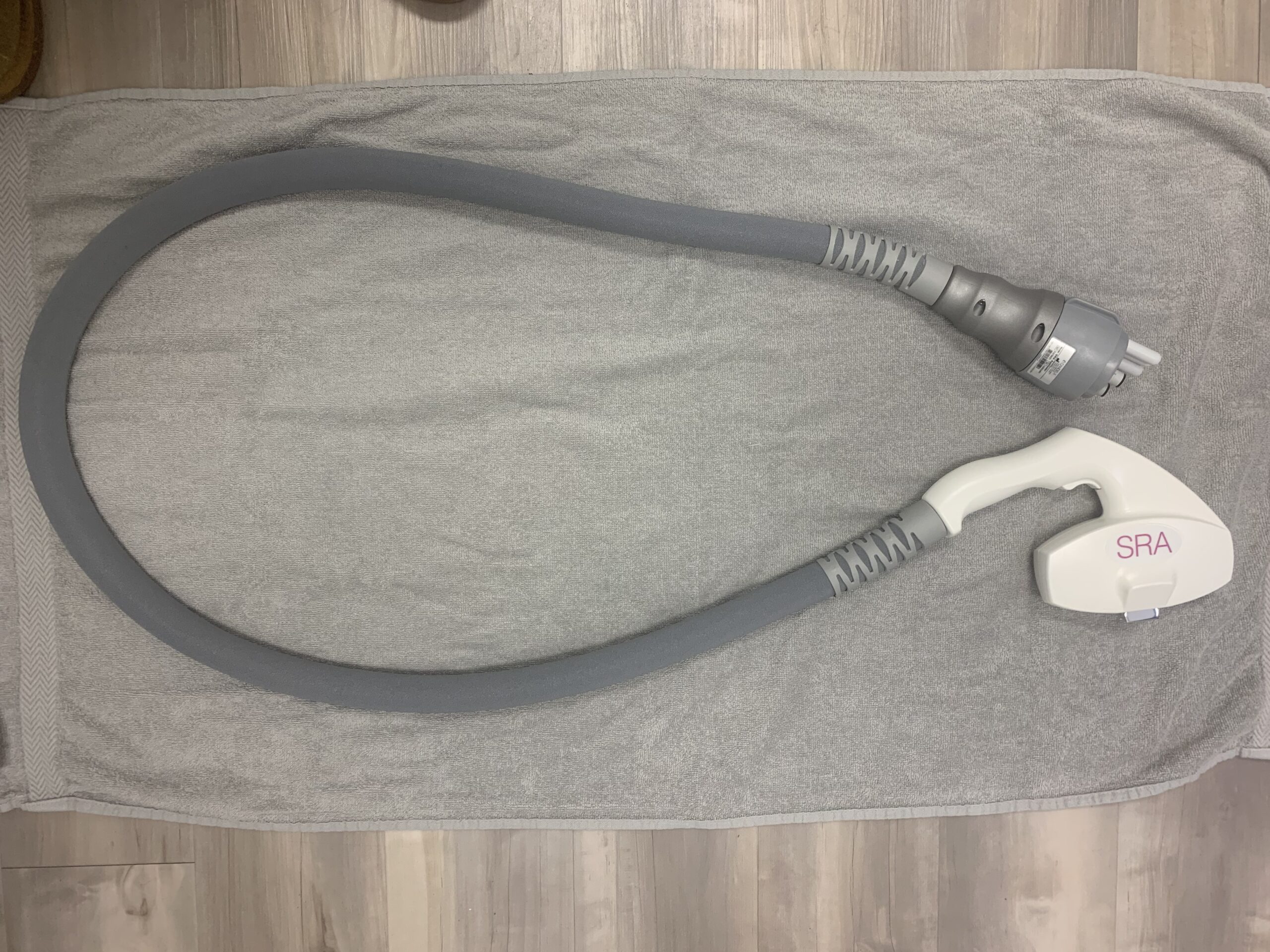

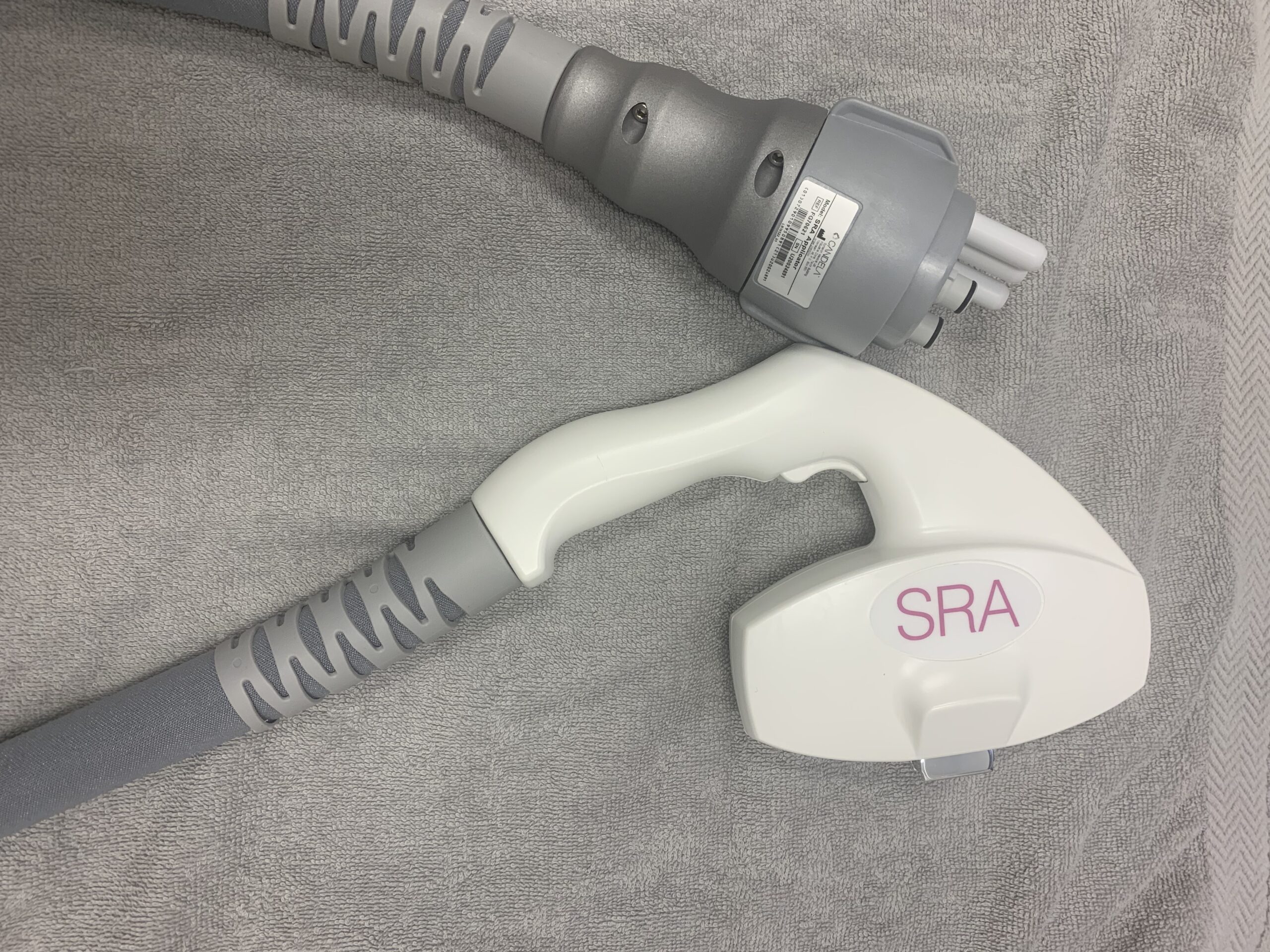

SRA Applicator: Spectrum 470-980 nm IPL; Light Fluence Up to 45 J/cm²; RF Energy Up to 25 J/cm³; Treated Area 25×12 mm; Pulse Rep Rate 1 Hz; Cooling 5 degrees C; Vascular & Pigmented Lesion Treatment

AC Applicator: Spectrum 400-980 nm IPL; Light Fluence m Up to 18 J/cm²; RF Energy ² Up to 25 J/cm³; Treated Area 25×12 mm; Pulse Rep Rate 1 Hz; Cooling 5 degrees C; Acne Treatment

LV Applicator: Spectrum 915 nm Diode; Light Fluence Up to 140 J/cm²; RF Energy Up to 100 J/cm³; Treated Area 8×5 mm; Pulse Rep Rate 1 Hz; Cooling 5 degrees C; Vascular Lesion Treatment

LVA Applicator: Spectrum 915 nm Diode; Light Fluence 100 – 350 J/cm²; RF Energy Up to 100 J/cm³; Treated Area 8×2 mm; Pulse Rep Rate 1 Hz; Cooling 5 degrees C; Vascular Lesion Treatment

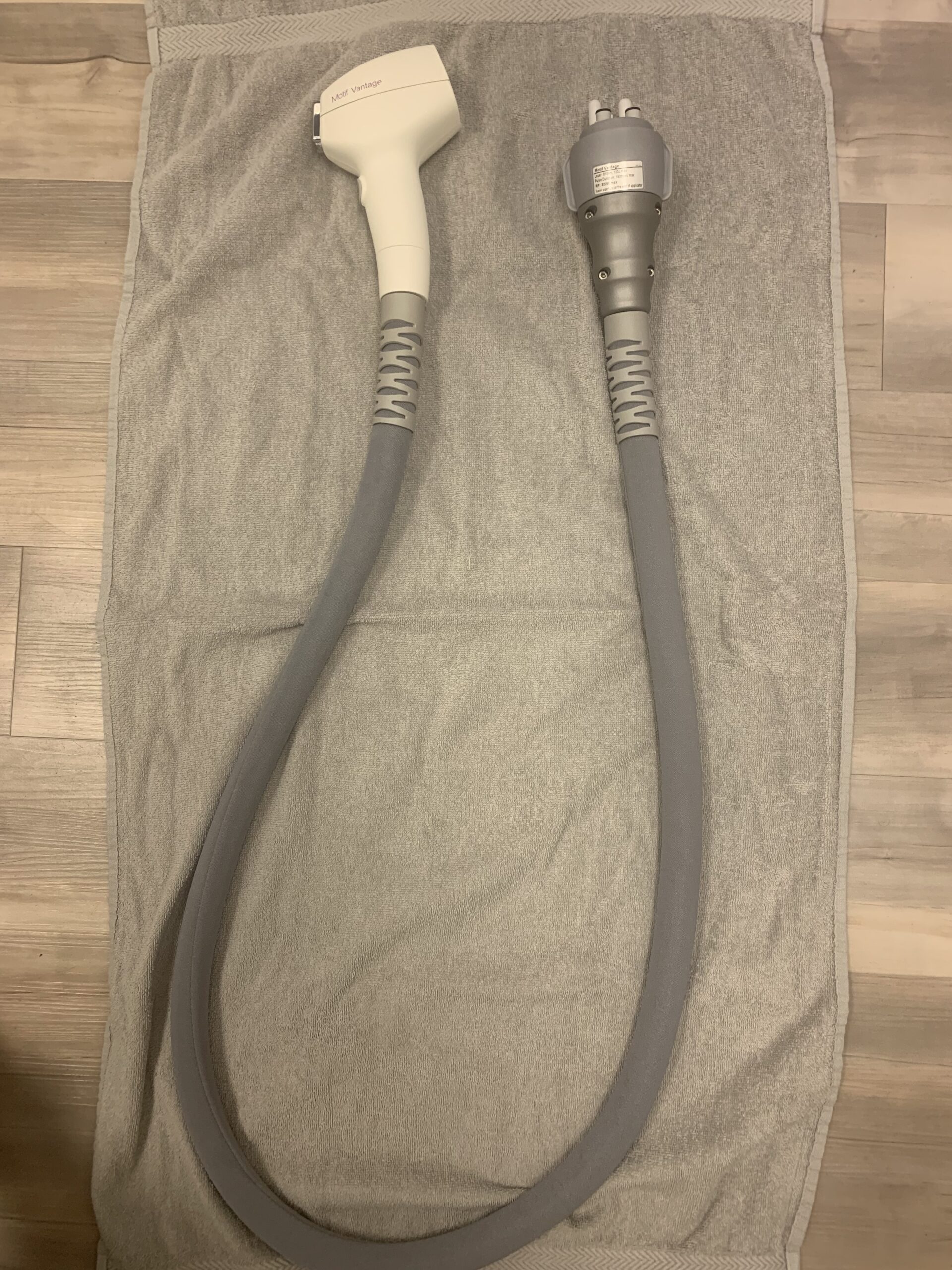

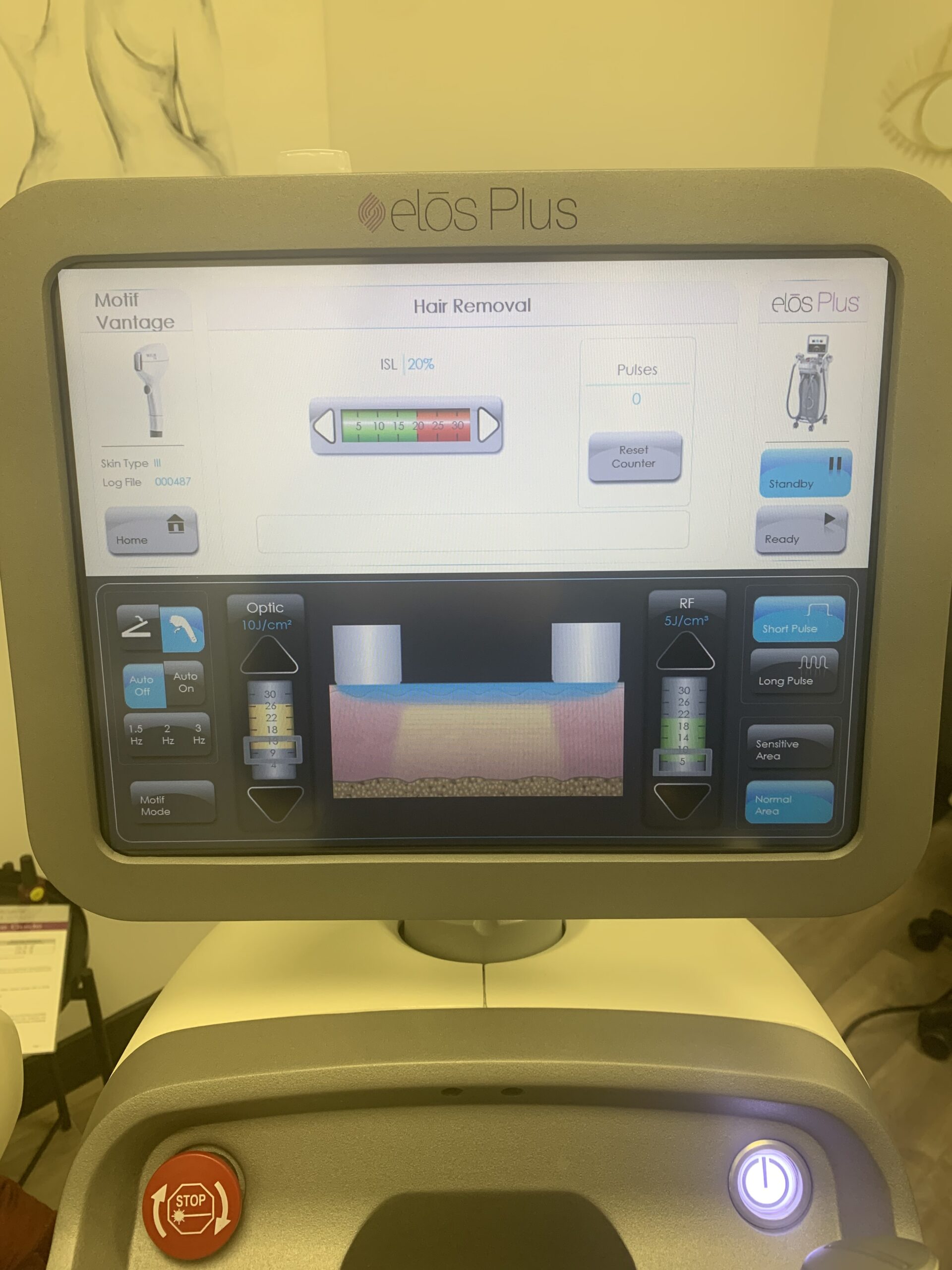

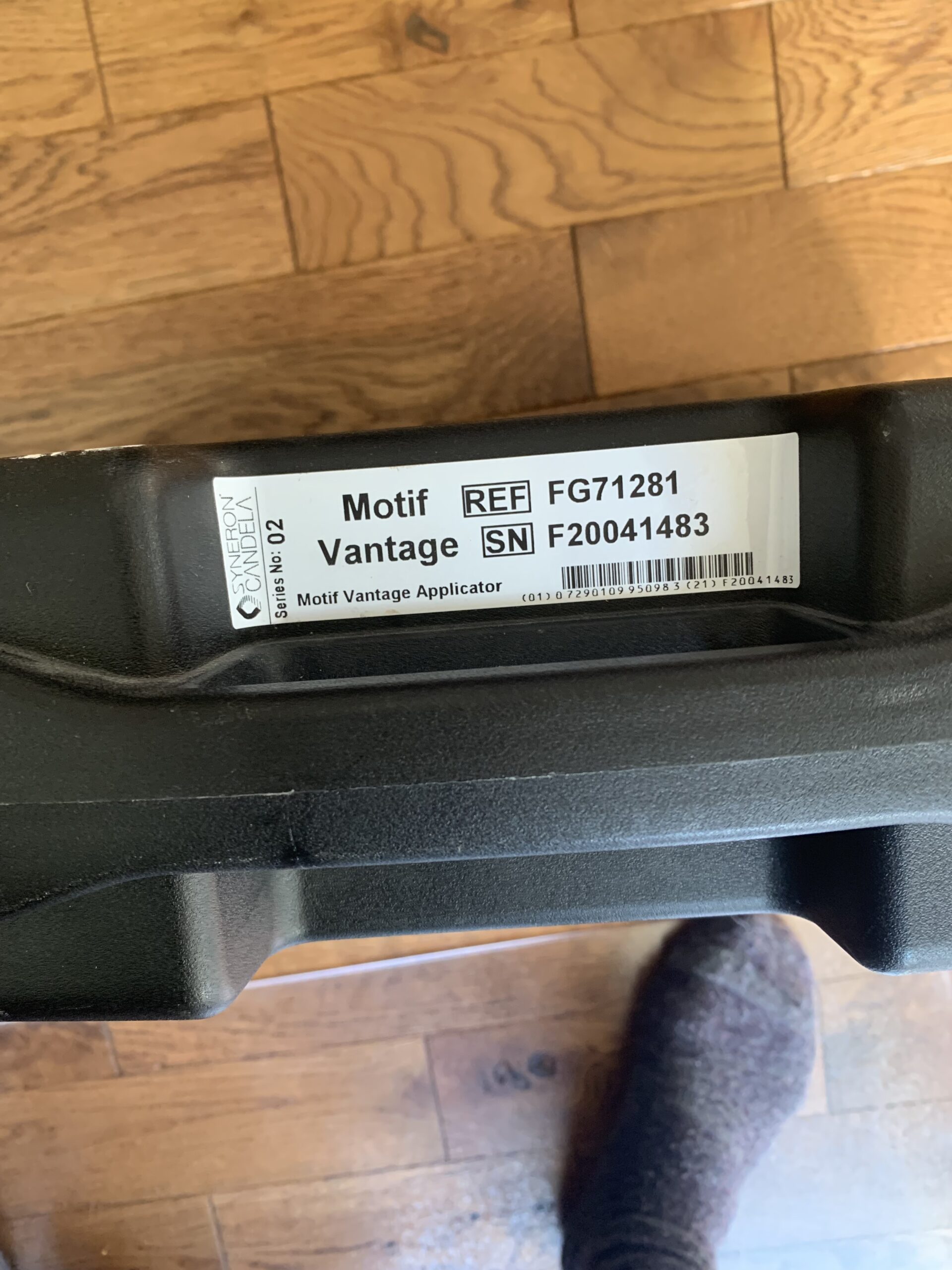

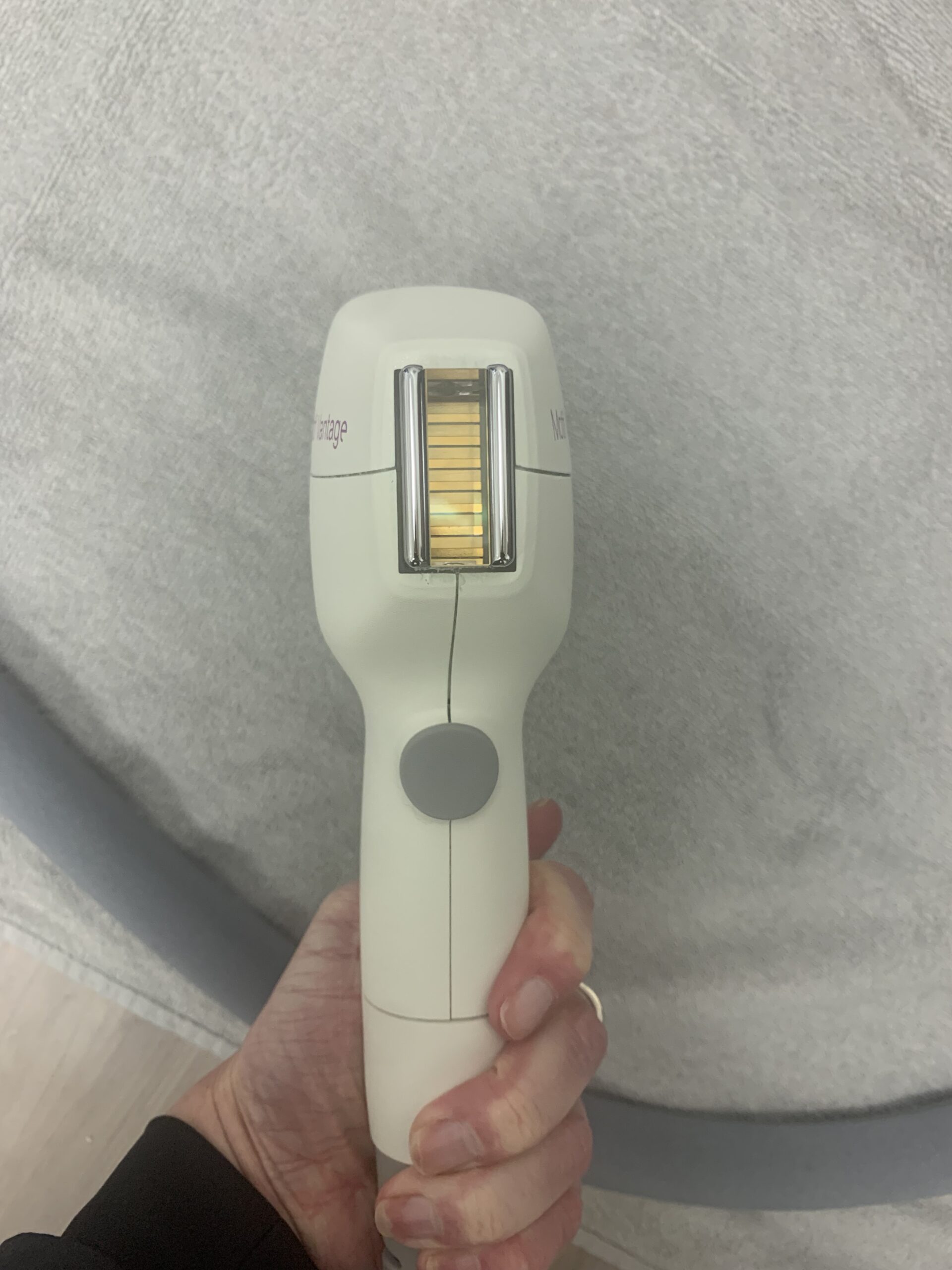

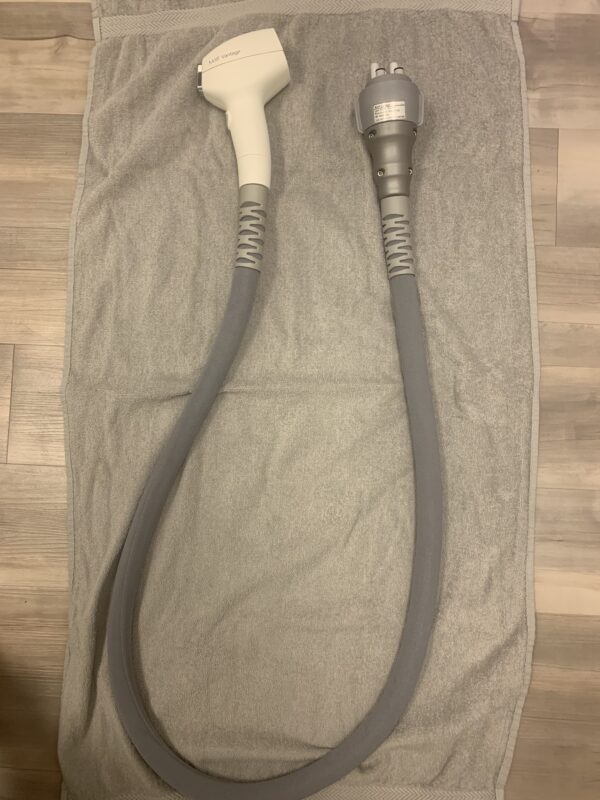

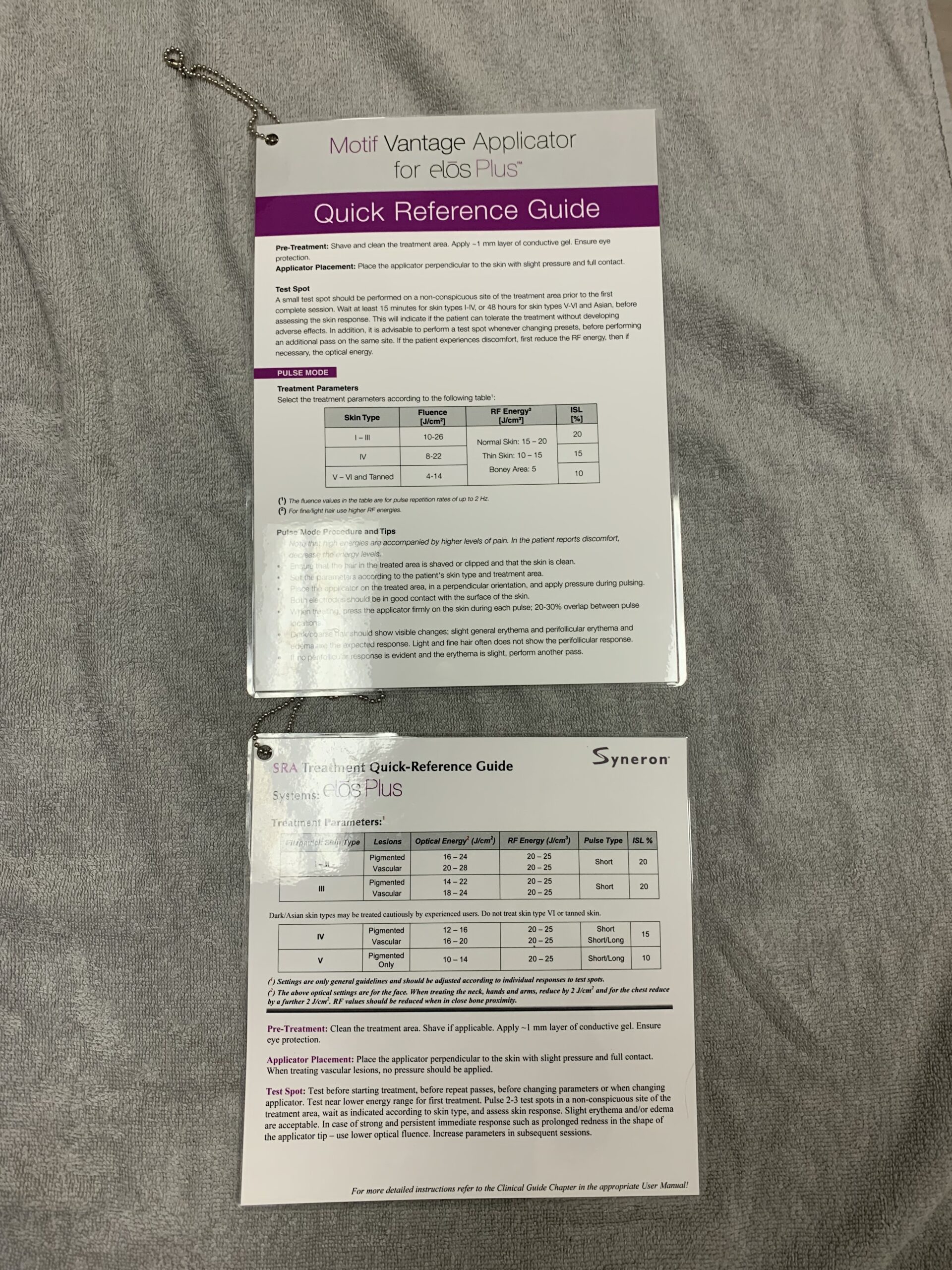

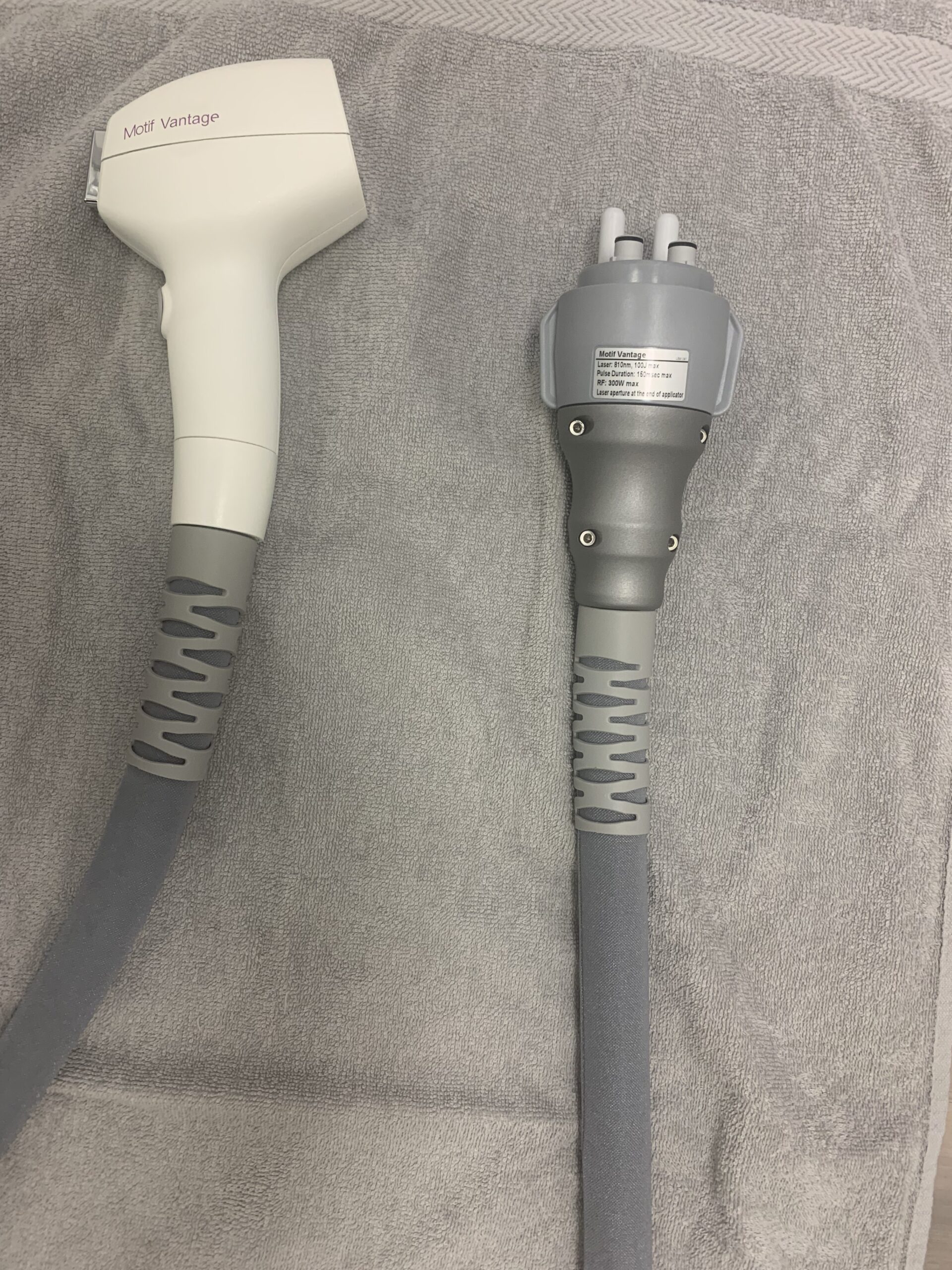

Motif Vantage – Spectrum 810 nm Diode combined with Radio Frequency; Light Fluence Pulse Mode 4-30 J/cm2; Light Fluence Motif Mode 2-5 J/cm2; RF Energy Pulse Mode 5-30 J/cm3; RF Energy Motif Mode 3-8 J/cm3; Treated Area 33x14mm; Max Pulse Rep Rate Pulse Mode 3 Hz; Max Pulse Rep Rate Motif Mode 10 Hz; Cooling 5 degrees C; LARGEST SPOT SIZE PAIN FREE HAIR REMOVAL FOR ALL SKIN TYPES;

Motif LHR – LHR Mode: Spectrum 810 nm Diode; Light Fluence Up to 50 J/cm²; RF Energy Up to 50 J/cm³; Treated Area 15 x 12 mm; Pulse Rep Rate 3 Hz; Cooling 5 degrees C; “Pain Free” Hair Removal

Motif HR – HR Mode: Spectrum 680 – 980 nm IPL; Light Fluence Up to 45 J/cm²; RF Energy Up to 25 J/cm³; Treated Area 25 x 12 mm; Pulse Rep Rate 1 Hz; Cooling 5 degrees C; “Pain Free” Hair Removal

• Motif Mode – Motif LHR: Frequency 10 Hz; Total Energy Per Pulse 14 J; Total Energy Per Second 140 J;

  “Pain Free” Hair Removal

• Motif Mode – Motif HR: Frequency 3 Hz; Total Energy Per Pulse 16 J; Total Energy Per Second 48 J;

  “Pain Free” Hair Removal

Motif IR – IR Mode: Spectrum 915 nm Diode; Light Fluence Up to 70 J/cm²; RF Energy Up to 100 J/cm³; Treated Area 8 x 5 mm; Pulse Rep Rate 1 Hz; Cooling 5 degrees C; Focused Wrinkle Treatment

• Motif Mode – Motif IR: Frequency 10 Hz; Total Energy Per Pulse 2.5 J; Total Energy Per Second 25 J; Focused Wrinkle Treatment

Platform Weight: 40 kg/88 lbs

Platform Size: 54 W x 52.5 D x 140 H cm/21.5 W x 22 D x 55.2 H in.

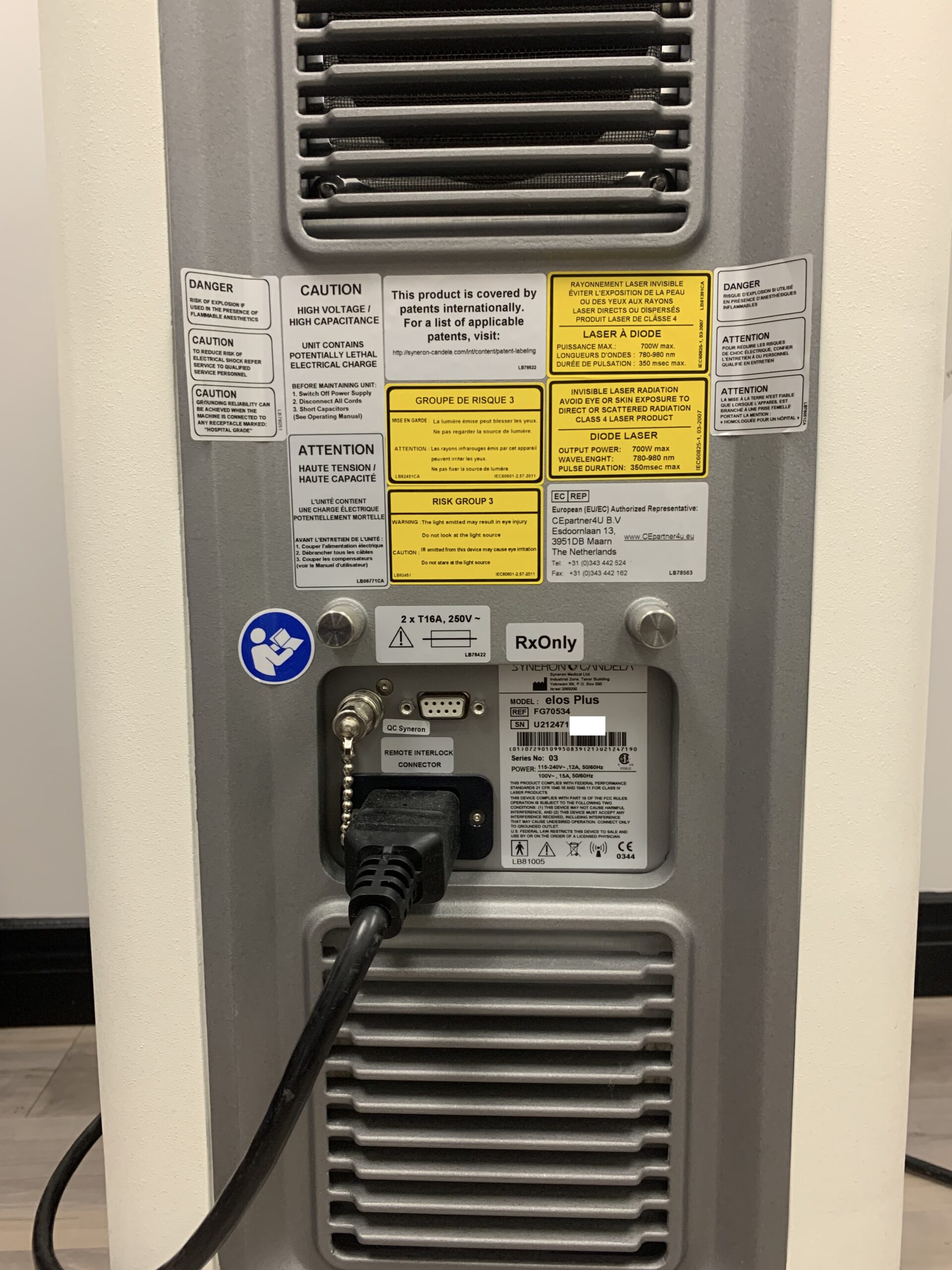

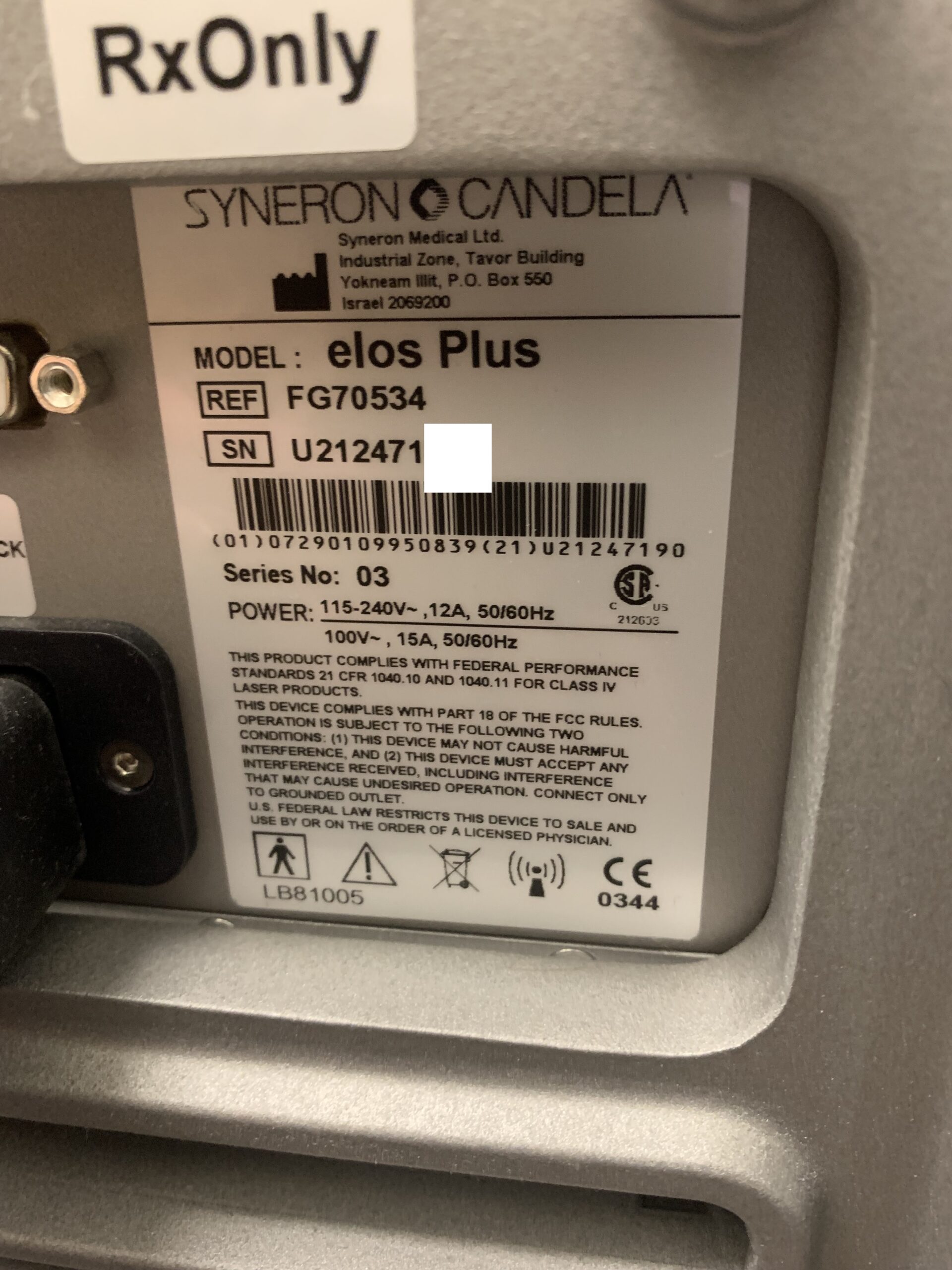

Electrical Specifications: 100-240 VAC

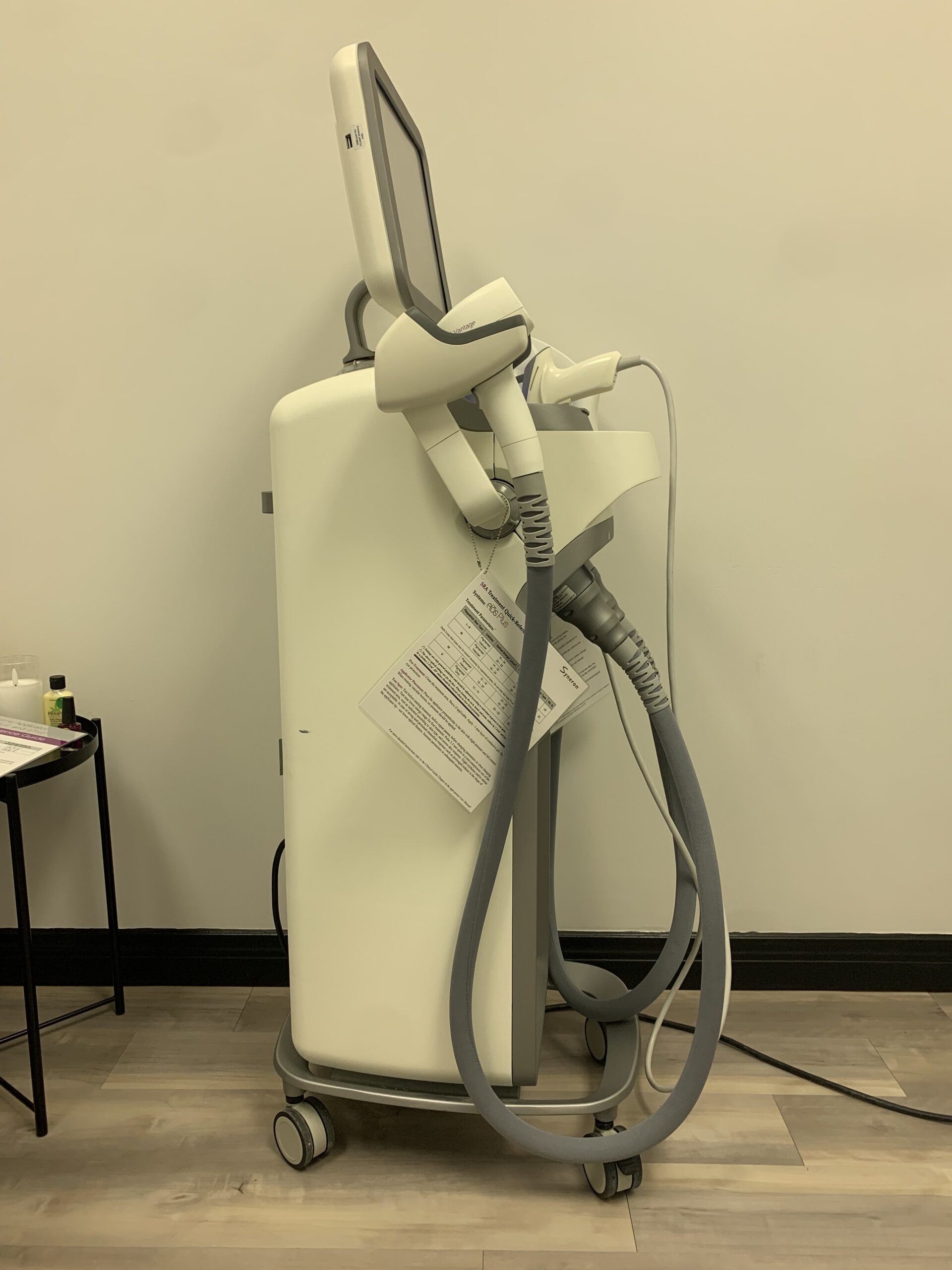

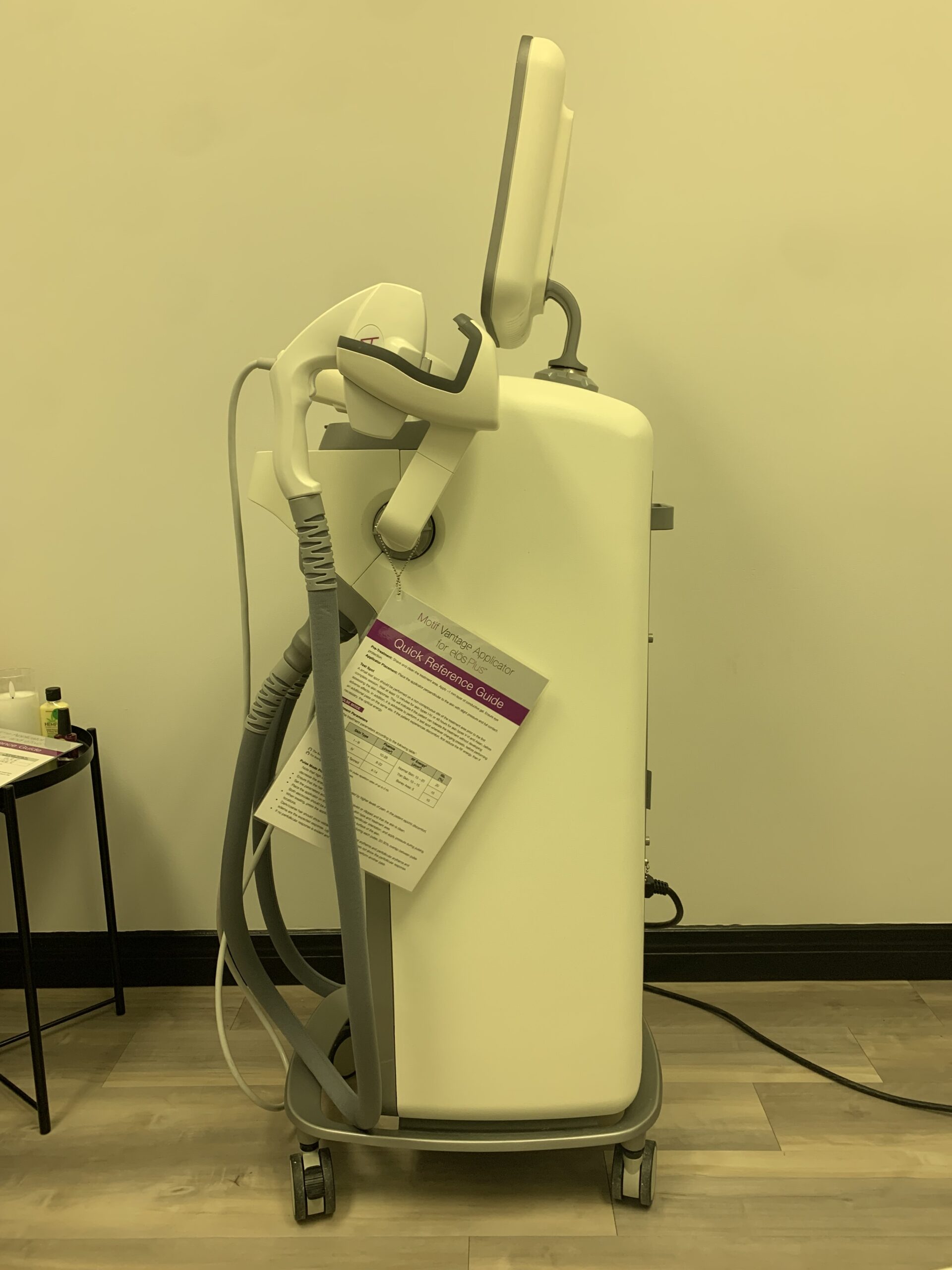

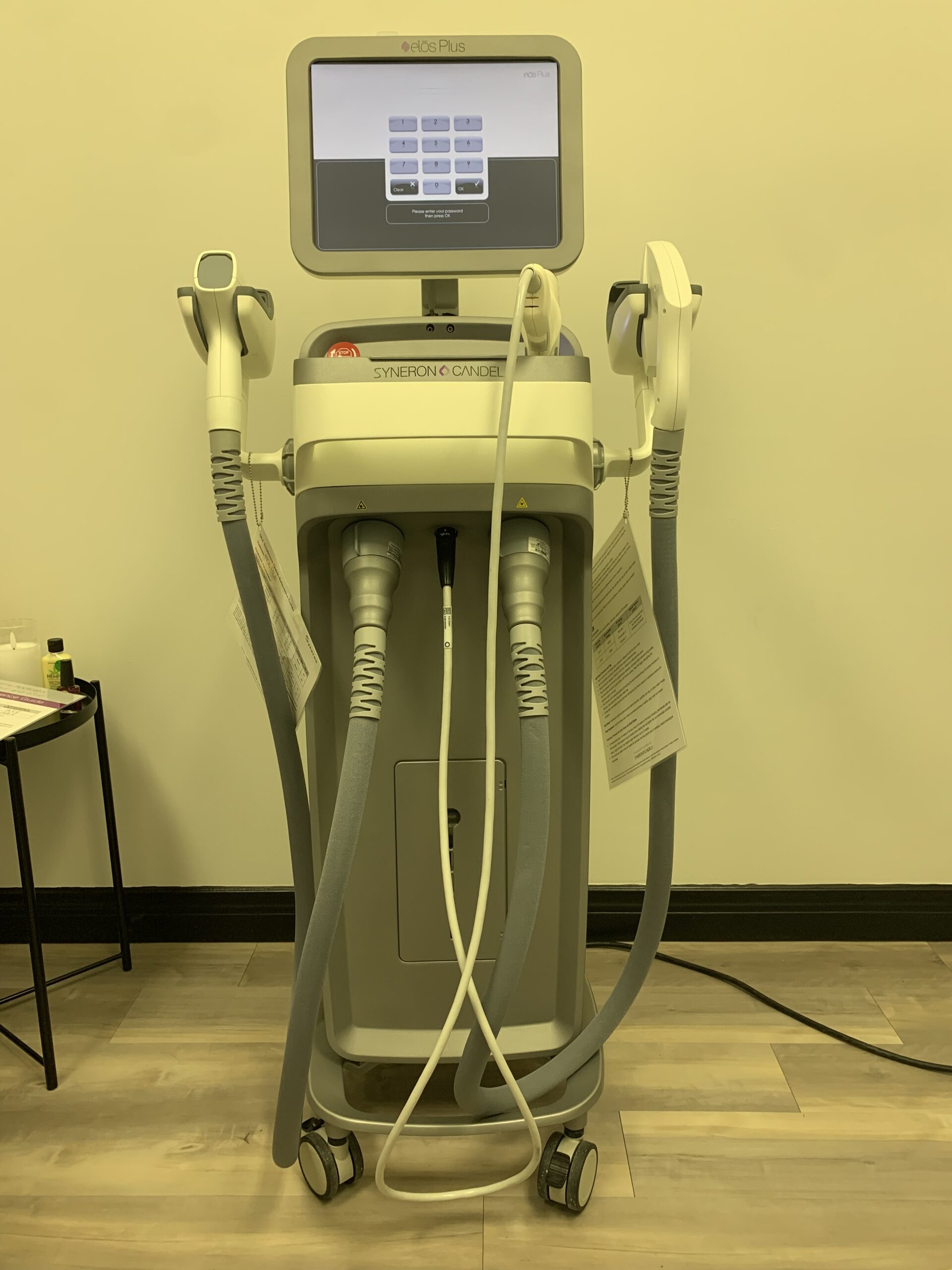

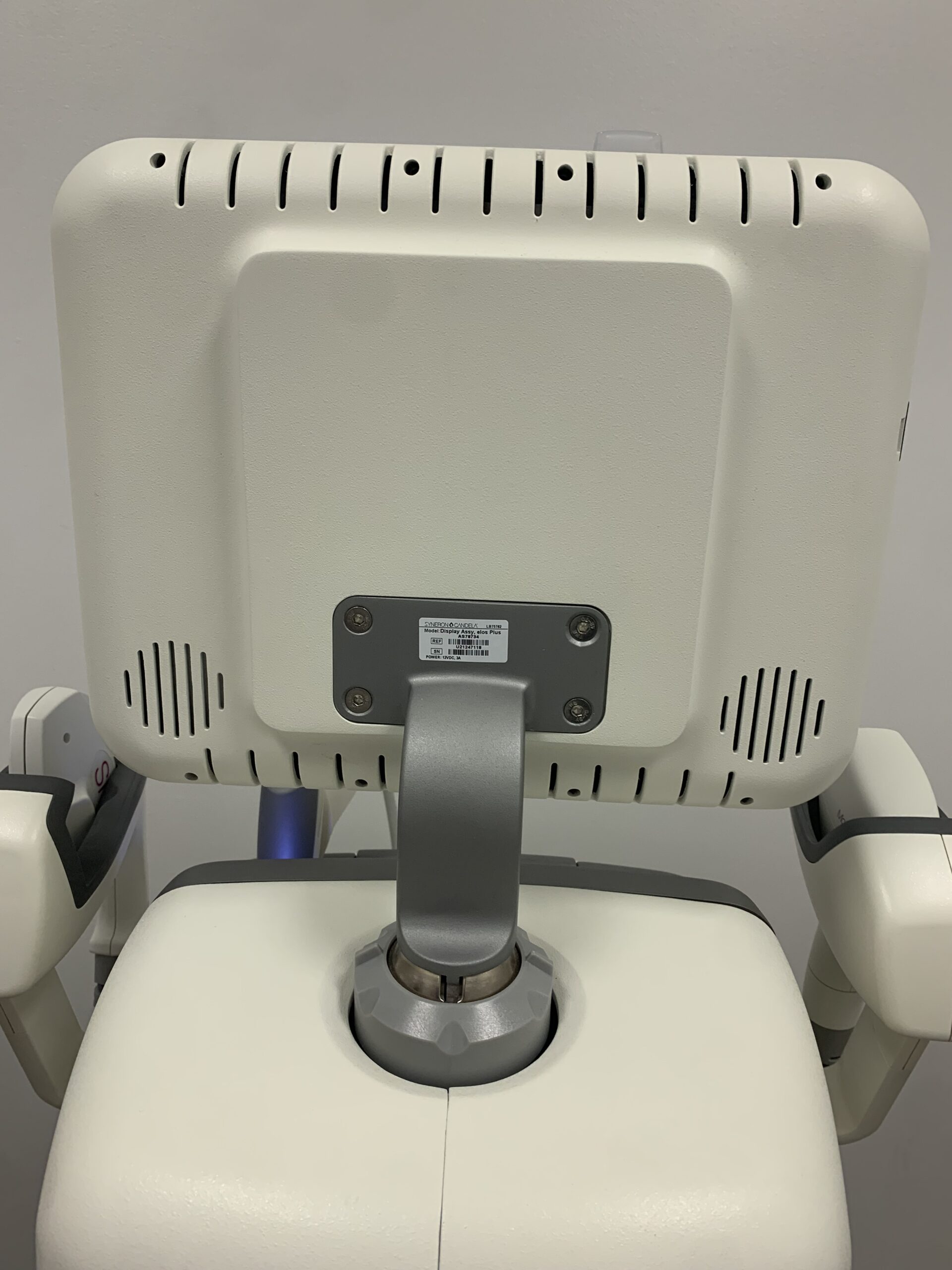

elos Plus

Complete Aesthetic Work Station

•  the ultimate multi application platform, provides a full range of the most in demand applications
• uses elōs technology (a combination of optical energy with bi-polar radio frequency) to enable safe and effective treatments on all skin types
• upgradeable, with 10 different applicators for a wide and growing range of clinical indications. The platform expands as your aesthetic practice expands

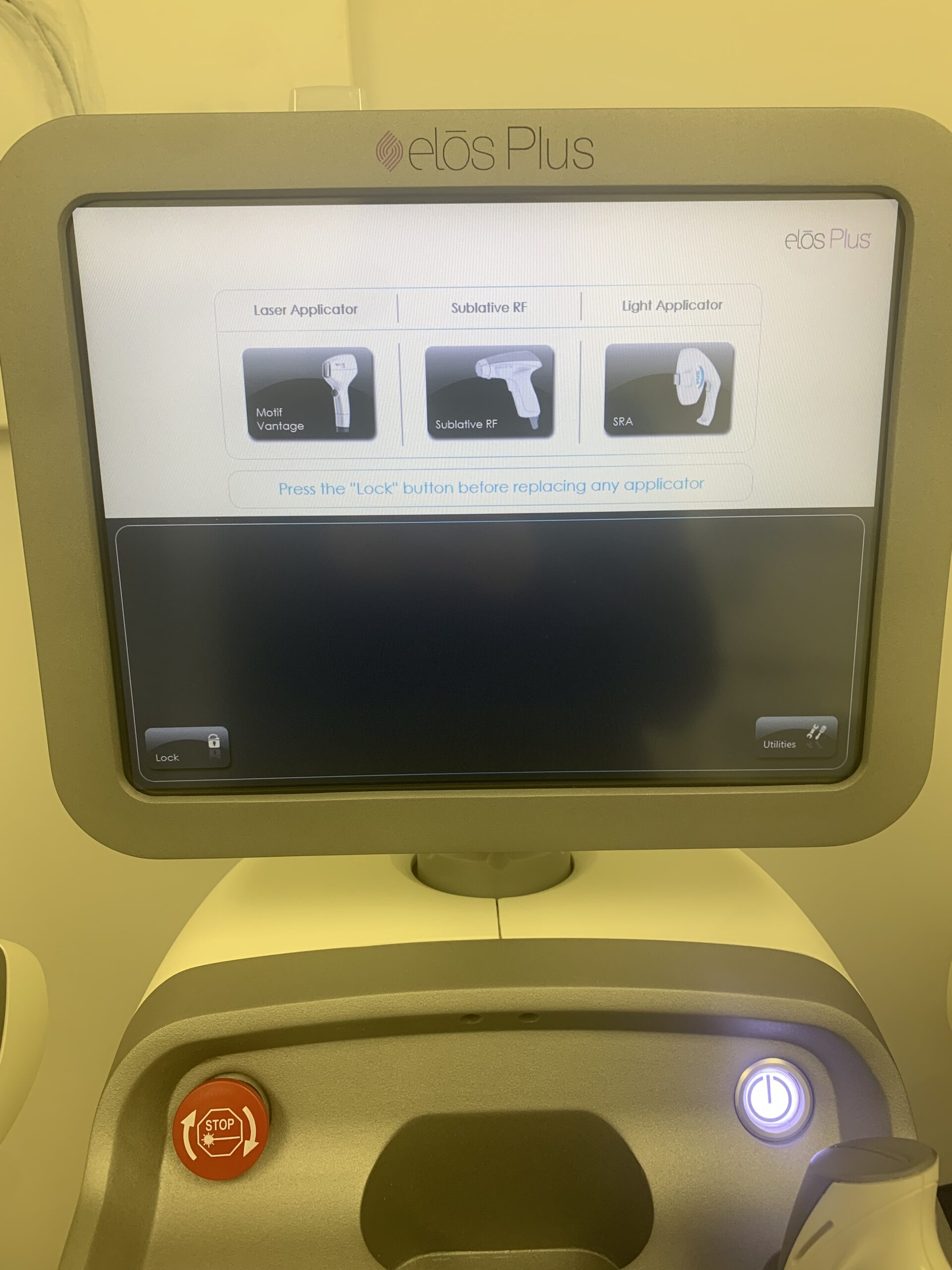

• includes an intuitive user interface with easy to use guided treatment modes for all of the 10 treatment applicators
• allows for 3 applicators to be connected at the same time

Multi-Application Platform

HANDPIECE/APPLICATOR INDICATED USES:

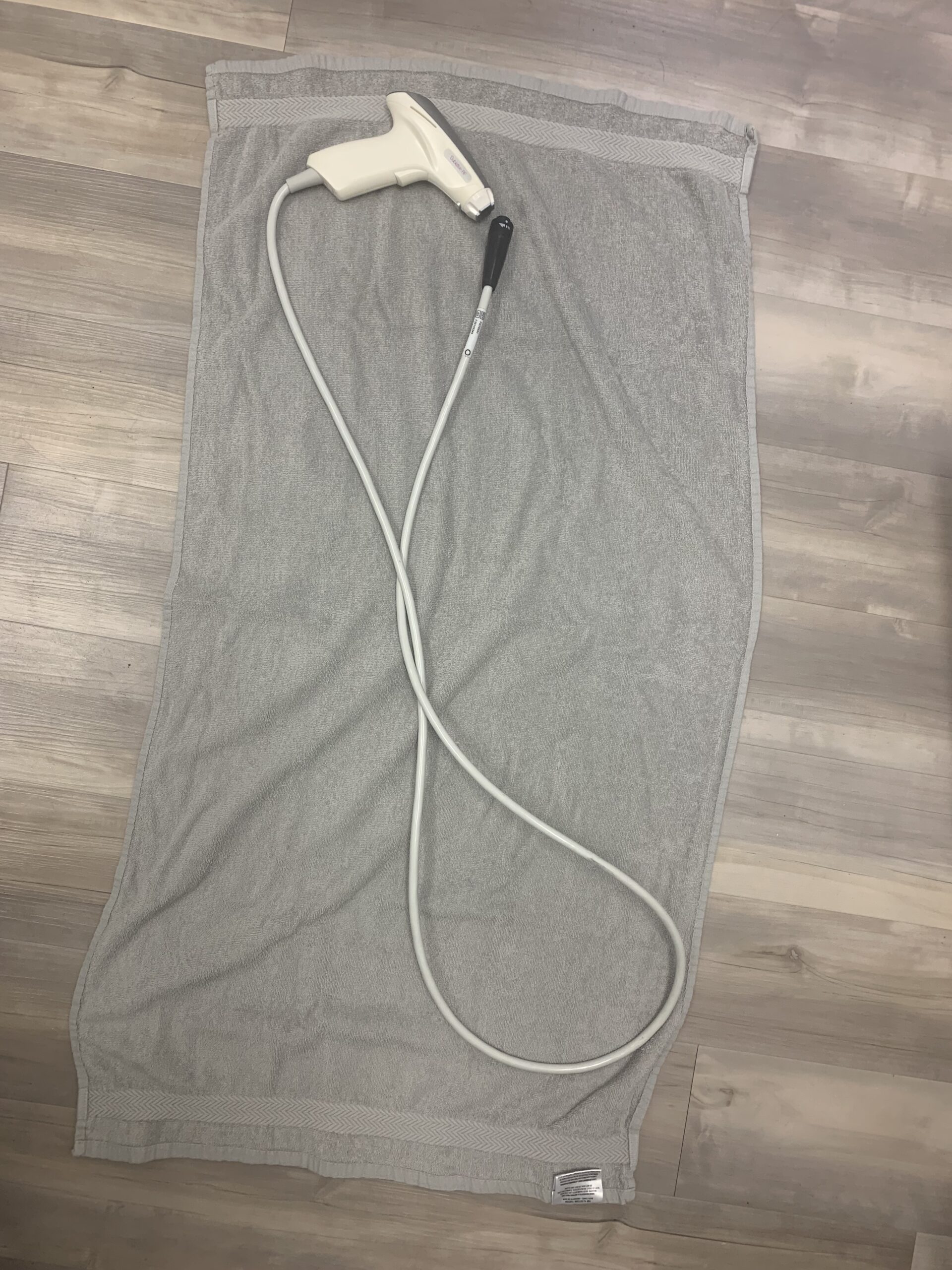

Sublative RF Applicator – Ablation & Skin Resurfacing, Skin Rejuvenation for an Increase in Collagen

Motif LHR and Motif HR Applicators – “Pain Free” Hair Removal

Motif Vantage – laser hair removal, combines a fast 810nm diode laser with bipolar radiofrequency (RF) energy in the same pulse, offering safe and effective hair removal for all skin types.

SR / SRA Applicators – Vascular & Pigmented Lesion Treatment

Sublime Applicator – Facial Contouring and Wrinkle Treatment

Motif IR Applicator – Focused Wrinkle Treatment

AC Applicator – Acne Treatment

LV / LVA Applicators – Vascular Lesion Treatment

DSL Applicator – Diode Hair Removal

The elos® Technology Advantage

The elos Plus features proprietary elos combined-energy technology of optical energies (laser or light) and bi-polar radio frequency (RF).

Less optical energy, when synergistically combined with bipolar RF, improves safety for all skin types

Dual heating via optical and RF energies raises target temperature while maintaining epidermal protection

Engineered for Safety – Easy to Use & Maintain

Proprietary Active Dermal Monitoring feature monitors skin impedance changes during each pulse for added safety

Integrated sapphire contact cooling ensures epidermal protection and increased patient comfort

Intelligent Feedback System (IFS) ensures precise delivery of RF energy regardless of variations in skin impedance

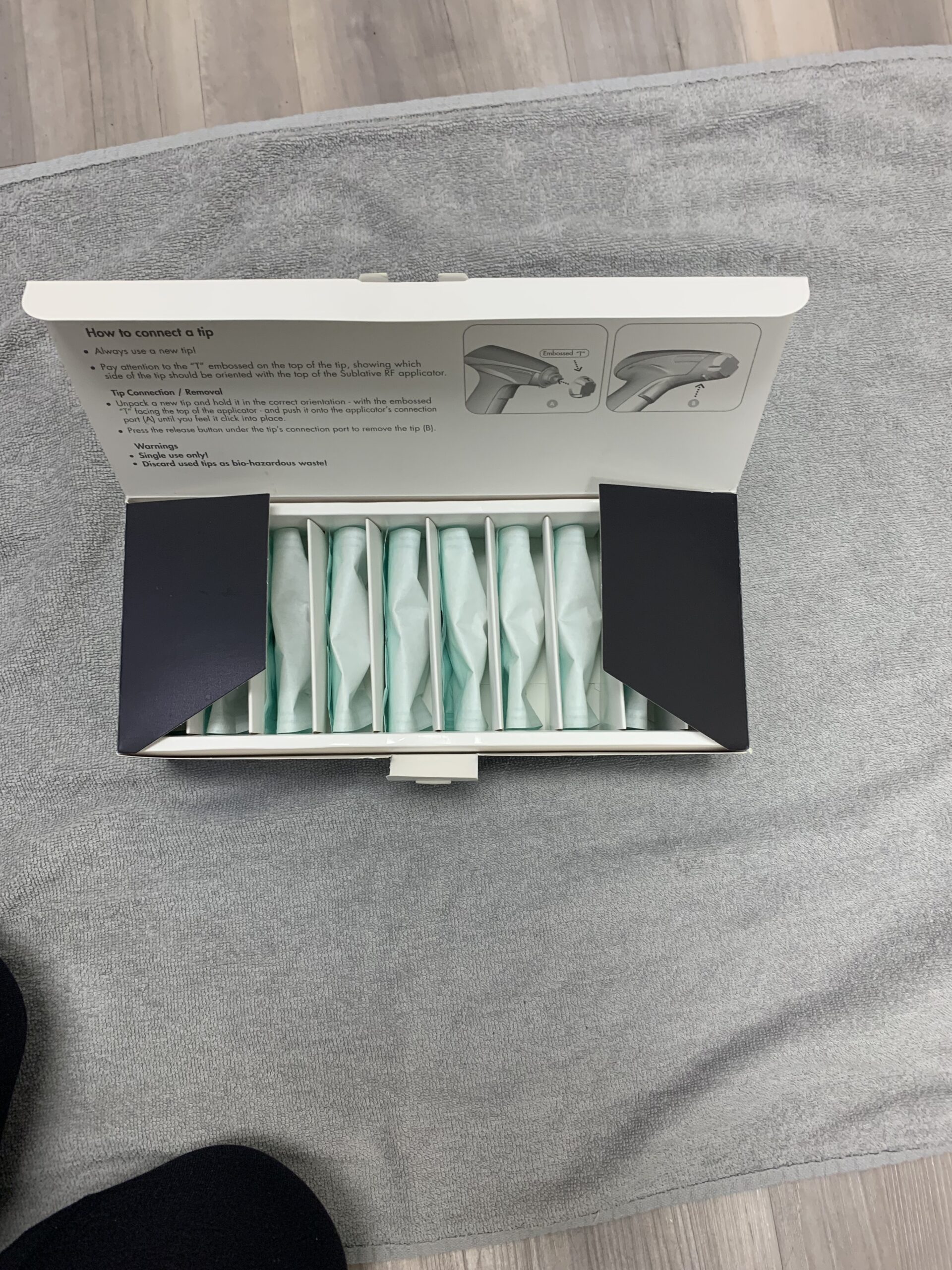

Sublative Applicator Consumables:

64 pin Tip

• Fast full face Sublative Rejuvenation for improved skin tone and texture
• Multiple lifetime configurations for treatment flexibility

44 pin Tip

• Optimized electrode geometry for smaller areas and focused treatment on peri-orbital and peri-oral wrinkles
• Focused treatment of skin irregularities, under-eye laxity and forehead wrinkles
