Picosure PRODUCT SPECIFICATIONS

Nominal Wavelength: 755 nm

Pulse Duration: 550-750 ps

Pulse Energy: 165-200 mJ

Spot Sizes: Zoom – 2.0 mm – 6.0 mm, Fixed – 6.0 mm, 8.0 mm, 10.0 mm

Optional Wavelength Add On: 532 nm

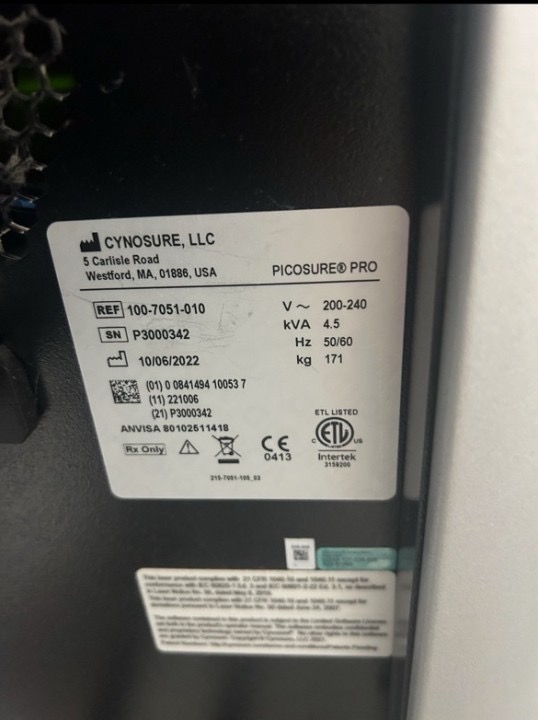

Electrical Power: 200-240 V, 4.5 kVA, 50/60 Hz, single phase

Electrical Service Requirement: 30 Amp

755 nm Applications:

• Tattoo Removal for Skin Types I-IV
• Pigmented Lesion Removal for Skin Types I-IV

755 nm with Focus Lens Applications:

• Pigmented Lesion Removal for Skin Types I-IV
• Acne Scars for Skin Types I-IV
• Wrinkles for Skin Types I-IV

532 nm Applications

• Tattoo Removal for Skin Types I-III

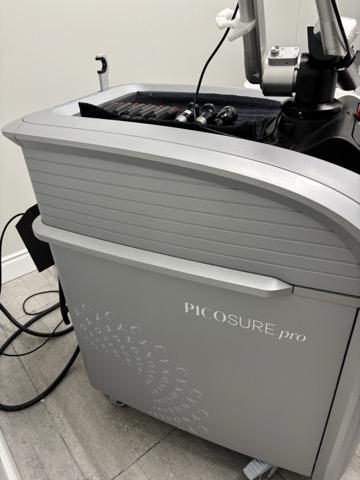

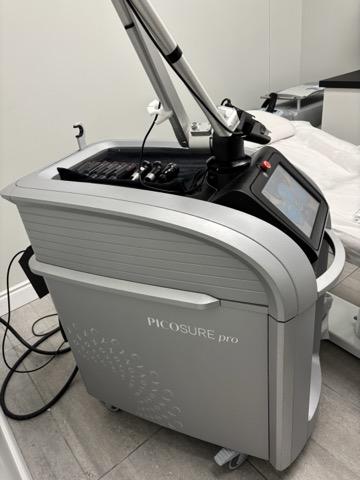

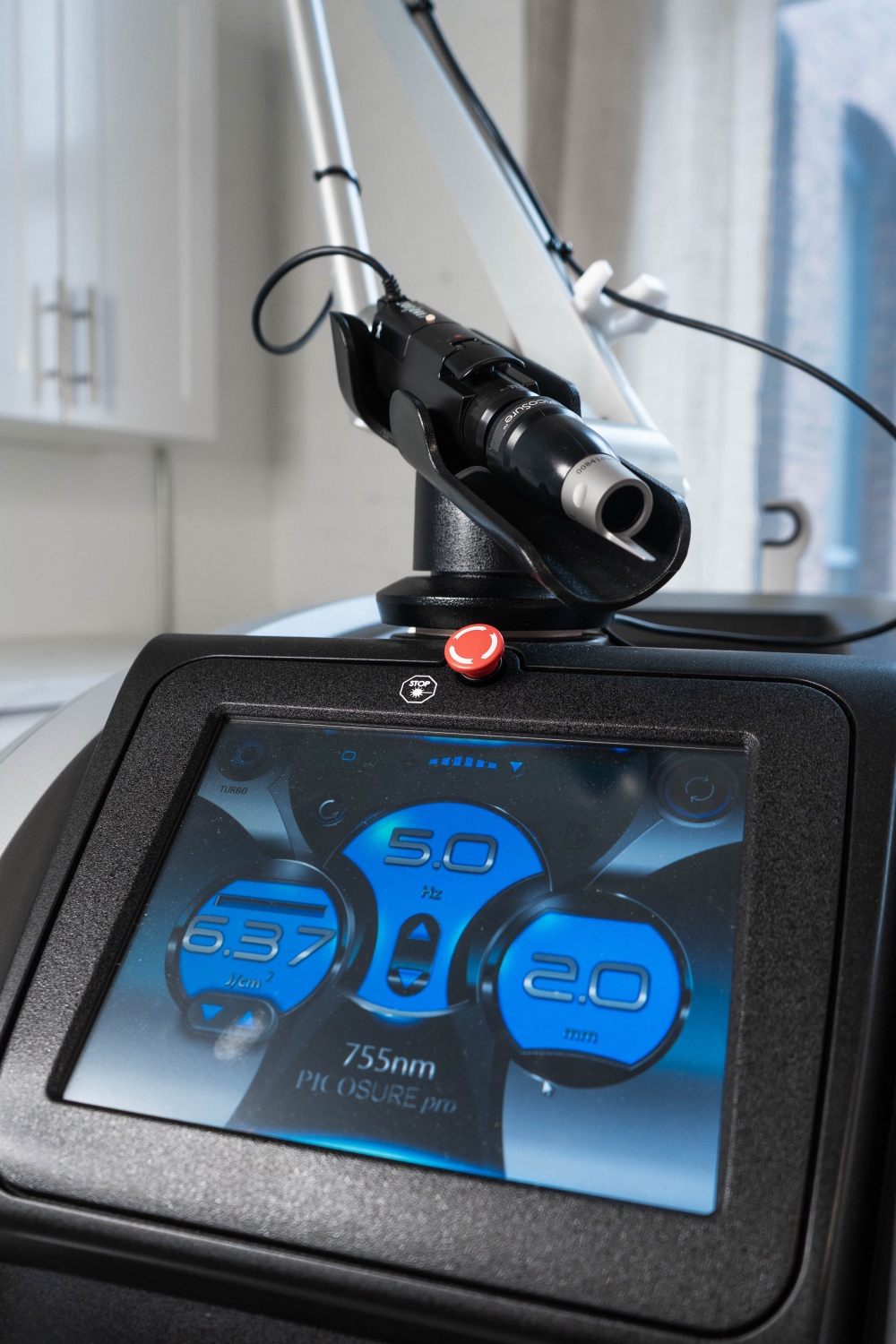

Picosure Pro MANUFACTURER NOTES

Here is a detailed comparison table outlining the key specification differences between the Cynosure PicoSure and PicoSure Pro devices:

Key Differences:

• Energy & Fluence: PicoSure Pro offers up to 50% more energy per pulse and higher maximum fluence, allowing for more effective treatments and greater versatility

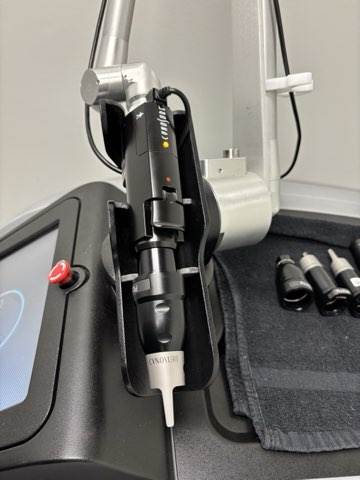

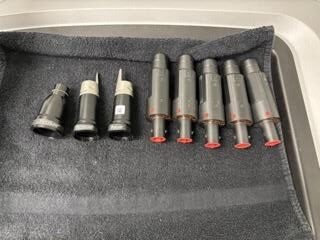

• Handpieces: PicoSure Pro introduces a new 5 mm fixed handpiece for precise treatments and offers adjustable fluence for all handpieces, enabling more customization
• Focus Lens: The Pro model features the Platinum Focus™ Lens Array with 40% more shots per lens, improving efficiency and longevity
• FDA Clearances: PicoSure Pro is uniquely FDA-cleared for treating melasma, nevus of Ota, and Hori’s nevus-conditions not specifically cleared on the original PicoSure
• Turbo Mode: The Pro model includes a Turbo mode for enhanced tattoo removal performance
• User Experience: The Pro features a modernized interface, faster startup, and improved workflow for higher patient throughput

Summary:
PicoSure Pro is an upgraded, more versatile, and powerful version of the original PicoSure, offering higher energy, more handpiece options, advanced lens technology, and additional FDA-cleared indications for pigmentary disorders, making it suitable for a broader range of patients and conditions
