SplendorX PRODUCT SPECIFICATIONS

Wavelengths: Alexandrite 755nm and Nd: Yag 1064nm

Technology: BLEND X, which synchronizes both wavelengths with adjustable proportions for customized treatments

Output power: Up to 260 Watts

Fluence range: Up to 100 J/cm²

Repetition Rate: Alexandrite 755nm: Up to 3 Hz; Blended Alexandrite and Nd Yag: Up to 3 Hz; Nd Yag 1064nm Short Pulse: Up to 10 Hz;

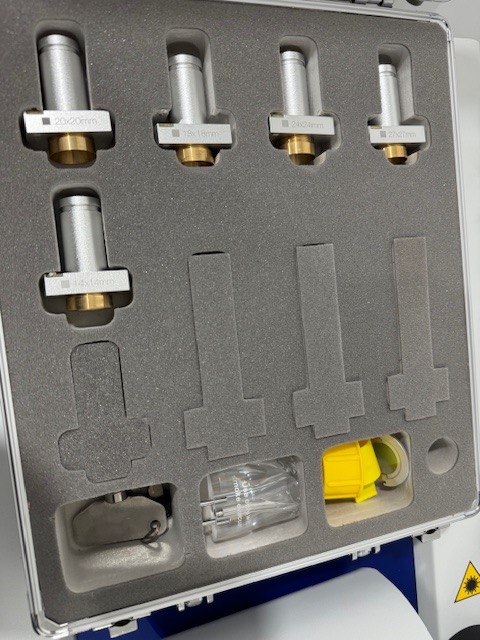

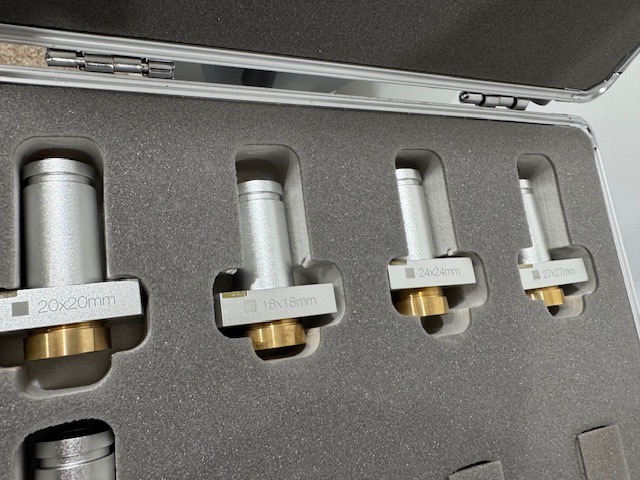

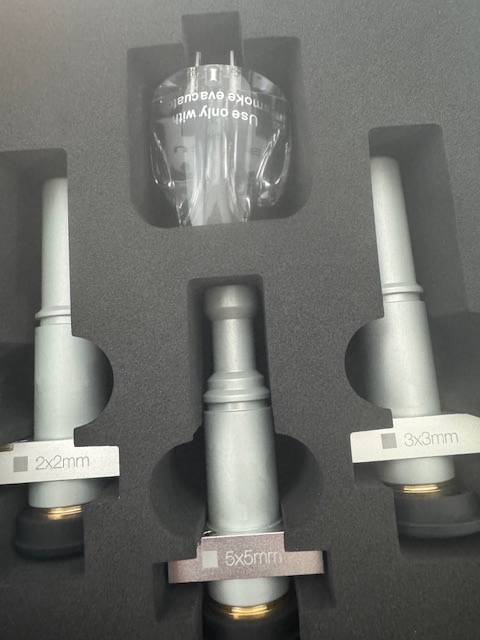

Spot size: Up to 27 x 27 featuring a patented square spot for faster, uniform coverage

Cooling: A dual cooling system with both an external chill and a contact chilling plate for patient comfort and skin protection

Plume evacuator: An integrated system to remove smoke and provide a smoke-free environment

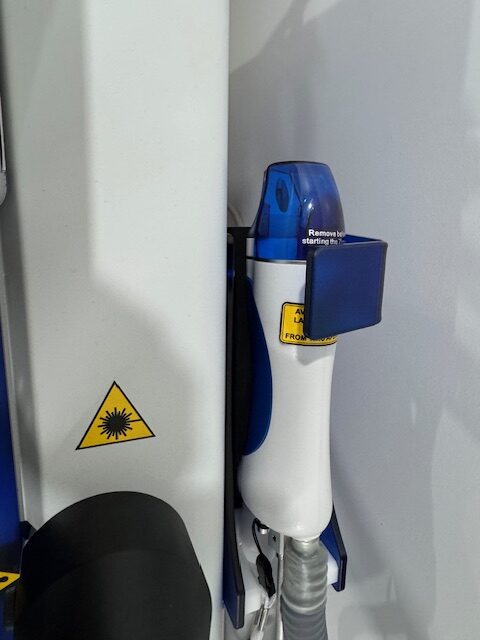

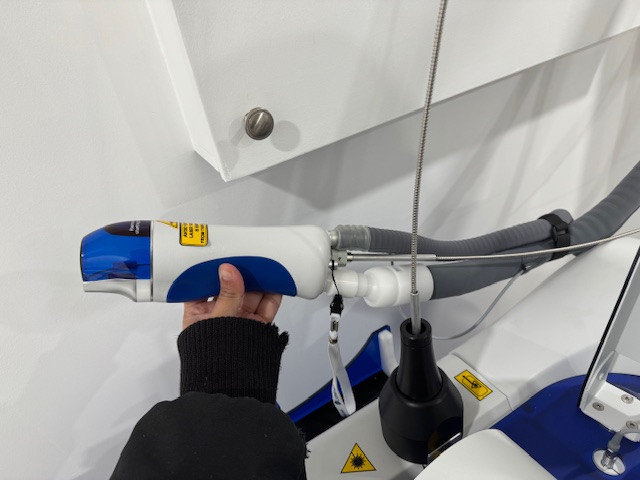

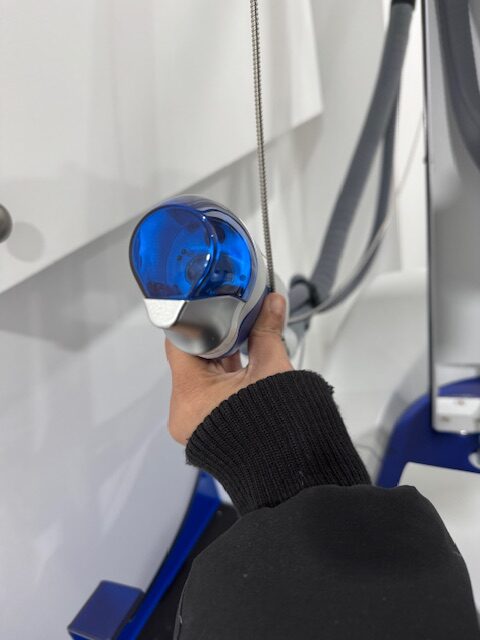

Handpiece: Ergonomic and lightweight, with a spheric connector for easier movement

Dimensions: 470 x 1100 x 1040 mm

Weight: 180 kg

SplendorX MANUFACTURER NOTES

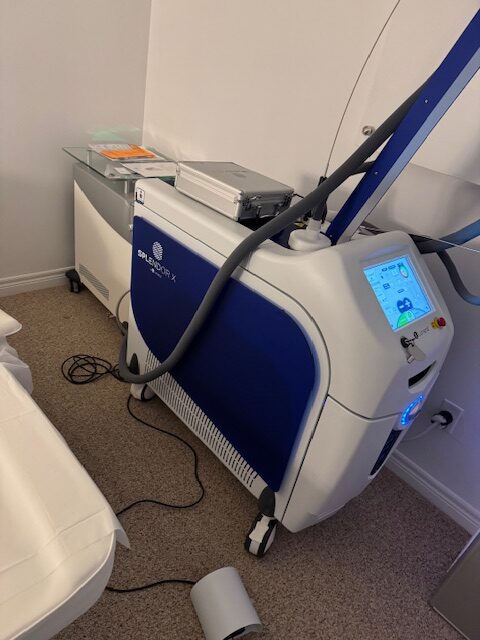

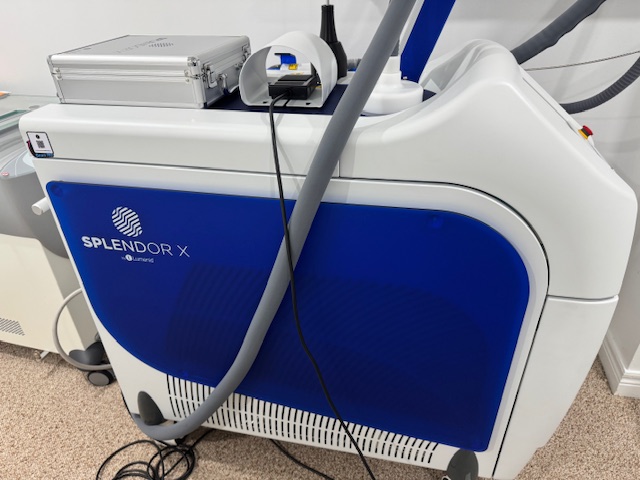

The Lumenis SPLENDOR X is a laser hair removal and skin treatment system that uses a unique combination of two lasers—Alexandrite (755 nm) and Nd:YAG (1064 nm). Its proprietary BLEND X technology can blend these two wavelengths in adjustable proportions to safely and effectively treat a wide range of skin tones and hair types. Key features include a square-shaped laser spot for uniform coverage, a Dual Cooling System for patient comfort, and a built-in plume evacuator for safety.

BLEND X™: Latest Hair Removal Technology

Binary laser emission of Nd:YAG (1064nm) and Alexandrite (755nm) wavelengths

What is BLEND X™ Technology

Most laser hair removal technologies on the market use one of two wavelengths to target the hair follicle:

• The Alexandrite wavelength at 755 nm, which is ideal for treating skin tones 1, 2 and 3 (fair and light skin tones). It is highly absorbed in melanin and is therefore not safe for use on darker skin tones.
• The Nd:YAG wavelength at 1064 nm, which is ideal for treating skin tones 4, 5 and 6 (4 being tanned skin and 5 and 6 darker skin tones) as the absorption by melanin is much lower than with the Alexandrite wavelength. This wavelength is highly absorbed in oxyhemoglobin, which affects the blood supply to the hair follicle.

When using these technologies, treatment providers often need to use high settings of each wavelength to effectively remove hair. This can result in more painful treatments and temporary complications.

BLEND X Technology Synchronizes Both Wavelengths*

In order to solve these challenges, Lumenis introduced BLEND X technology. This unique technology is the first of its kind to synchronize Alexandrite (755nm) and Nd:YAG (1064nm) wavelengths to fire with adjustable proportions.
With this technology, each pulse can be BLEND Xed when fired with varying proportions to tailor treatment, and customized to fit the patient’s specific skin type, hair color and thickness for the most effective treatment.
BLEND X technology is used to power the SPLENDOR X solid-state laser device. With this powerful, fast and versatile device, treatment providers can synchronize Alexandrite and Nd:YAG wavelengths to customize treatment options for patients with different skin and hair type combinations.

SPLENDOR X Advantages

• BLEND X technology Bilateral laser emission of Nd:YAG (1064nm) and Alexandrite (755nm) wavelengths, synchronized and adjustable proportions
• Square shape spot size
• For uniform skin coverage, eliminating overlap and hotspots. Up to 27x27mm
• Fast treatments
• Large spot size and rapid repetition rate
• Treatment versatility and skin solutions: Wrinkle reduction, vascular and pigmented lesions
• Dual Cooling System (DCS): Combines cooled air and a chilled tip to protect the skin and provide a more comfortable experience during treatment.
• Speed: Its large spot size and high repetition rate allow it to treat large areas quickly.
