Agnes CONSUMABLES AND RECERTIFICATION

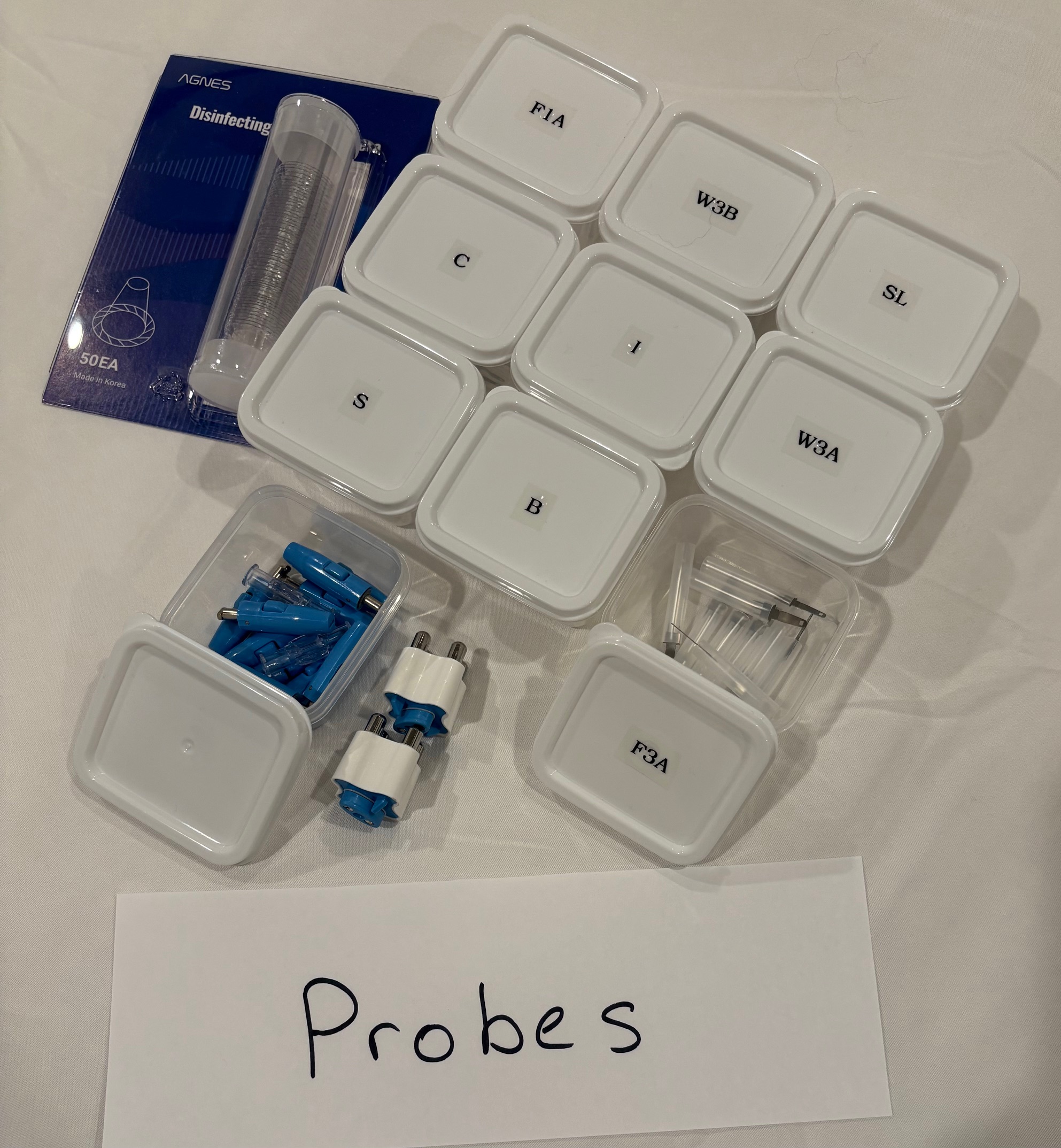

Consumables Required: Polygonal Blade Pins

Cost of Polygonal Blade Pins by Type:

F1A (10 pcs / box): ~$500.00 per box – Fat-Targeting probes

F3A (10 pcs / box): ~$500.00 per box – Fat-Targeting probes

W3A (10 pcs / box): ~$500.00 per box – Wrinkle or Skin-Tightening probes

W3B (10 pcs / box): ~$500.00 per box – Wrinkle or Skin-Tightening probes

B (10 pcs / box): ~$400.00 per box – Body

C (10 pcs / box): ~$400.00 per box – Contour

S (10 pcs / box): ~$400.00 per box – Subdermal

SL (10 pcs / box): ~$400.00 per box – Superficial Lifting / Skin Layer Work

I (10 pcs / box): ~$400.00 per box – Incision-Style

Does Aesthetic Management Partners Charge a Recertification fee for Service and the Purchase of Consumables? Yes

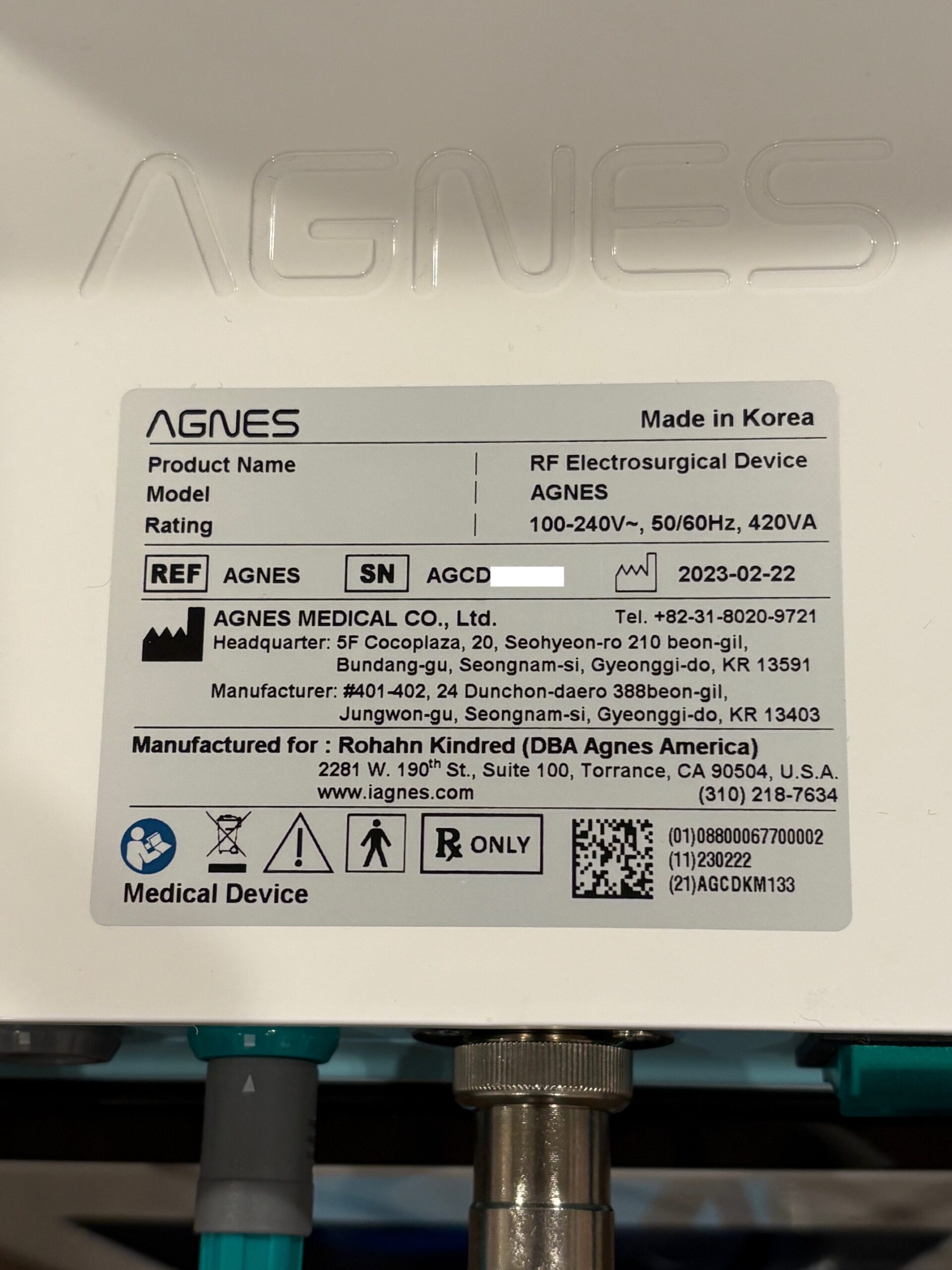

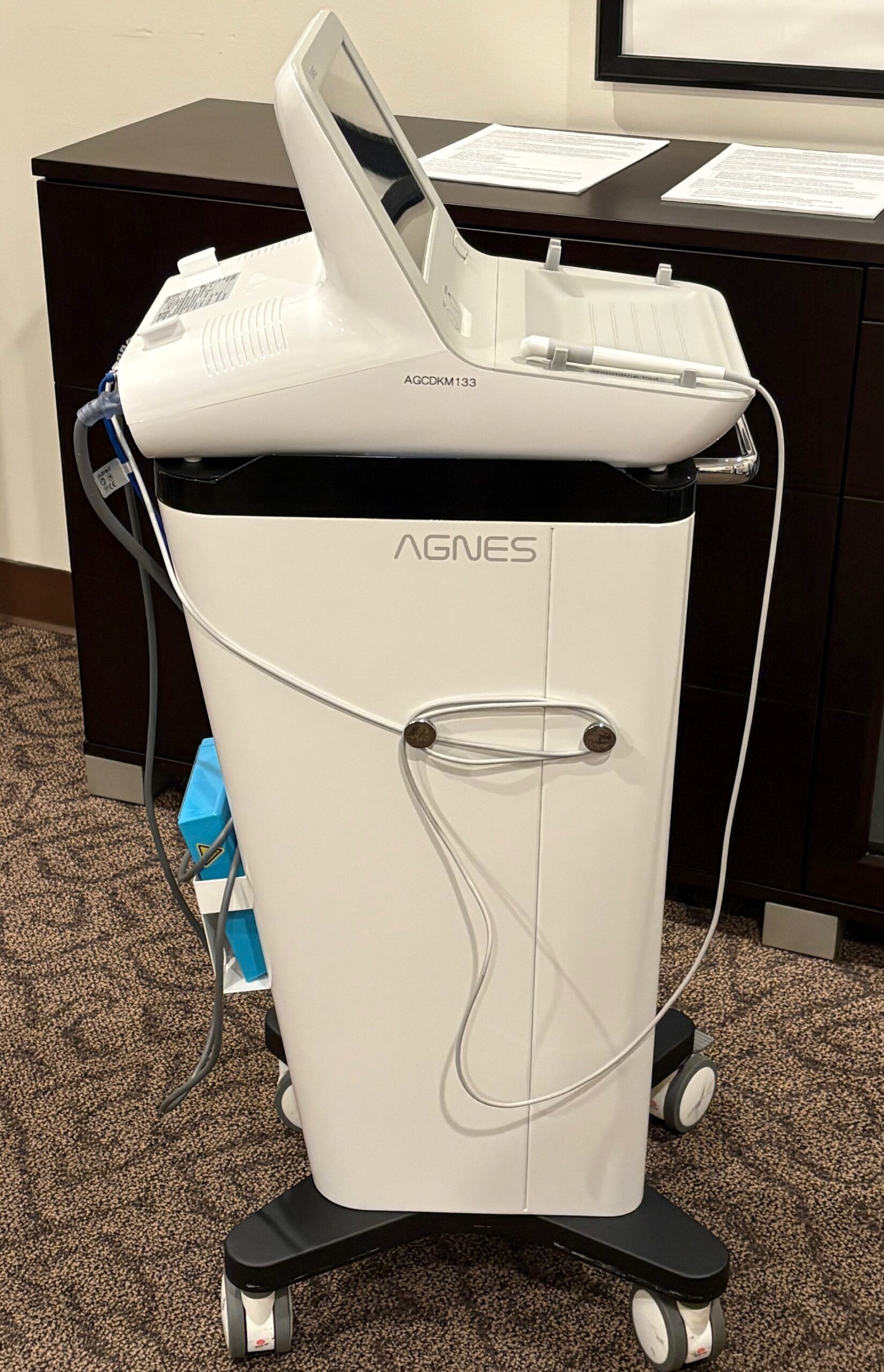

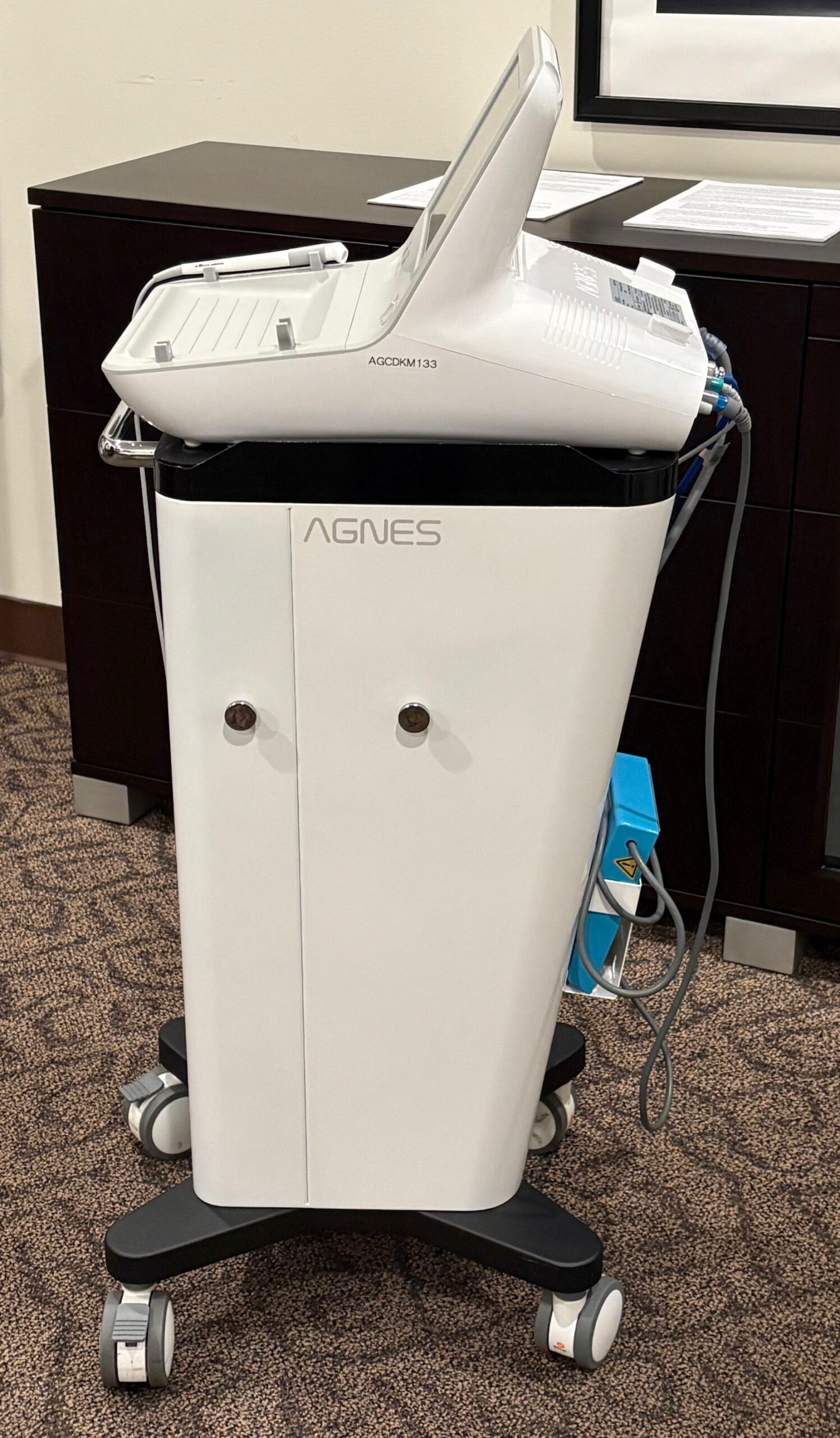

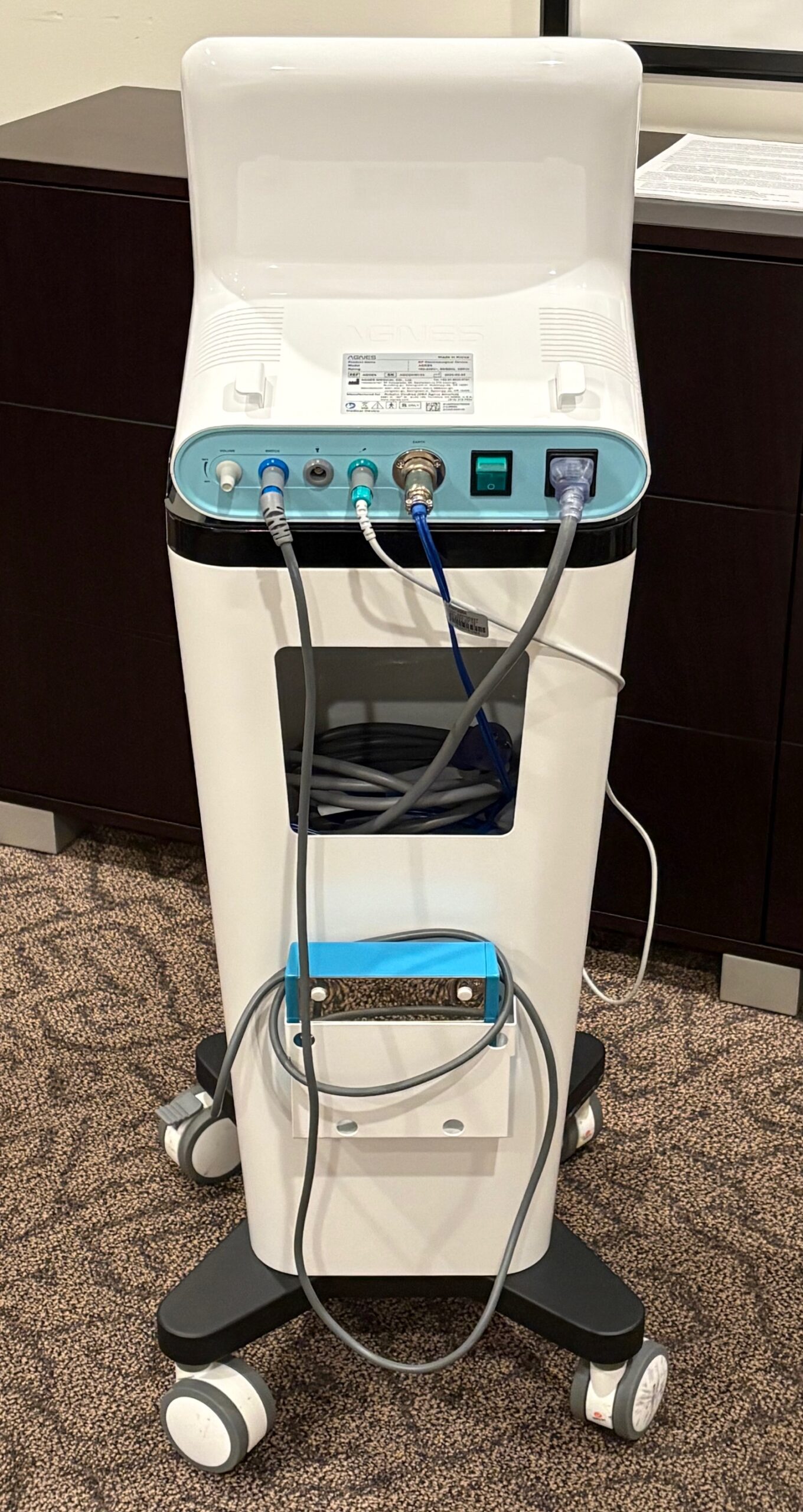

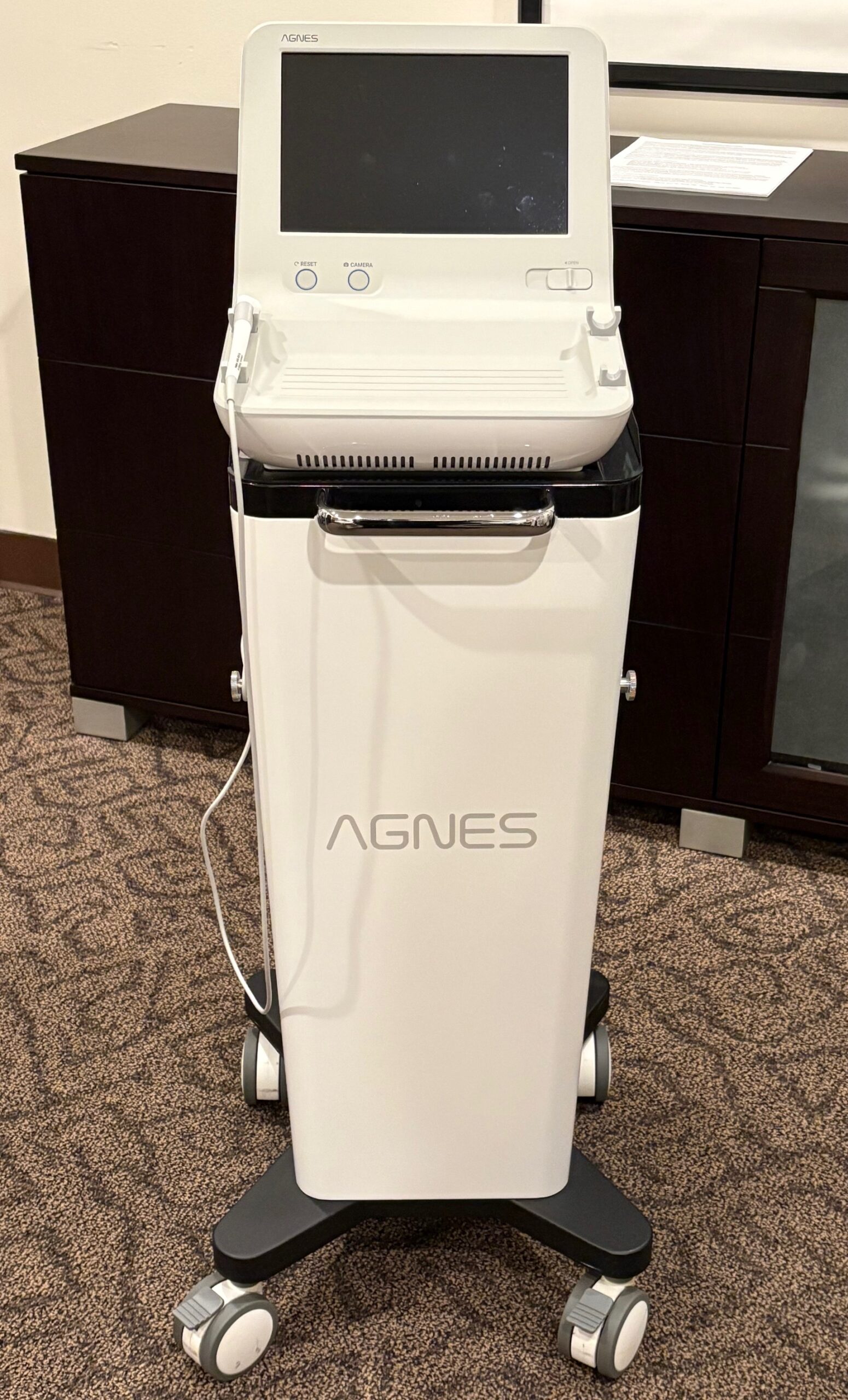

Agnes PRODUCT SPECIFICATIONS

Applied Energy Type: Radiofrequency (RF) – 1 MHz frequency output

Power Supply: AC 100-250 V, 50/60 Hz – works on standard clinical power worldwide

Power Consumption: ~280 VA – total operating power (voltage x current requirement)

Waveform Type – Square-wave RF output – designed to deliver consistent energy pulses and reduce stray heat outside the target zone

Dimensions: ≈ 290 mm (W) × 455 mm (D) × 271.7 mm (H) — roughly the size of a small desktop unit

Weight: 5.85 kg — about 12.9 lbs

Display: 10.1-inch LCD touch panel for settings and controls

Camera: 1.3-megapixel integrated CMOS camera (used for documentation and needle inspection)

HANDPIECE SPECIFICATIONS

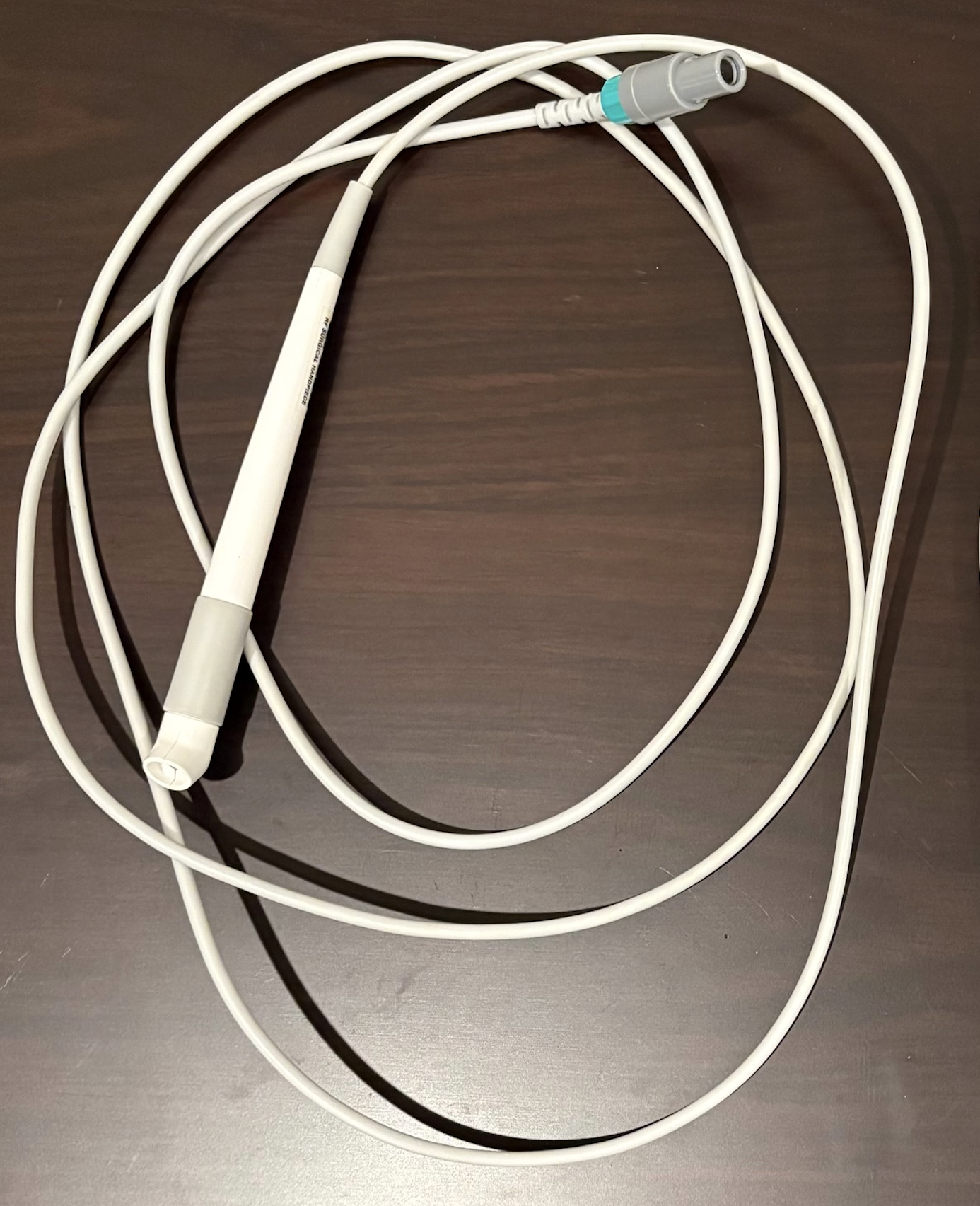

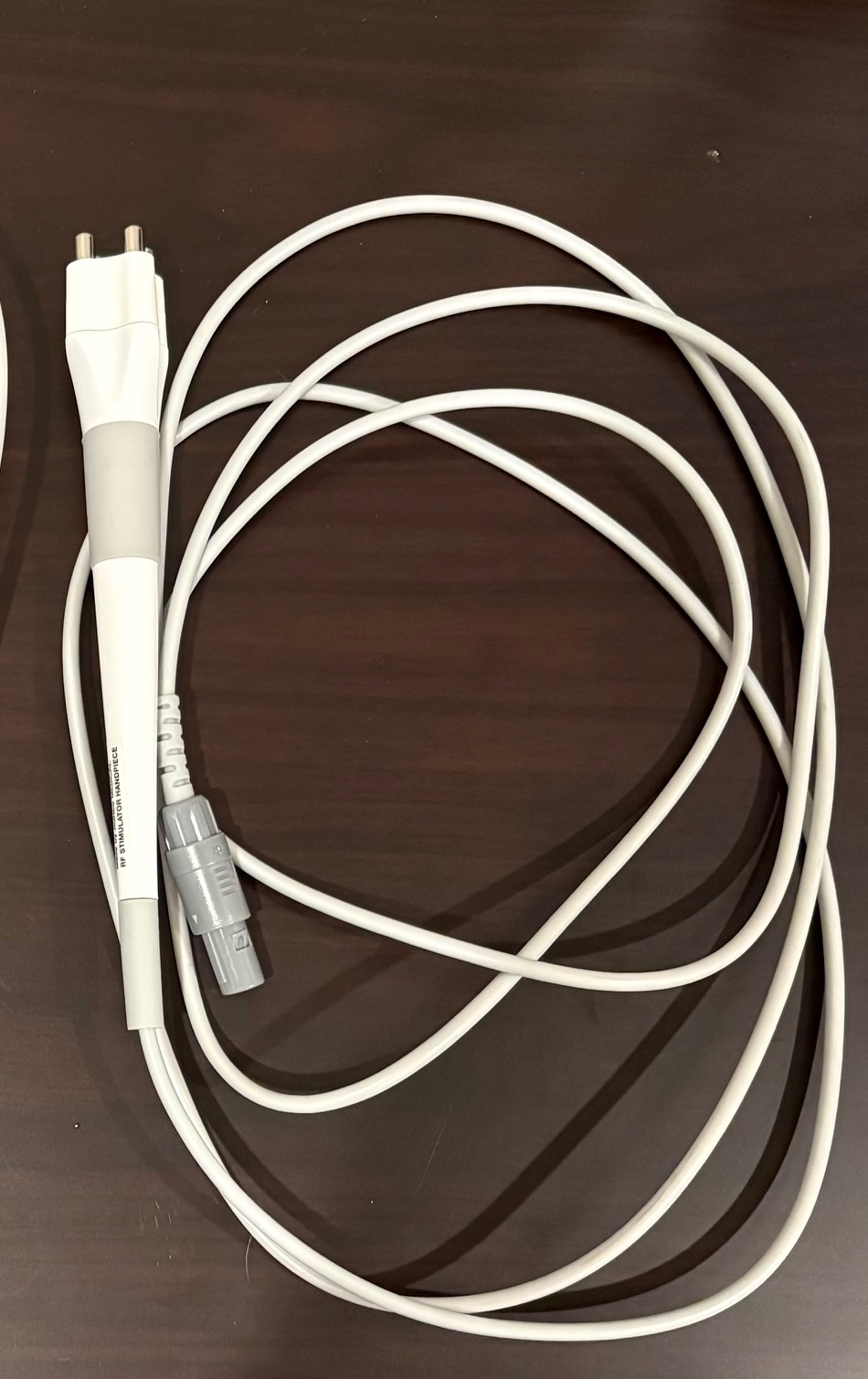

AGNES RF Stimulator Handpiece

Length: ~19–22 cm (typical handheld size)

Weight: Light, ergonomic (exact varies by generation)

Color: White with gray grip

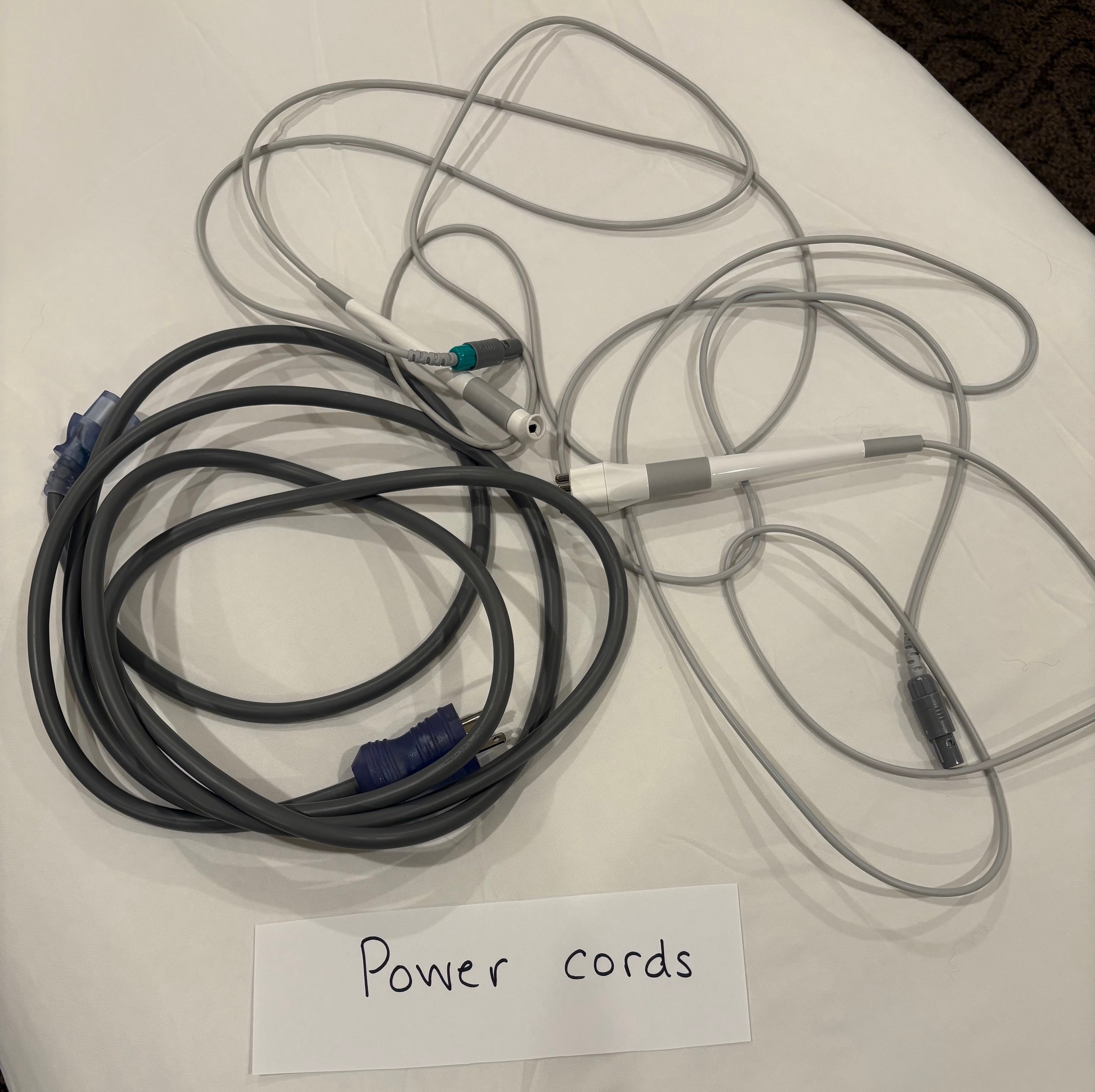

Cable Type: Integrated RF lead with locking connector

Connector: Proprietary AGNES magnetic/twist-lock RF port (gray)

AGNES Insulated Microneedle RF Handpiece

Energy Modality: Radiofrequency (RF)

Operating Frequency: 1 MHz RF

Waveform: Square wave (controlled energy delivery)

Energy Delivery: Via micro-insulated disposable probes

Power Output: Controlled by AGNES console (typical system range 2–46 W, depending on settings and protocol)

Agnes MANUFACTURER NOTES

Dynamic precision RF technology which provides in-office solutions without the need for surgery.

• Unmatched precision targeting
• Short treatment sessions (20-30 min.)
• Safe & predictable technology for all skin types
• Minimal downtime, No incision
• Long-lasting & immediate results

How physicians are using AGNES RF:

• Facial Sculpting & Simmetry
• Skin Firming
• Skin Tightening
• Skin Smoothing
• Dermatologic issues
• Lower eyelid rejuvenation
• Submental reduction
• Jawline sculpting
• Earlobe repair
• Acne

Agnes RF for Transformative Precision RF

AGNES RF is a transformative technology that gives physicians the ability to provide in-office solutions without the need for surgery. It is a Precision Radio Frequency (RF) microneedling device, used in both dermatological procedures and aesthetic treatments across the world.

AGNES RF was carefully developed over two decades by Dr. Gun Young Ahn, with the intention of being used as a permanent solution to acne. After successfully developing the device, Dr. Ahn discovered that AGNES RF has the unique ability to inject RF energy and could be used in a variety of ways.

Since that discovery, AGNES RF has been adopted by aesthetic practitioners across the world. Built on a foundation of safety and found to be incredibly versatile, AGNES RF will become a cornerstone of your aesthetic practice.

HOW AGNES RF WORKS

Agnes RF utilizes Radio Frequency (RF) energy for tissue coagulation and electrothermolysis. Micro-insulated needles penetrate the skin at specific points, distributing radiofrequency energy at precise temperatures to generate a tissue response without damaging the epidermis. This makes microneedling with AGNES RF simple, precise, and effective.

• 1MHz Mono-polar
• Square wave form to minimize energy deviation

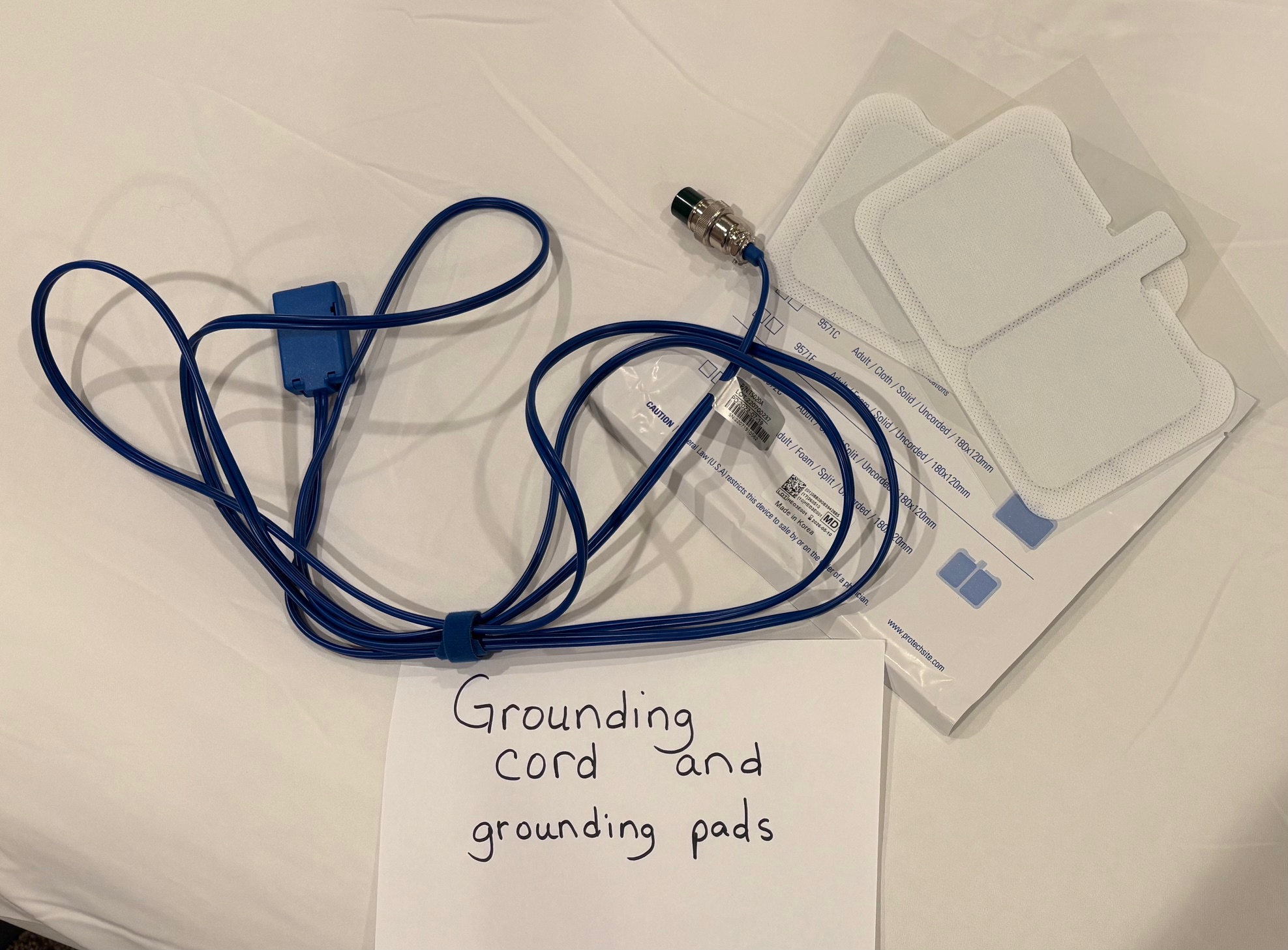

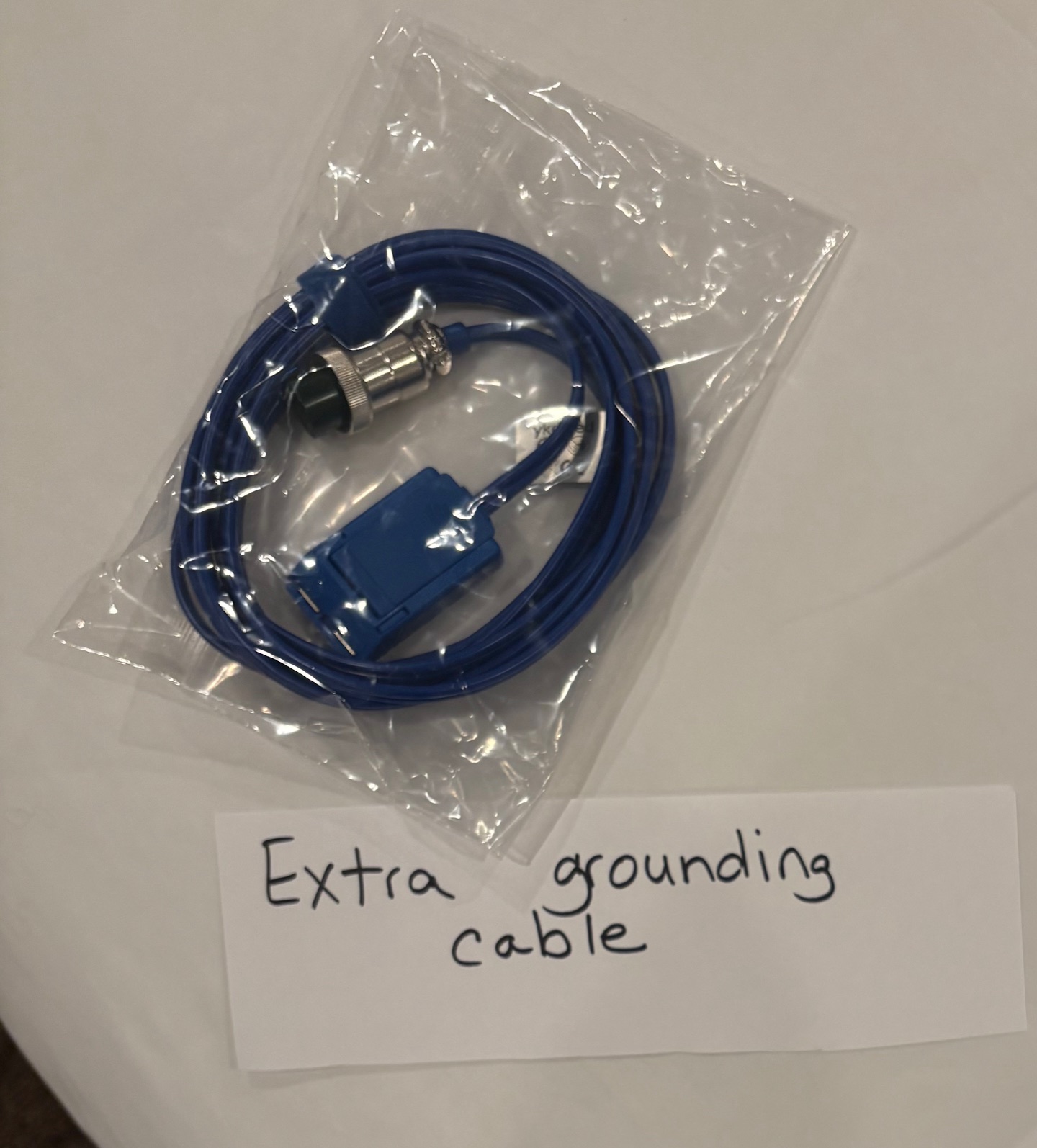

• Reusable grounding pad
• Needles are micro-insulated to protect against epidermal burning
• (9) separate needle types
• Needle checking camera helps ensure safety and precision

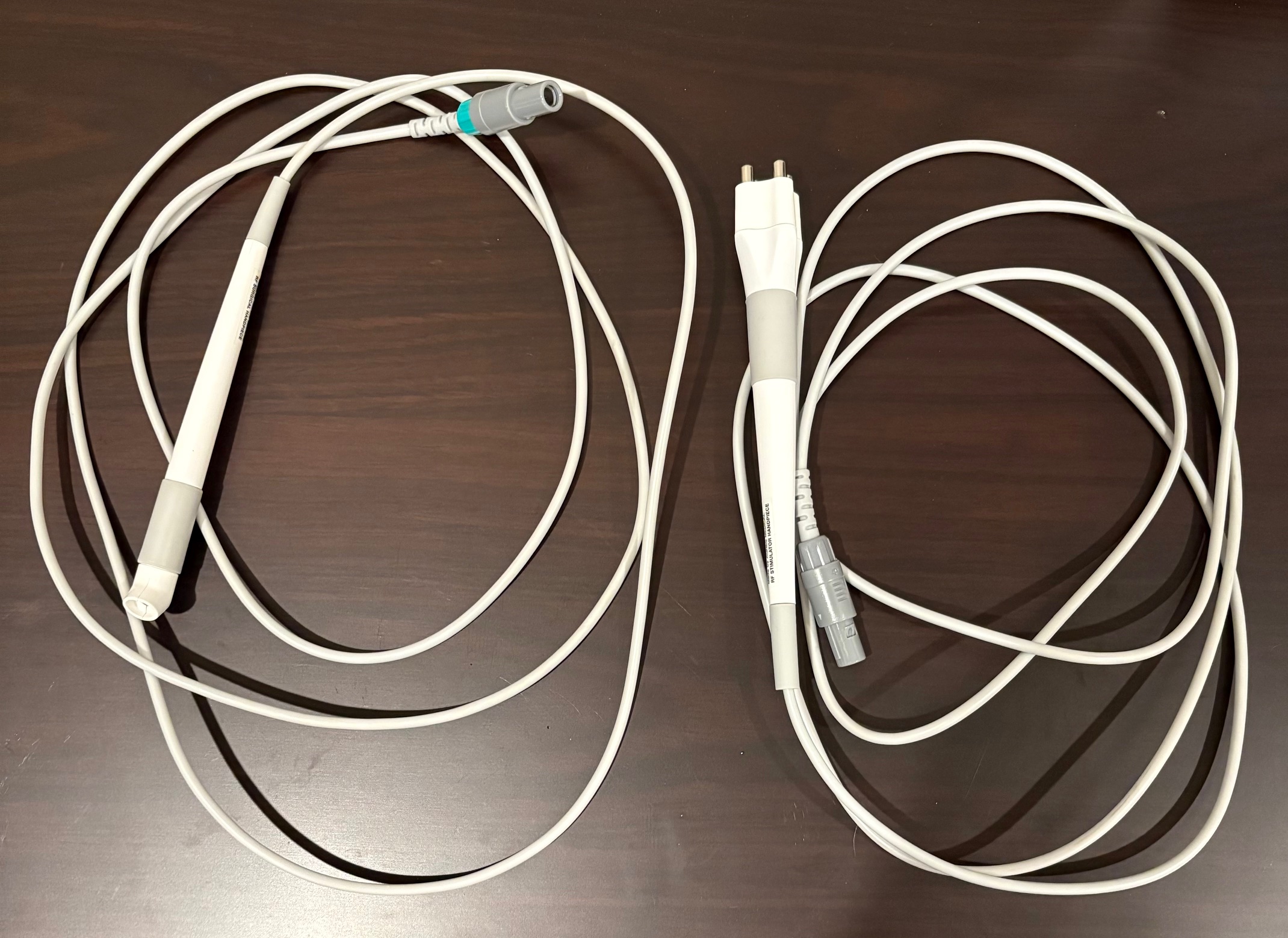

Agnes Handpieces:

RF Microneedling Handpiece – Monopolar RF

The Microneedling handpiece uses either a single needle or a three-pin needle to deliver radiofrequency energy to the skin. The specific needle used is chosen by the technician based on the treatment area and condition being addressed. The needles are partially insulated to protect the surrounding tissue, ensuring the energy is delivered to the targeted depth.

• Single-needle option: The Agnes device has a single-pin needle option for treatments requiring highly targeted energy delivery.
• Three-pin needle option: A three-pin needle is also available for treatments that involve a slightly larger area of coagulation.

Partially insulated: Both needle options are partially insulated to protect the outer layer of the skin while targeting deeper layers where fat cells and sebaceous glands are located.

RF Stimulating Handpiece – Non-Needle – Monopolar RF

Non-Needling Handpiece

• Function: Applies radiofrequency energy to the skin’s surface without breaking the skin barrier.
• Purpose: Primarily used for skin tightening, soothing, and preparing the skin for treatment.
• Optional Some models, like the AGNES Ultra, have a specialized VIBE that uses vibration to enhance the delivery of topical products after the treatment.

Frequently Asked Questions

What is Agnes RF?

Originally developed by Dr. Ahn as a cure for acne.  AGNES RF is a precision microneedling device that is currently being used off-label by physicians all over the world for a myriad of conditions including:

• lower eyelid rejuvenation
• submental reduction
• jawline sculpting
• earlobe repair and many others.

AGNES Precision RF is a unique nonsurgical radiofrequency device that can sculpt the face, and deliver firmer, tighter, more youthful-looking skin. AGNES RF stimulates the production of collagen and elastin providing long-lasting and unmatched results.

How long does an Agnes RF treatment take?

Most treatments take anywhere from 15-30 minutes. For example, submental treatment could take about 20 minutes.

What should my patients expect during treatment?

There is minimal discomfort during the treatment and the patient should feel a light warm pressure. There may be redness and/or hot flashes on treated areas for a short period after the treatment.

How many treatments are required?

Your patients can see improvement after one treatment, but a series of one to three treatments may be needed to achieve optimum results. The effects of each treatment will continue to improve over the coming months.

What is the recovery time?

As soon as your treatment is complete you should be free to resume your normal daily activities. There is minimal to no downtime with an Agnes RF treatment. You should feel little to no discomfort during the treatment.

What is the difference from other pre-existing treatments?

Other preexisting acne treatments (oral medicine, scaling, chemical peels, laser, etc.) only relieve the acne temporarily as they do not treat the direct cause. Agnes RF selectively destroys the sebaceous glands where acne germs reside. Once the sebaceous gland has been destroyed no acne can reoccur in that area.

FDA Clearance

AGNES RF is indicated for use in dermatologic and general surgical procedures for electrocoagulation and hemostasis.
