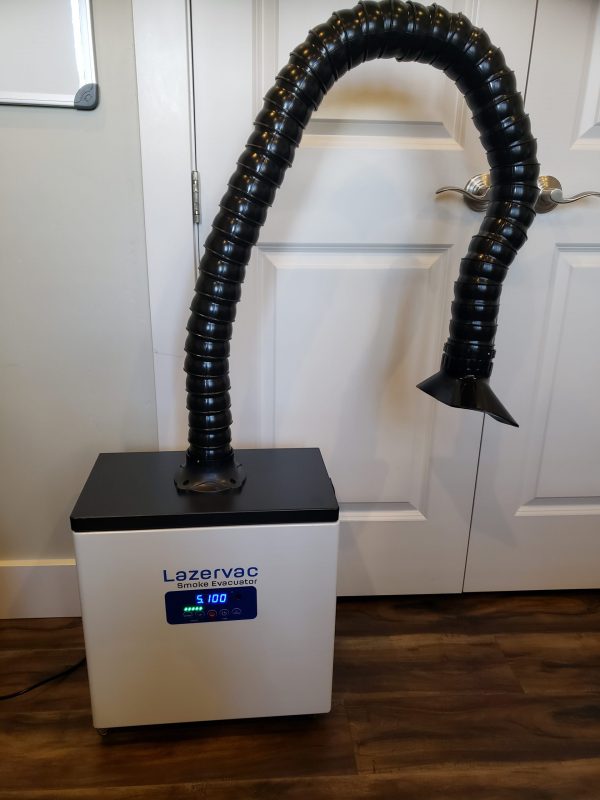

Laservac Smoke Evacuator PRODUCT SPECIFICATIONS

Voltage: 110V

Power: 20 W – 100 W

Air Speed: 22 m/s

Filtration: 03 pm 99.97%

Noise: <50 dB

Suction Tubes: 55″ Long

Air Volume: 235 m2/h

Dimensions: 16.5″ L x 9.75″ W x 18.25″ H

Weight: 35 lbs

Laservac Smoke Evacuator MANUFACTURER NOTES

The Laservac Smoke Evacuation Systems are designed to remove smoke and noxious odors produced by surgical smoke during laser and electrosurgical procedures.  With the triple design and powerful suction, the absorbing efficiency and filtration ratio can reach 99.45%. The purified air can be discharged directly indoors.

The Advantages of the Laservac smoke evacuator are:

LOW COST, COMPACT, MOBILE UNIT CAPTURES LASER PLUME LOCALLY: Suitable for all medical laser procedures, including: Laser Hair Removal, CO2 Laser Skin Resurfacing, Erbium Yag Skin Resurfacing, Laser Tattoo Removal, and Fractional Skin Resurfacing. The low profile unit is mobile and comes with a self-supporting SteadyFlex Arm/Nozzle assembly, Wireless Remote Control to control features at a distance, and a 3-stage filtration system.

SELF-SUPPORTING STEADYFLEX ARM & NOZZLE ASSEMBLY: SteadyFlex Arm is 52” long enough to reach any desired position and stays put, exactly where you position it. Includes 2.4” diameter Flex Arm and Nozzle.

LOW-COST, EASILY CHANGED, DISPOSABLE FILTER CARTRIDGES: Comes with 3-Stage General Purpose Combo Filter. A Filter Condition Monitor & Alarm user of blockage or need to change the filter. Extend Filter Life with Time Set (automatically shuts unit off) and Total RunTime Counter (displays hours unit has been in use).

RUGGED CONSTRUCTION, SUPERIOR PERFORMANCE, LOW MAINTENANCE, MOBILE: Features rugged steel case construction, a reliable brushless motor that does not require costly routine maintenance, superior performance, and quiet operation as well as optimal flow rates for use with our flex arms. The low profile, compact unit fits under your bench and includes locking casters for easy mobility & portability.

CONSUMABLES

Filter Life = 45 to 60 days

Can replacement filters be purchased through Rock Bottom Lasers? Yes

Filter Cost? Set of 10 Filters $200
