Klein KIP-II PRODUCT SPECIFICATIONS

Maximum flow rate: 1000 ml/min.

Motor speed: Adjustable from 0 to 600 RPM.

Flow control: An adjustable dial allows for flow rates from 1 to 10.

Head pressure:

Continuous: 25 PSI.

Intermittent: 40 PSI.

Operation modes: The pump has two modes of operation:

Momentary: Activated by holding down the foot switch and stops when the foot is released.

Toggle: Activated with a single press of the foot switch and deactivated with a second press.

Operation indicator: An adjustable audible signal indicates when the pump is operating.

Drive: The pump operates in a single direction.

Power input: 24V DC, 1 Amp.

Voltage compatibility: The unit is designed to adapt to 115 or 230 volts AC.

Safety features: The non-conductive roller head enhances electrical safety during procedures.

Dimensions: 12 inches x 9 inches x 6 inches.

Weight: Approximately 10 pounds (4.5 kg).

Stackable design: The pump can be stacked with other HK Surgical equipment, such as the Klein Aspirator, to save space.

Klein KIP-II MANUFACTURER NOTES

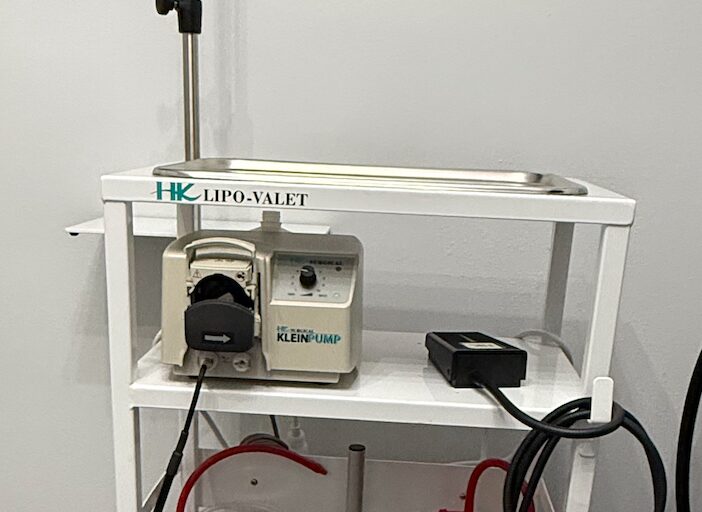

The HK Surgical Klein KIP-II is a medical device designed for the rapid and controlled delivery of tumescent local anesthesia (TLA). It is primarily used in cosmetic and surgical procedures, most notably tumescent liposuction, to reduce infiltration and procedure time while increasing patient comfort.

Key features and function

Purpose: The pump automates and expedites the delivery of large volumes of anesthetic fluid, replacing manual, syringe-based techniques.

Performance: It can deliver fluid at a maximum rate of 1000 ml/min, with an adjustable motor speed from 0 to 600 RPM.

Application: While originally developed for liposuction, its use has expanded to other procedures, including:

• Cosmetic and plastic surgery
• Vascular surgery (e.g., vein ablation)
• Facial and subdermal procedures
• Fat harvesting and grafting
• Wound care and skin grafting

User control: The KIP-II offers two modes of operation, controlled by a pneumatic foot switch:

• Momentary Mode: Fluid flows only while the foot switch is pressed.
• Toggle Mode: A single press starts the flow, and a second press stops it.

Safety features: The pump is equipped with a non-conductive roller head for enhanced electrical safety during procedures. An adjustable audible signal also indicates when the pump is operating.

Design: It is a portable and compact device with a stackable design, allowing it to be integrated with other HK Surgical equipment, such as an aspirator.
