Handpiece Refurbishment

Handpiece Pulse Life: 100,000 Pulses;

Can handpiece refurbishment be performed by a technician outside of Sharplight?  Yes; Rock Bottom Lasers will give the contact information to the buyer for a technician who can refurbish the handpiece, once all pulses are used;

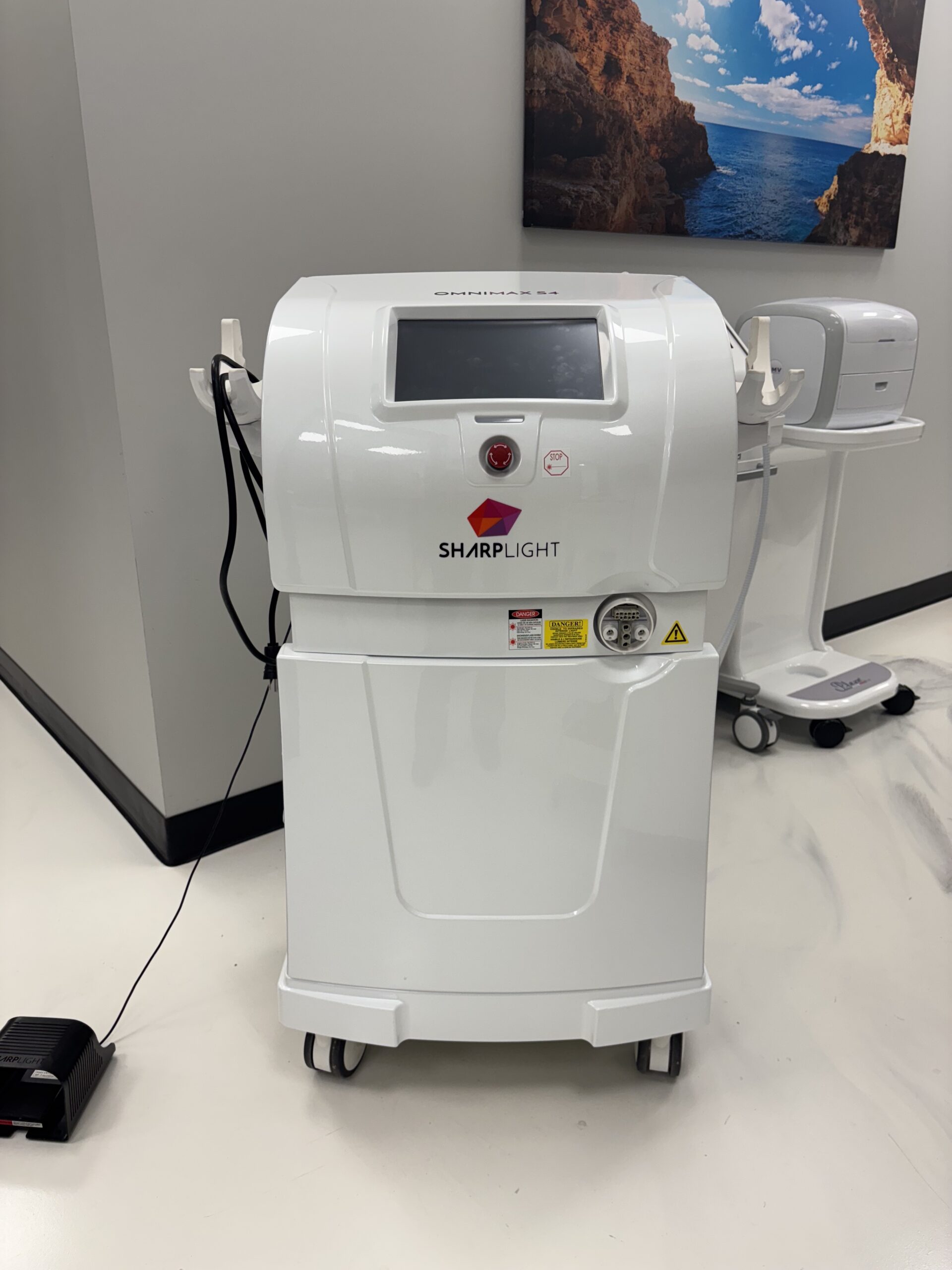

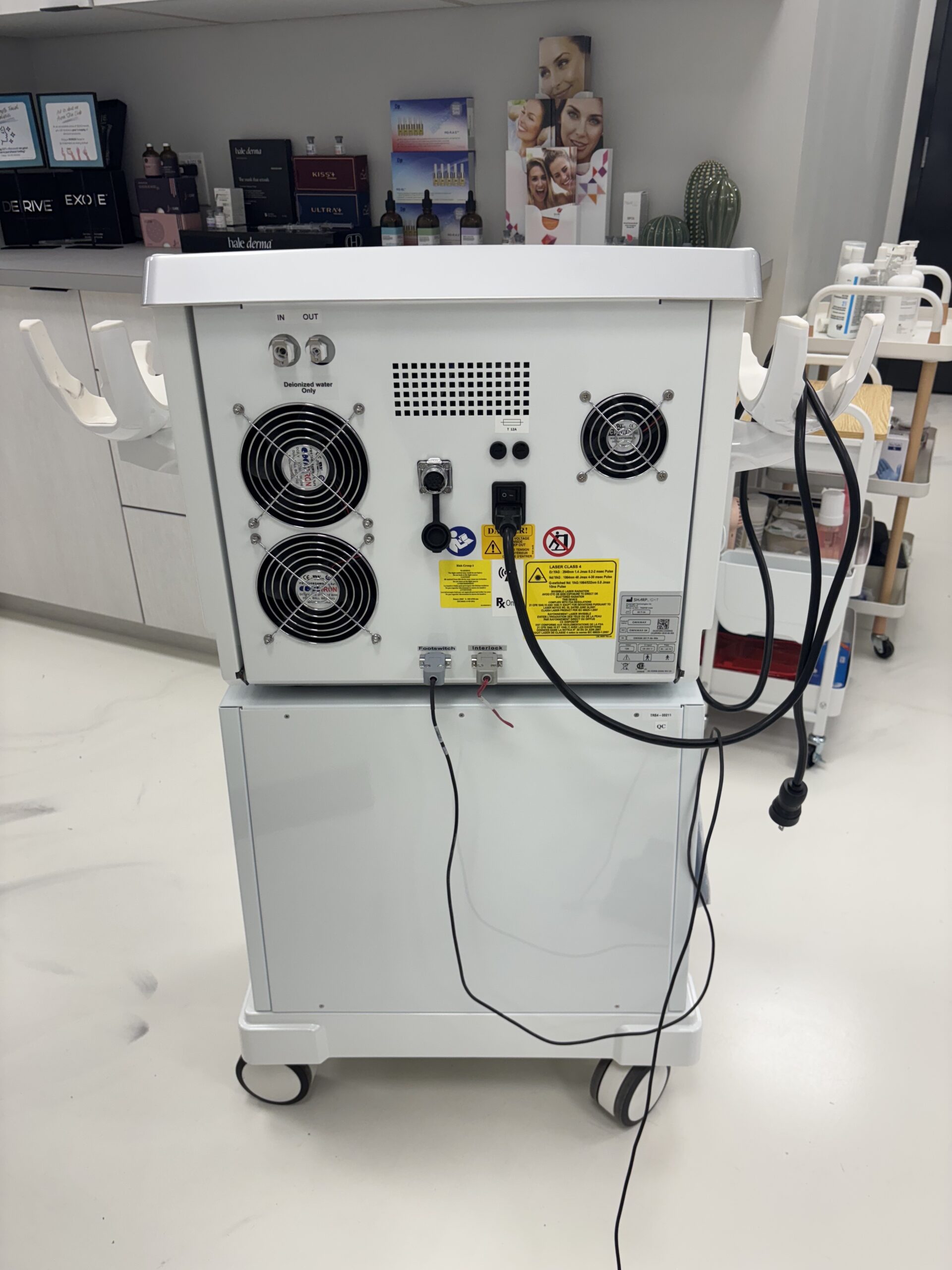

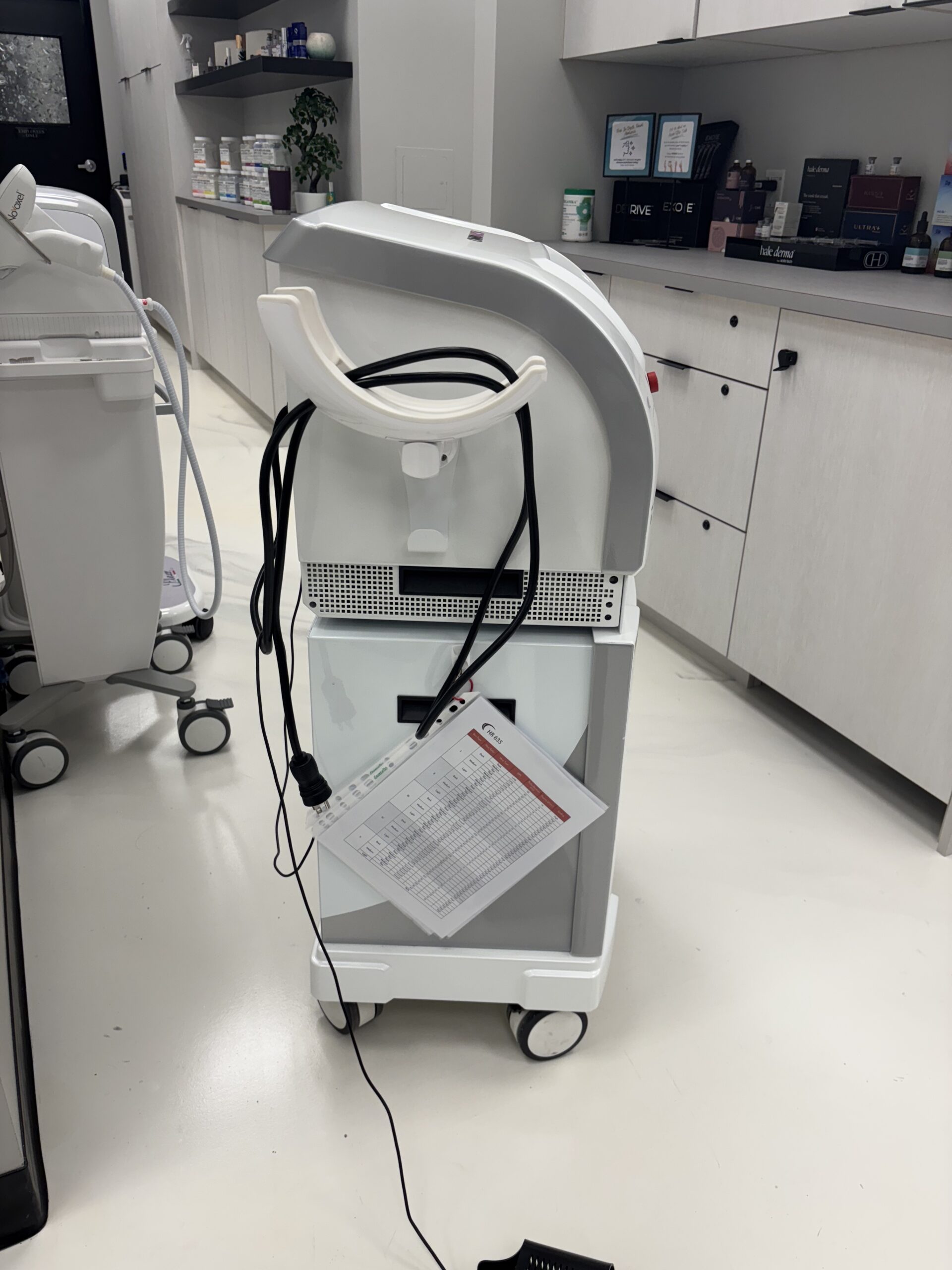

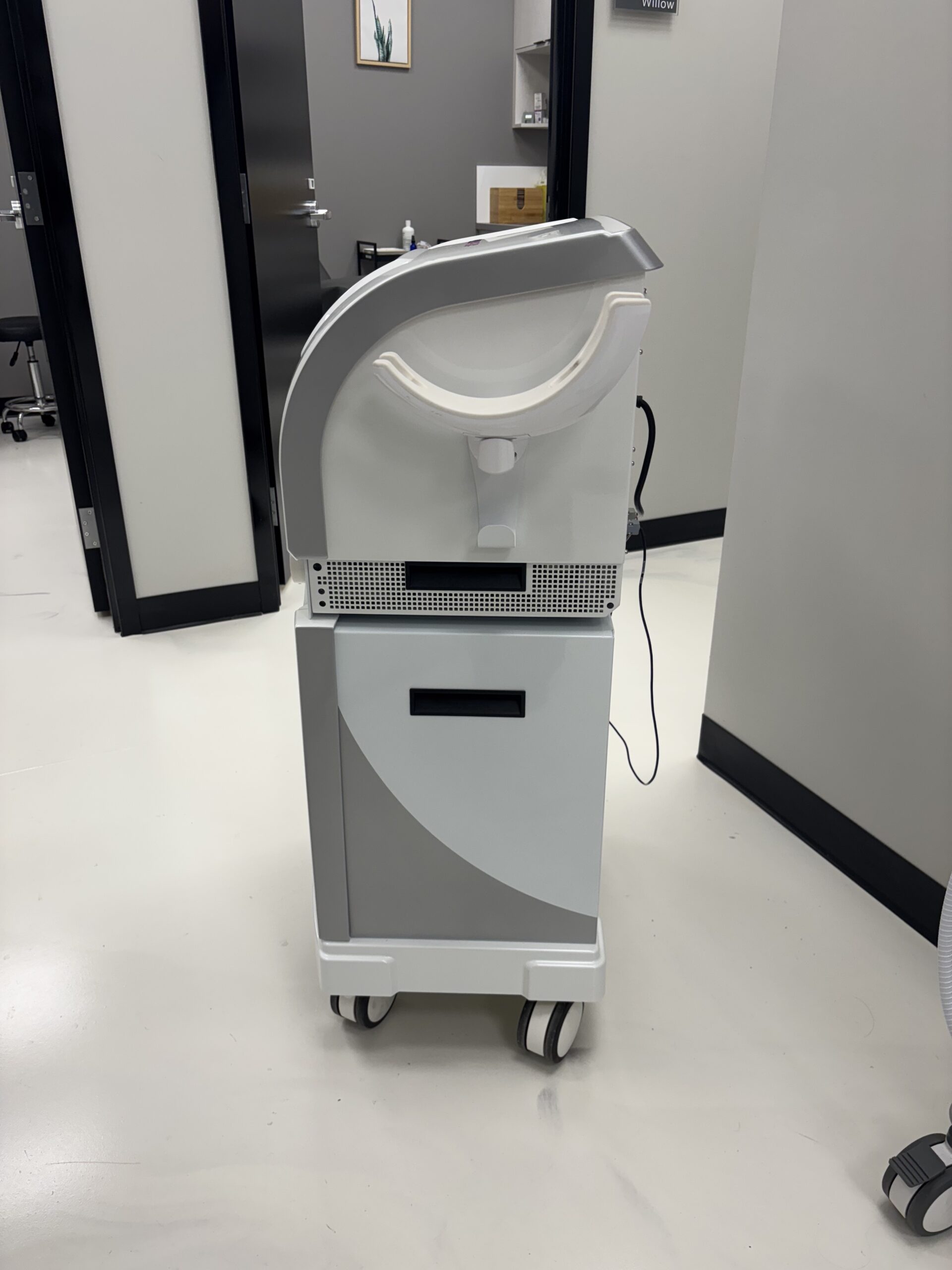

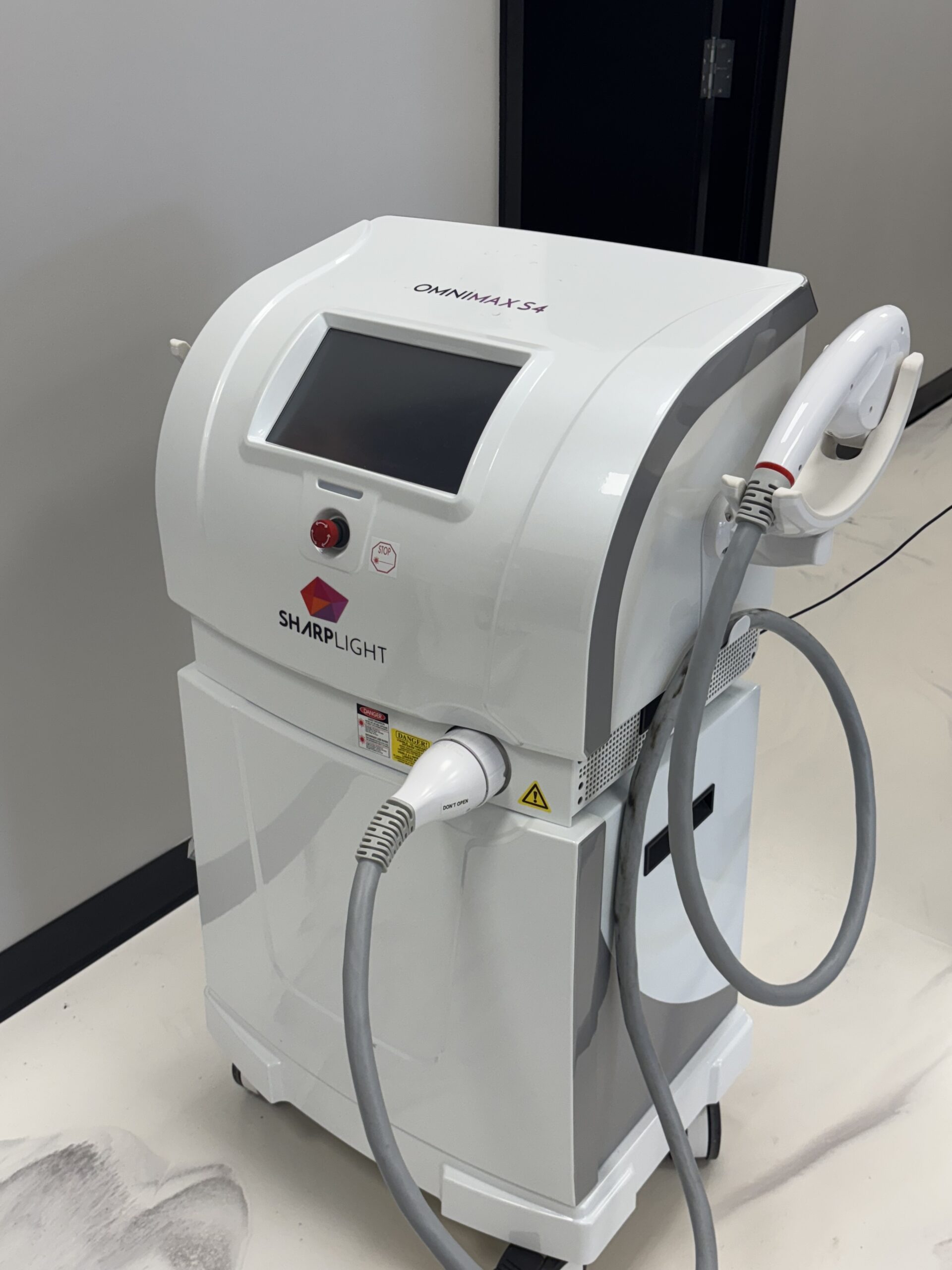

Omnimax S4 PRODUCT SPECIFICATIONS

Energy: 110-240 VAC 50/60 Hz.

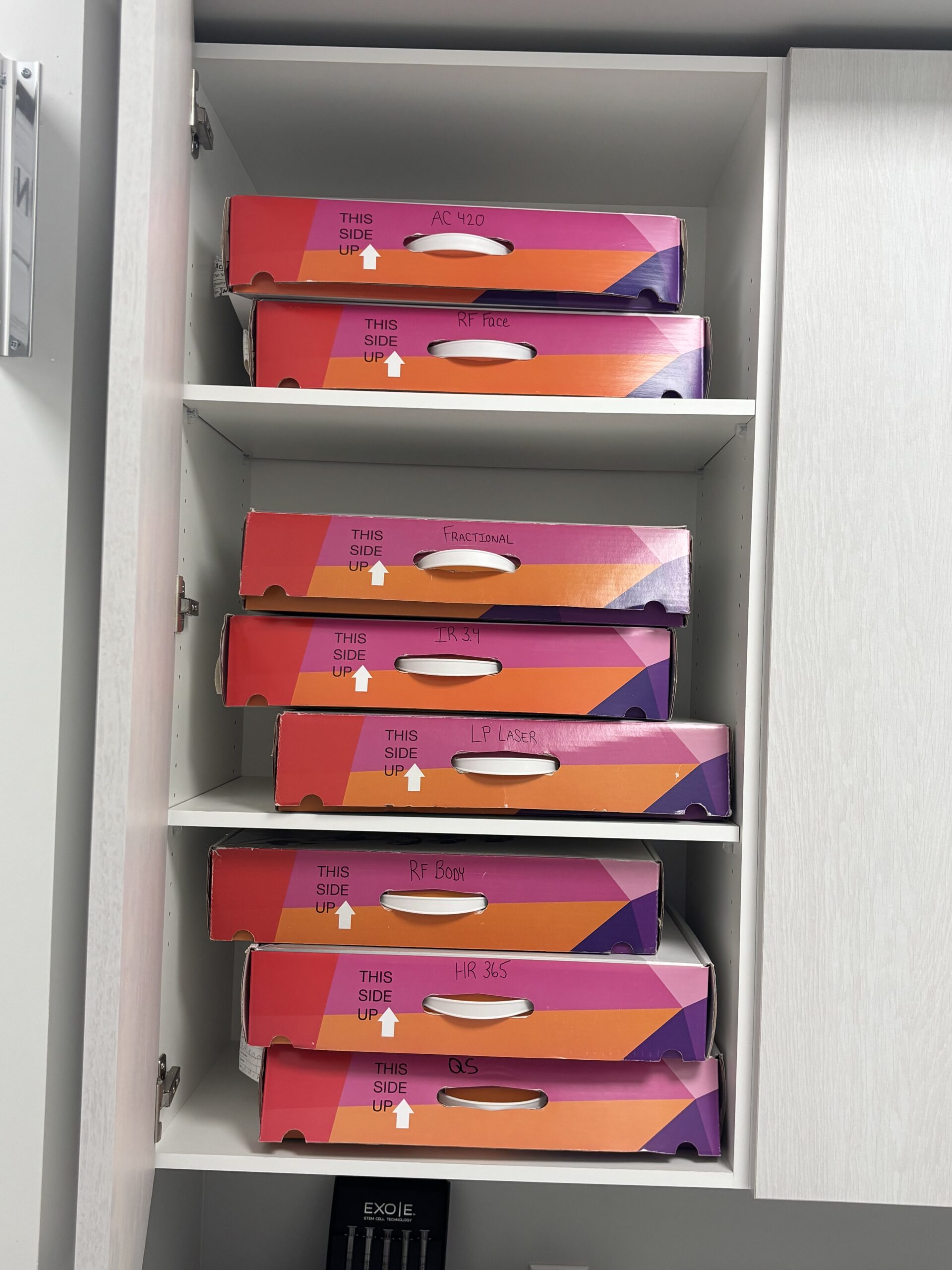

DPC (Dynamic Pulse Control) Handpieces:

• HR 580: Orange wavelength (580-950 nm) for hair removal on skin types I-IV.

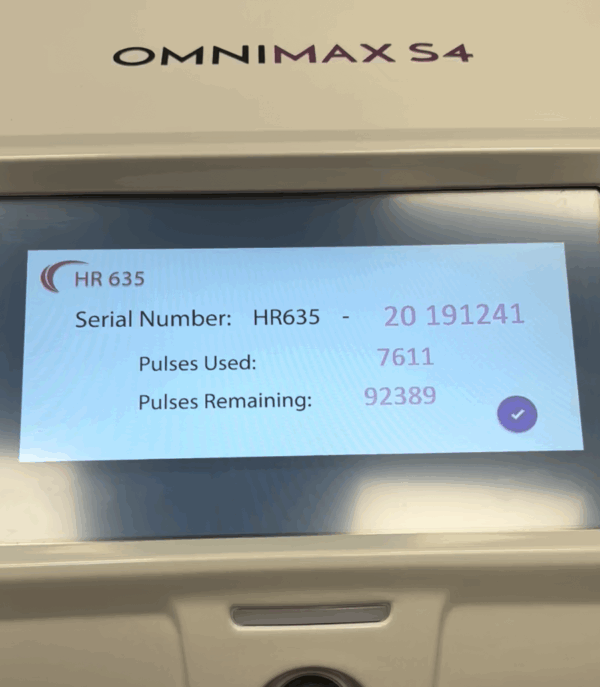

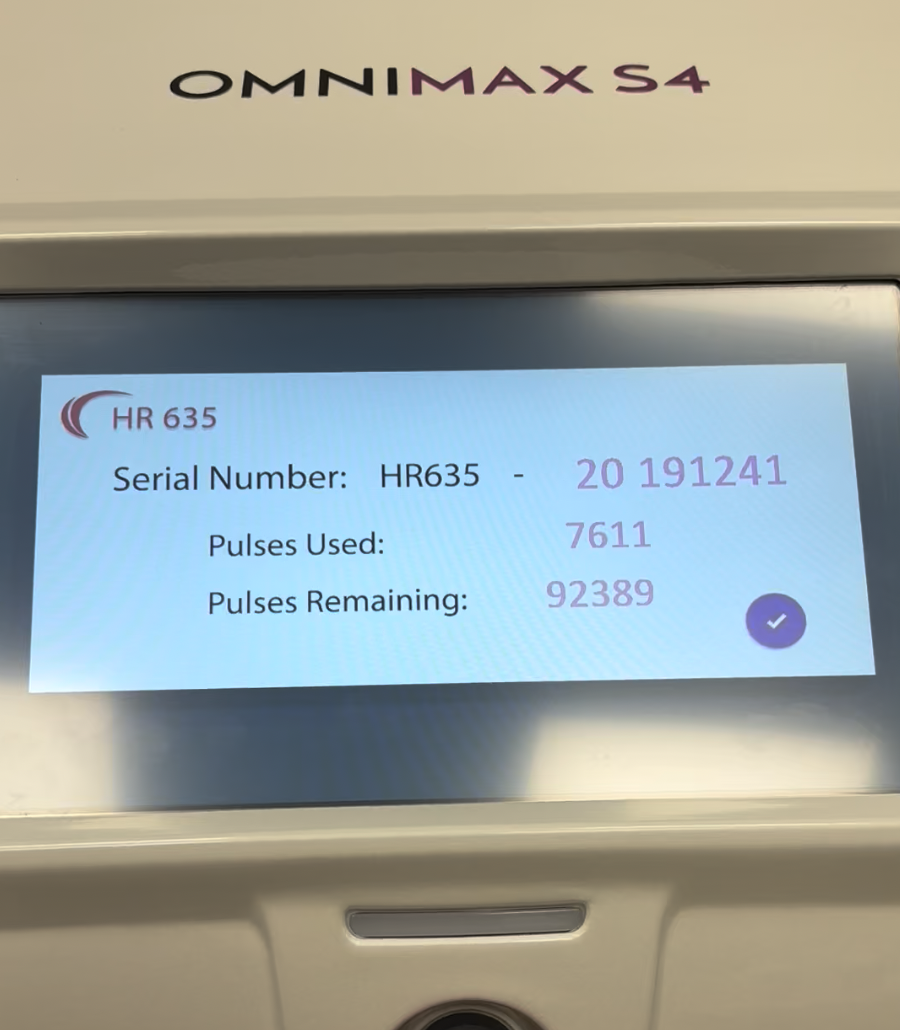

• HR 635: Red wavelength (635-950 nm) for hair removal on skin types I-V.
• HR 730: Designed for hair removal.

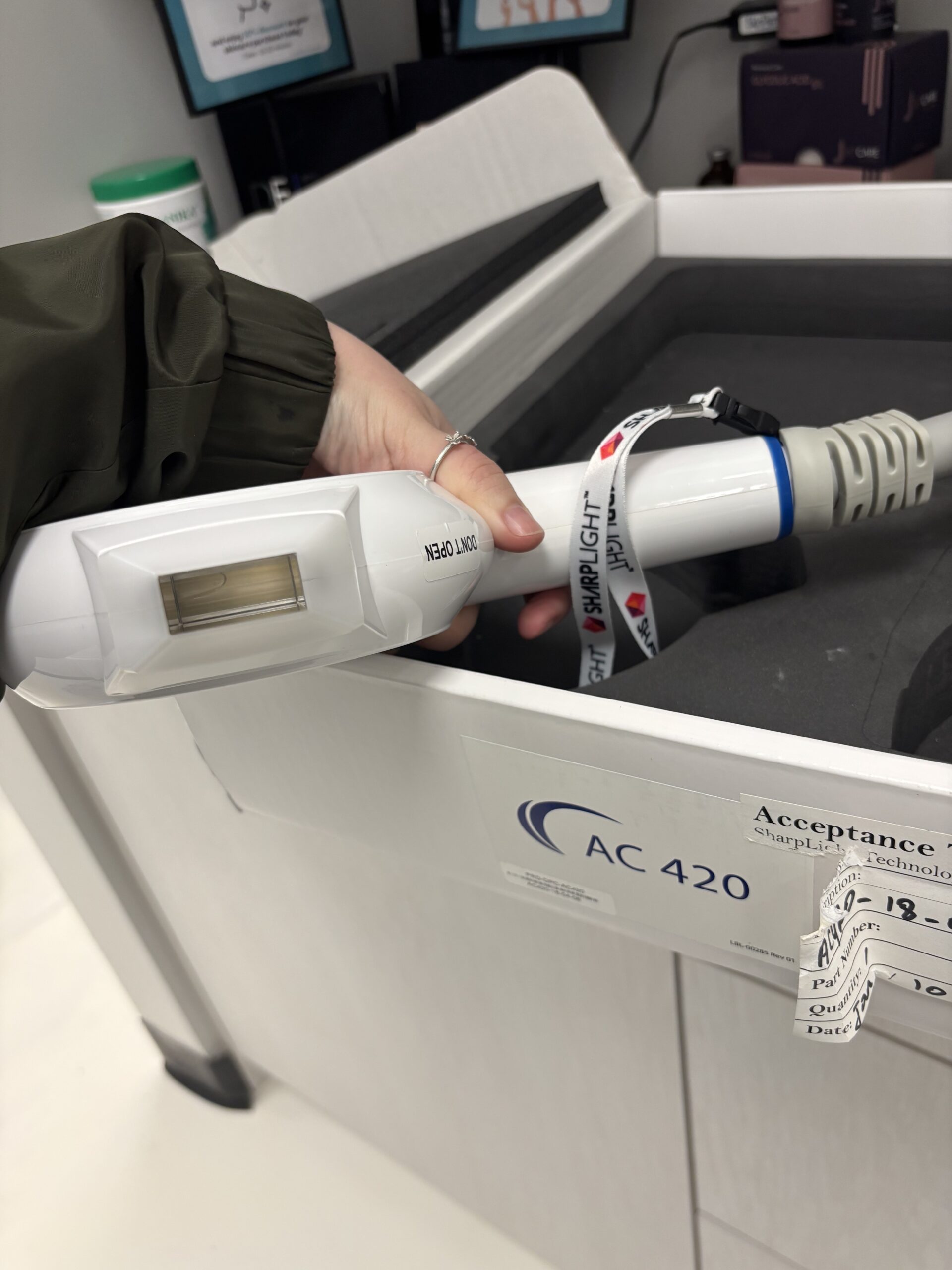

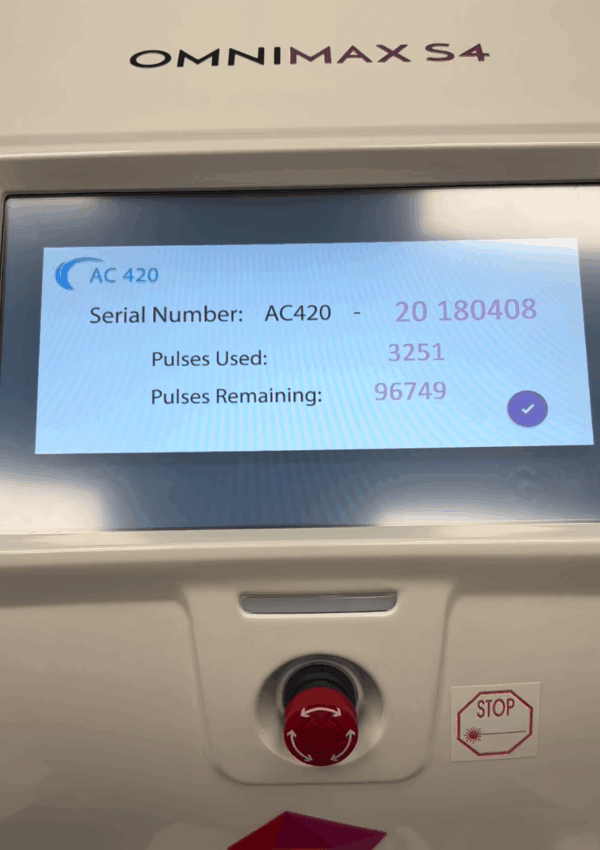

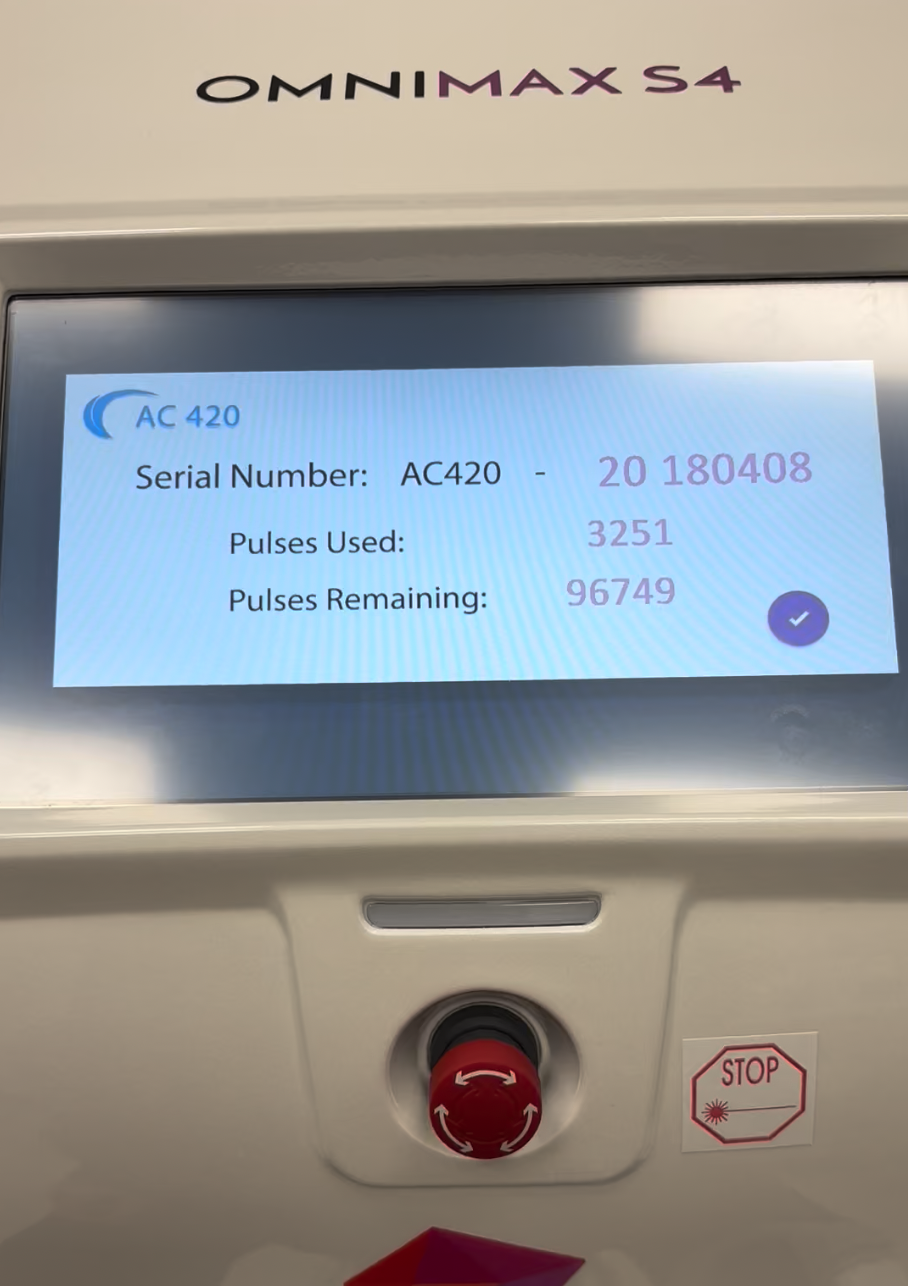

• AC 420: For mild to moderate acne vulgaris on skin types I-V.

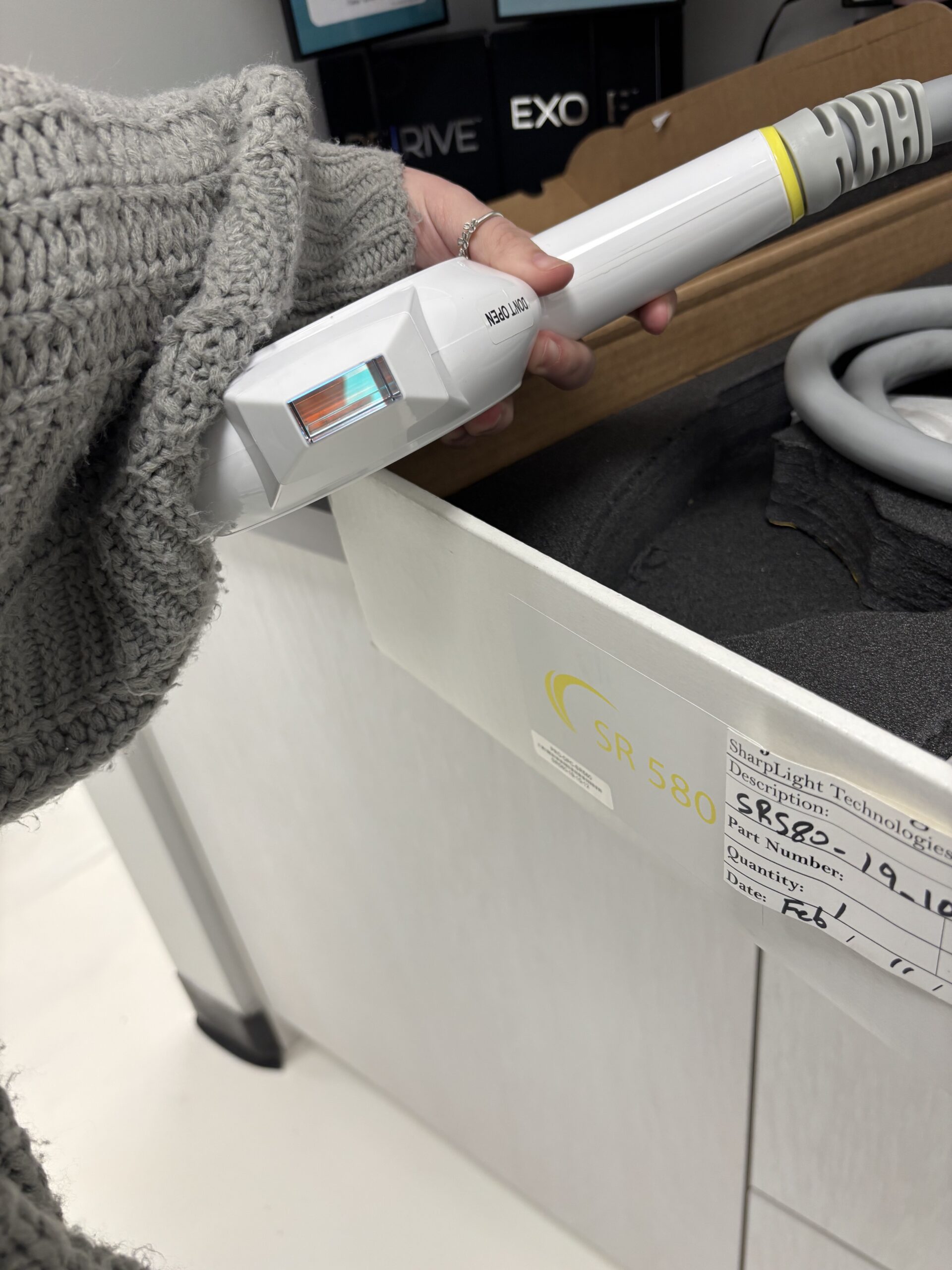

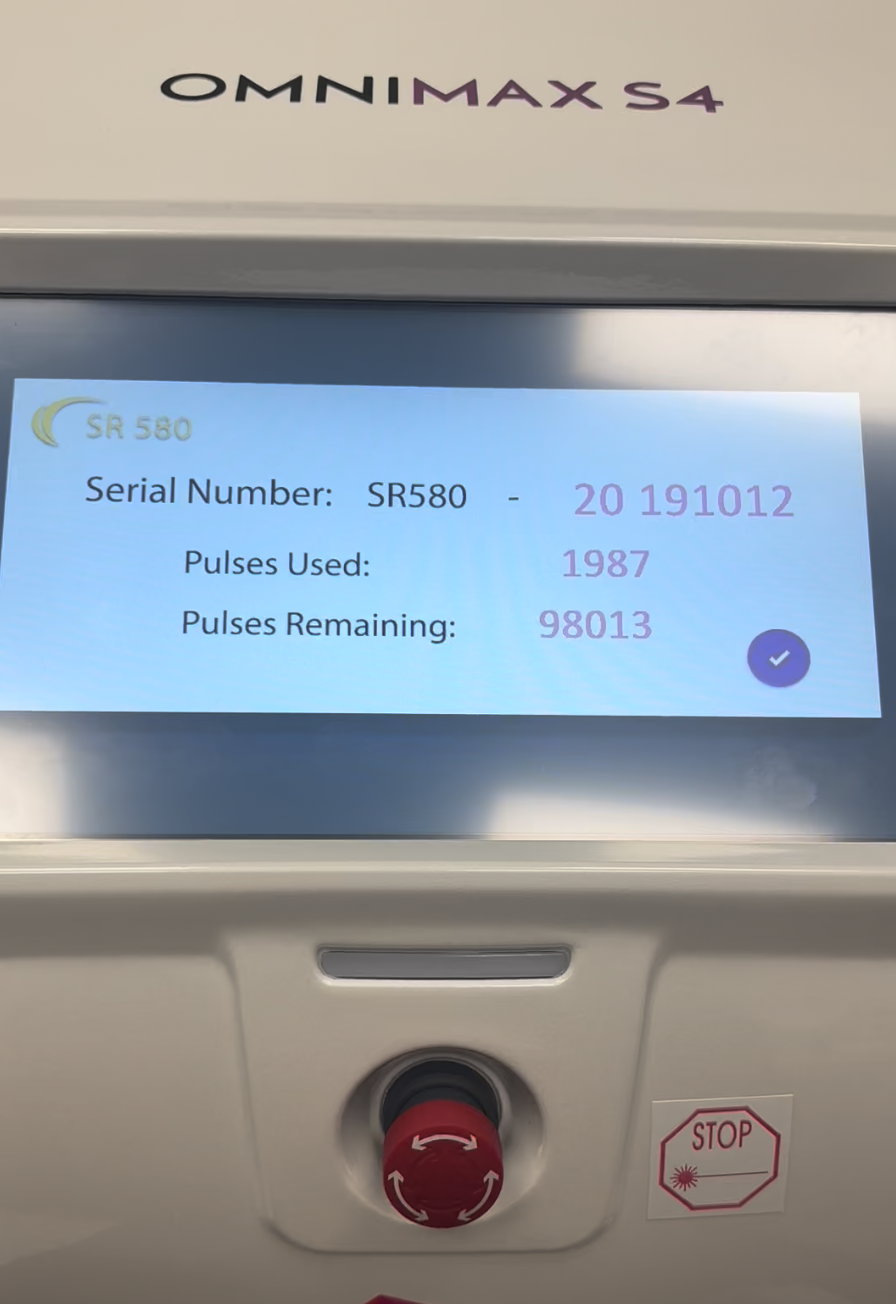

• SR 580: Yellow wavelength (580-950 nm) for skin rejuvenation.

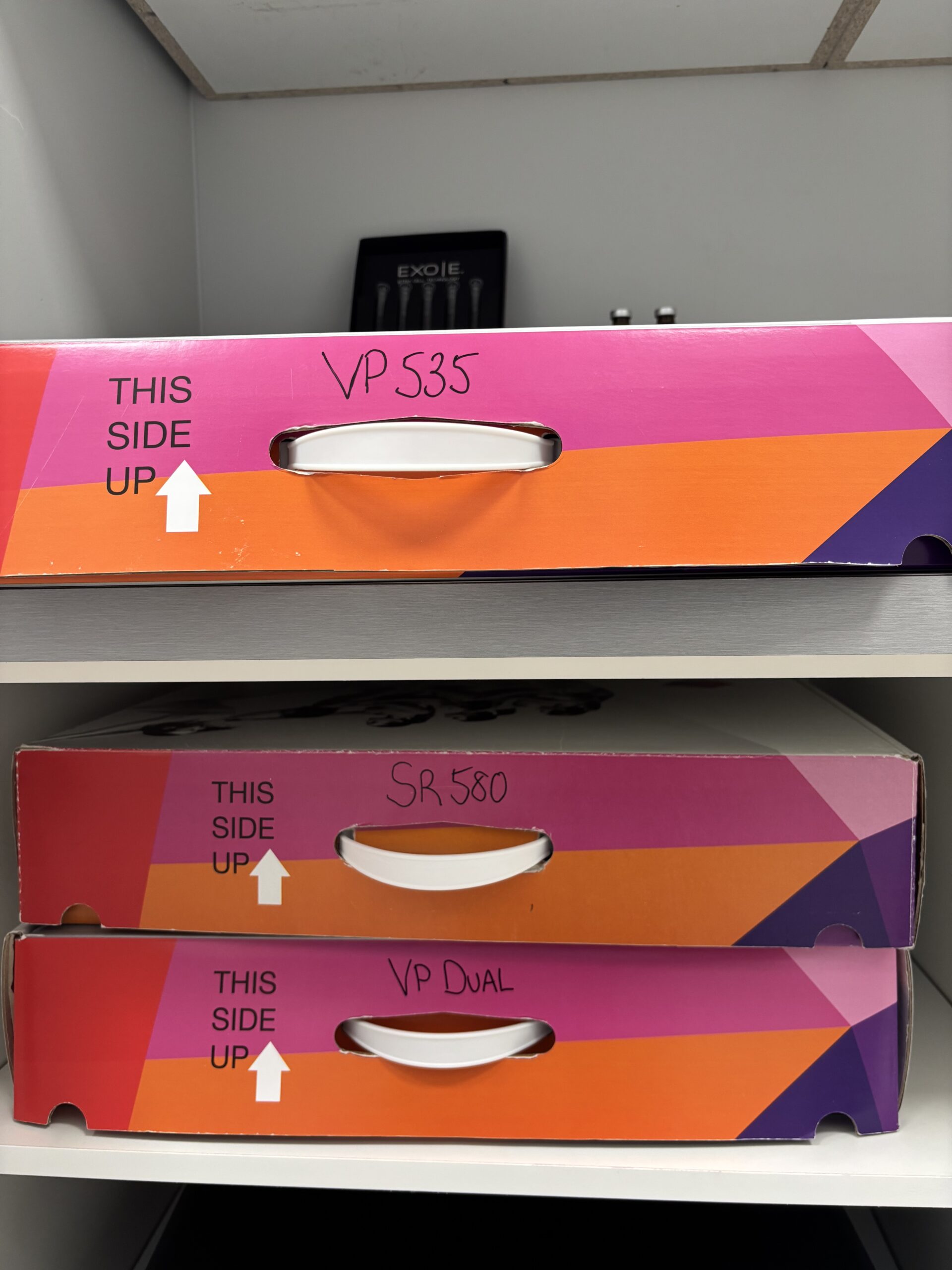

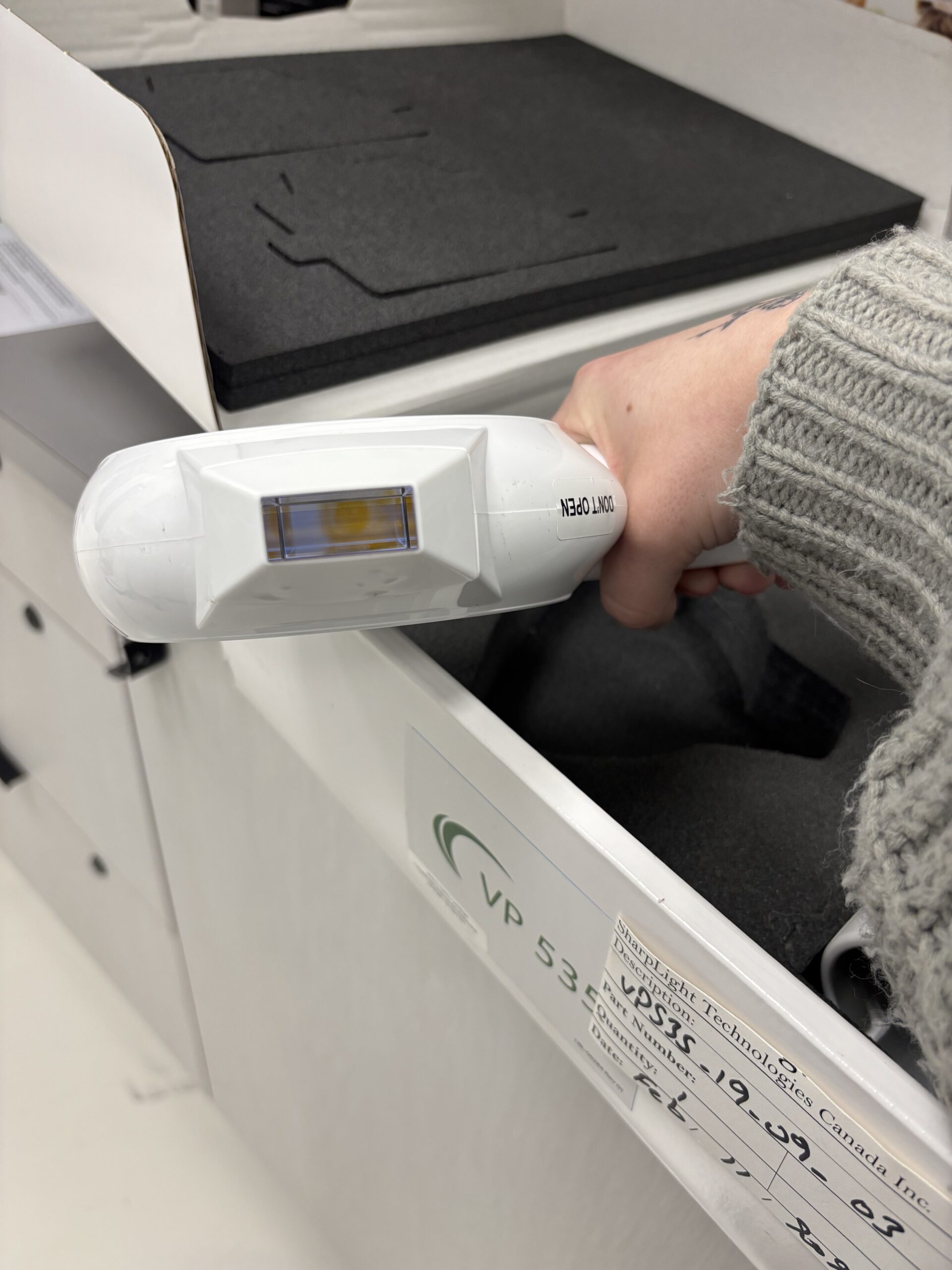

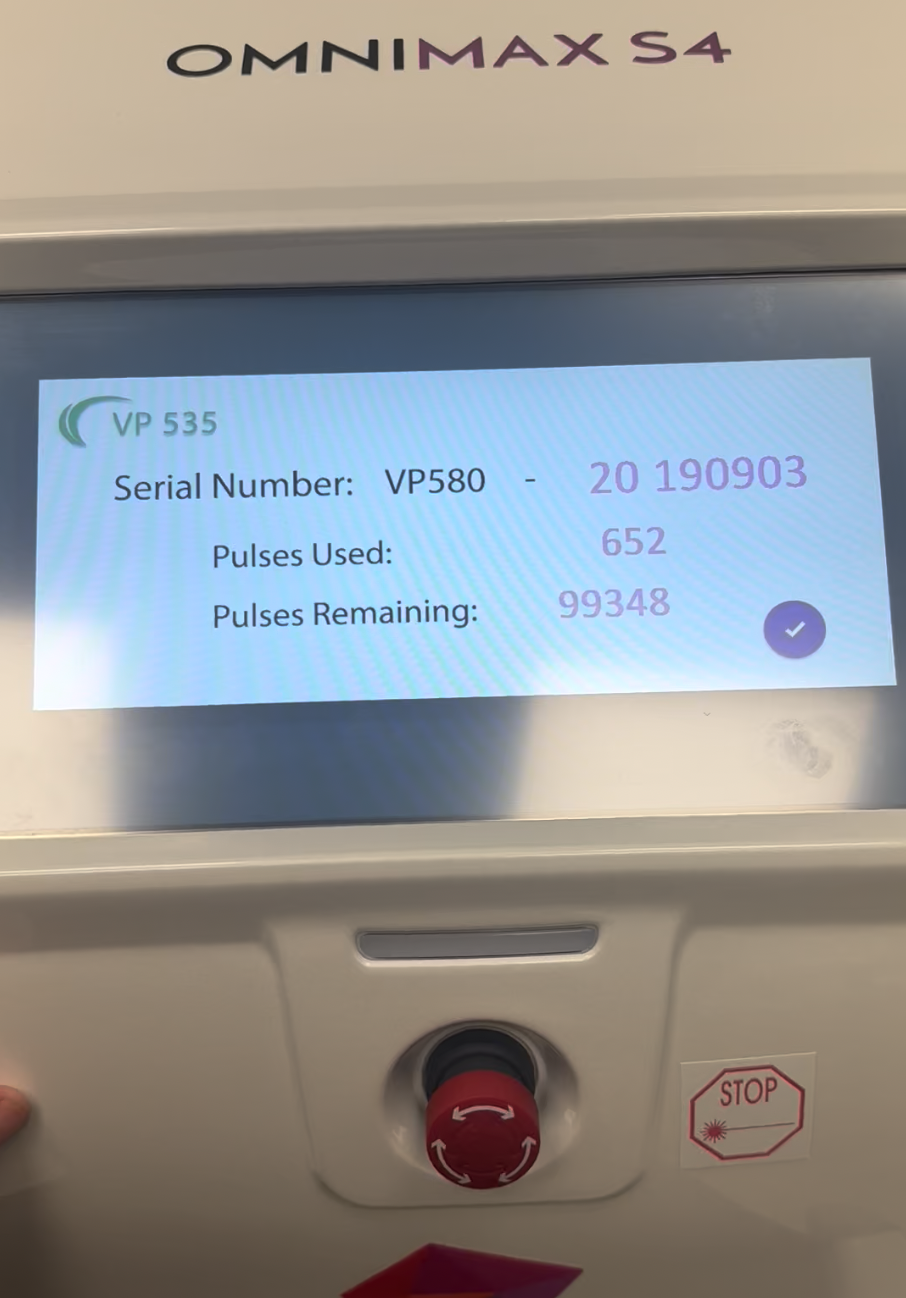

• VP 535: For treatment of vascular and pigmented lesions.

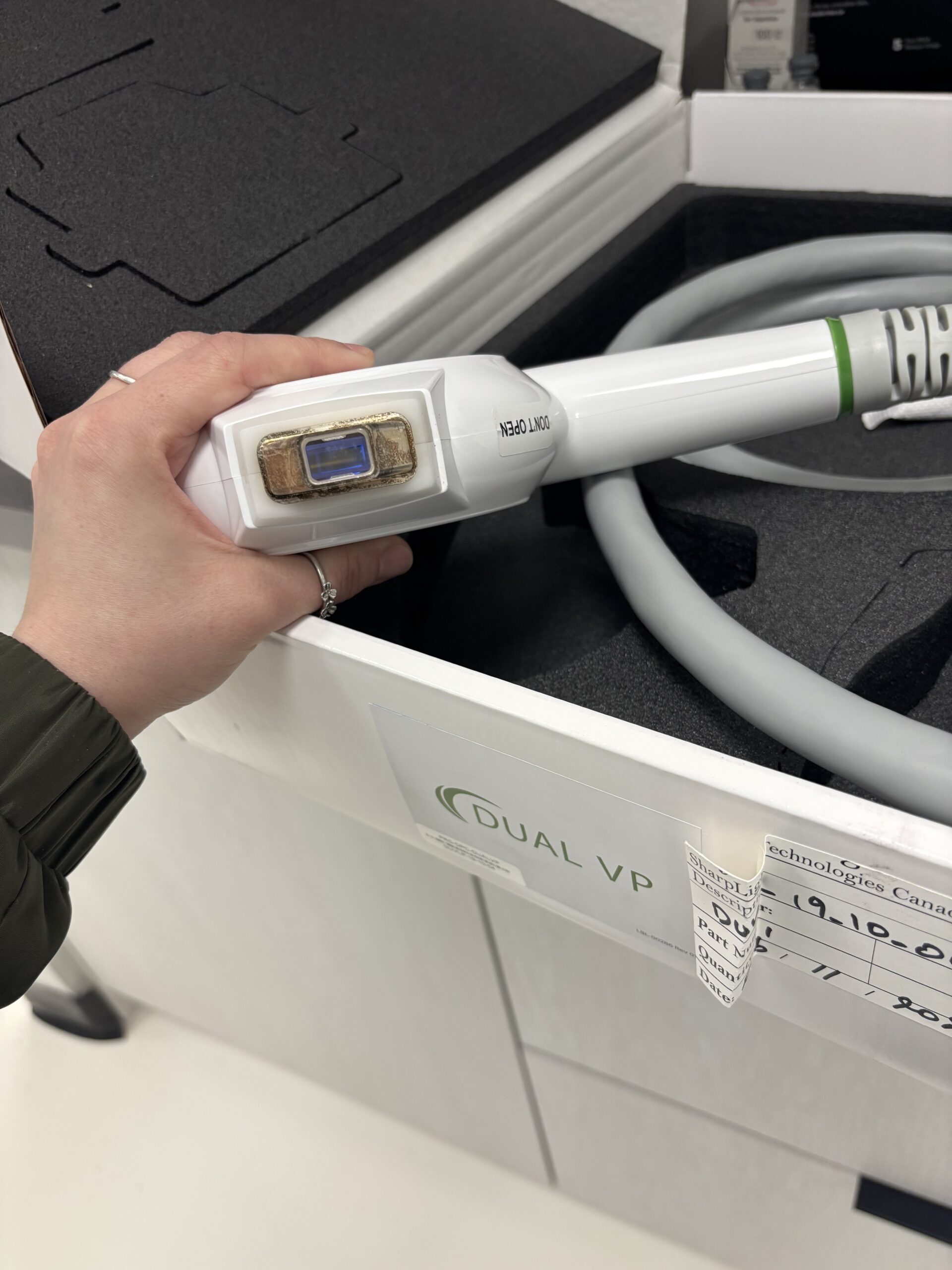

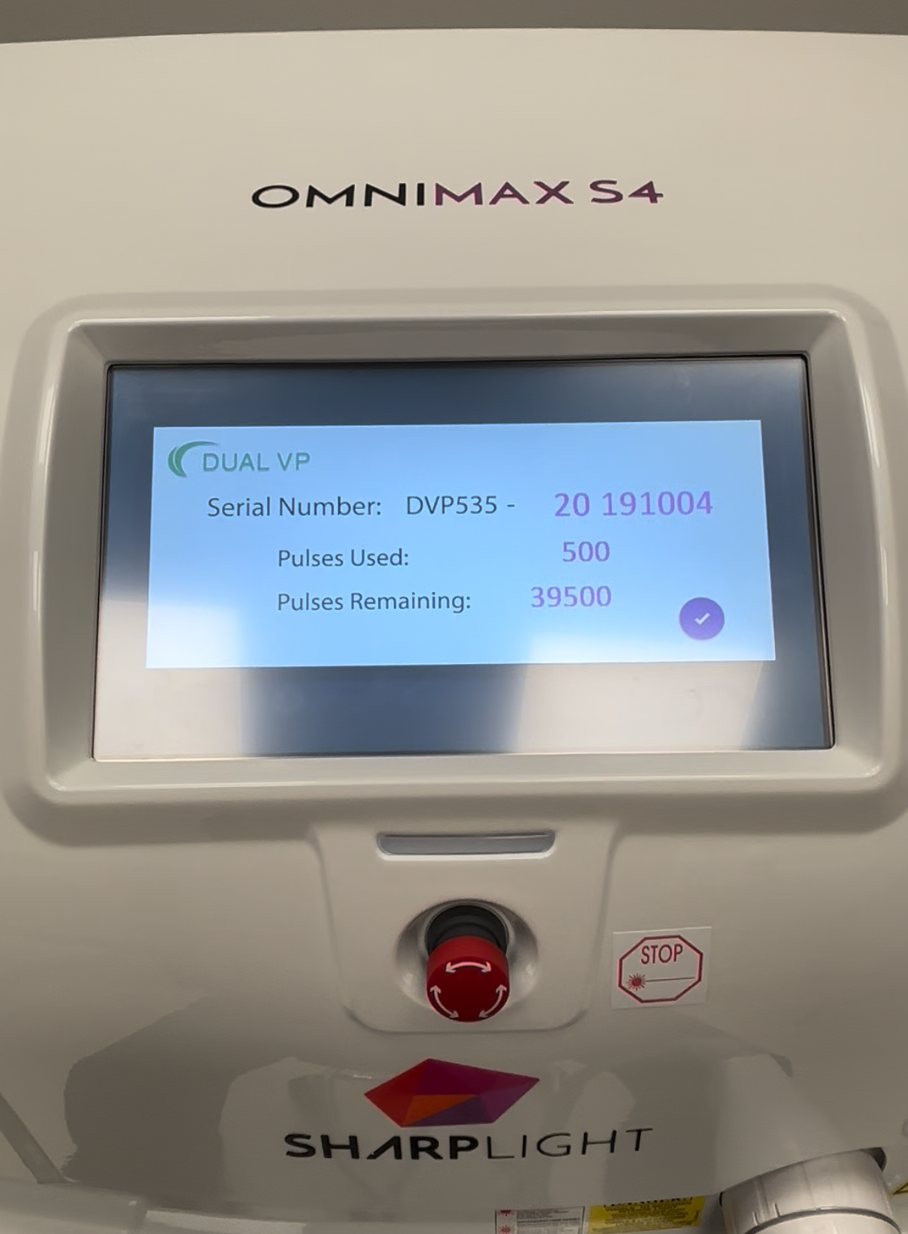

• Dual VP: Two simultaneous wavelengths (535-680 nm and 860-1200 nm) for vascular and pigmented lesions.

Additional Laser Handpieces:

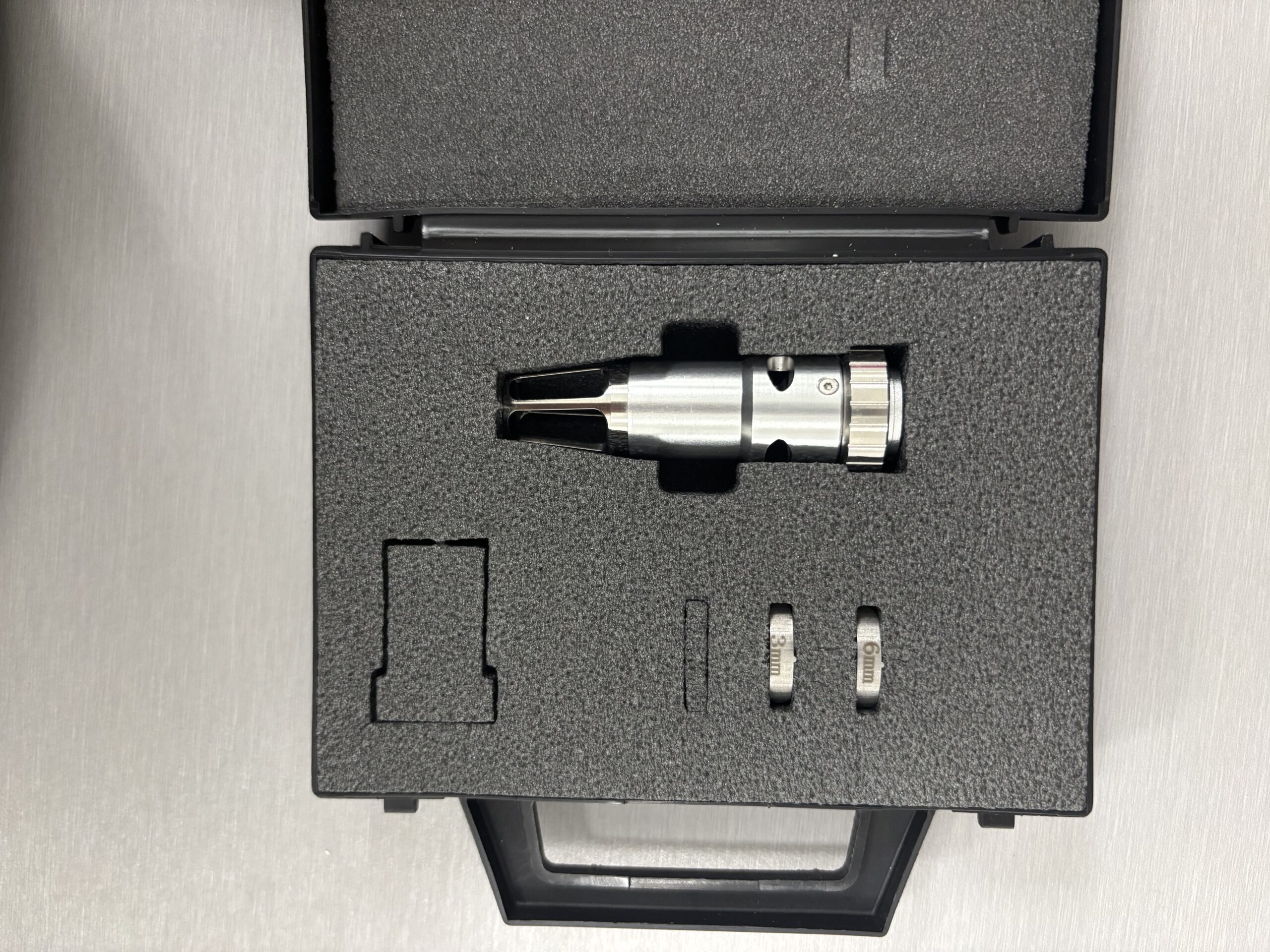

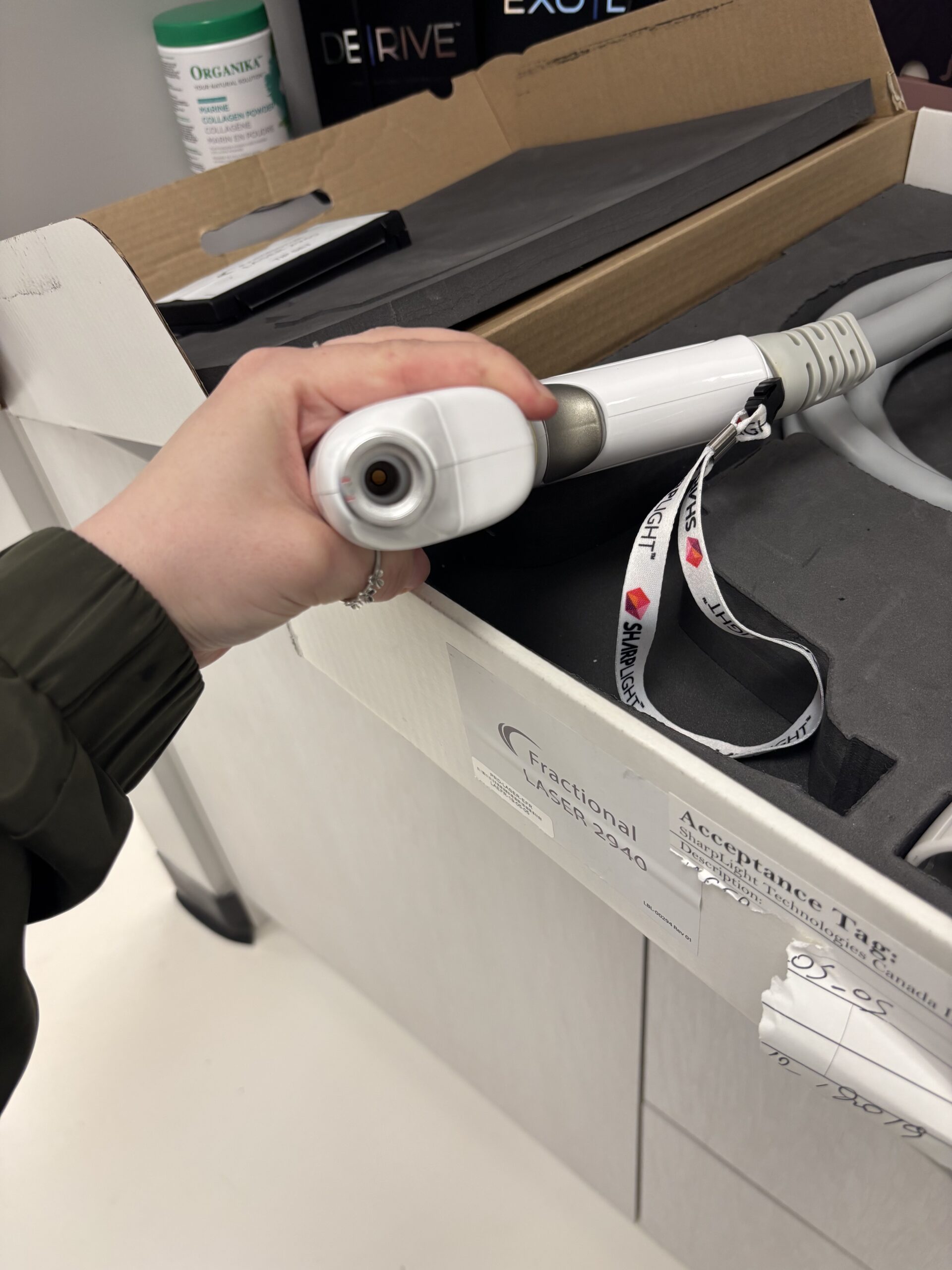

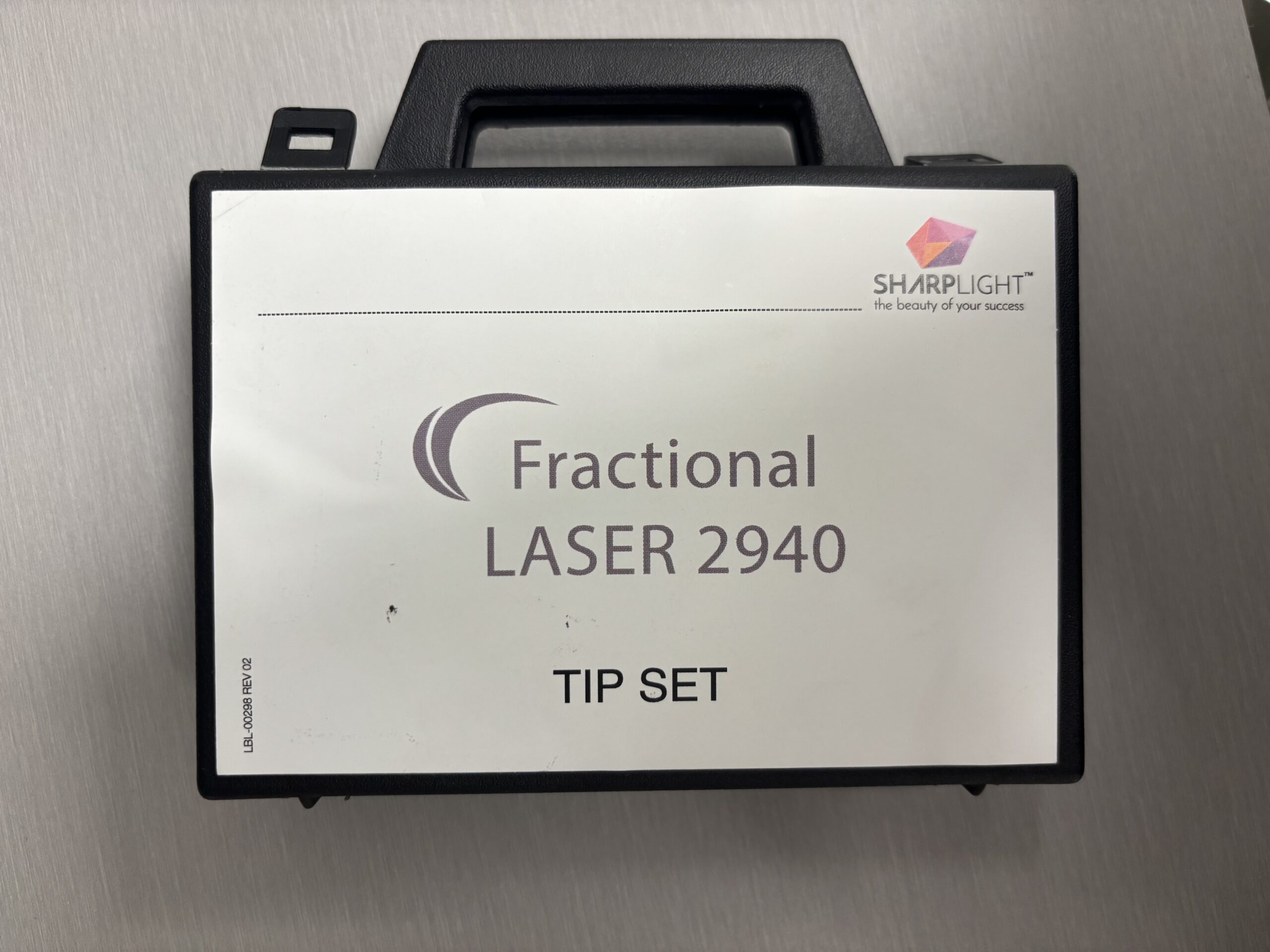

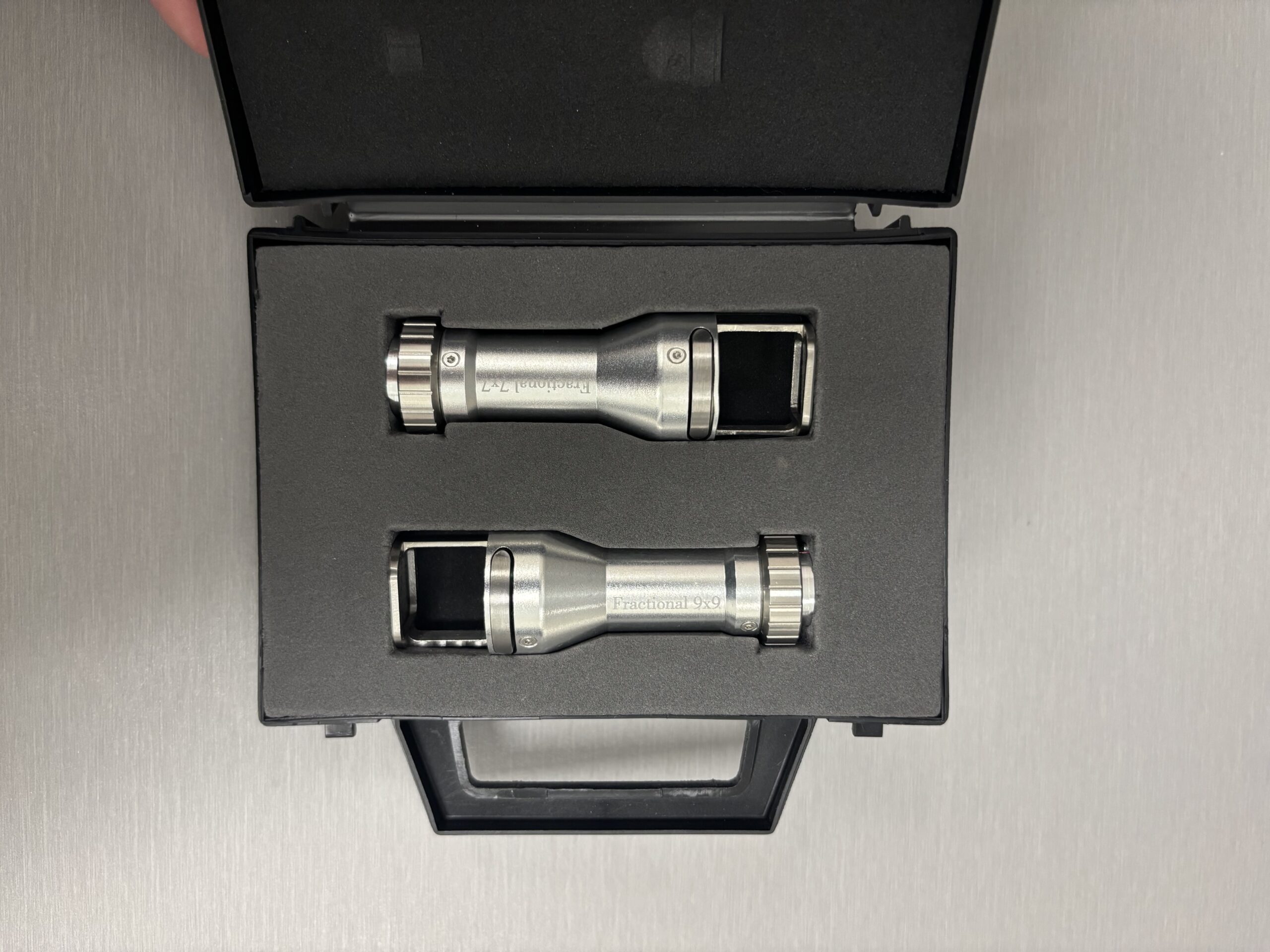

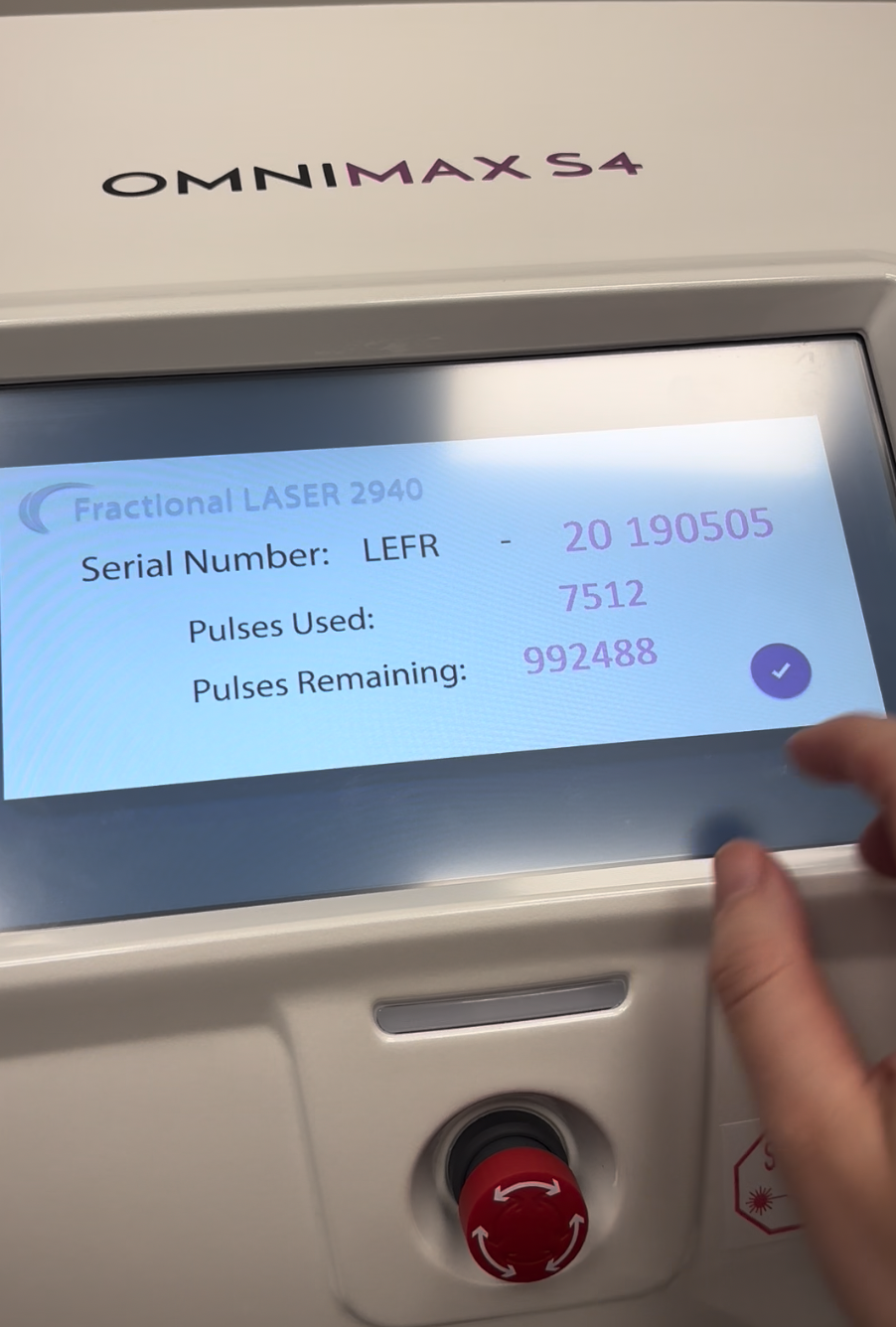

• Fractional 2940nm Er:YAG Fractional Laser for scar and skin rejuvenation treatments.

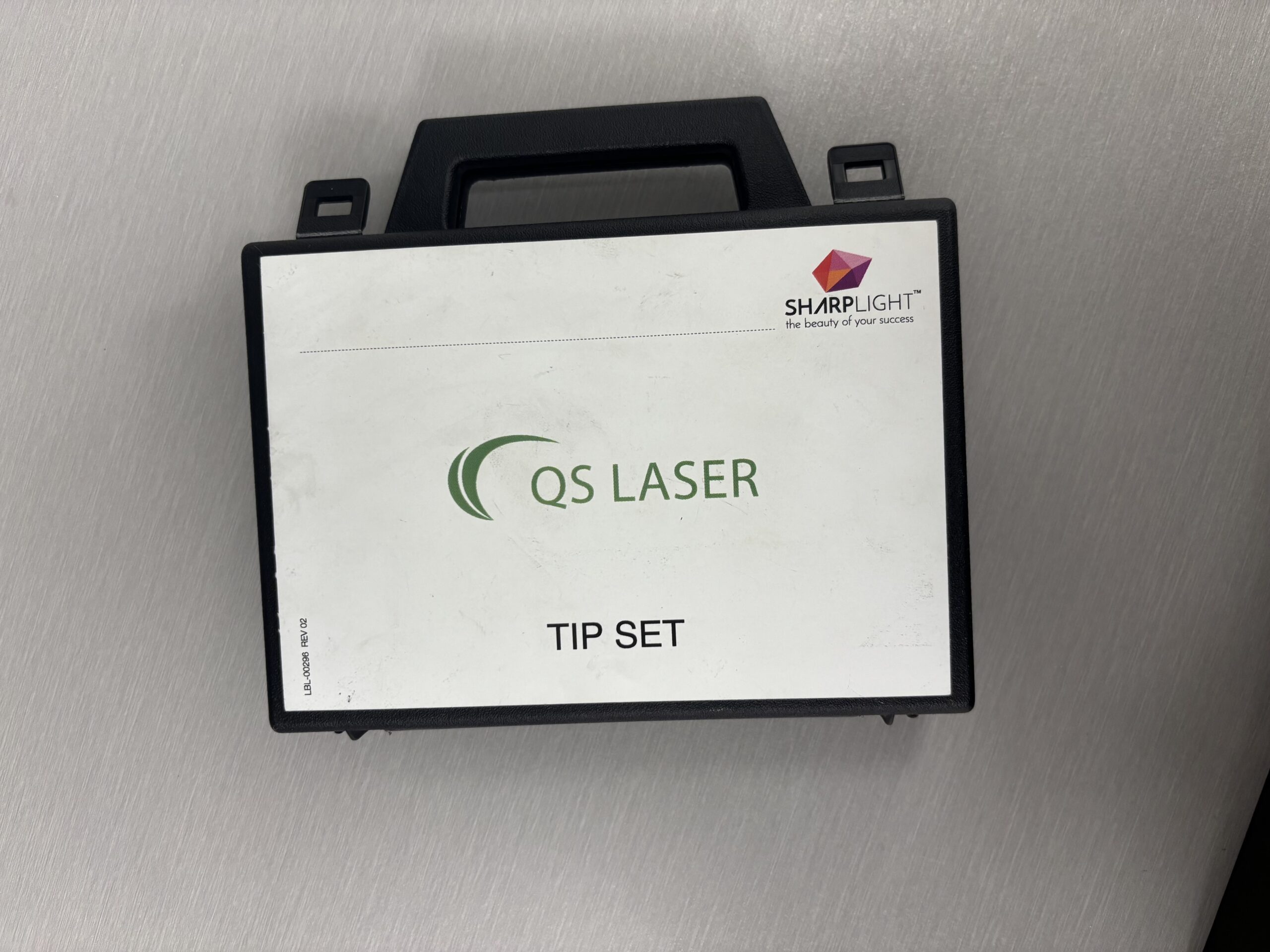

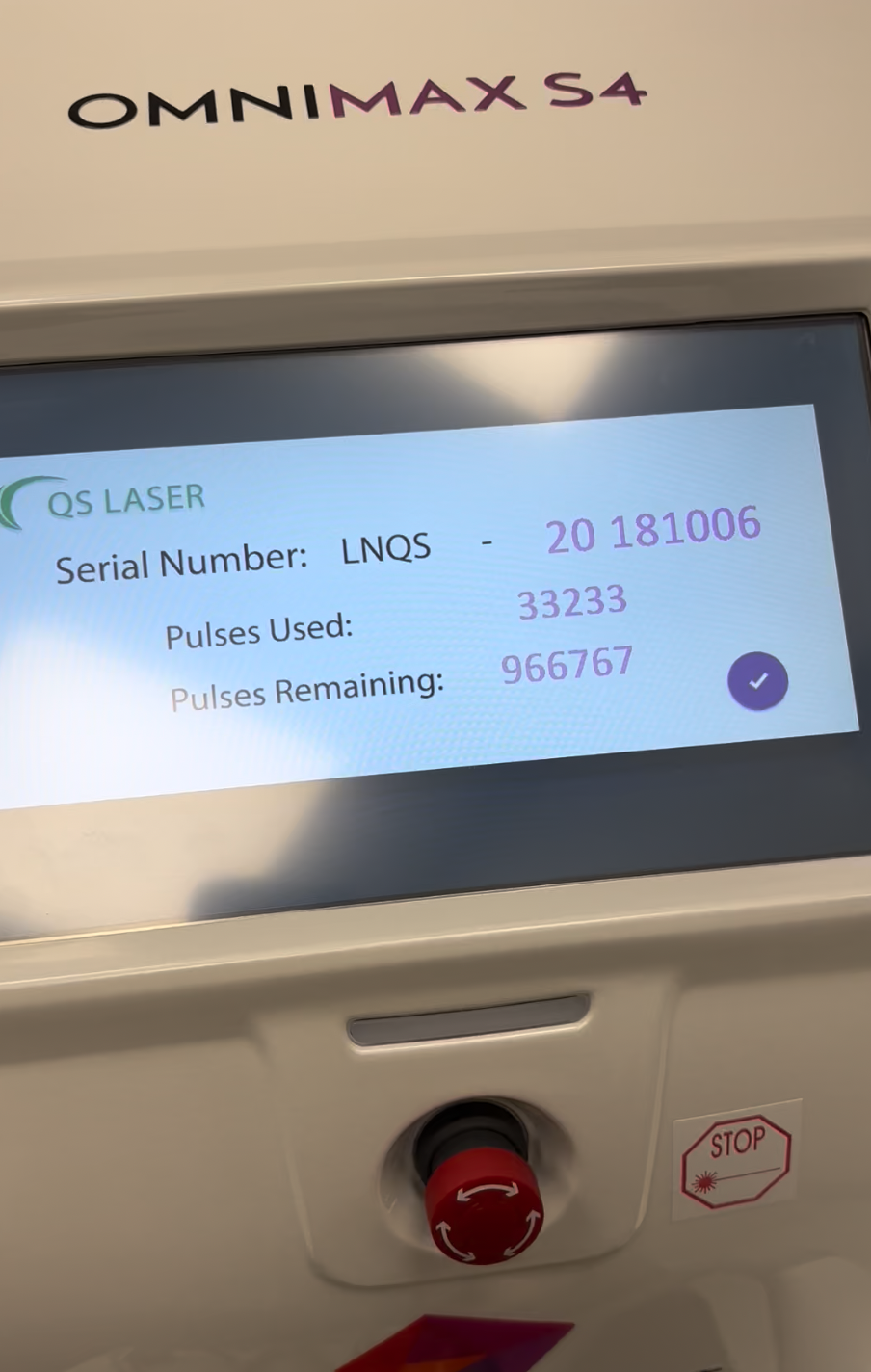

• QS 532nm/1064nm Nd:YAG Q Switched Laser for tattoo removal.

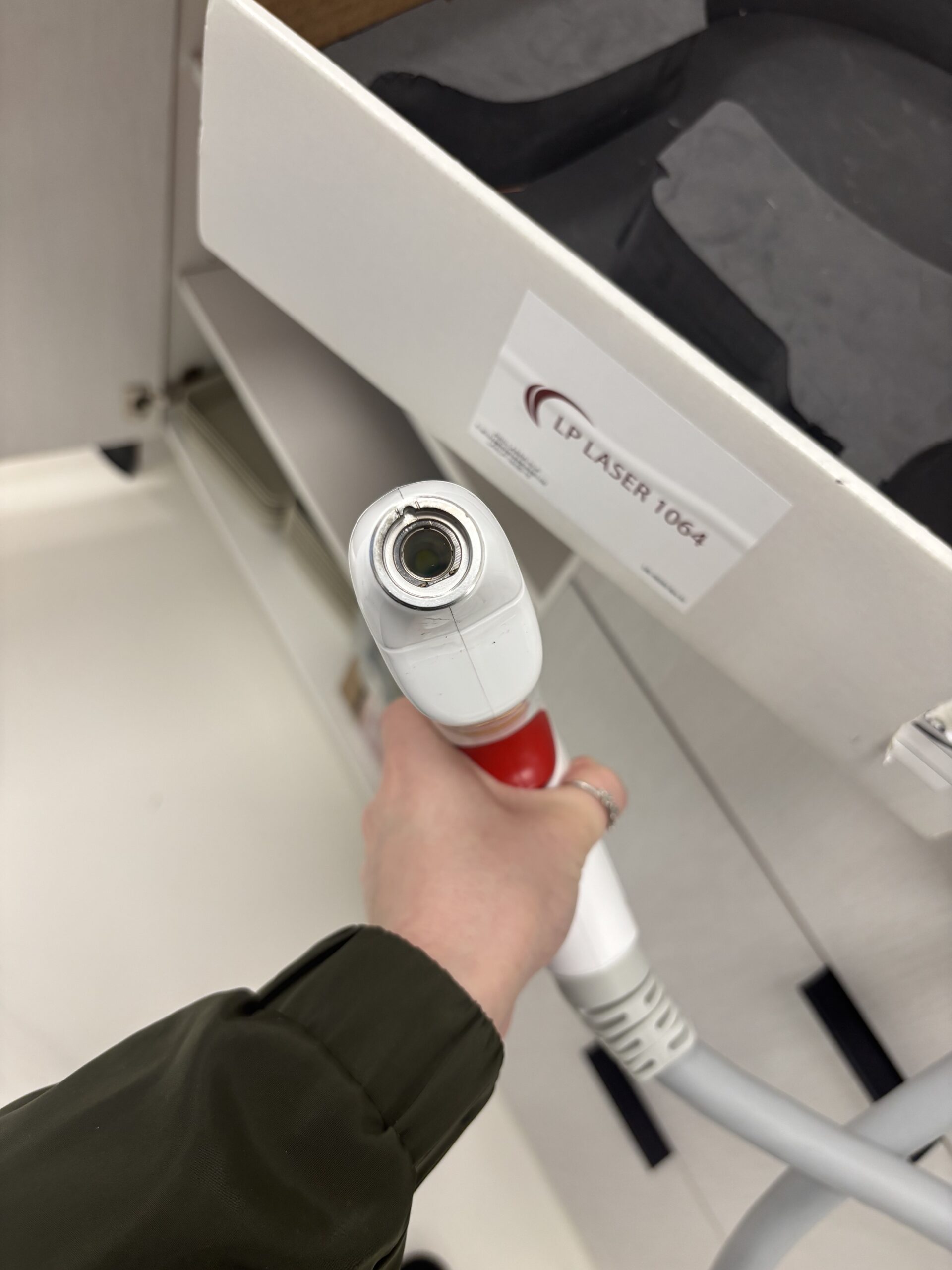

• LP 1064nm Nd:YAG  for deeper vascular lesions and hair reduction on certain skin types.

RF (Radio Frequency) Handpieces:

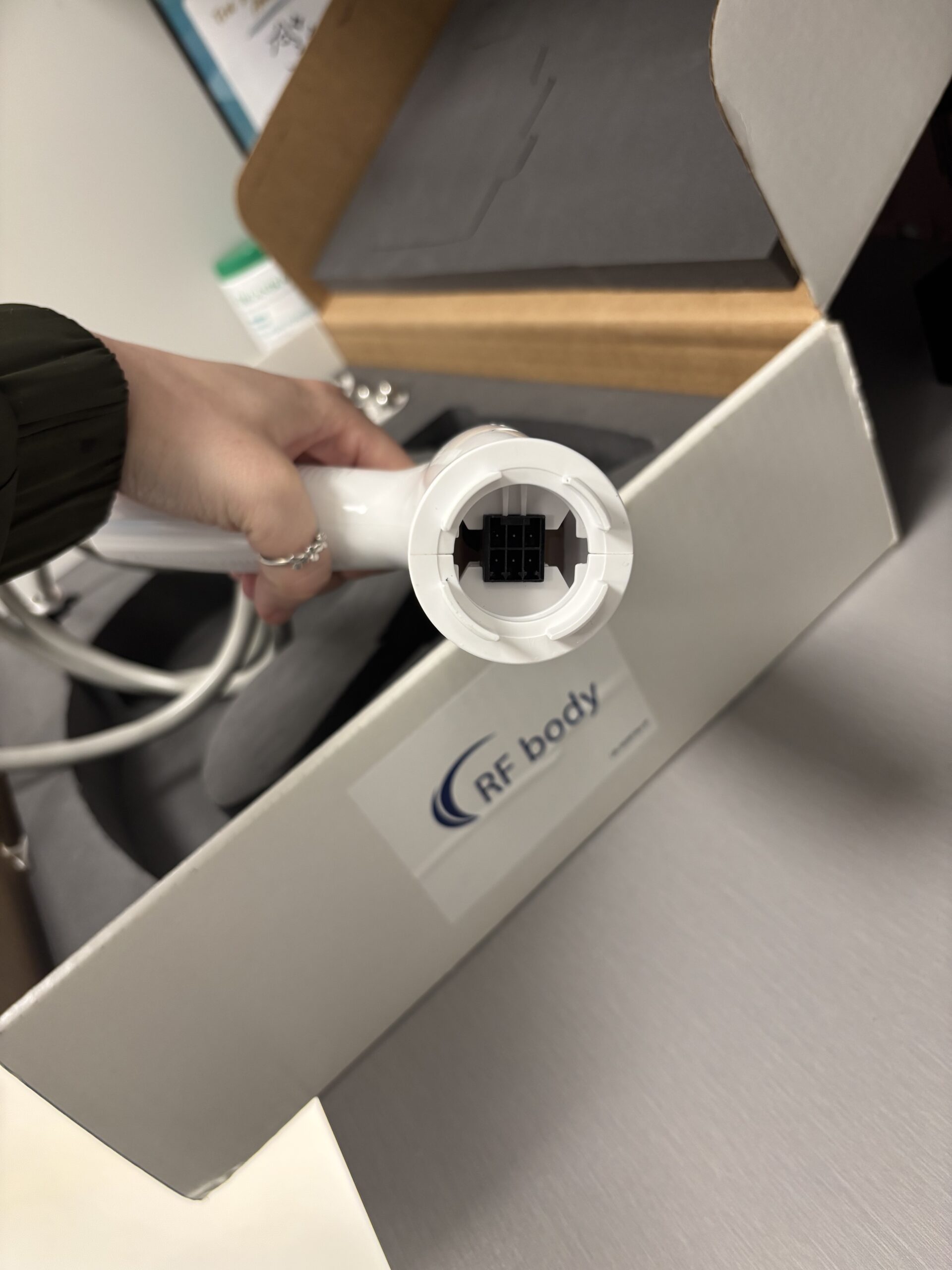

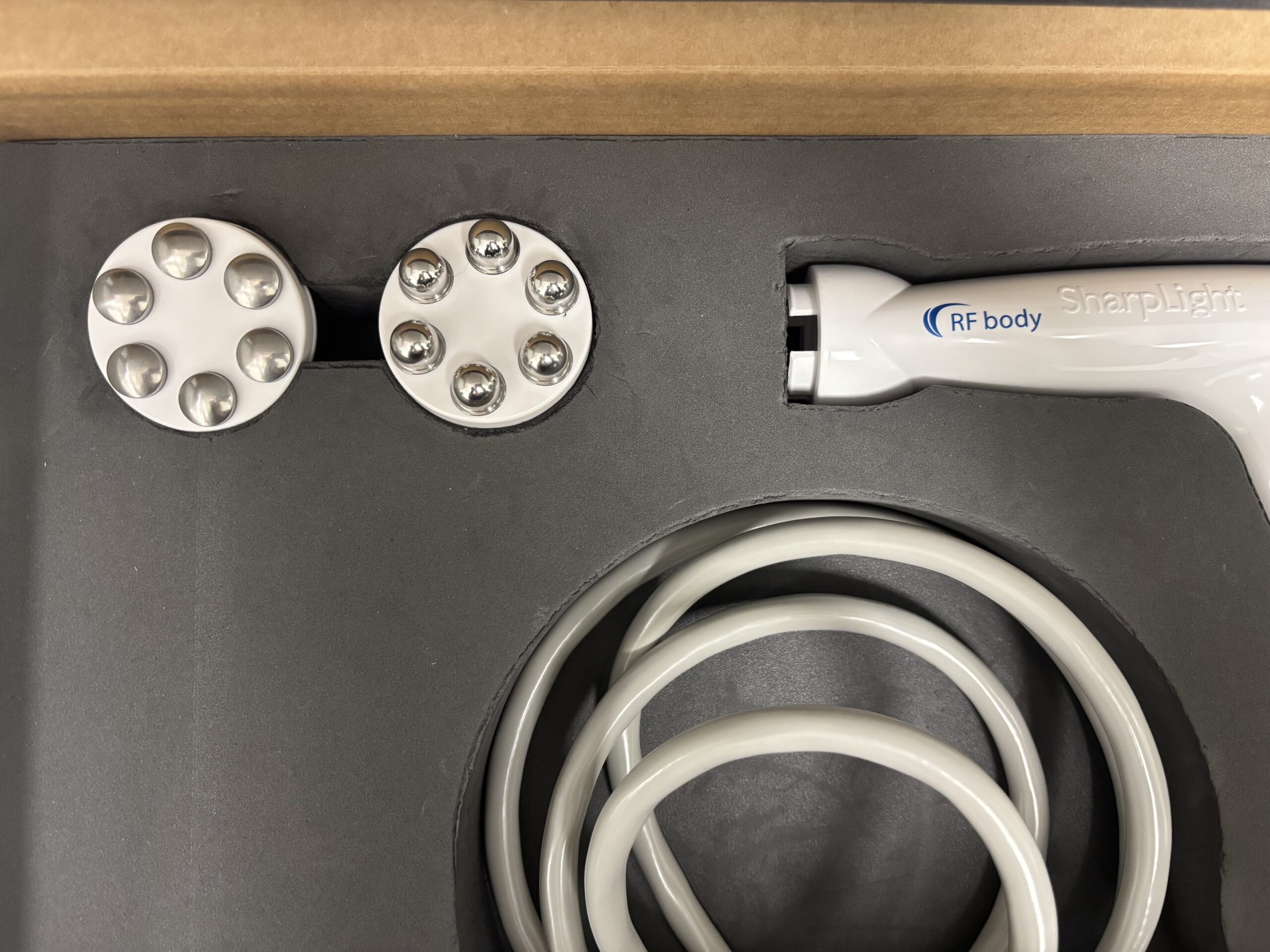

• RF Body: For body contouring, cellulite reduction, and skin tightening.

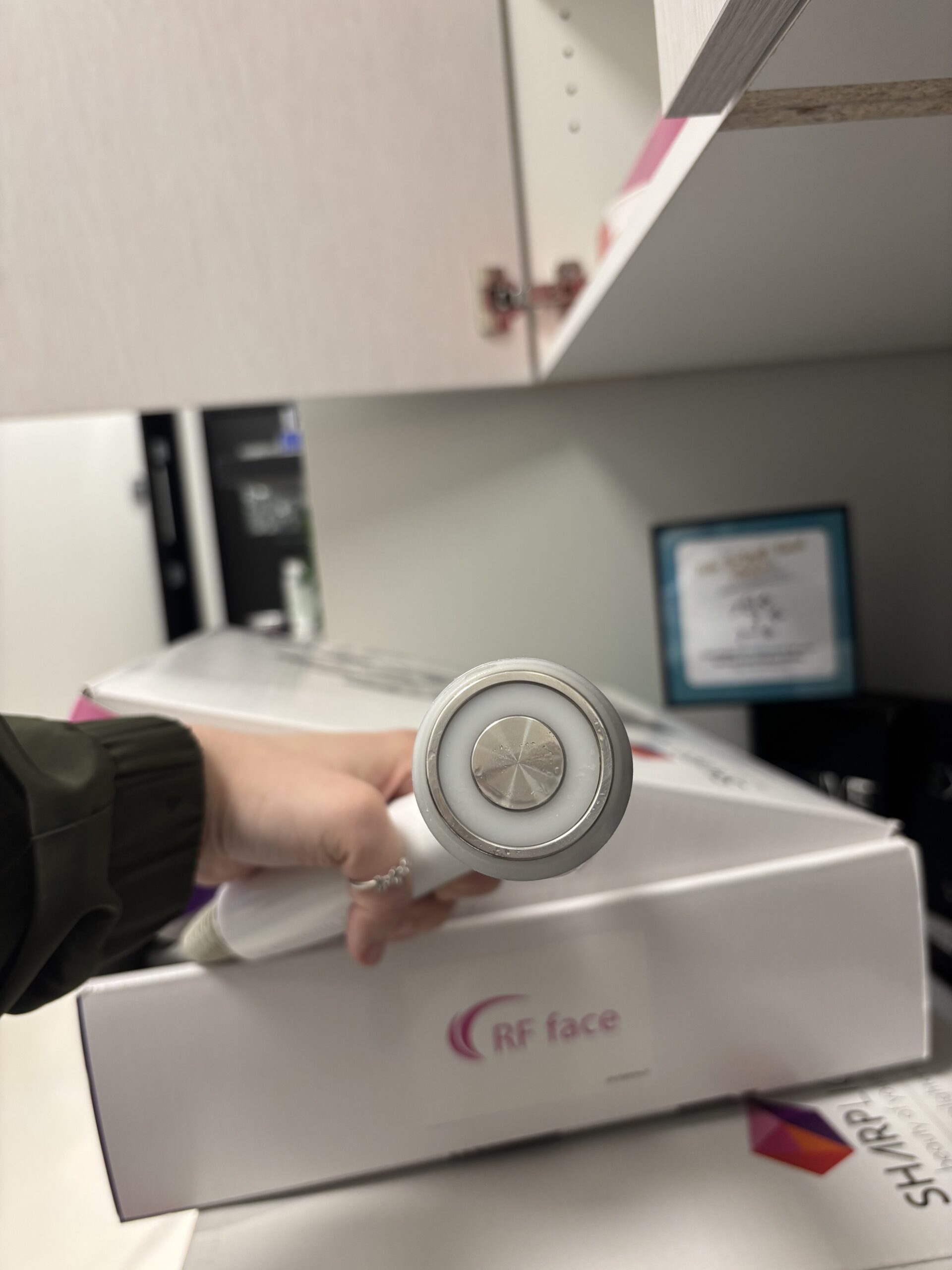

• RF Face: For facial fat reduction and contouring.

IR (Infrared) Handpieces:

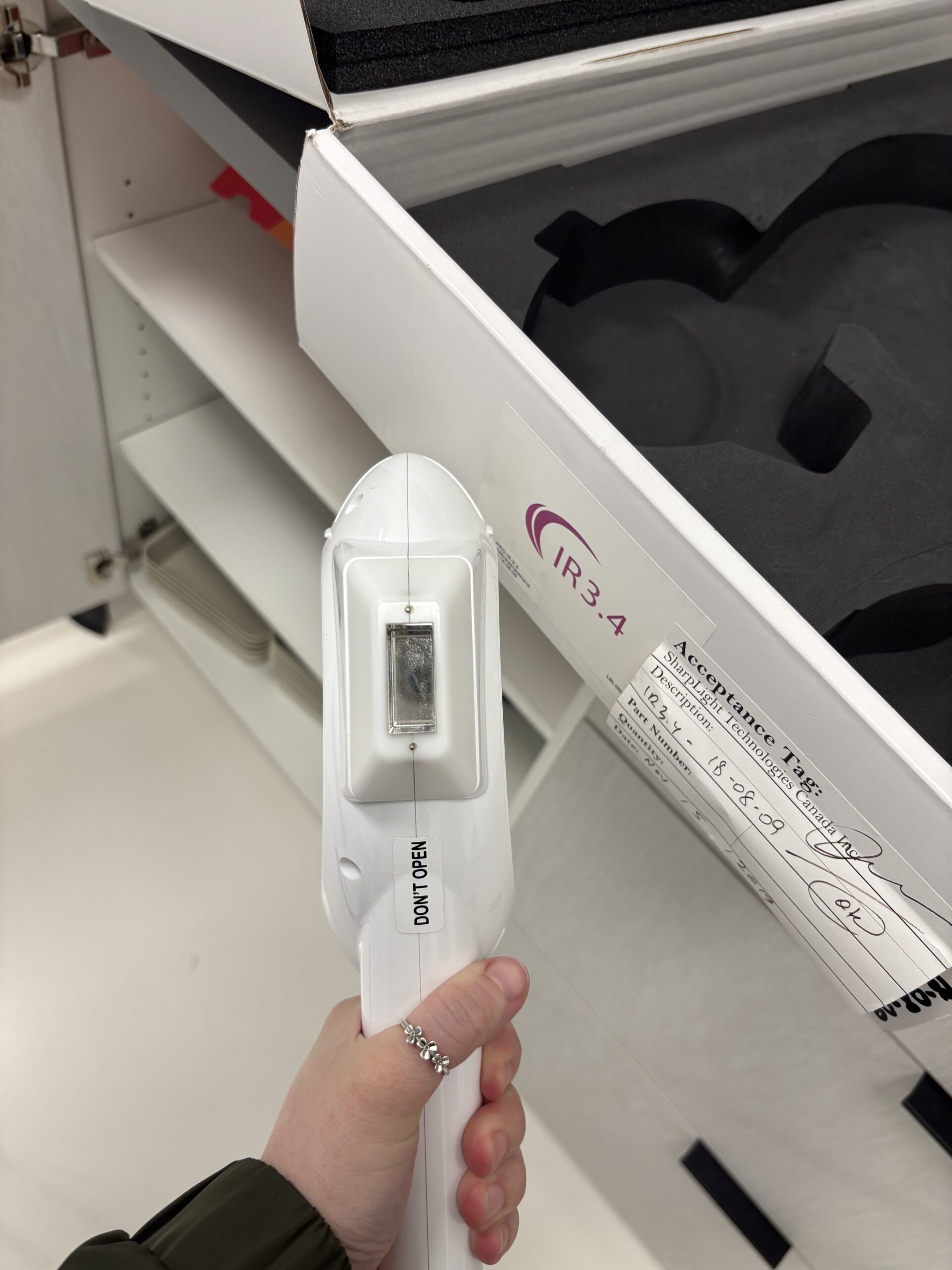

• IR 3.4: For skin tightening and rejuvenation of small areas like the face and décolleté.
• IR 6.4: For body contouring, tightening of lax skin, and wrinkle reduction.

Repetition Rate:

• DPC, Vermaderm, IR: Up to 0.66 Hz
• Fractional: Up to 3 Hzsmooth
• LP Laser: Up to 1 Hzsmooth/long
• QS Laser: Up to 3 Hzsmooth.

Laser Technologies:

• Er:YAG 2940nm Fractional Laser: For skin resurfacing, acne scar reduction, and pigmentation treatment.
• LP Laser: For hair removal, skin tightening, and striae reduction.
• DPC (HR): For hair removal with different wavelengths (580-950nm, 635-950nm, 730-950nm).
• IR: For skin tightening and rejuvenation.

Spot Size:

• DPC: 6.4 cm² (16mm x 40mm), 3.4 cm² (12mm x 28mm), 1.5 cm² (10mm x 15mm)
• IR: 6.4 cm² (16mm x 40mm), 3.4 cm² (12mm x 28mm).

Omnimax S4 MANUFACTURER NOTES

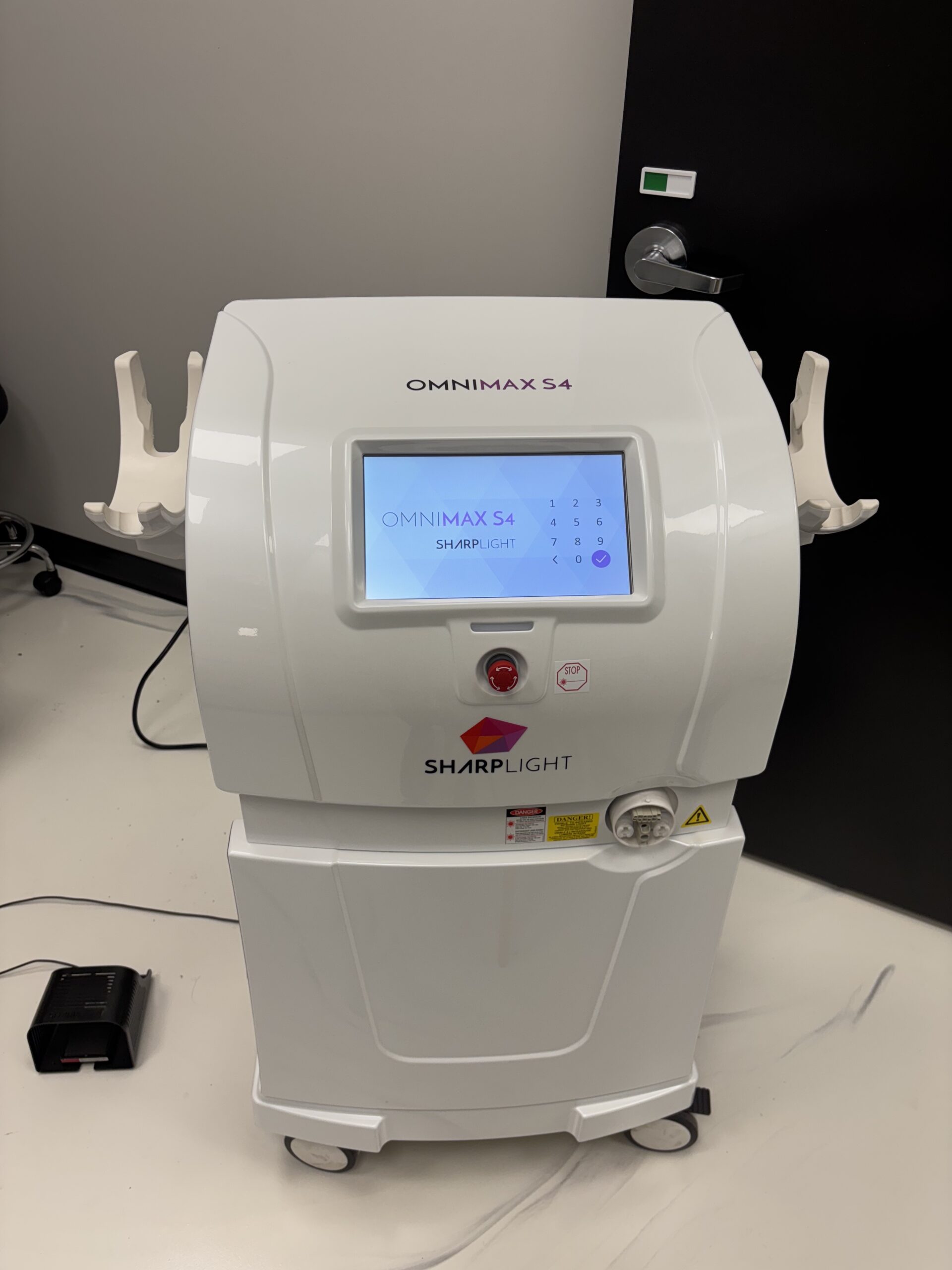

The OmniMax S4 is a multi-technology aesthetic device that utilizes a combination of technologies for various skin treatments. It offers a range of capabilities, including hair removal, skin rejuvenation, contouring, tattoo removal, and treatment of vascular and pigmented lesions. The S4’s key specifications include its ability to perform 14 different treatment options and over 60 indications.

Pulse Duration: DPC: 10-100ms, Vermaderm: Up to 6 seconds, Fractional Laser: 1-2ms, LP Laser: 10-30ms, and QS Laser: 10nsec.

Treatment Options:

• Hair removal.
• Skin rejuvenation.
• Contouring.
• Tattoo removal.
• Treatment of vascular and pigmented lesions.
• Fractional laser resurfacing.
• DPC for hair removal and skin rejuvenation.
• LP Laser for skin tightening and texture improvement.
• Vermaderm for skin tightening and rejuvenation.
• IR laser for collagen stimulation and skin tightening.
• RF technology for collagen stimulation and skin tightening.

Additional Features:

• 14 treatment options and over 60 indications.
• Increased number of pulses compared to previous models.
• Automatic selection of optimal treatment parameters based on skin type, hair type, and treatment goal.
• Different handpieces with varying wavelengths and spot sizes to address specific skin concerns.
