DualMax MANUFACTURER WARRANTY & RECERTIFICATION

Warranty Cost: A new warranty through SupraMedical can be added at a cost of $2,500 per year.

Recertification Fee: Can be obtained through SupraMedical at a cost of  $860 Online, or $2100 in the office 1580 SupraMedical Office: Sawgrass Corporate Pkwy Suite 130, Sunrise, FL 33323; 954-315-4668; [email protected]

DualMax PRODUCT SPECIFICATIONS

Light Source: Intense Pulsed Light, IPL (Xeon Flash Lamp)

Spectrum Range: 420 nm – 1200 nm

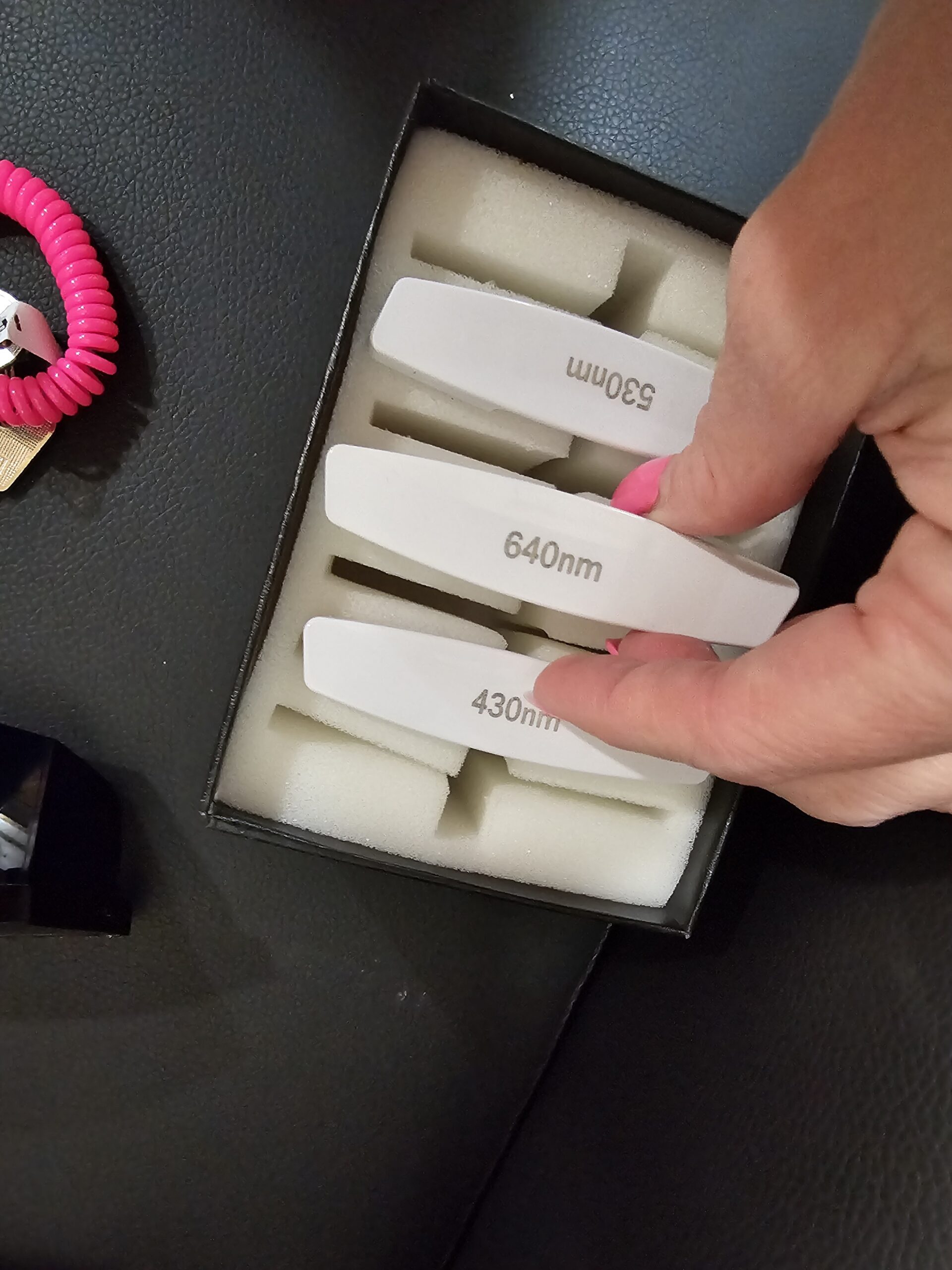

Filters Available:

430nm – Acne Clearance

530nm – Pigment & Vascular Lesions

640nm – Hair Removal for Lighter Skin Types I-II

690nm – Hair Removal for Darker Skin Types III-IV

750nm – Photo Skin Rejuvenation

Energy Density (Fluence): 10 – 60 J/cm2

IPL Peak Power: 2000 W (DualMax), 2500 W (DualMax II)

Pulse Method: Intense Pulsed Technology (can adjust)

Pulse Sequence: 1 – 5 pulses

Pulse Delay: 5 – 60 ms

Pulse Width: 2 – 20 ms

Pulse Duration: 1 – 15 ms

Pulse Repetition Rate: 0.2Hz to 10Hz (FDP)

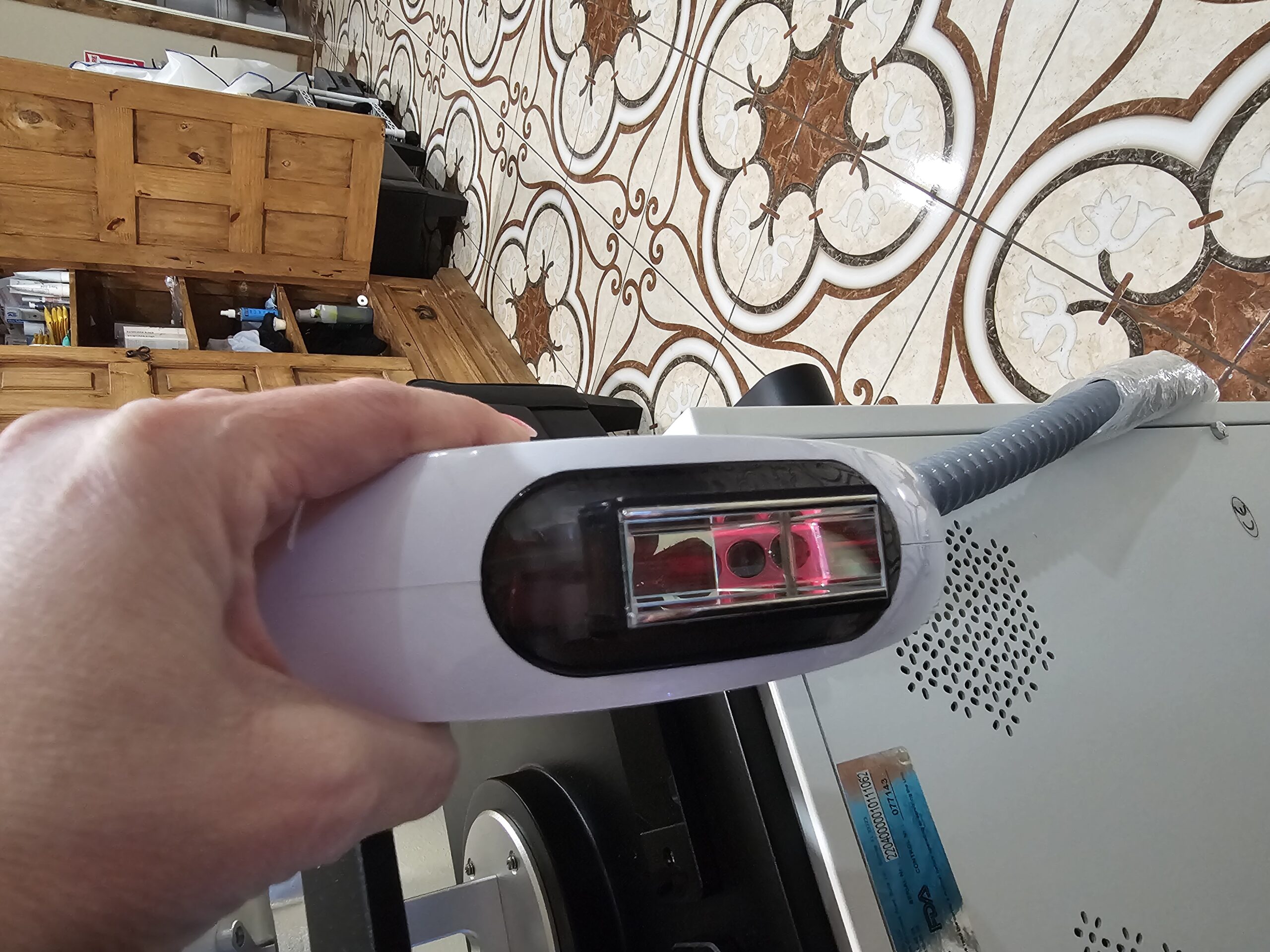

Delivery System: Direct Sapphire Coupling

Spot Size: 12mm x 30mm and 15mm x 50mm

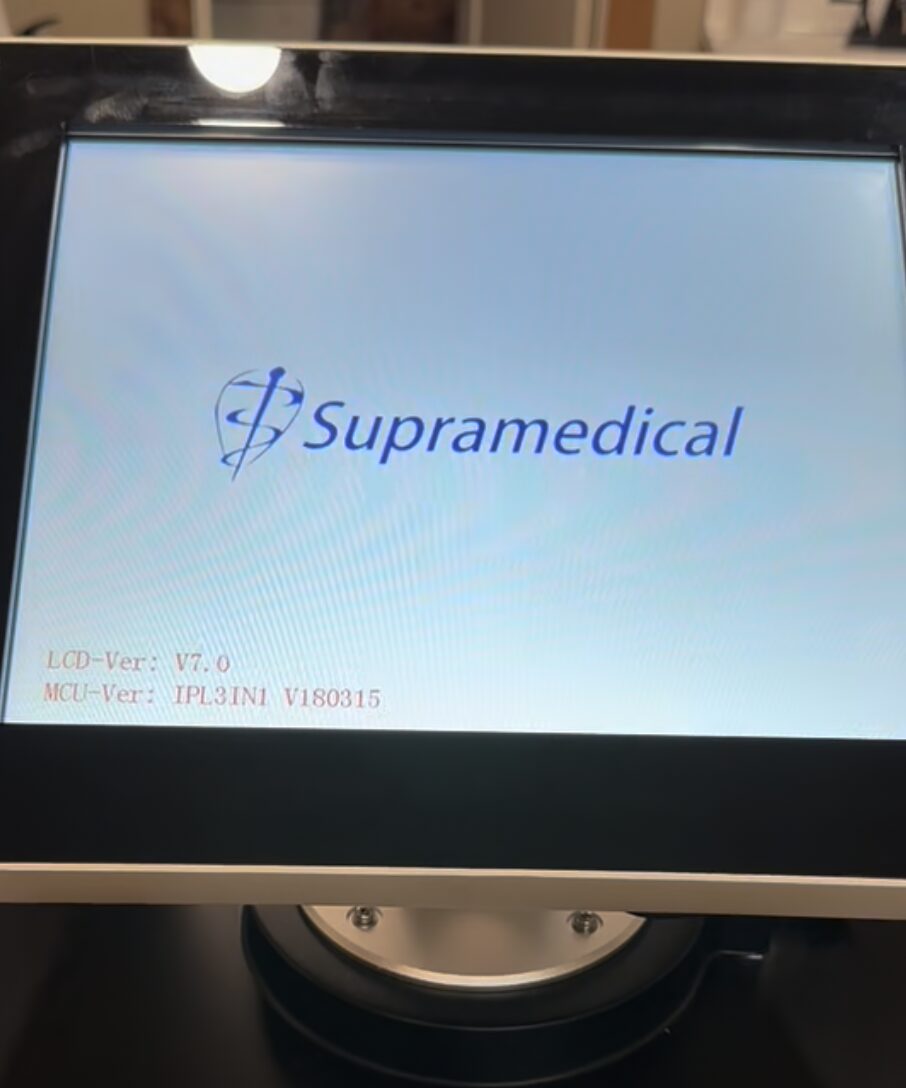

Operation Interface: 8.4 TFT True Color LCD Screen

Cooling System: Continuous Zaphire Crystal Contact Cooling – Water Cooling, Forced-Air Cooling and Semiconductor Cooling.

Cooling Temperature: -4 degrees celsius + 2 degrees celsius

Electrical Requirements: 100-240VAC, 20A max., 50/60Hz

DualMax MANUFACTURER NOTES

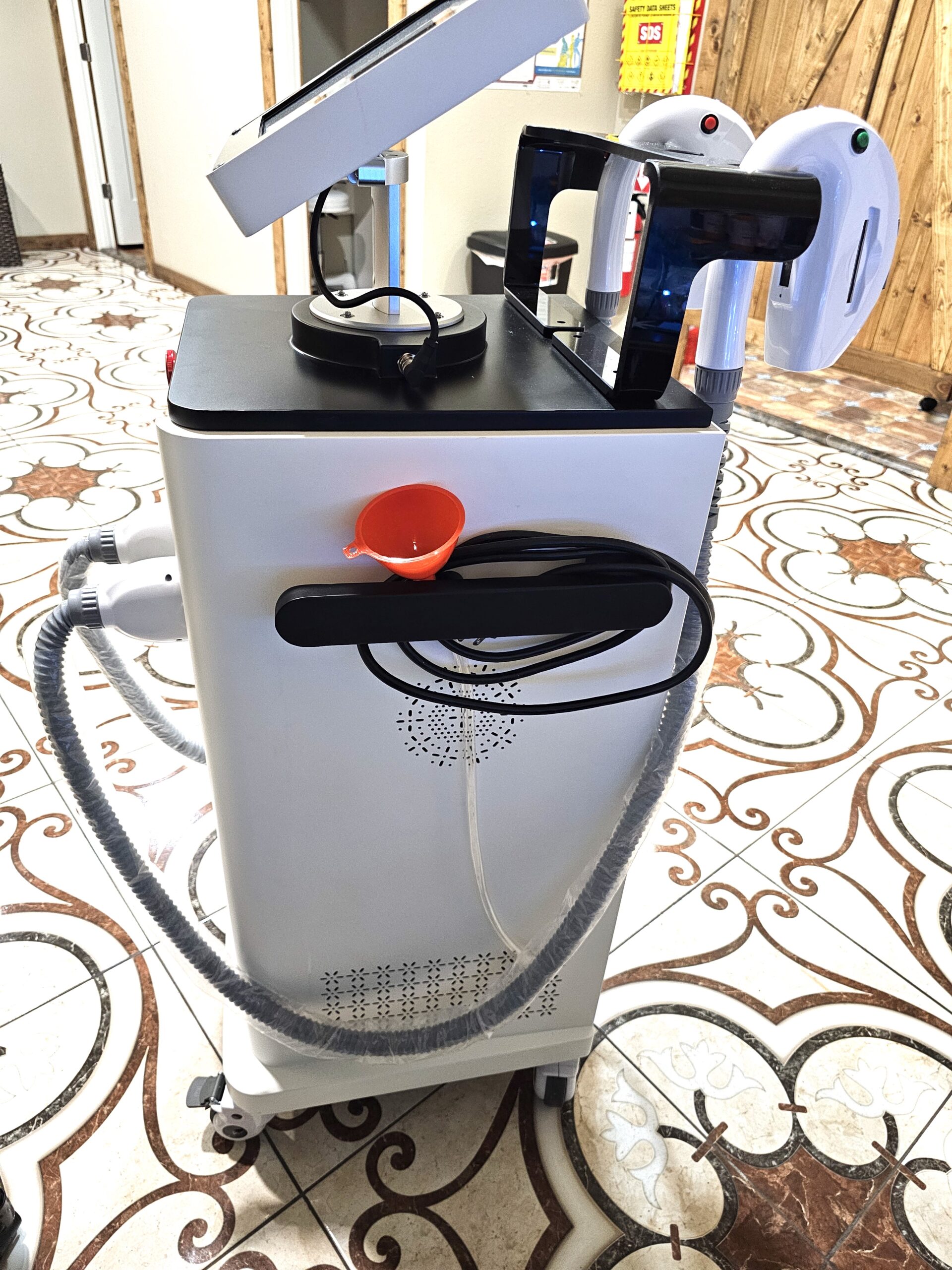

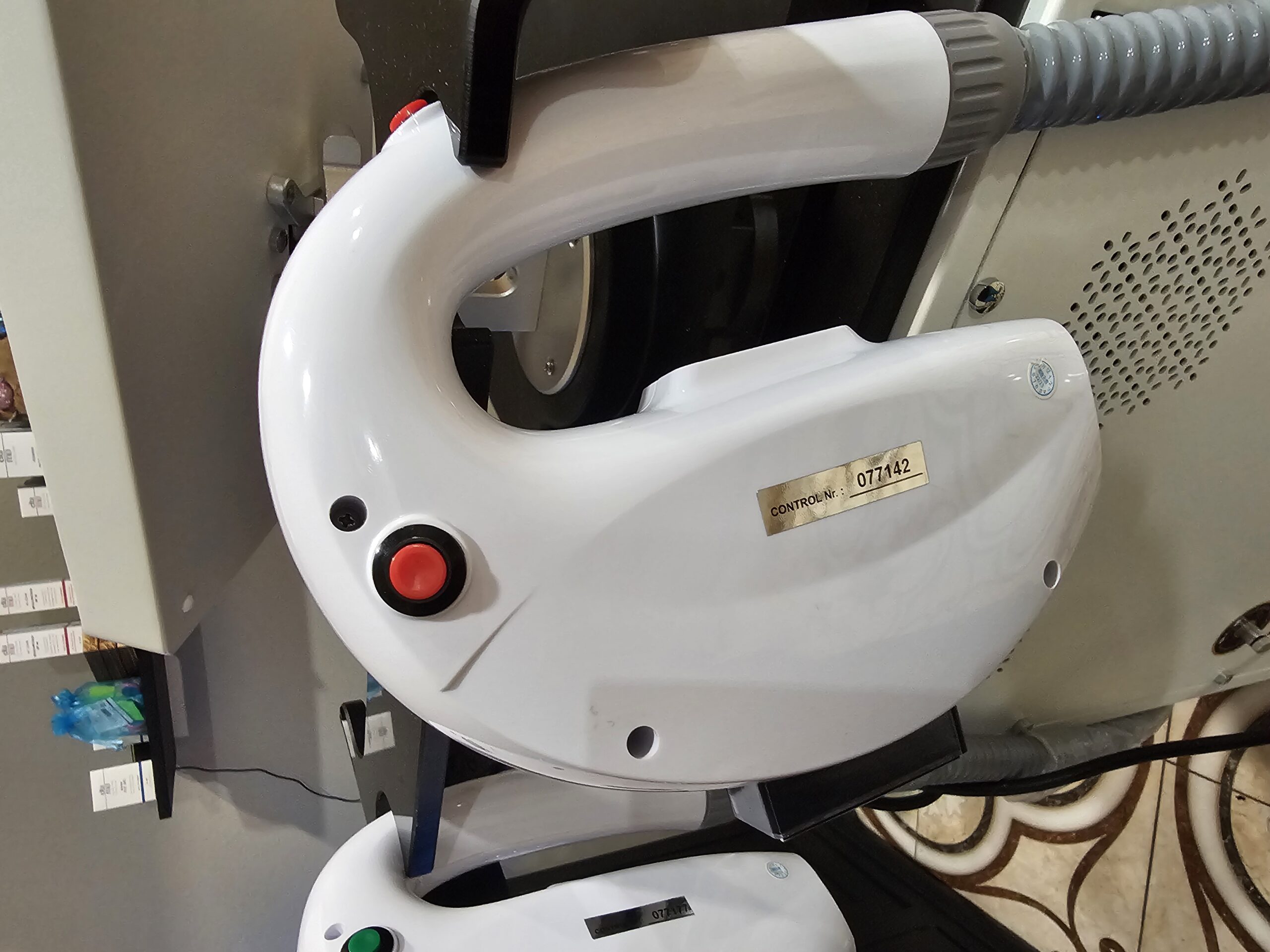

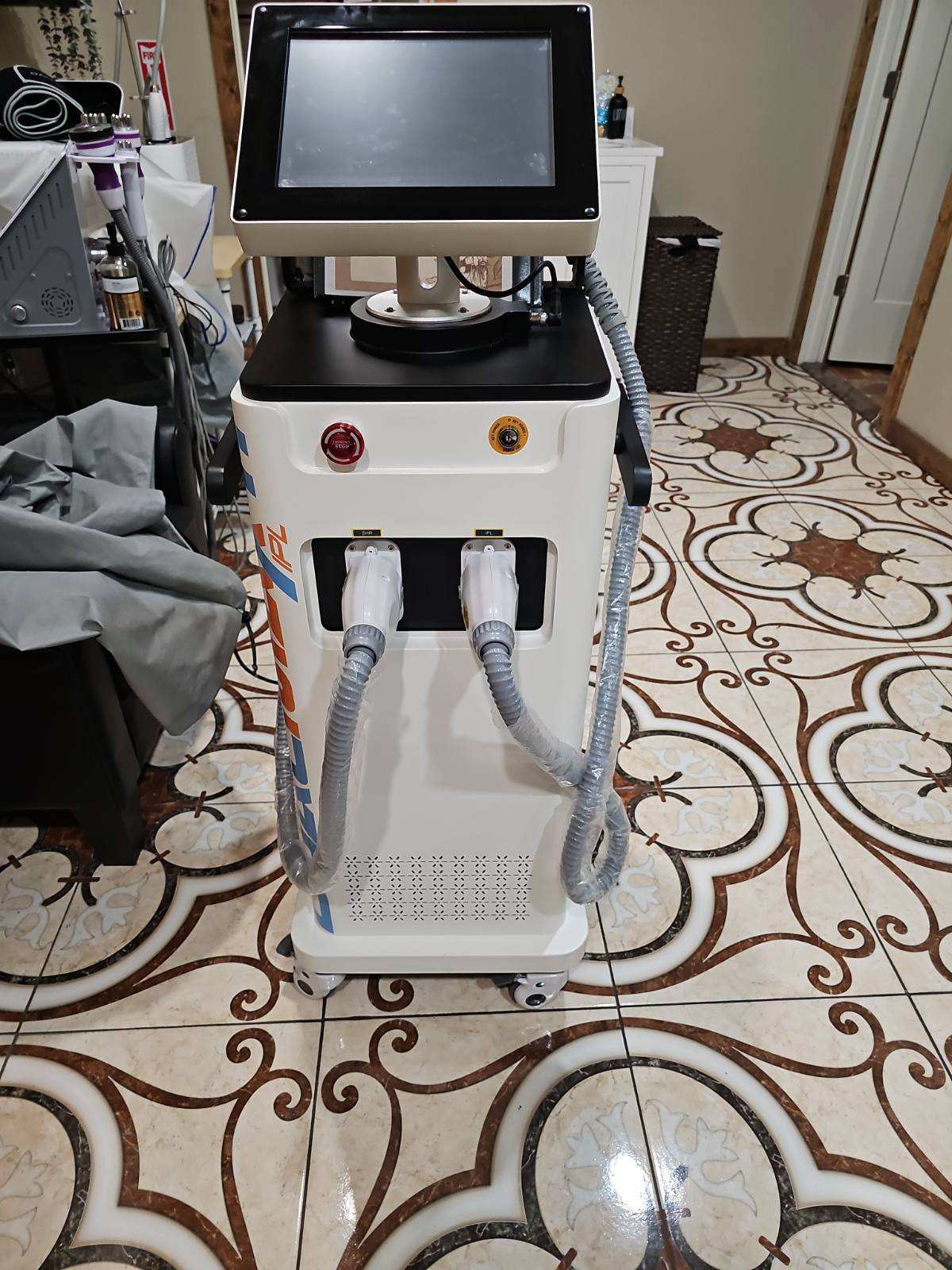

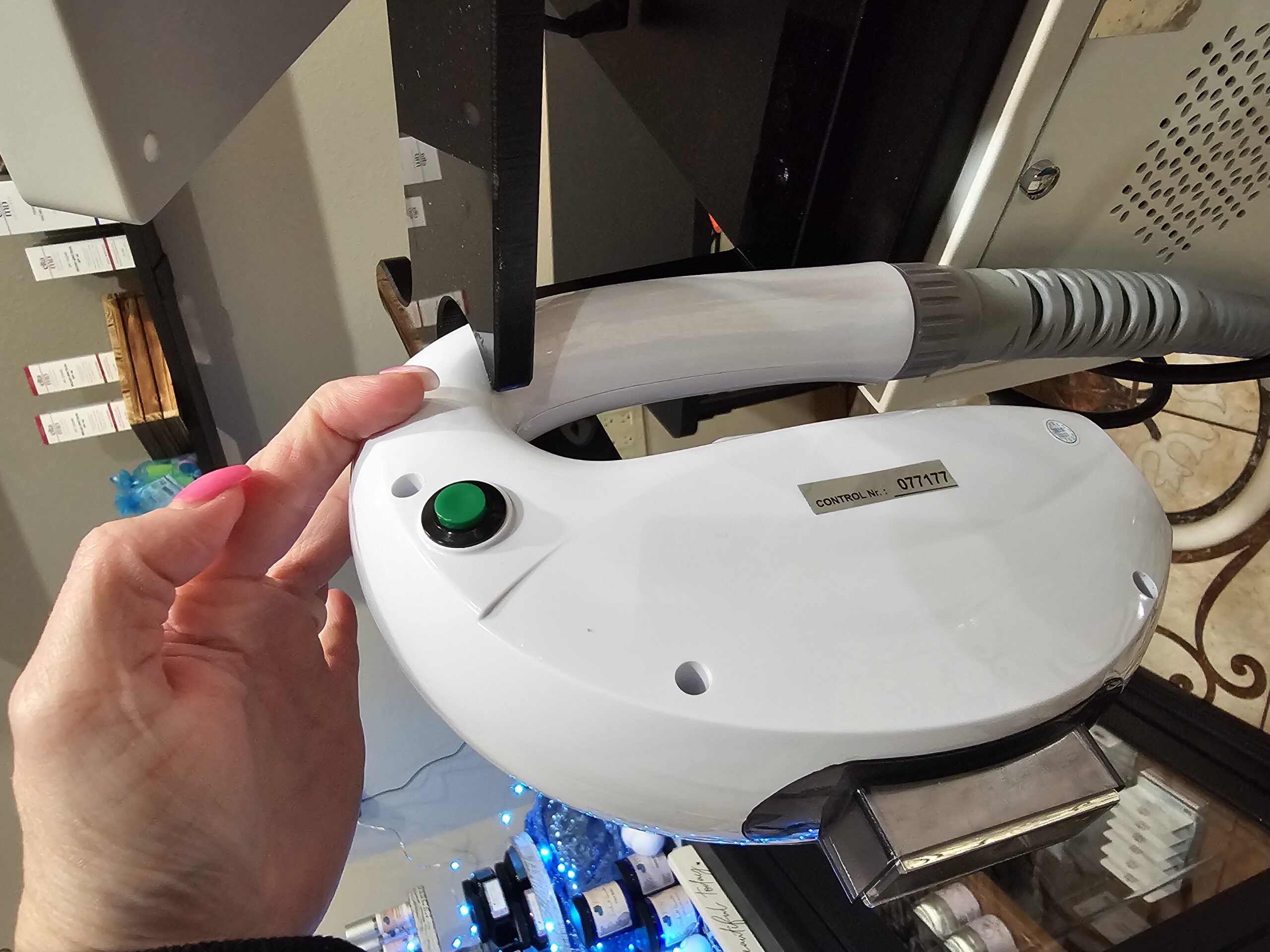

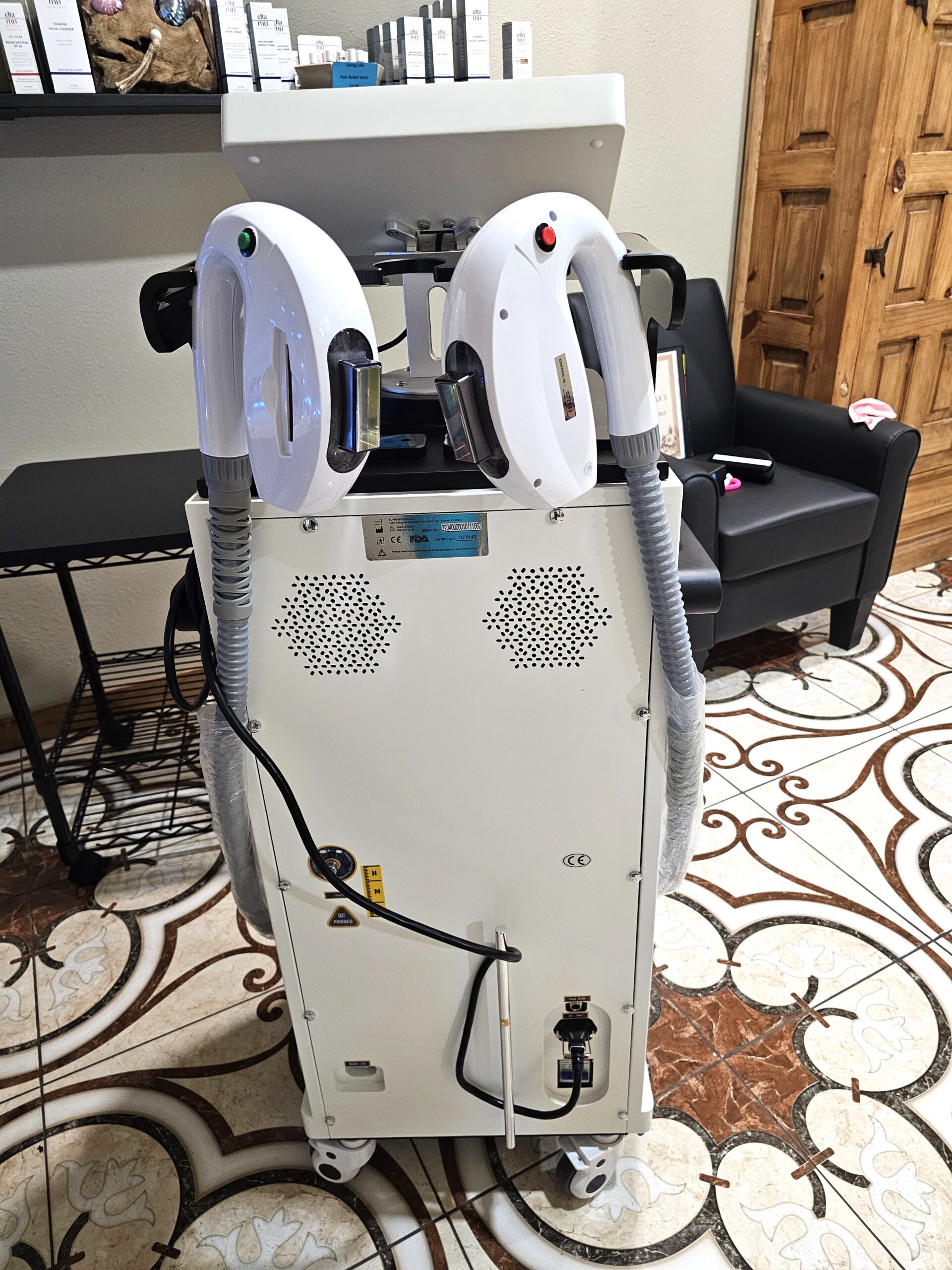

IPL at its best, Dualmax II is the most complete and powerful hair removal system, comes with two integrated self-cooled handpieces with different spot sizes so you can work very conveniently face or body, with its FDP (Fast Delivery Pulsed) also known as SHR technology (up to 15Hz), this machine is the best definition of super effective, reliable and pain free.

Great quality combined with technology will guarantee an excellent machine for a long time. With Dualmax II, you get the best of the most popular and profitable applications:

Applications:

• Hair removal
• Photo-rejuvenation
• Hyperpigmentation
• Vascular Lesions
• Acne

Simple and low maintenance, no consumables and a friendly software make this machine very easy to use: choose between preset mode or manual (professional) mode, choose gender, Fitzpatrick classification, and other skin features and voilà, you’re ready to perform! We guarantee our handpieces, train you and support you all the way after-sale so you feel comfortable with the machine and get the most of it, achieving satisfied clients with great results.

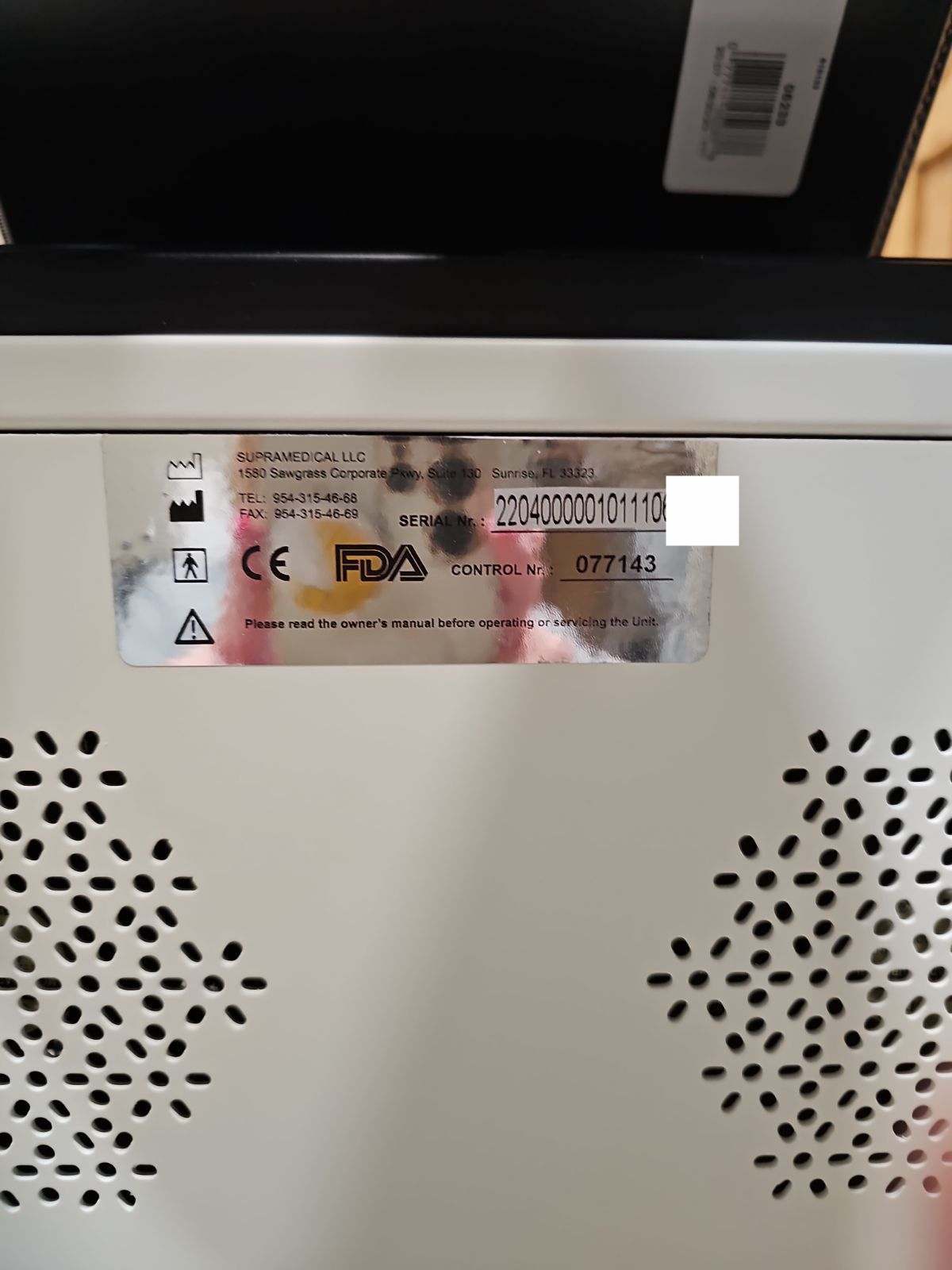

FDA approved.

Lamps lifespan: 150,000+ pulses.

German-American Technology.
